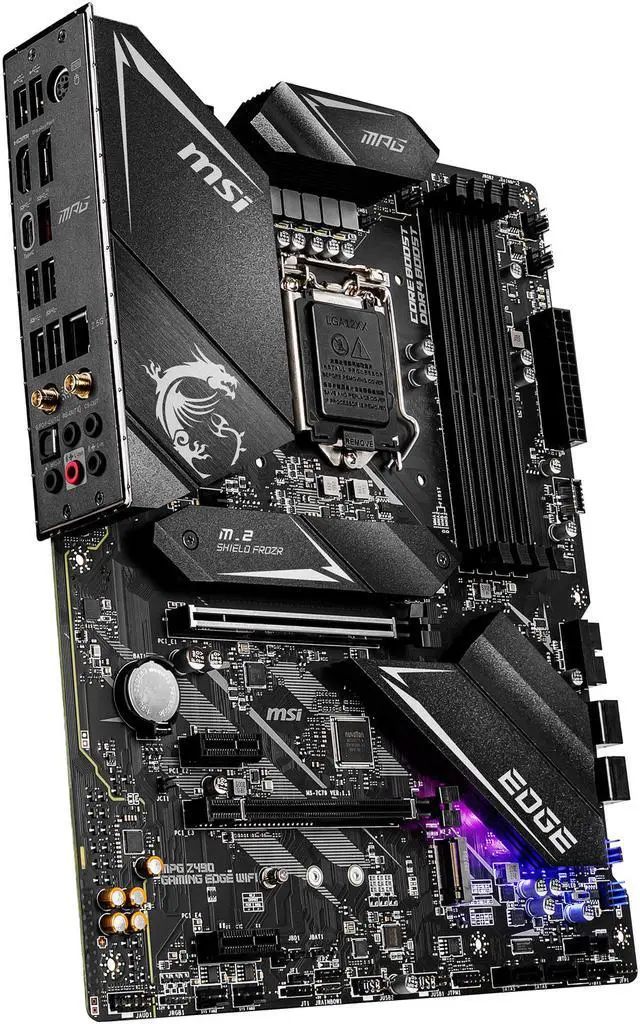

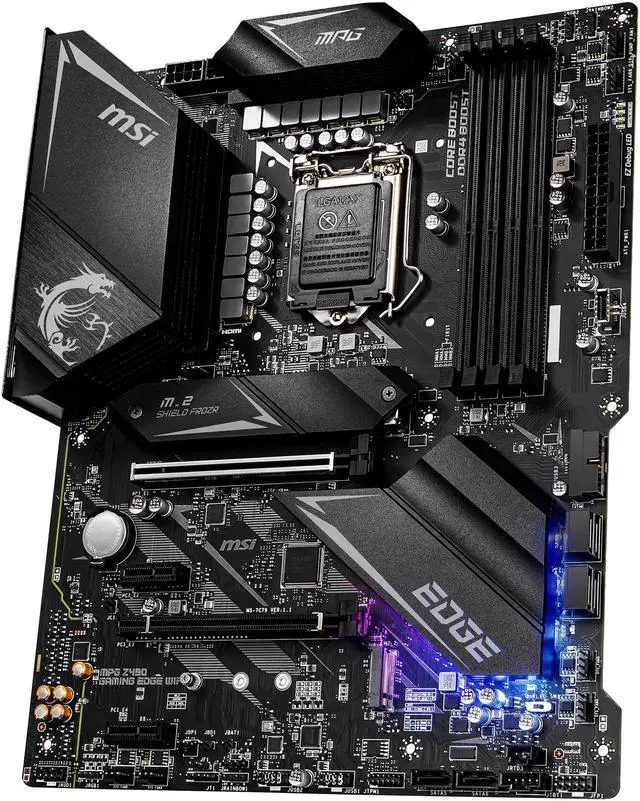

MSI MPG Z490 GAMING EDGE WIFI LGA 1200 Intel Z490 ATX Intel Motherboard
REFURBISHED Product Type
- Intel Z490
- Supports 11th Gen Intel Core processors
- Supports 10th Gen Intel Core processors
- Supports Intel Pentium Gold and Celeron processors
- DDR4 5000(OC) / 4800(OC) / 4600(OC) / 4533(OC) / 4400(OC) / 4300(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3300(OC) / 3200(OC) / 3000(OC) / 2933(JEDEC) / 2666(JEDEC) / 2400(JEDEC) / 2133(JEDEC)
+
+
Learn more about the MSI MPG Z490 GAMING EDGE WIFI
| Brand | MSI |
|---|---|
| Model | MPG Z490 GAMING EDGE WIFI |
| CPU Socket Type | LGA 1200 |
|---|---|
| CPU Type | Supports 11th Gen Intel Core processors* Supports 10th Gen Intel Core processors* Supports Intel Pentium Gold and Celeron processors* * BIOS updated to be compatible with 11th Gen Intel Core Processors. * Onboard graphics output are disabled when using the F SKU processors. |
| Chipset | Intel Z490 |
|---|
| Onboard Video Chipset | Supported only by CPU with integrated graphic |
|---|
| Number of Memory Slots | 4x288pin (DDR4) |
|---|---|
| Memory Standard | DDR4 5000(OC) / 4800(OC) / 4600(OC) / 4533(OC) / 4400(OC) / 4300(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3300(OC) / 3200(OC) / 3000(OC) / 2933(JEDEC) / 2666(JEDEC) / 2400(JEDEC) / 2133(JEDEC) |
| Maximum Memory Supported | 128GB |
| Channel Supported | Dual Channel |
| PCI Express 3.0 x16 | 2 x PCI Express 3.0 x16 |
|---|---|
| PCI Express x1 | 2 x PCI Express x1 |
| Serial ATA (SATA) | 6 x SATA 6Gb/s* * SATA2 will be unavailable when installing M.2 SATA SSD in the M2_1 slot. |
|---|---|
| M.2 | 2 x M.2 slots (Key M): Supports up to PCIe 3.0 x4 and SATA 6Gb/s M2_1 slot supports 2242/2260/2280/22110 storage devices* M2_2 slot supports 2242/2260/2280 storage devices** * SATA2 will be unavailable when installing M.2 SATA SSD in the M2_1 slot. ** SATA5 & SATA6 will be unavailable when installing M.2 SATA/PCIe SSD in the M2_2 slot. |
| Intel Optane Ready | Intel Optane Memory Ready* * Before using Intel Optane memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website. |
| SATA RAID | 0/1/5/10 |
| Audio Chipset | Realtek ALC1200-VD1 |
|---|---|
| Audio Channels | 7.1 Channels |
| LAN Chipset | Realtek RTL8125B-CG |
|---|---|
| Max LAN Speed | 2.5Gbps |
| Wireless LAN | Intel AX201 802.11a/b/g/n/ac/ax |
| Bluetooth | Bluetooth 5.1 |

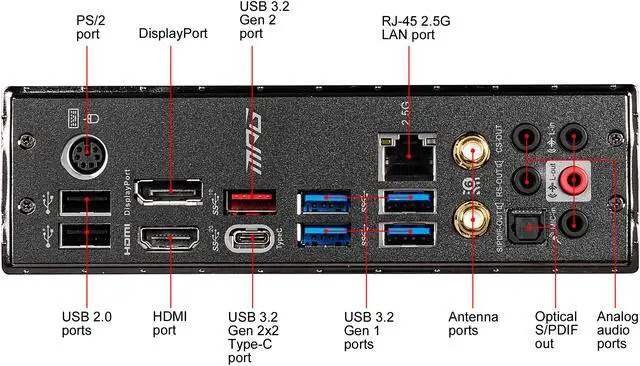

| Back I/O Ports | 1 x DisplayPort 1 x HDMI 1 x LAN (RJ45) 1 x Optical S/PDIF Out 1 x PS/2 Keyboard/Mouse Combo 1 x USB 3.2 Gen 2 Type-A 1 x USB 3.2 Gen 2x2 Type-C 2 x USB 2.0/1.1 4 x USB 3.2 Gen 1 Type-A 5 x Audio Jacks Wi-Fi / Bluetooth |
|---|
| Onboard USB | 1 x USB 3.2 Gen 1 5Gbps Type-C port 1 x USB 3.2 Gen 1 5Gbps connector (support additional 2 USB 3.2 Gen 1 5Gbps ports) 2 x USB 2.0 connectors (support additional 4 USB 2.0 ports) |
|---|---|
| Other Connectors | 1 x 4-pin CPU fan connector 1 x 4-pin water pump connector 6 x 4-pin system fan connectors 1 x front panel audio connector 2 x system panel connectors 1 x chassis intrusion connector 1 x Clear CMOS jumper 2 x 4-pin RGB LED connectors 2 x 3-pin RAINBOW LED connectors 1 x TPM module connector 1 x TBT connector* 1 x RTD3 connector * Thunderbolt card need support RTD3 |
| Form Factor | ATX |
|---|---|
| LED Lighting | RGB |
| Dimensions (W x L) | 12.0" x 9.6" |
| Power Pin | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector |
| Features | Supports 10th Gen Intel Core, 11th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1200 socket Supports DDR4 Memory, up to 5000(OC) MHz Ready 4 the Future: Support Lightning Gen 4 Solution for the future Enhanced Power Design: 12+1+1 Duet Rail Power System, 8+4-pin CPU power connectors, Core Boost, DDR4 Boost Premium Thermal Solution: Aluminum Cover with Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop gaming experience Lightning USB 20G: Powered by ASmedia 3241 USB 3.2 Gen2x2 controller, offering never before seen USB speeds up to 20Gb/s with USB Type-C 2.5G LAN with LAN Manager and Intel Wi-Fi 6 AX Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection MYSTIC LIGHT: 16.8 million colors / 29 effects controlled in one click. MYSTIC LIGHT EXTENSION supports both RGB and RAINBOW LED strip Pre-installed I/O Shielding: Better EMI protection and more convenience for installation Audio Boost: Reward your ears with studio grade sound quality |
|---|
| First Listed on Newegg | March 11, 2025 |
|---|
