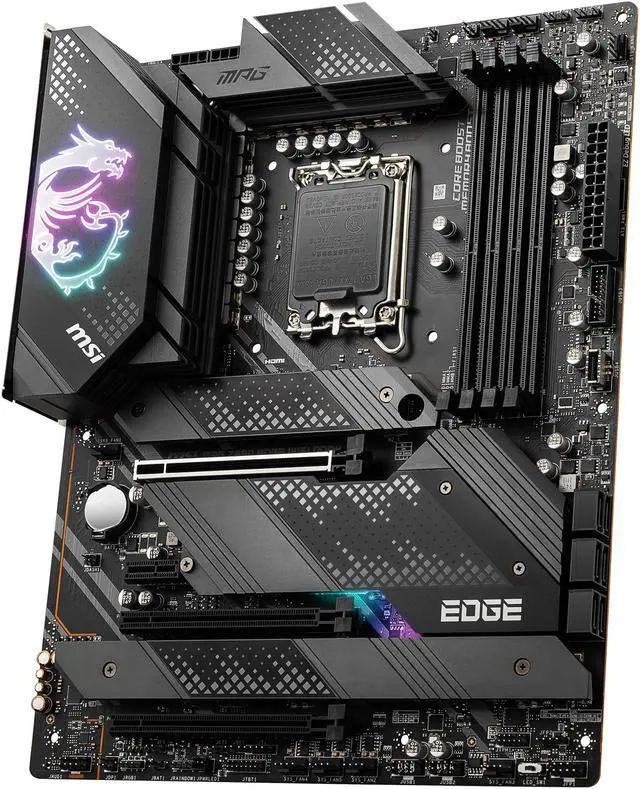

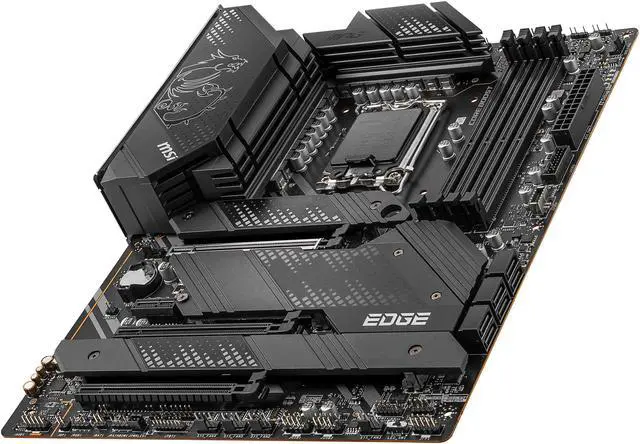

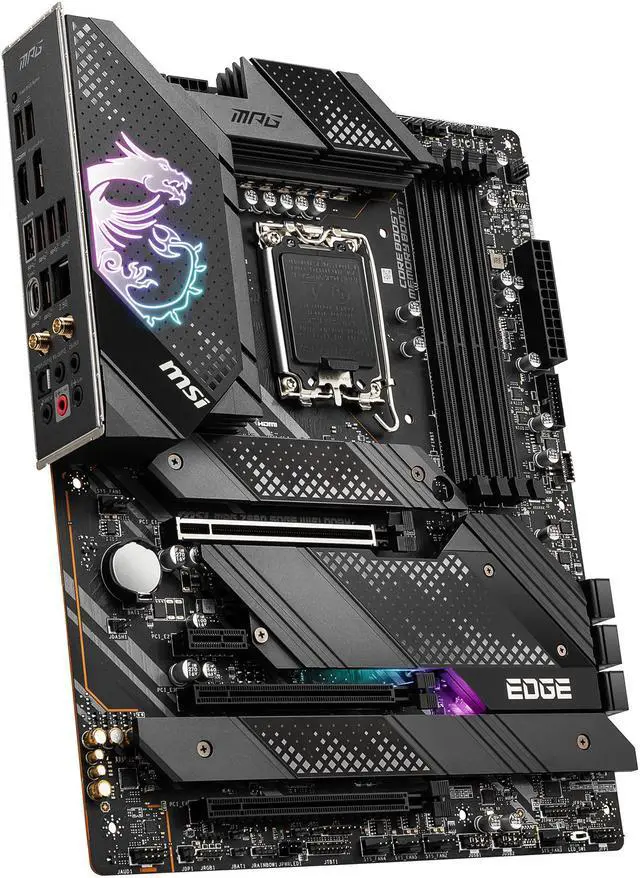

MSI MPG Z690 EDGE WIFI DDR5 LGA 1700 Intel Z690 SATA 6Gb/s ATX Intel Motherboard
REFURBISHED Product Type
- Supports 12th Gen Intel Core / Pentium Celeron processors for LGA 1700 socket.
- Supports 13th gen Intel Core desktop processors.
- May require a BIOS update to boot the 13th gen Intel Core desktop processors.
- Supports DDR5 Memory, up to 6400+(OC) MHz
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2
- Enhanced Power Design: Direct 16+1+1 phases power, dual 8-pin CPU power connectors, Core Boost, Memory Boost
- Premium Thermal Solution: Aluminum cover with heatsink, heat-pipe, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
- MYSTIC LIGHT: 16.8 million colors / fancy lighting effects controlled in one click. MYSTIC LIGHT SYNC supports RGB and RAINBOW(ARGB) LED strips and Ambient devices.
- 2.5G LAN with LAN Manager and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use.
+
+
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the MSI MPG Z690 EDGE WIFI
| Brand | MSI |
|---|---|
| Model | MPG Z690 EDGE WIFI |
| CPU Socket Type | LGA 1700 * Dedicated LGA1700 mounting bracket is required. |
|---|---|
| CPU Type | Supports 13th / 12th Gen Intel Core Processors, Intel Pentium Gold, Celeron Processors May require a BIOS update to boot the 13th gen Intel Core desktop processors. |
| Chipset | Intel Z690 |
|---|
| Onboard Video Chipset | Supported only by CPU with integrated graphic |
|---|
| Number of Memory Slots | 4x288pin (DDR5) |
|---|---|
| Memory Standard | DDR5 6400+ (OC) |
| Maximum Memory Supported | 192GB |
| Channel Supported | Dual Channel |
| PCI Express 5.0 x16 | 1 x PCI Express 5.0 x16 |
|---|---|
| PCI Express 3.0 x16 | 2 x PCI Express 3.0 x16 |
| PCI Express x1 | 1 x PCI Express x1 |
| Serial ATA (SATA) | 6 x SATA 6Gb/s |
|---|---|
| M.2 | 4 x M.2 Gen4 x4 64Gbps slots |
| Intel Optane Ready | Yes |
| Audio Chipset | Realtek ALC4080 Codec |
|---|---|
| Audio Channels | 7.1 Channels |
| LAN Chipset | Intel I225-V |
|---|---|
| Max LAN Speed | 2.5Gbps |
| Wireless LAN | Intel Wi-Fi 6E |
| Bluetooth | Bluetooth 5.2 |
| Back I/O Ports | 1 x Flash BIOS Button 1 x DisplayPort 1 x HDMI 1 x LAN (RJ45) 2 x Antenna Bracket 1 x Optical S/PDIF Out 5 x Audio Jacks 1 x USB 3.2 Gen 2x2 Type-C 5 x USB 3.2 Gen 2 Type-A 2 x USB 2.0/1.1 |
|---|
| Windows 11 | Supported |
|---|
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12.0" x 9.6" |
| First Listed on Newegg | November 09, 2024 |
|---|
