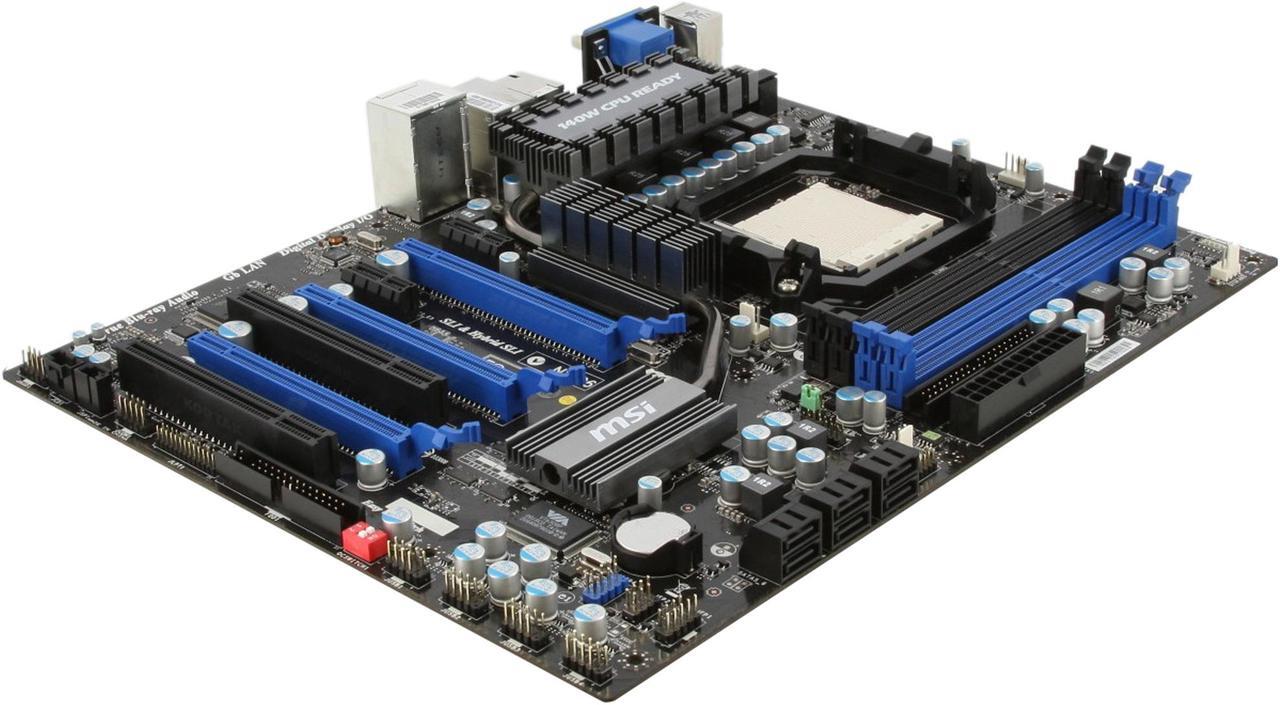

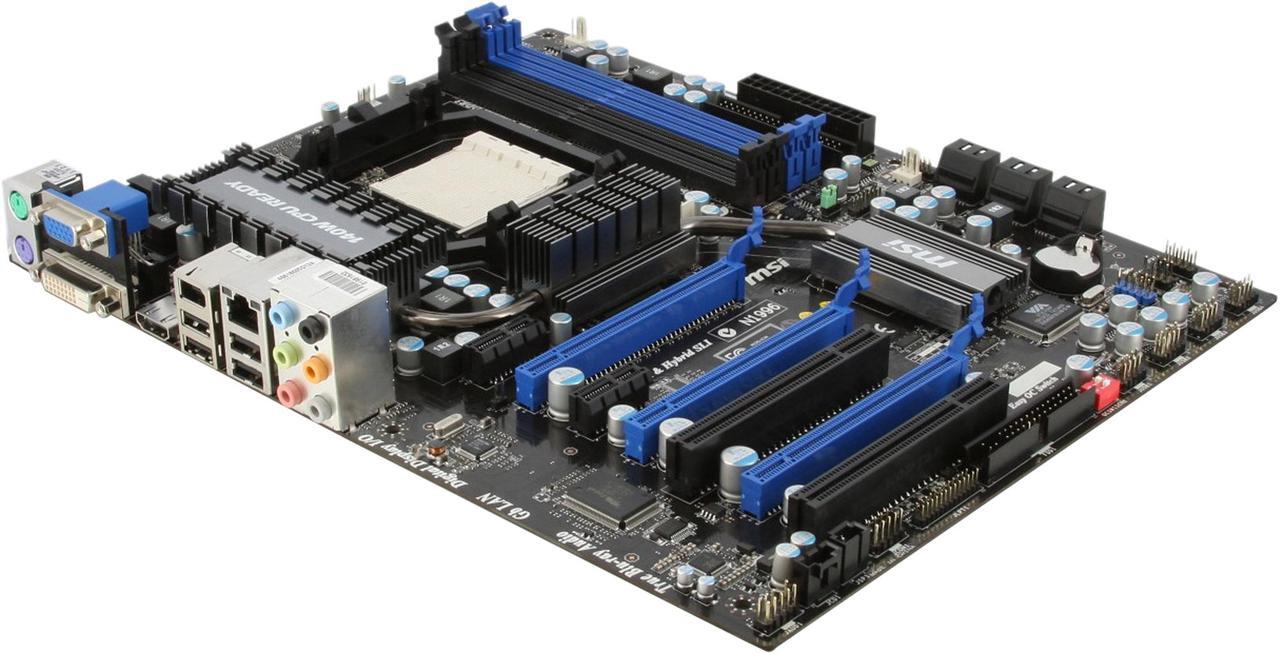

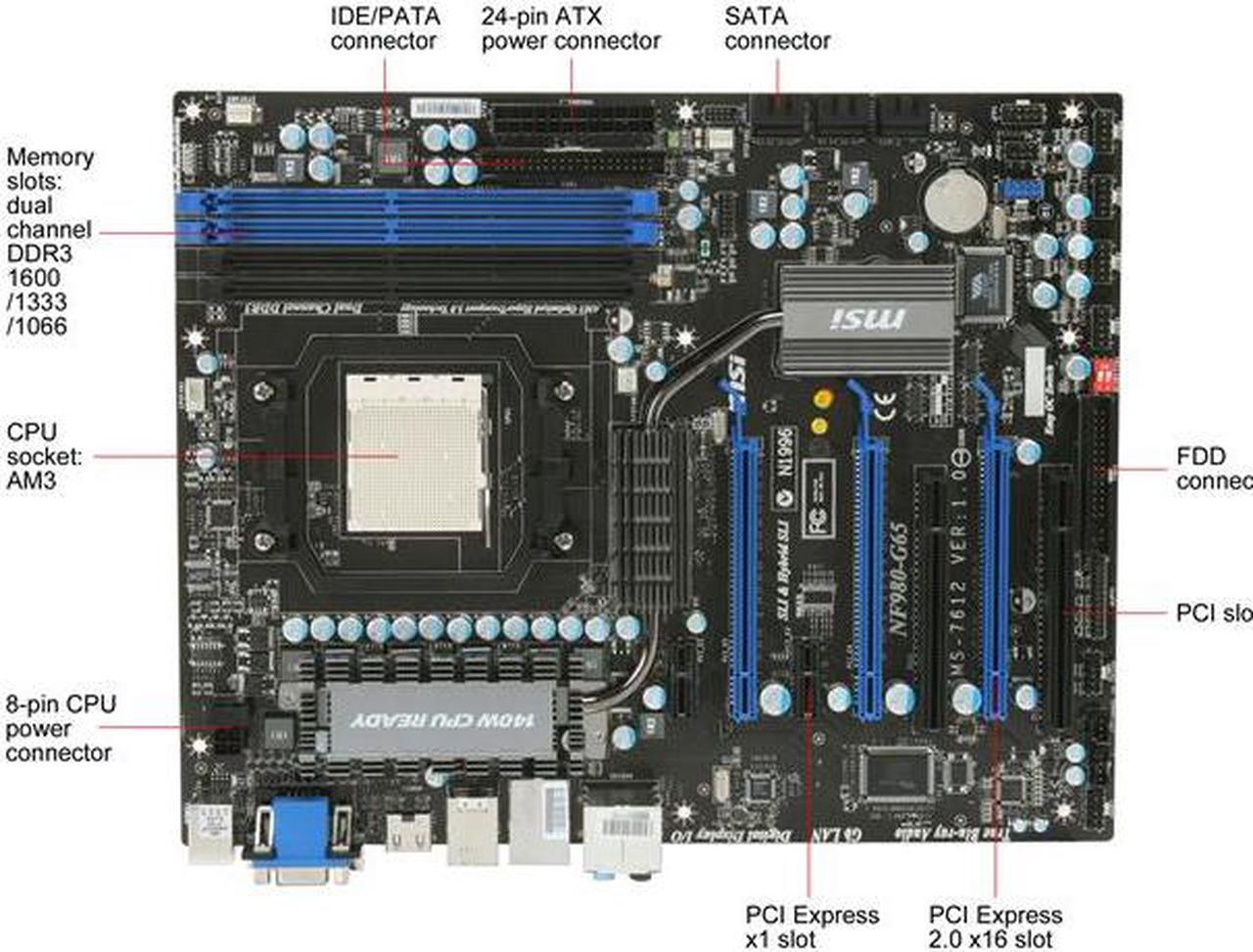

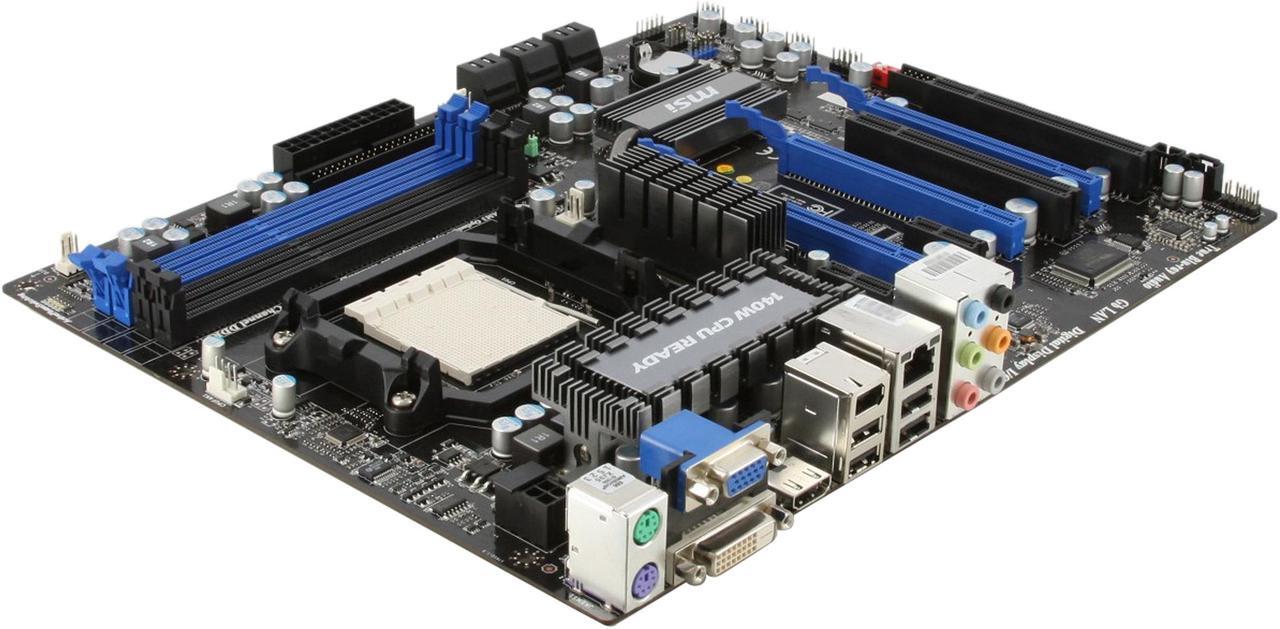

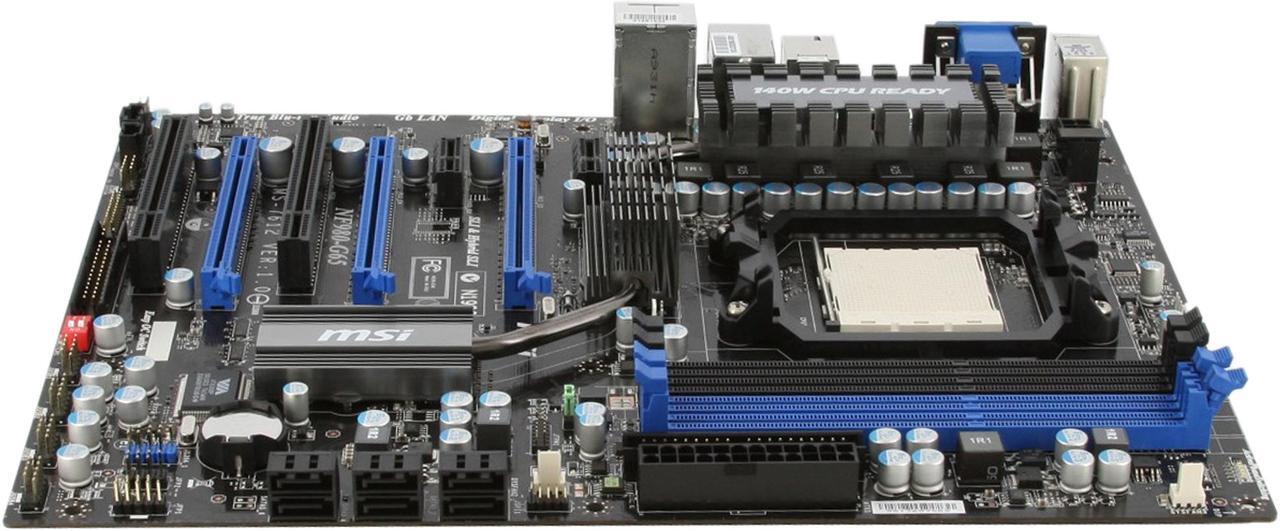

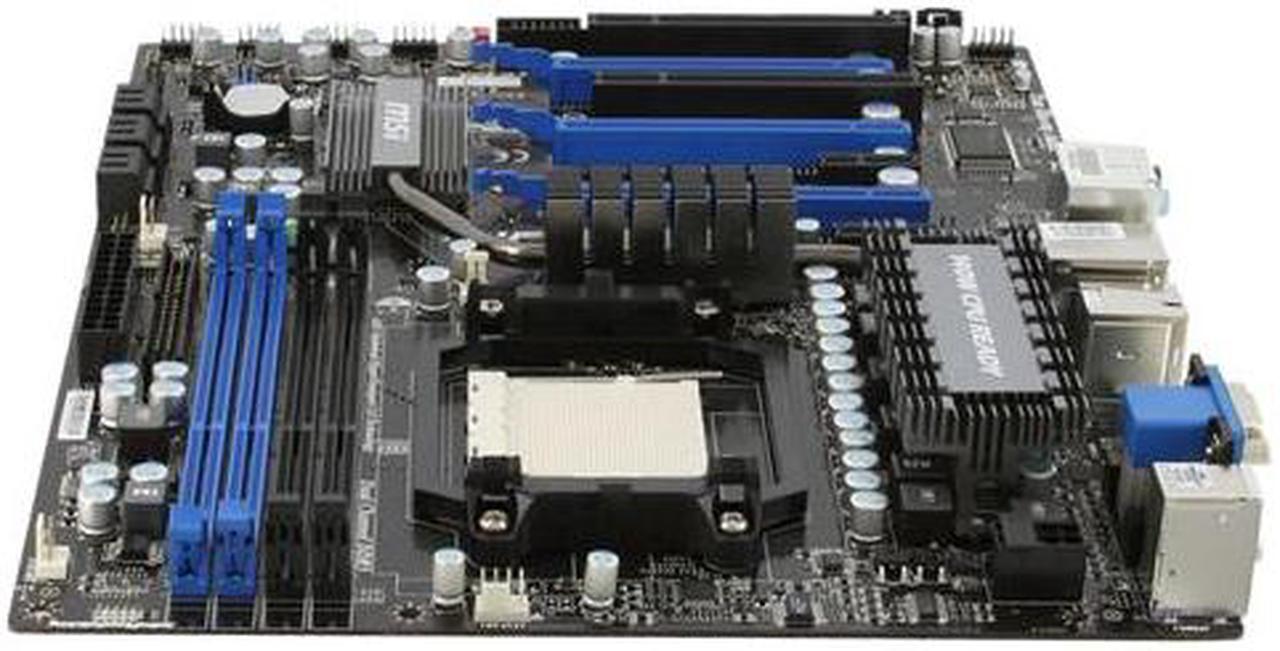

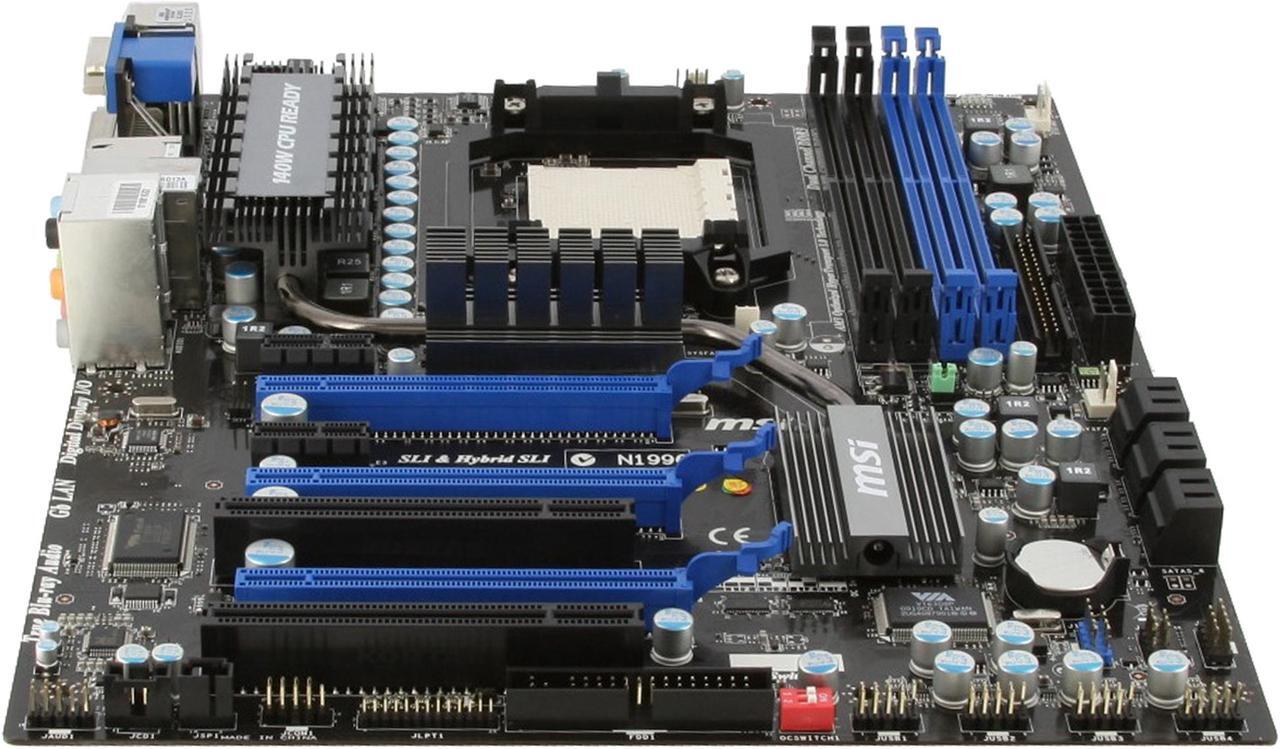

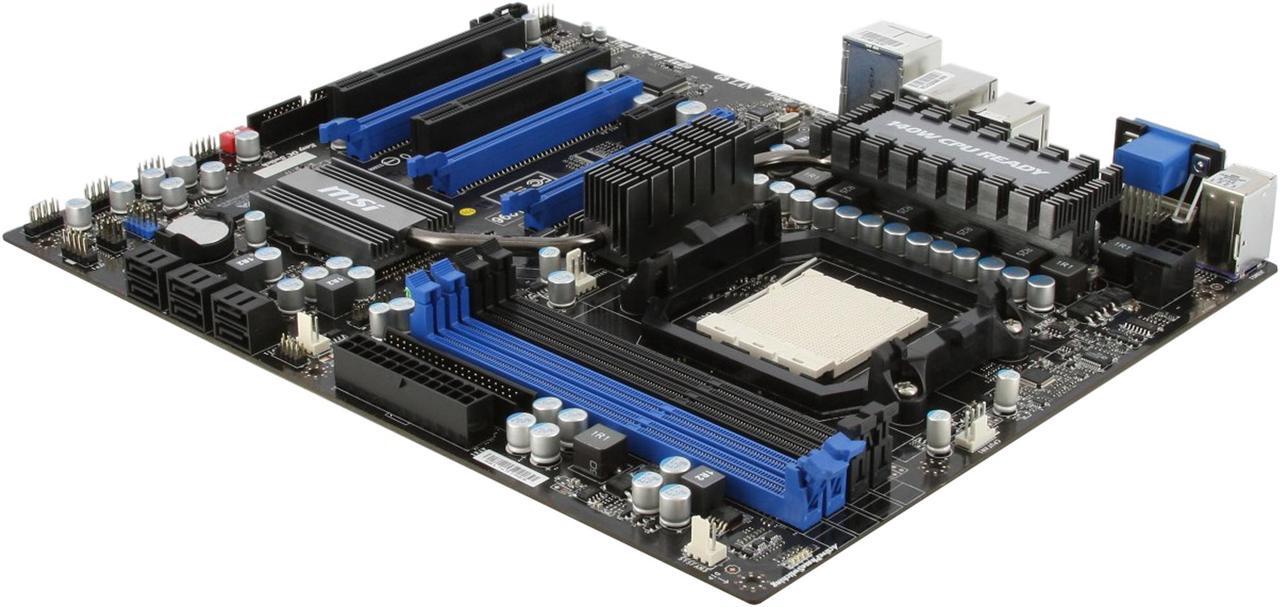

The NF980-G65 Desktop Board is based on NVIDIA nForce 980A SLI chipsets for optimal system efficiency. The NF980-G65 Desktop Board is deliver high performance and professional desktop platform solution.
Learn more about the MSI NF980-G65
Model
Brand
MSI
Model
NF980-G65
Supported CPU
CPU Socket Type
AM3
CPU Type
Phenom II / Athlon II / Sempron
FSB
2600 MHz
Chipsets
Chipset
NVIDIA nForce 980a SLI
Memory
Number of Memory Slots
4x240pin
Memory Standard
DDR3 800/1066/1333/1600/1800/2133 (OC)
Maximum Memory Supported
16GB
Channel Supported
Dual Channel
Expansion Slots
PCI Express 2.0 x16
3 PCI Express x16 slots with x16 operation (PCI Express Bus SPEC V2.0 compliant) The three PCIE x 16 lanes will be x16 / x16 / x0 or x16 / x8 / x8
PCI Express x1
2 x PCI Express x1
PCI Slots
2 x PCI Slots
Storage Devices
PATA
1 x ATA133 2 Dev. Max
SATA 3Gb/s
6 x SATA 3Gb/s
SATA RAID
0/1/0+1/5/JBOD
Onboard Video
Onboard Video Chipset
NVIDIA GeForce 8 series
Onboard Audio
Audio Chipset
Realtek ALC889
Audio Channels
8 Channels
Onboard LAN
LAN Chipset
Realtek 8211CL
Max LAN Speed
1Gbps

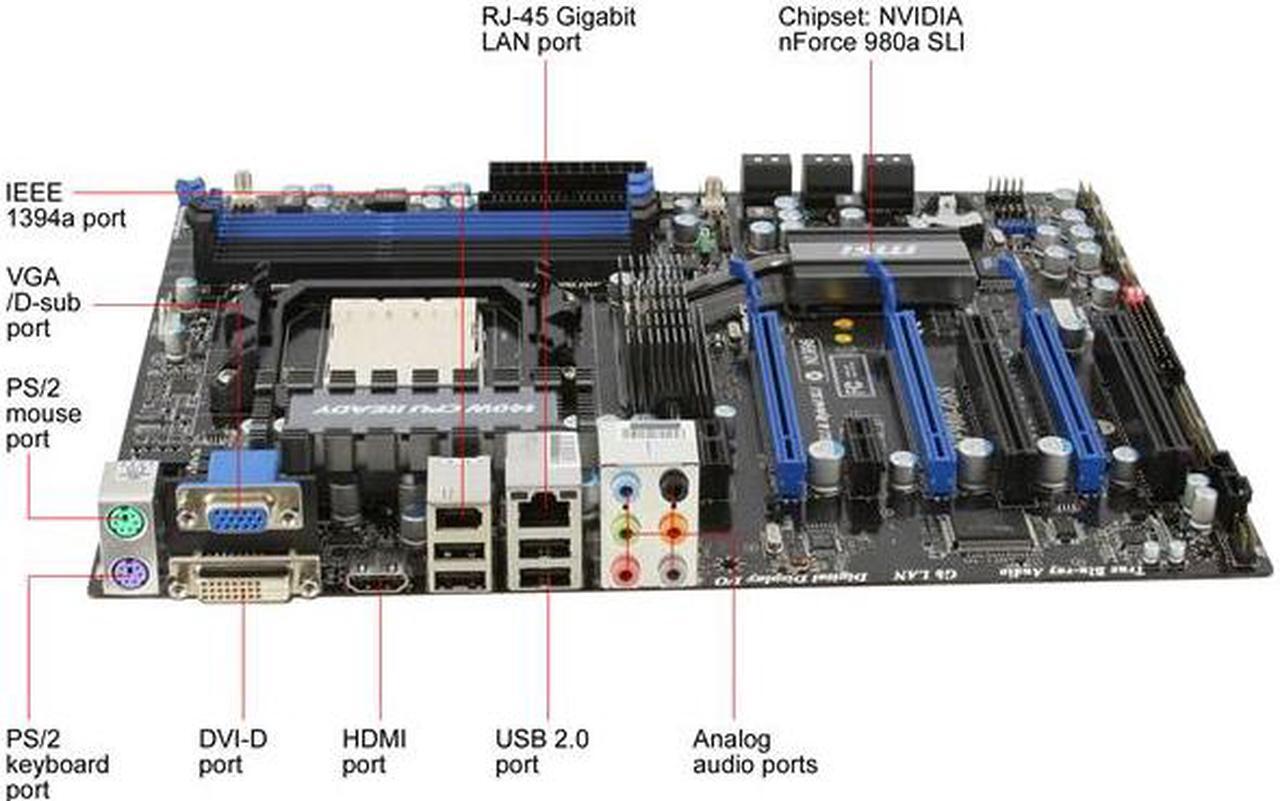

Rear Panel Ports
Back I/O Ports
1 x D-Sub / 1 x DVI / 1 x HDMI / 2 x PS/2 / 4 x USB 2.0/1.1 / 6 x Audio Jacks
