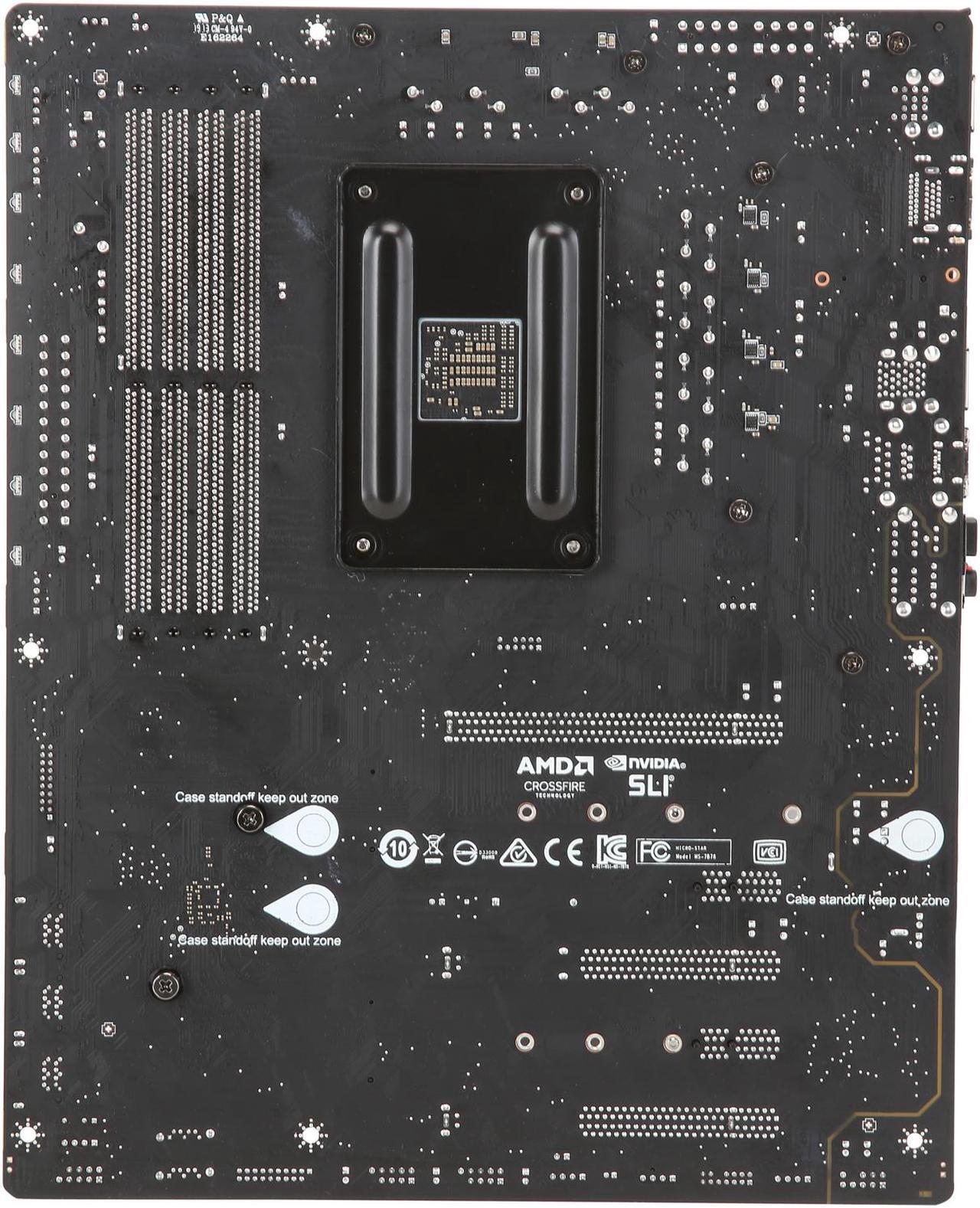

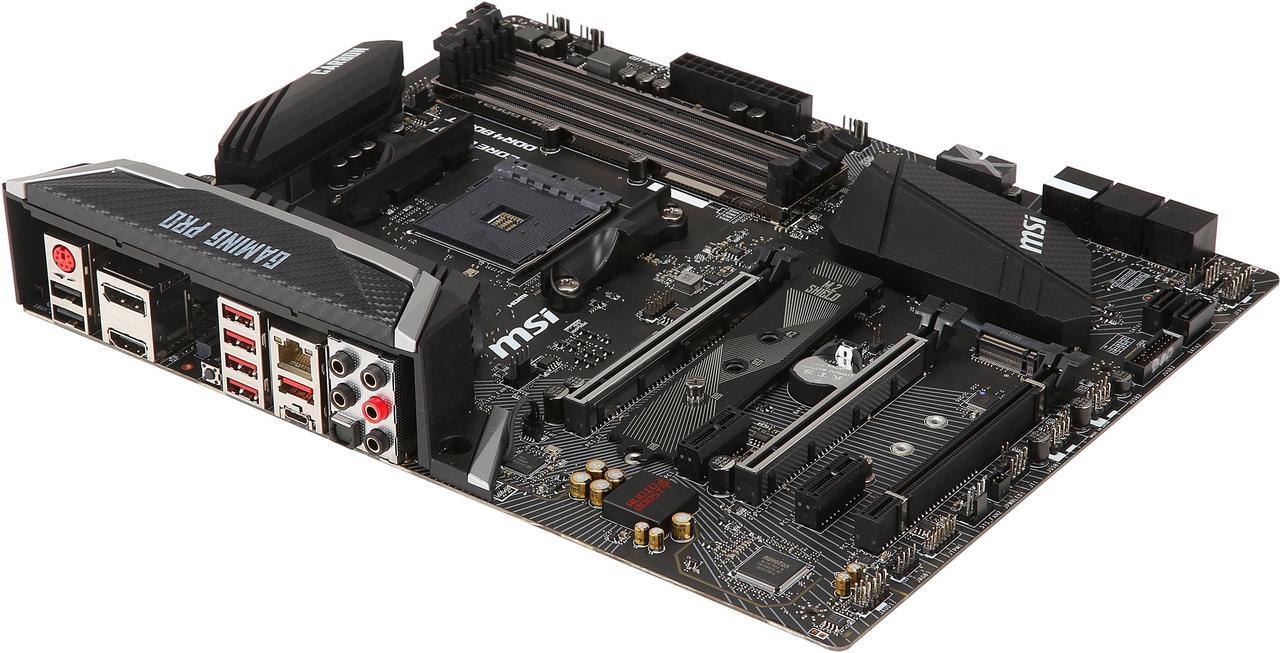

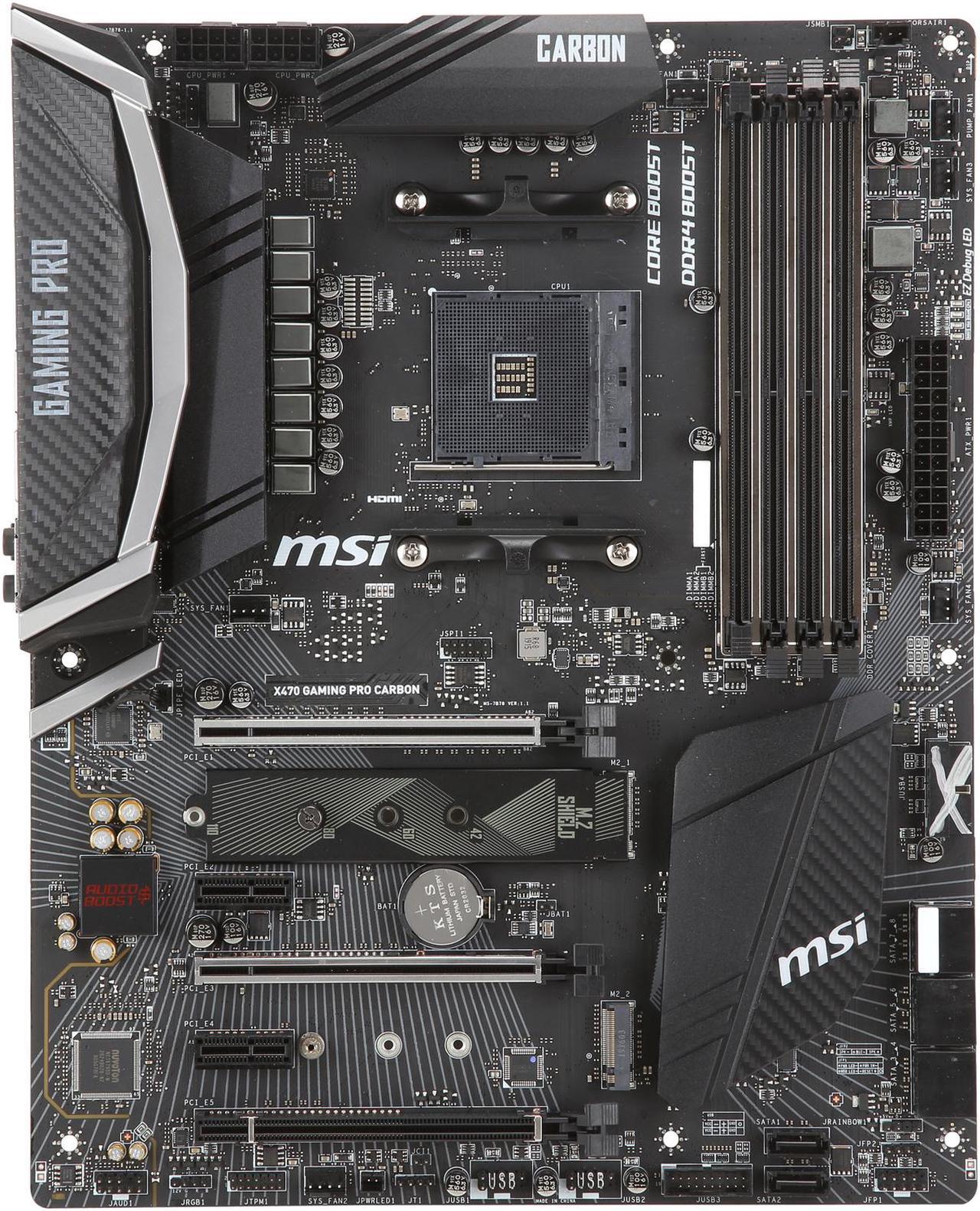

MSI PERFORMANCE GAMING X470 GAMING PRO CARBON AM4 AMD X470 ATX AMD Motherboard
REFURBISHED Product Type
- AMD X470
- Supports 1st, 2nd and 3rd Gen AMD Ryzen / Ryzen with Radeon Vega Graphics / 2nd Gen AMD Ryzen with Radeon Graphics and Athlon with Radeon Vega Graphics Desktop Processors for Socket AM4
- Supports DDR4 3466/ 3200/ 3066/ 3000/ 2933/ 2800/ 2667 MHz (by A-XMP OC MODE)
- Supports DDR4 2667/ 2400/ 2133/ 1866 MHz (by JEDEC)
+
+
Specs
Reviews
Learn more about the MSI X470 GAMING PRO CARBON
| Brand | MSI |
|---|---|
| Series | PERFORMANCE GAMING |
| Model | X470 GAMING PRO CARBON |
| CPU Socket Type | AM4 |
|---|---|
| CPU Type | Supports 1st, 2nd and 3rd Gen AMD Ryzen / Ryzen with Radeon Vega Graphics / 2nd Gen AMD Ryzen with Radeon Graphics and Athlon with Radeon Vega Graphics Desktop Processors for Socket AM4 |
| Chipset | AMD X470 |
|---|
| Number of Memory Slots | 4x288pin (DDR4) |
|---|---|
| Memory Standard | Supports DDR4 3466/ 3200/ 3066/ 3000/ 2933/ 2800/ 2667 MHz (by A-XMP OC MODE)* Supports DDR4 2667/ 2400/ 2133/ 1866 MHz (by JEDEC)* * A-series / Athlon processors support up to 2400 MHz. And the supporting frequency of memory varies with installed processor. |
| Maximum Memory Supported | 64GB |
| Channel Supported | Dual Channel |
| PCI Express 3.0 x16 | 2 x PCIe 3.0 x16 slot, (PCIE_1, PCIE_3) - 1st, 2nd and 3rd Gen AMD Ryzen processors support x16, x8/x8 mode - Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics processors support x8 speed - Athlon with Radeon Vega Graphics processor supports x4/x0 speed |
|---|---|
| PCI Express 2.0 x16 | 1 x PCIe 2.0 x16 slot (PCI_E5, supports x4 mode)* * PCI_E5 slot will be unavailable when installing M.2 PCIe SSD in M2_2 slot. |
| PCI Express x1 | 2 x PCIe 2.0 x1 slots |
| Serial ATA (SATA) | 8 x SATA 6Gb/s ports* * SATA3 port will be unavailable when installing SATA M.2 SSD in M2_2 slot. |
|---|---|
| M.2 | 2 x M.2 ports (Key M) M2_1 slot (from AMD processor) supports PCIe 3.0 x4 (1st, 2nd and 3rd Gen AMD Ryzen / Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) or PCIe 3.0 x2 (Athlon with Radeon Vega Graphics) 2242/2260/2280/22110 storage devices M2_2 slot (from AMD X470 Chipset) supports PCIe 2.0 x4 and SATA 6Gb/s 2242/2260/2280 storage devices * SATA3 port will be unavailable when installing SATA M.2 SSD in M2_2 slot. ** PCI_E5 slot will be unavailable when installing M.2 PCIe SSD in M2_2 slot. |
| SATA RAID | 0/1/10 |
| Onboard Video Chipset | Supported only by CPU with integrated graphic: 1 x HDMI port, supporting a maximum resolution of 4096x2160@30Hz, 2560x1600@60Hz 1 x DisplayPort, support a maximum resolution of 4096x2304@60Hz, 2560x1600@60Hz, 3840x2160@60Hz, 1920x1200@60Hz Only support when using Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics / Athlon with Radeon Vega Graphics processors Maximum shared memory of 2048MB |
|---|
| Audio Chipset | Realtek ALC1220 |
|---|---|
| Audio Channels | 7.1-Channel High Definition Audio Supports S/PDIF output |
| LAN Chipset | Intel i211AT |
|---|---|
| Max LAN Speed | 1Gbps |

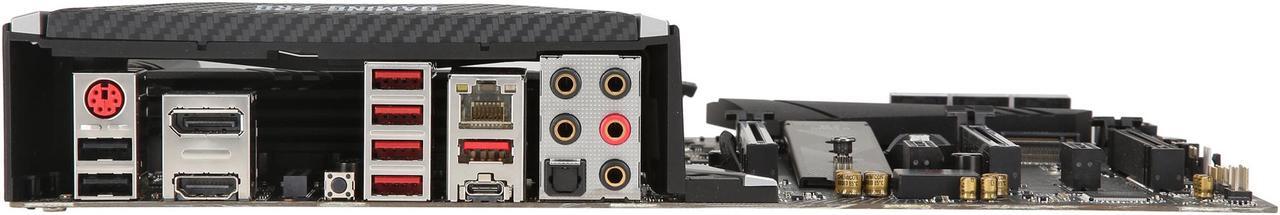

| Back I/O Ports | 1 x DisplayPort / 1 x HDMI / 1 x LAN (RJ45) / 1 x Optical S/PDIF Out / 1 x PS/2 Keyboard/Mouse Combo / 1 x USB 3.1 Gen 2 Type-A / 1 x USB 3.1 Gen 2 Type-C / 2 x USB 2.0/1.1 / 4 x USB 3.1 Gen 1 / 5 x Audio Jacks |
|---|
| Onboard USB | 2 x USB 2.0 connectors (support additional 4 USB 2.0 ports) 2 x USB 3.1 Gen1 connectors (support additional 4 USB 3.1 Gen1 ports) |
|---|---|
| Other Connectors | 1 x 4-pin CPU fan connector 1 x 4-pin water-pump-fan connector 4 x 4-pin system fan connectors 1 x TPM module connector 1 x Front panel audio connector 2 x System panel connectors 1 x Chassis Intrusion connector 1 x Clear CMOS jumper 2 x 5050 RGB LED strip 12V connectors (JRGB1~2) 1 x WS2812B Individually Addressable RGB LED strip 5V connector (JRAINBOW1) 1 x CORSAIR connector (JCORSAIR1) |
| Form Factor | ATX |
|---|---|
| LED Lighting | RGB |
| Dimensions (W x L) | 12.0" x 9.6" |
| Power Pin | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors |
| Features | Supports 1st, 2nd and 3rd Gen AMD Ryzen / Ryzen with Radeon Vega Graphics / 2nd Gen AMD Ryzen with Radeon Graphics and Athlon with Radeon Vega Graphics Desktop Processors for Socket AM4 Supports DDR4-3466(OC) Memory DDR4 Boost with Steel Armor: Give your DDR4 memory a performance boost Mystic Light and Mystic Light Sync: 16.8 million colors / 17 effects in one click. Synchronize RGB/RAINBOW strips and other RGB solutions for customization Lightning Fast Game experience: TURBO M.2 with M.2 Shield, StoreMI, AMD Turbo USB 3.1 GEN2 Audio Boost 4 with Nahimic: Reward your ears with studio grade sound quality for the most immersive gaming experience GAMING LAN, powered by Intel: The best online gaming experience with lowest latency and bandwidth management Core Boost: With premium layout and fully digital power design to support more cores and provide better performance MULTI-GPU: With STEEL ARMOR PCI-E slots. Supports 2-Way NVIDIA SLI & 3-Way AMD Crossfire VR Ready: Automatically optimizes your system for VR usage, pushing for maximum performance In-Game Weapons: Game Boost, GAMING Hotkey, X-Boost EZ Debug LED: Easiest way to troubleshoot Click BIOS 5: Award-winning BIOS with high resolution scalable font, favorites and search function GAMING CERTIFIED: 24-hour on and offline game and motherboard testing by eSports players |
|---|
| Date First Available | April 13, 2025 |
|---|
