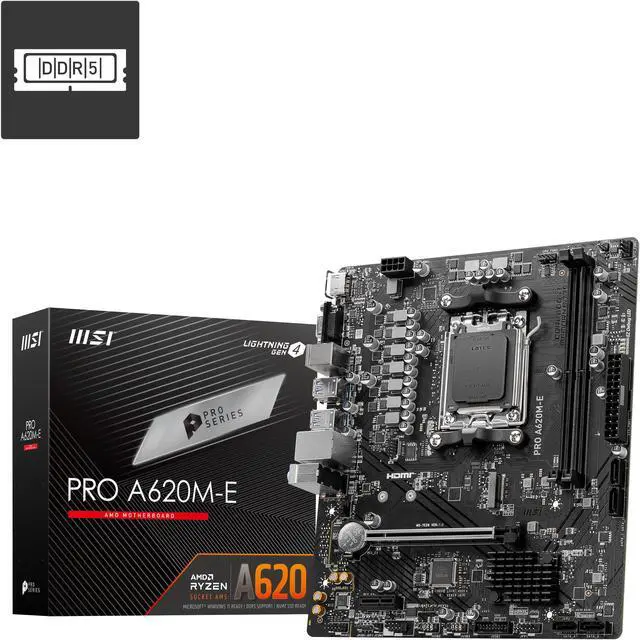

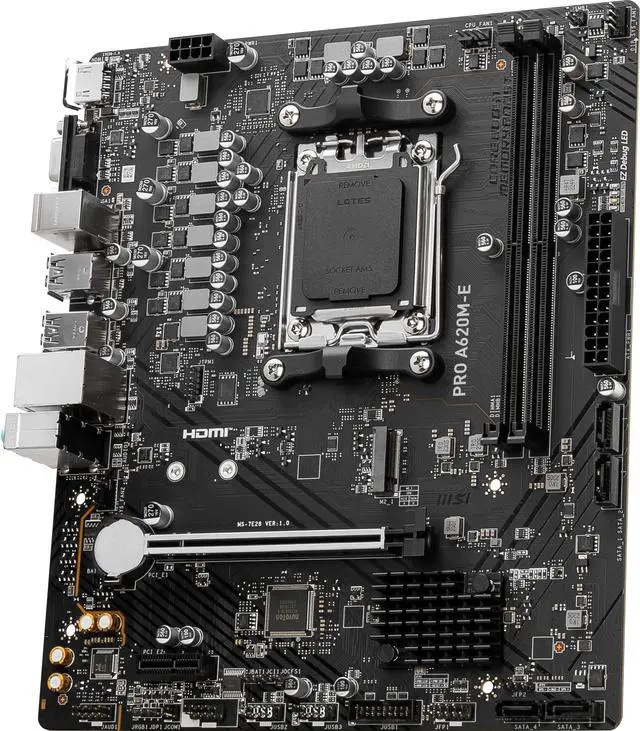

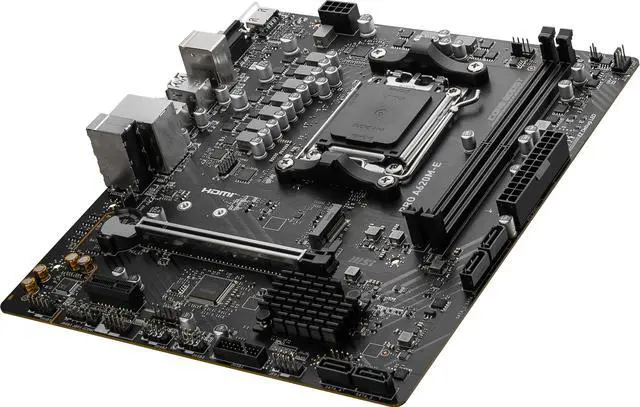

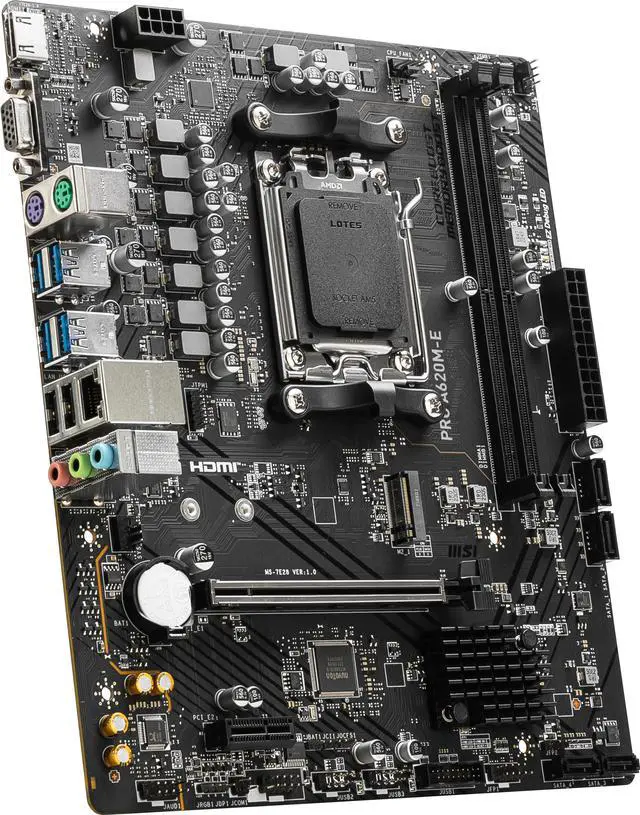

MSI PRO PRO A620M-E AM5 AMD A620 SATA 6Gb/s DDR5 mATX Motherboards AMD Ryzen™ 7000 Series Desktop Processors
- AMD A620
- Supports AMD Ryzen™ 7000 Series Desktop Processors
- Supports DDR5 Memory, Dual Channel DDR5 6400+MHz (OC)
- Latest DDR5 Memory: A huge step of DDR performance enhancement with the latest: DDR5 memory and MSI Memory Boost technology.
- Lightning Gen4 Solution: The latest Gen4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed.
- EZ Debug LED: Easiest way to troubleshoot.
- Frozr AI Cooling: Detect CPU & GPU temperatures and automatically adjust system: fan duty to a proper value.
- Memory Boost: Advanced technology to deliver pure data signals for the best
- performance, stability and compatibility.
- Core Boost: With premium layout and fully digital power design to support
- more cores and provide better performance.
Learn more about the MSI PRO A620M-E
| Brand | MSI |
|---|---|
| Series | PRO |
| Model | PRO A620M-E |
| Part Number | PRO A620M-E |
| CPU Socket Type | AM5 |
|---|---|
| CPU Type | Supports AMD Ryzen™ 7000 Series Desktop Processors |
| Chipset | AMD A620 |
|---|
| Number of Memory Slots | 2x288pin (DDR5) |
|---|---|
| Memory Standard | DDR5-6400+MHz (OC) |
| Maximum Memory Supported | 64GB |
| Channel Supported | Dual Channel |
| ECC Supported | Non-ECC |
| PCI Express 4.0 x16 | 1 x PCI Express 4.0 x16 |
|---|
| Serial ATA (SATA) | 4 x SATA 6Gb/s |
|---|---|
| M.2 | 1 x M.2_1 Source (From CPU) supports up to PCIe 4.0 x4, supports 2280/2260 devices |
| Audio Channels | 8-Channel (7.1) HD Audio with Audio Boost |
|---|

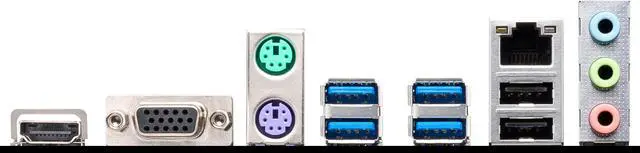

| Back I/O Ports | HDMI, VGA, Keyboard/ Mouse, USB 3.2 Gen1 5Gbps (Type-A), LAN port, Audio connectors, USB 2.0 |
|---|
| Other Connectors | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports |
|---|
| Form Factor | mATX |
|---|---|
| Dimensions (W x L) | 211mmx243.84mm |
| Windows 11 | Support for Windows® 11 64-bit, Windows® 10 64-bit |
|---|
| Features | Supports AMD Ryzen™ 7000 Series Desktop Processors Supports DDR5 Memory, Dual Channel DDR5 6400+MHz (OC) Core Boost : With premium layout and digital power design to support more cores and provide better performance Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2 AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength |
|---|
| First Listed on Newegg | April 12, 2023 |
|---|
