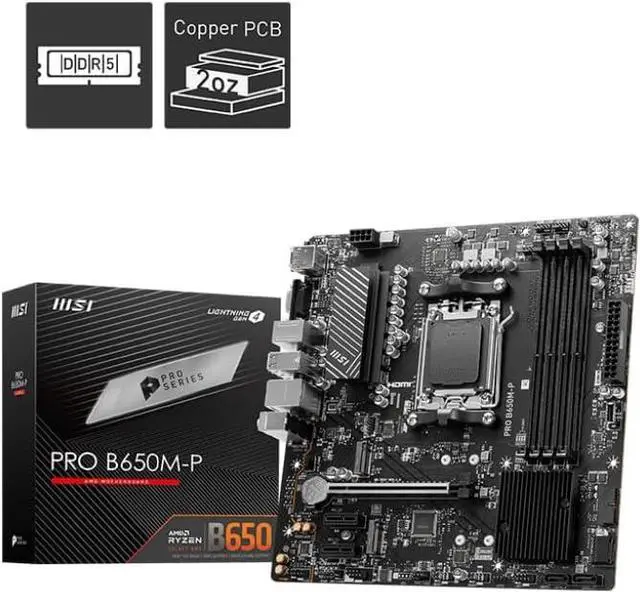

Main image of MSI PRO B650M-P AM5 Ryzen 7000 DDR5 SATA 6G 2x M.2 2.5G LAN 7.1 Audio mATX Motherboard

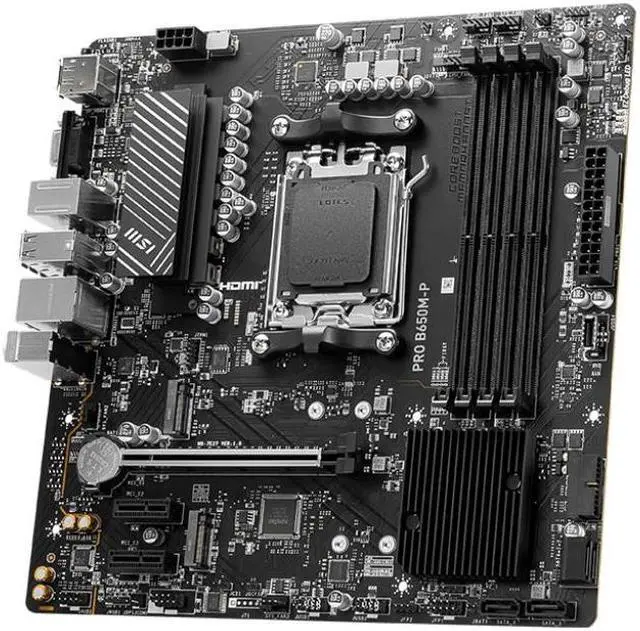

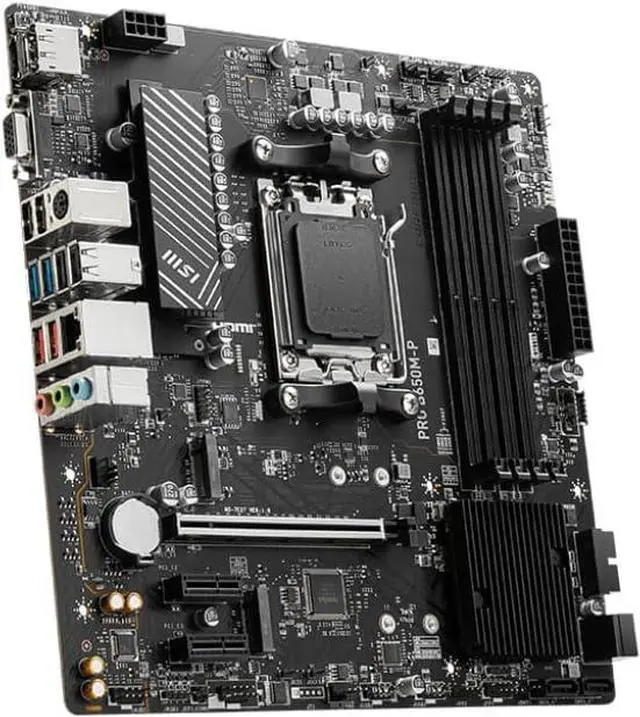

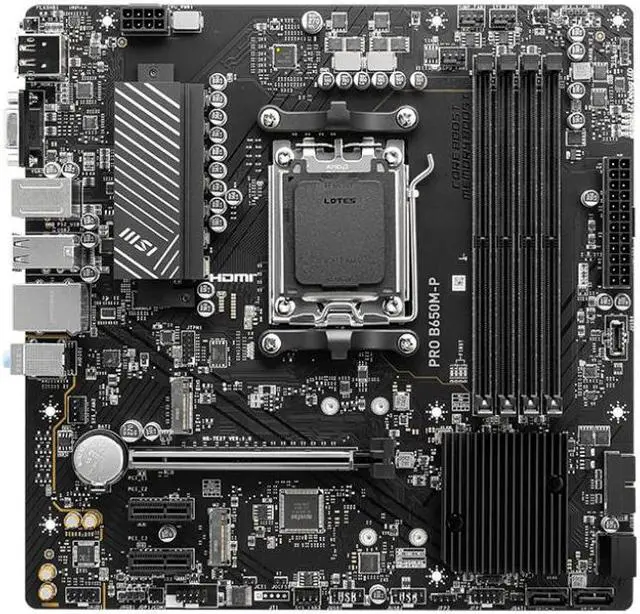

Alt view image 2 of 7 - MSI PRO B650M-P AM5 Ryzen 7000 DDR5 SATA 6G 2x M.2 2.5G LAN 7.1 Audio mATX Motherboard

Alt view image 3 of 7 - MSI PRO B650M-P AM5 Ryzen 7000 DDR5 SATA 6G 2x M.2 2.5G LAN 7.1 Audio mATX Motherboard

Alt view image 4 of 7 - MSI PRO B650M-P AM5 Ryzen 7000 DDR5 SATA 6G 2x M.2 2.5G LAN 7.1 Audio mATX Motherboard

Alt view image 5 of 7 - MSI PRO B650M-P AM5 Ryzen 7000 DDR5 SATA 6G 2x M.2 2.5G LAN 7.1 Audio mATX Motherboard

Alt view image 6 of 7 - MSI PRO B650M-P AM5 Ryzen 7000 DDR5 SATA 6G 2x M.2 2.5G LAN 7.1 Audio mATX Motherboard

Alt view image 7 of 7 - MSI PRO B650M-P AM5 Ryzen 7000 DDR5 SATA 6G 2x M.2 2.5G LAN 7.1 Audio mATX Motherboard

Shop All MSI Products | Visit UltraParts Renewed Store

MSI PRO B650M-P AM5 Ryzen 7000 DDR5 SATA 6G 2x M.2 2.5G LAN 7.1 Audio mATX Motherboard

REFURBISHED

Be the first to review this product...

Bios update MAY required when used with 9000 Series processor
Latest DDR5 Memory: A huge step of DDR performance enhancement with the latest DDR5 memory and MSI Memory Boost technology.
Lightning Gen4 Solution: The latest Gen4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed.
2.5G Network Solution: Featuring premium 2.5G LAN to deliver better network experience.
EZ Debug LED: Easiest way to troubleshoot.
Frozr AI Cooling: Detect CPU & GPU temperatures and automatically adjust system fan duty to a proper value.
Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility.
Core Boost: With premium layout and fully digital power design to support more cores and provide better performance.

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews

Any questions? Ask Celeste^SM will help you find out quickly.

Try me now

Latest DDR5 Memory: A huge step of DDR performance enhancement with the latest DDR5 memory and MSI Memory Boost technology.
Lightning Gen4 Solution: The latest Gen4 PCI-E and M. 2 solution with up to 64GB/s bandwidth for maximum transfer speed.
2.5G Network Solution: Featuring premium 2.5G LAN to deliver better network experience.
EZ Debug LED: Easiest way to troubleshoot.
Frozr AI Cooling: Detect CPU & GPU temperatures and automatically adjust system fan duty to a proper value.
Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility.
Core Boost: With premium layout and fully digital power design to support more cores and provide better performance.

Model
Brand	MSI
Model	PRO B650M-P

Supported CPU
CPU Type	Supports AMD Ryzen 7000 Series Desktop Processors

Chipsets
Chipset	AMD B650

Memory
Number of Memory Slots	4x288pin (DDR5)
Memory Standard	Memory Support DDR5 6000+(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz Max. overclocking frequency: - 1DPC 1R Max speed up to 6000+ MHz - 1DPC 2R Max speed up to 6000+ MHz - 2DPC 1R Max speed up to 6000+ MHz - 2DPC 2R Max speed up to 6000+ MHz
Maximum Memory Supported	192GB
Channel Supported	Dual Channel
ECC Supported	Non-ECC
Buffer Supported	Un-buffered
Memory Feature	Supports AMD EXPO

Expansion Slots
PCI Express 4.0 x16	1x PCI-E x16 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI Express x1	2x PCI-E x1 slot PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)

Storage Devices
Serial ATA (SATA)	4 x SATA 6Gb/s
M.2	2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
SATA RAID	Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

Onboard Audio
Audio Chipset	Realtek ALC897 Codec 7.1-Channel High Definition Audio
Audio Channels	7.1 Channels

Onboard LAN
LAN Chipset	Realtek 8125BG 2.5G LAN
Max LAN Speed	2.5Gbps

Internal I/O Connectors
Onboard USB	4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports
Other Connectors	1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 3x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0)

Physical Spec
Form Factor	Micro ATX
Dimensions (W x L)	9.6" x 9.6"

Software Feature
Windows 11	Supported

Packaging
Package Contents	Quick Installation Guide 2 x M.2 Clips SATA Cable I/O Shield
