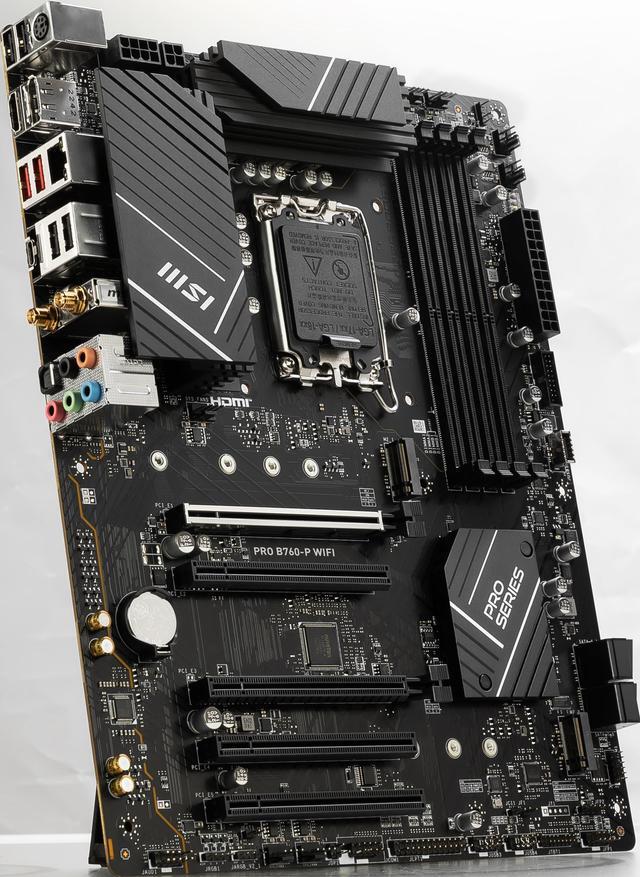

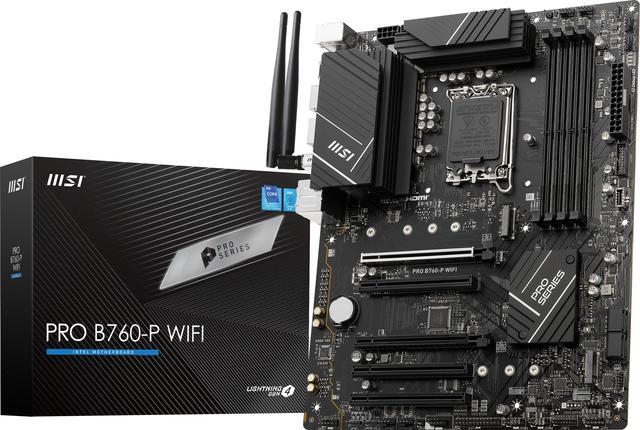

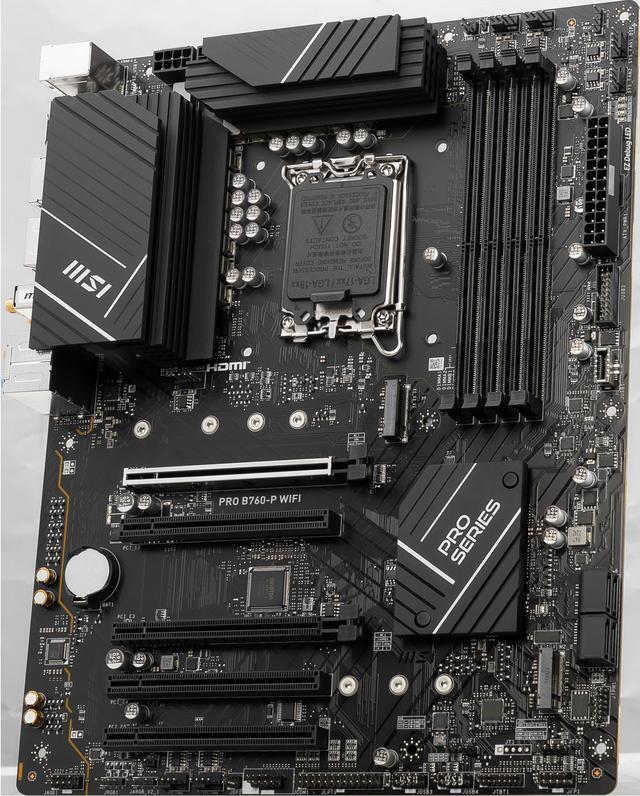

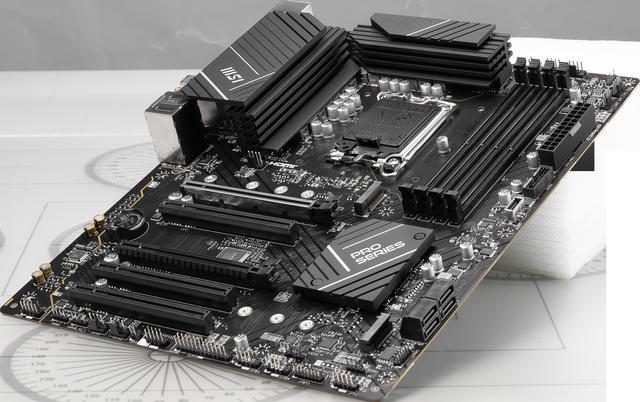

MSI B760-P Pro WiFi DDR5 Intel LGA 1700 ATX Motherboard
- BIOS update may be required when used with some 14th generation Intel Core processors, visit MSI support website for more information
- Supports Intel Core 14th Gen / 13th Gen / 12th Gen (LGA 1700) / Pentium Gold / Celeron Processor
- Supports DDR5 Memory, Dual Channel DDR5 6800+MHz (OC)
- Enhanced Power Design: 12+1 Duet Rail Power System with P-PAK, 8-pin + 4-pin CPU power connectors, Core Boost, Memory Boost
- Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads are built for high performance system and non-stop gaming experience
- High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
- Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2
- Intel Turbo USB 3.2 Gen 2: Powered by Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speed
+
+
Specs
Reviews (135)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the MSI PRO B760-P WIFI
| Brand | MSI |
|---|---|
| Model | PRO B760-P WIFI |
| CPU Socket Type | LGA 1700 |
|---|---|
| CPU Type | Celeron / Intel Core 12th Gen (LGA 1700) / Intel Core 13th Gen (LGA 1700) / Pentium Gold |
| Chipset | Intel B760 |
|---|
| Number of Memory Slots | 4x288pin (DDR5) |
|---|---|
| Memory Standard | Memory Support 5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) |
| Maximum Memory Supported | 128GB |
| Channel Supported | Dual Channel |
| Memory Feature | Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP) |
| PCI Express 4.0 x16 | 2 x PCI Express 4.0 x16 |
|---|---|
| PCI Express 3.0 x16 | 3 x PCI Express 3.0 x16 |
| PCI Slots | 5 x PCI Slots |
| Serial ATA (SATA) | 4 x SATA 6Gb/s |
|---|---|
| M.2 | 2 x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices * SATA8 will be unavailable when installing M.2 SATA SSD in the M2_2 slot. |
| SATA RAID | 0/1/5/10 |
| Audio Chipset | Realtek ALC897 |
|---|---|
| Audio Channels | 7.1 Channels |
| LAN Chipset | Realtek® RTL8125BG 2.5G LAN |
|---|---|
| Max LAN Speed | 2.5Gbps |
| Wireless LAN | 802.11 a/ b/ g/ n/ ac/ ax |
| Bluetooth | Bluetooth® 5.3, FIPS, FISMA |

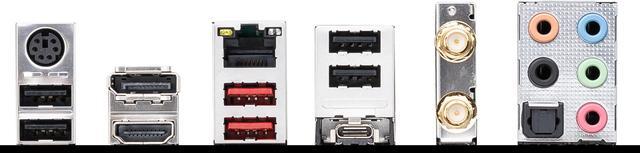

| Back I/O Ports | 1 x DisplayPort / 1 x HDMI / 1 x LAN (RJ45) / 1 x Optical S/PDIF Out / 1 x PS/2 / 1 x USB 3.2 Gen 2 Type-C / 2 x Antenna Bracket / 2 x USB 3.2 Gen 2 Type-A / 4 x USB 2.0/1.1 / 5 x Audio Jacks |
|---|---|
| PS/2 | 1 |
| HDMI | 1 x HDMI |
| DisplayPort | 1 x DisplayPort |
| USB 1.1/2.0 | 4 x USB 2.0 |
| Form Factor | ATX |
|---|
| Date First Available | April 10, 2023 |
|---|
