Is this motherboard compatible with DDR5 and Intel's 14th generation CPUs?

Yes, this motherboard supports DDR5 memory and is compatible with Intel's 14th generation CPUs.

Does this motherboard work well with an i5 CPU?

Yes, this motherboard supports Intel Core processors, including the i5 series.

Can this motherboard be used to build a budget gaming machine?

Yes, this motherboard supports features suitable for a gaming machine, such as support for Intel 12th, 13th, and 14th Gen processors, DDR5 memory up to 6800+ MHz (OC), and PCIe 4.0 slots.

Out of stock

$108^.99

$113.98

$4.99 Shipping ()

Price alert

Add to wish list(Found on 4 wish lists)

Sold by Newegg

Shipped by Newegg

Get Educated

Make informed decisions with expert advice. Learn More

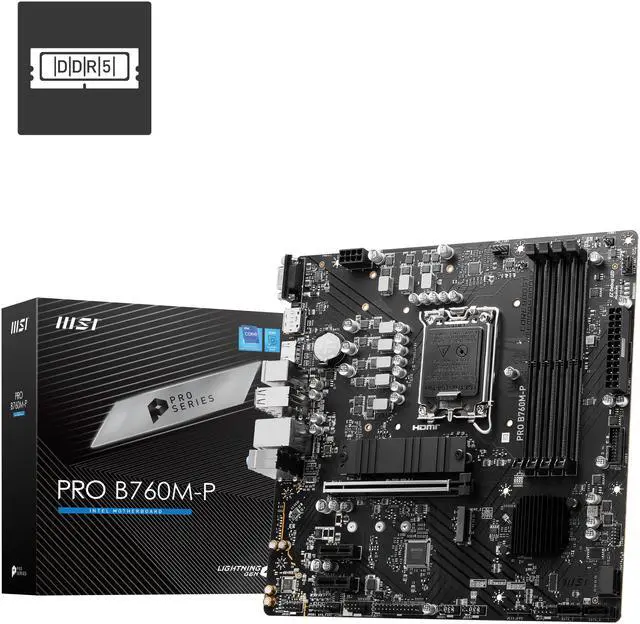

Main image of MSI PRO B760M-P LGA 1700 Intel B760 SATA 6Gb/s Micro ATX Motherboard

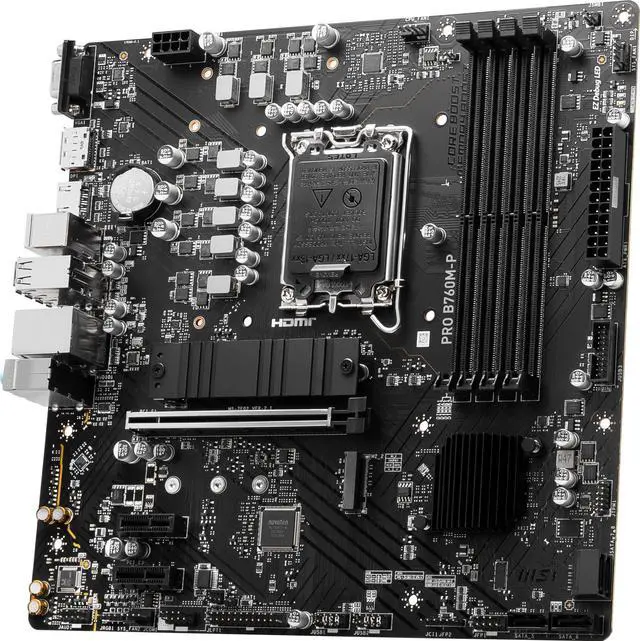

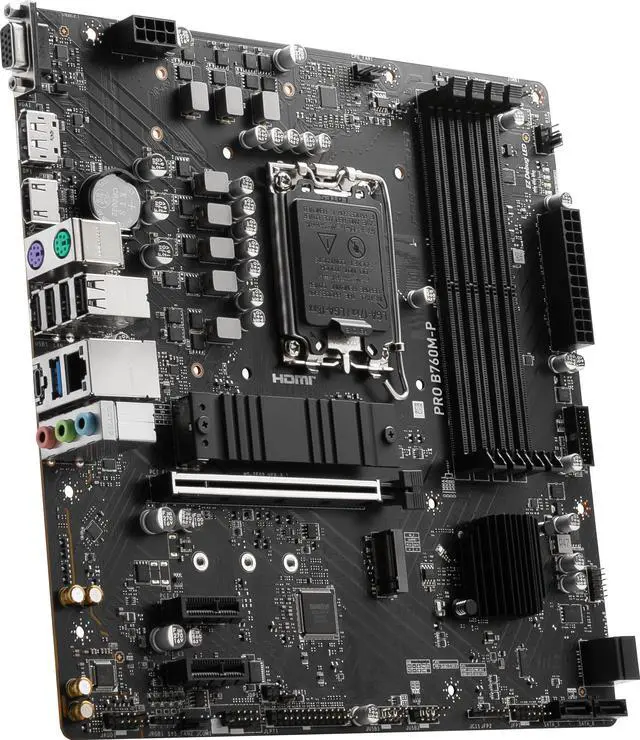

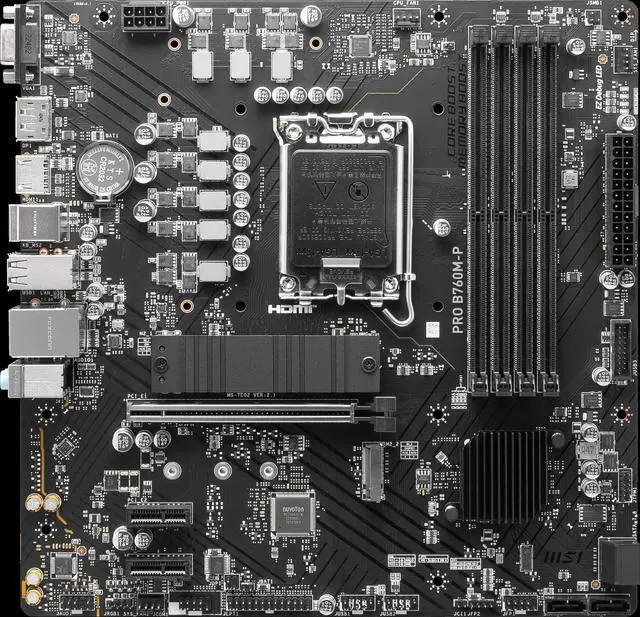

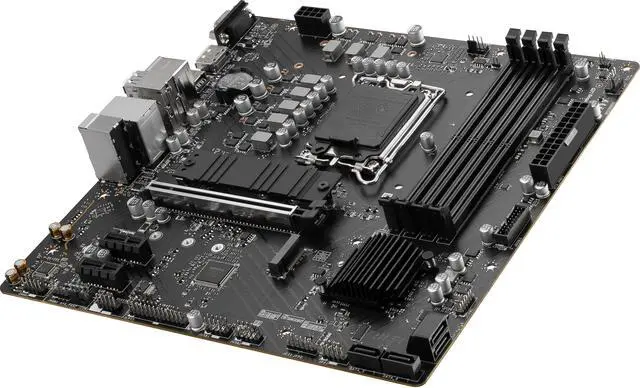

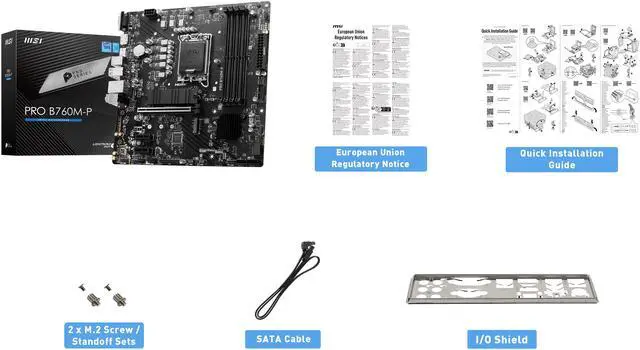

Alt view image 2 of 7 - MSI PRO B760M-P LGA 1700 Intel B760 SATA 6Gb/s Micro ATX Motherboard

Alt view image 3 of 7 - MSI PRO B760M-P LGA 1700 Intel B760 SATA 6Gb/s Micro ATX Motherboard

Alt view image 4 of 7 - MSI PRO B760M-P LGA 1700 Intel B760 SATA 6Gb/s Micro ATX Motherboard

Alt view image 5 of 7 - MSI PRO B760M-P LGA 1700 Intel B760 SATA 6Gb/s Micro ATX Motherboard

Alt view image 6 of 7 - MSI PRO B760M-P LGA 1700 Intel B760 SATA 6Gb/s Micro ATX Motherboard

Alt view image 7 of 7 - MSI PRO B760M-P LGA 1700 Intel B760 SATA 6Gb/s Micro ATX Motherboard

Customer images

Shop All MSI Products

MSI PRO B760M-P LGA 1700 Intel B760 SATA 6Gb/s Micro ATX Motherboard

(137)(32) Write a Review

Option: PRO B760M-P

MAG B760 TOMAHAWK WIFI
MAG B760 TOMAHAWK WIFI DDR4
MAG B760M MORTAR WIFI
MAG B760M MORTAR WIFI II
MPG B760I EDGE WIFI
MPG B760I EDGE WIFI DDR4
MPG B760M EDGE TI WIFI
PRO B760M-A WIFI DDR4
PRO B760-P WIFI DDR4
PRO B760-P WIFI
PRO B760M-P DDR4
B760 GAMING PLUS WIFI
B760M PROJECT ZERO
PRO B760M-P

Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
Supports DDR5 Memory, Dual Channel DDR5 6800+MHz (OC)
Core Boost : With premium layout and digital power design to support more cores and provide better performance
Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr
AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews (137)

Any questions? Our AI beta will help you find out quickly.

Try me now

Business Elegance

The PRO B760M-P is a business-oriented Micro-ATX motherboard featuring the latest Intel B760 chipset that supports ample RAM capacity.

Supports Intel Core 12th & 13th Gen Processors

The PRO B760M-P motherboard supports 12th & 13th Gen Intel Core, Pentium Gold, and Celeron processors.

Form Factor: Micro-ATX
Socket Type: LGA 1700
Chipset: Intel B760

Integrated Cooling Features

Chipset Heatsink: Provides passive cooling.
SSD Cooling: M.2 Shield Frozr prevents thermal throttling.
Frozr AI Cooling: Automatically adjusts system fan settings based on CPU & GPU temperatures.

4 x DDR5 Dual Channel (6800 MHz OC)*

Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance.
XMP Profiles in MSI BIOS are MSI OC LAB optimized and can be easily enabled with auto power settings for optimized memory speed and stability.

* 1DPC 1R Max. overclocking frequency 6800+ MHz, supports Intel XMP.

Fortified PCIe 4.0 x16

MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference:

1 x PCIe 4.0/3.0 x16 slot (with Steel Armor)

2 x PCIe 4.0/3.0 x1 slots

M.2 Shield Frozr

Even the world’s fastest SSDs will automatically slow if thermal throttling firmware detects excessively high temperatures.

M.2 Shield Frozr is MSI's most advanced thermal solution, offering the best possible protection to ensure maximum SSD transfer speed performance.

Gen4 M.2 Connectors

The PRO B760M-P motherboard features MSI's Gen4 M.2 slots:

2 x Gen4 x4 64Gbps slots*

* 1 with M.2 Shield Frozr

Connectivity

1G LAN: A 1Gbps LAN controller delivers a premium network experience.
USB 3.2 Gen 2 Type-C: Connect to devices and transfer files at high bandwidth rates: 10Gbps.
HD Audio: 7.1-Channel High Definition Audio with Audio Boost.
Display Outputs: Include HDMI 1.4 (4K/30Hz), DisplayPort 1.4 (4K/60Hz) and legacy VGA.

Model
Brand	MSI
Model	PRO B760M-P
Part Number	PRO B760M-P

Supported CPU
CPU Socket Type	LGA 1700
CPU Type	Core / Pentium / Celeron (12th Gen, LGA1700) / Intel Core 12th Gen (LGA 1700) / Intel Core 13th Gen (LGA 1700) / Intel Core 14th Gen (LGA 1700)

Chipsets
Chipset	Intel B760

Memory
Number of Memory Slots	4x288pin (DDR5)
Memory Standard	Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 6800+ MHz • 1DPC 2R Max speed up to 6400+ MHz • 2DPC 1R Max speed up to 6000+ MHz • 2DPC 2R Max speed up to 5600+ MHz
Maximum Memory Supported	256GB
Channel Supported	Dual Channel

Expansion Slots
PCI Express 4.0 x16	1 x PCI Express 4.0 x16
PCI Express x1	2x PCIe 4.0 x1 slots

Storage Devices
Serial ATA (SATA)	* SATA5 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
M.2	M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices

Onboard Audio
Audio Chipset	Realtek® ALC897 Codec 7.1-Channel High Definition Audio

Onboard LAN
LAN Chipset	Realtek® RTL8111H Gigabit LAN

Rear Panel Ports

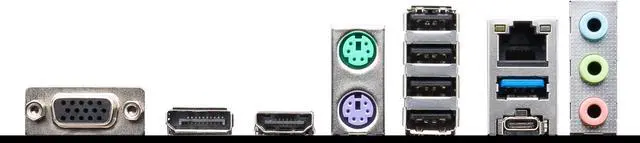

Back I/O Ports	1 x DisplayPort / 1 x HDMI / 1 x LAN (RJ45) / 1 x USB 3.2 Gen 1 Type-A / 1 x USB 3.2 Gen 2 Type-C / 3 x Audio Jacks / 4 x USB 2.0/1.1
PS/2	1 x PS/2 keyboard/mouse port
Video Ports	1x VGA Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
HDMI	1x HDMI™ Support HDMI™ 1.4, maximum resolution of 4K 30Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
RJ45	1 x RJ45
DisplayPort	1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz*
USB 1.1/2.0	4 x USB 2.0
USB Type-C	1 x USB Type-C® port, with USB 3.2 Gen 2 support
Audio Ports	3 Ports

Internal I/O Connectors
Onboard USB	2 x USB 3.1 + 4 x USB 2.0
Other Connectors	1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Printer Port (JLPT) 1x Com Port (JCOM) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0)

Software Feature
Windows 11	Support for Windows® 11 64-bit, Windows® 10 64-bit

Physical Spec
Form Factor	Micro ATX
Dimensions (W x L)	243.84mmx243.84mm
