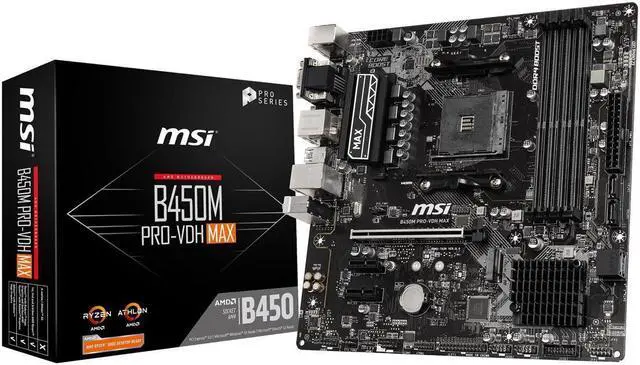

Main image of MSI PRO B450M PRO-VDH MAX AM4 AMD B450 SATA 6Gb/s Micro ATX AMD Motherboard

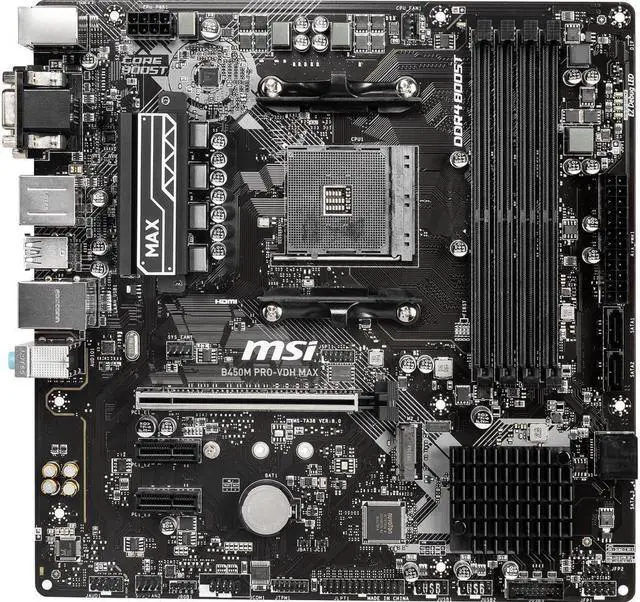

Alt view image 2 of 9 - MSI PRO B450M PRO-VDH MAX AM4 AMD B450 SATA 6Gb/s Micro ATX AMD Motherboard

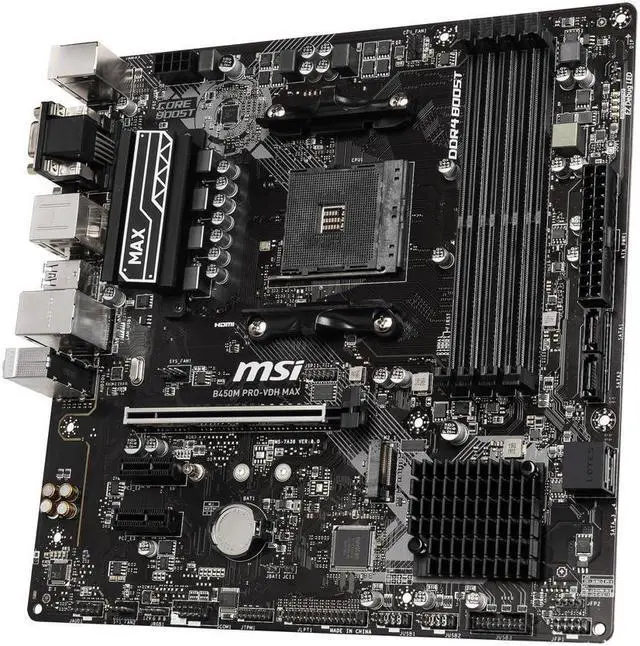

Alt view image 3 of 9 - MSI PRO B450M PRO-VDH MAX AM4 AMD B450 SATA 6Gb/s Micro ATX AMD Motherboard

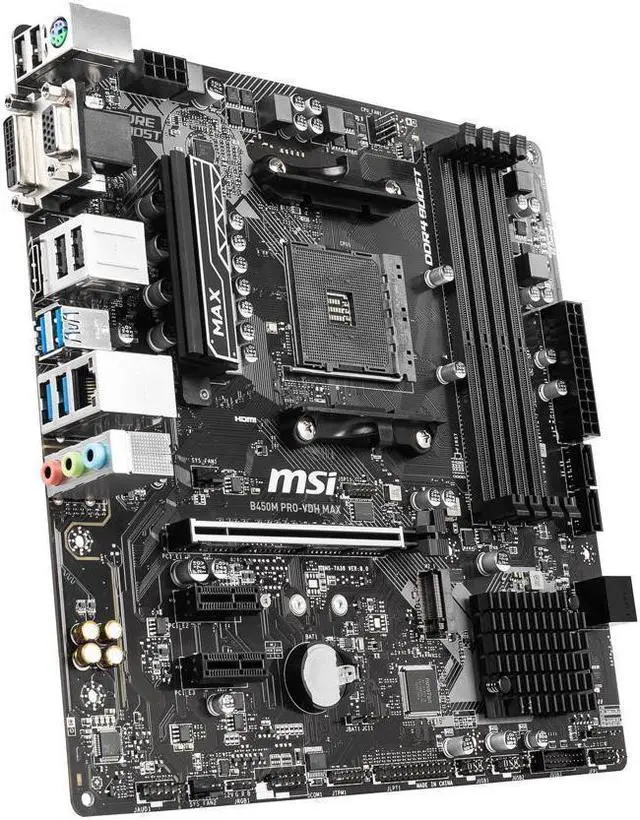

Alt view image 4 of 9 - MSI PRO B450M PRO-VDH MAX AM4 AMD B450 SATA 6Gb/s Micro ATX AMD Motherboard

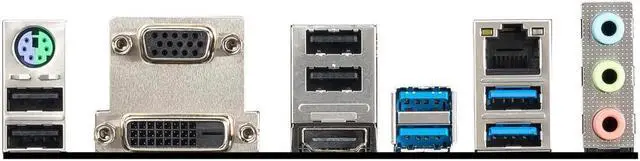

Alt view image 5 of 9 - MSI PRO B450M PRO-VDH MAX AM4 AMD B450 SATA 6Gb/s Micro ATX AMD Motherboard

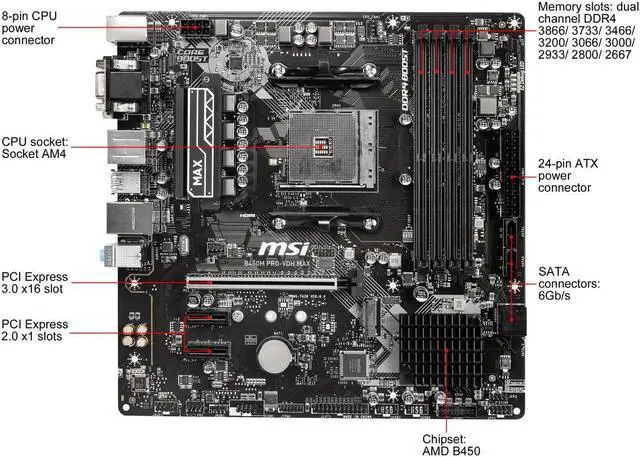

Alt view image 6 of 9 - MSI PRO B450M PRO-VDH MAX AM4 AMD B450 SATA 6Gb/s Micro ATX AMD Motherboard

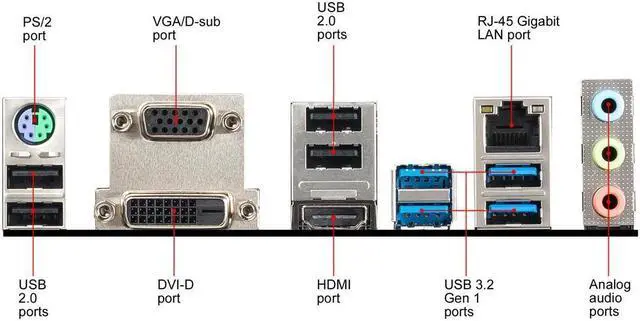

Alt view image 7 of 9 - MSI PRO B450M PRO-VDH MAX AM4 AMD B450 SATA 6Gb/s Micro ATX AMD Motherboard

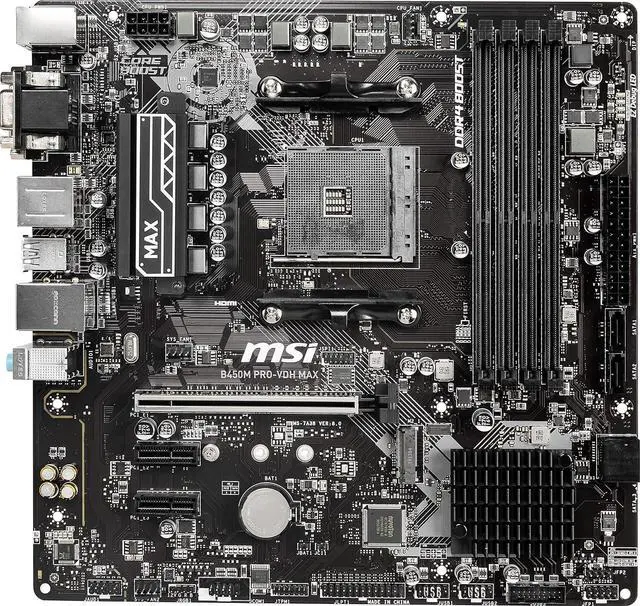

Alt view image 8 of 9 - MSI PRO B450M PRO-VDH MAX AM4 AMD B450 SATA 6Gb/s Micro ATX AMD Motherboard

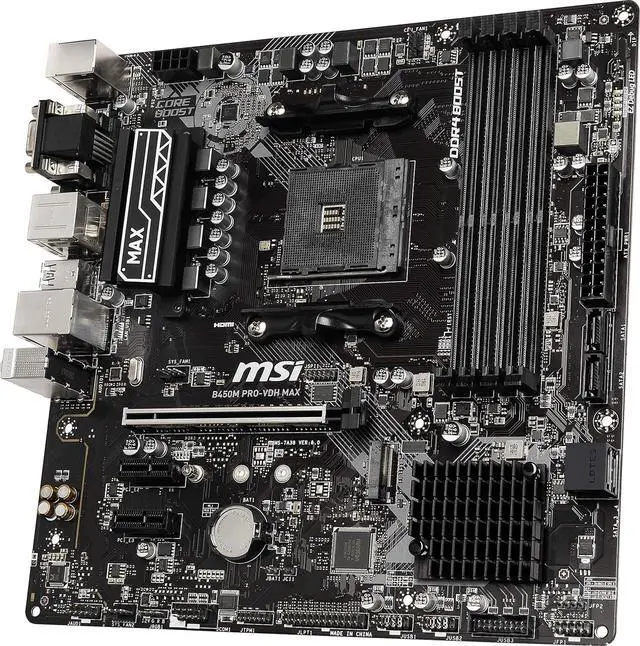

Alt view image 9 of 9 - MSI PRO B450M PRO-VDH MAX AM4 AMD B450 SATA 6Gb/s Micro ATX AMD Motherboard

Shop All MSI Products | Visit UltraParts Renewed Store

MSI PRO B450M PRO-VDH MAX AM4 AMD B450 SATA 6Gb/s Micro ATX AMD Motherboard

REFURBISHED

Be the first to review this product...

AMD B450
Supports 1st / 2nd / 3rd Gen AMD Ryzen Processors
Supports AMD Ryzen with Radeon Vega Graphics Processors
Supports 2nd Gen AMD Ryzen with Radeon Graphics Processors
Supports AMD Athlon with Radeon Vega Graphics Processors
DDR4 3866 / 3733 / 3466 / 3200 / 3066 / 3000 / 2933 / 2800 / 2667 (For AMD Ryzen Gen3 (R5/R7/R9), by A-XMP OC MODE)
DDR4 3466 / 3200 / 3066 / 3000 / 2933 / 2800 / 2667 (For AMD Other Processors, by A-XMP OC MODE)
DDR4 2667 / 2400 / 2133 / 1866 (by JEDEC)

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

AMD B450
Supports 1st / 2nd / 3rd Gen AMD Ryzen Processors
Supports AMD Ryzen with Radeon Vega Graphics Processors
Supports 2nd Gen AMD Ryzen with Radeon Graphics Processors
Supports AMD Athlon with Radeon Vega Graphics Processors
DDR4 3866 / 3733 / 3466 / 3200 / 3066 / 3000 / 2933 / 2800 / 2667 (For AMD Ryzen Gen3 (R5/R7/R9), by A-XMP OC MODE)
DDR4 3466 / 3200 / 3066 / 3000 / 2933 / 2800 / 2667 (For AMD Other Processors, by A-XMP OC MODE)
DDR4 2667 / 2400 / 2133 / 1866 (by JEDEC)

Model
Brand	MSI
Series	PRO
Model	B450M PRO-VDH MAX

Supported CPU
CPU Socket Type	AM4
CPU Type	Ryzen 3000 Series

Chipsets
Chipset	AMD B450

Memory
Number of Memory Slots	4x288pin (DDR4)
Memory Standard	DDR4 3866 / 3733 / 3466 / 3200 / 3066 / 3000 / 2933 / 2800 / 2667 (For AMD Ryzen Gen3 (R5/R7/R9), by A-XMP OC MODE) DDR4 3466 / 3200 / 3066 / 3000 / 2933 / 2800 / 2667 (For AMD Other Processors, by A-XMP OC MODE) DDR4 2667 / 2400 / 2133 / 1866 (by JEDEC) * Please refer www.msi.com for more information on compatible memory.
Maximum Memory Supported	128GB
Channel Supported	Dual Channel
ECC Supported	Non-ECC
Buffer Supported	Un-buffered

Expansion Slots
PCI Express 3.0 x16	1 x PCI Express 3.0 x16 * Actual support may vary by CPU.
PCI Express x1	2 x PCIe 2.0 x1

Storage Devices
Serial ATA (SATA)	4 x SATA 6Gb/s
M.2	1 x M.2 slot (Key M): - Supports PCIe 3.0 x4 (1st, 2nd and 3rd Gen AMD Ryzen / Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) or PCIe 3.0 x2 (Athlon with Radeon Vega Graphics) and SATA 6Gb/s - Supports 2242/2260/2280 storage devices
SATA RAID	0/1/10

Onboard Video
Onboard Video Chipset	Supported only by CPU with integrated graphic

Onboard Audio
Audio Chipset	Realtek ALC892/ALC897
Audio Channels	7.1 Channels

Onboard LAN
LAN Chipset	Realtek 8111H
Max LAN Speed	1Gbps

Rear Panel Ports
Back I/O Ports	1 x D-Sub 1 x DVI-D 1 x HDMI 1 x LAN (RJ45) 1 x PS/2 Keyboard/Mouse Combo 3 x Audio Jacks 4 x USB 2.0/1.1 4 x USB 3.2 Gen 1

Internal I/O Connectors
Onboard USB	2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)

Physical Spec
Form Factor	Micro ATX
LED Lighting	RGB
Dimensions (W x L)	9.6" x 9.6"
Power Pin	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector

Software Feature
Windows 11	Supported

Additional Information
First Listed on Newegg	October 05, 2023
