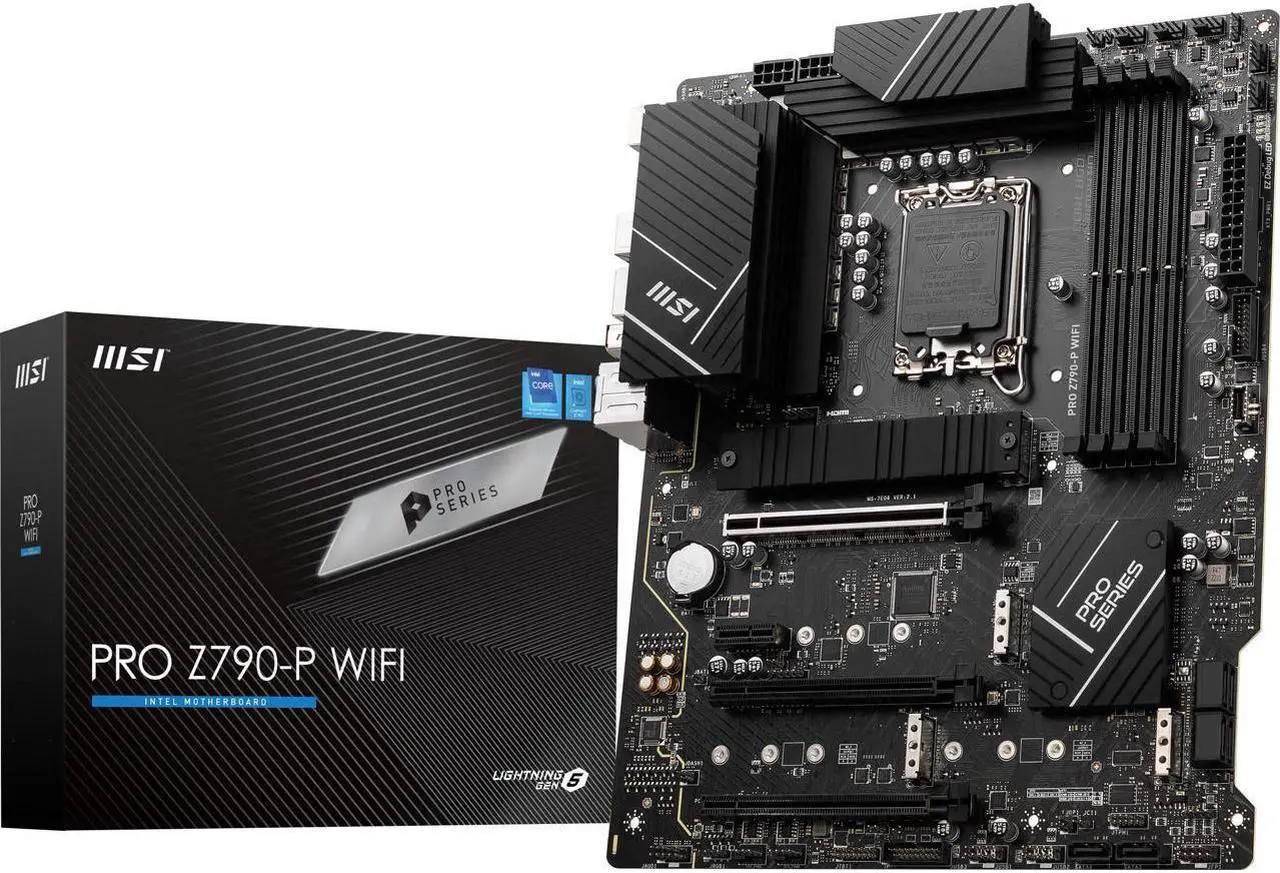

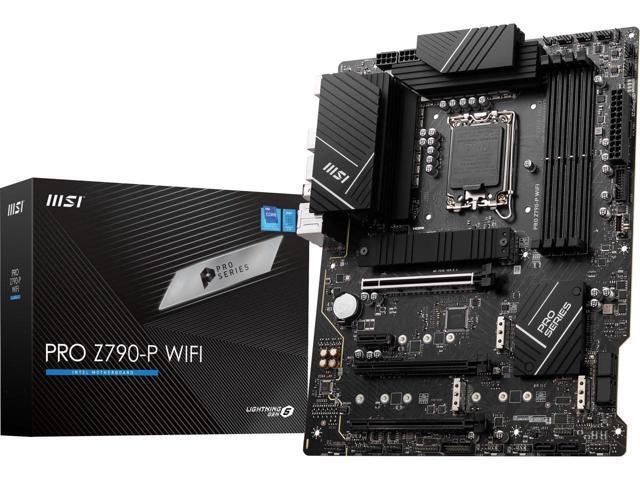

Main image of MSI PRO Z790-P WIFI LGA 1700 Intel Z790 SATA 6Gb/s DDR5 ATX Motherboard

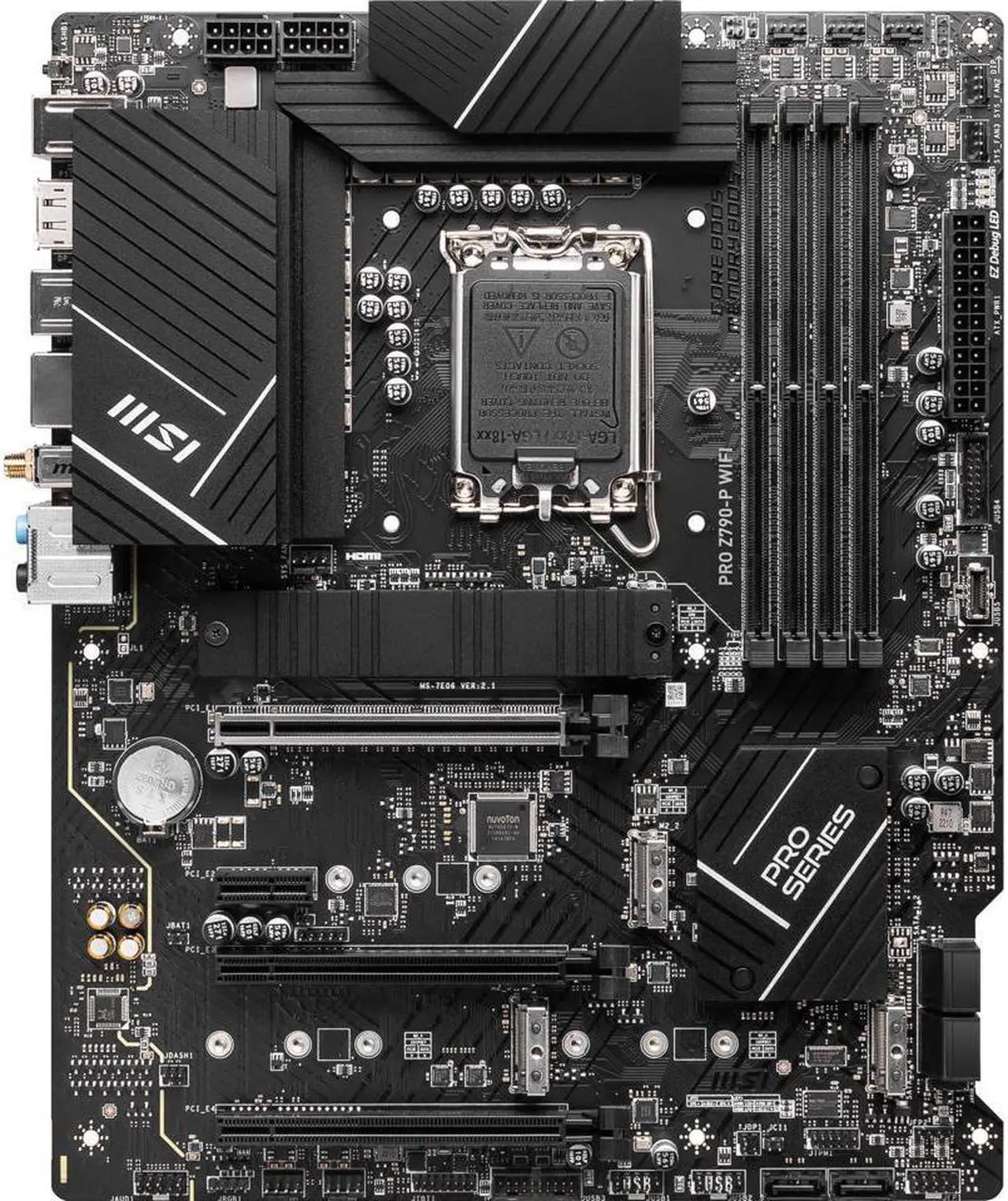

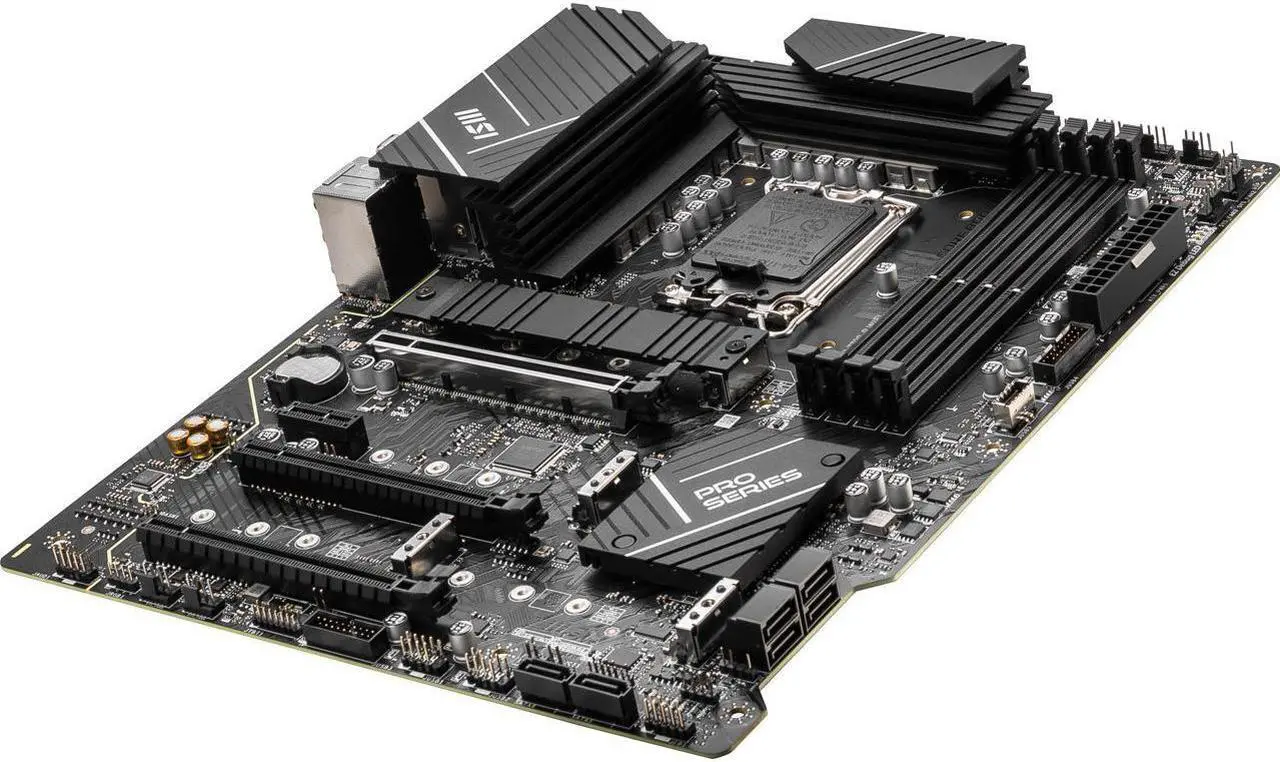

Alt view image 2 of 4 - MSI PRO Z790-P WIFI LGA 1700 Intel Z790 SATA 6Gb/s DDR5 ATX Motherboard

Alt view image 3 of 4 - MSI PRO Z790-P WIFI LGA 1700 Intel Z790 SATA 6Gb/s DDR5 ATX Motherboard

Alt view image 4 of 4 - MSI PRO Z790-P WIFI LGA 1700 Intel Z790 SATA 6Gb/s DDR5 ATX Motherboard

Shop All MSI Products | Visit Polytopia Store

MSI PRO Z790-P WIFI LGA 1700 Intel Z790 SATA 6Gb/s DDR5 ATX Motherboard

REFURBISHED

Be the first to review this product...

BIOS update may be required when used with some 14th generation Intel Core processors, visit MSI support website for more information
Supports 12th/13th Gen Intel Core Processors, Pentium Gold and Celeron Processors.
Latest DDR5 Memory: A huge step of DDR5 performance enhancement with the latest DDR5 memory and MSI memory boost technology.
Lightning Gen 5: The latest PCIE 5.0 solution with up to 128 GB/s bandwidth for maximum transfer speed.
Wifi-6E: the latest wireless solution support 6GBz spectrum, MU-MIMO and BSS color technology, delivering speeds up to 2400Mbps.
Lightning USB 20G: Built-in USB3.2 Gen 2X2 port.
Extended Heatsink Design: MSI extended PWM heatsink and enhanced circuit designs ensures even high-end processors to run in full speed.
M.2 Shield FROZR: Strengthened build- in M.2 thermal solution. Keeps M.2 SSDs safe.
2.5G network solution: Featuring premium 2.5 LAN to delivery better network experience.
EZ Debug Led: Easiest way to troubleshoot.

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

BIOS update may be required when used with some 14th generation Intel Core processors, visit MSI support website for more information
Supports 12th/13th Gen Intel Core Processors, Pentium Gold and Celeron Processors.
Latest DDR5 Memory: A huge step of DDR5 performance enhancement with the latest DDR5 memory and MSI memory boost technology.
Lightning Gen 5: The latest PCIE 5.0 solution with up to 128 GB/s bandwidth for maximum transfer speed.
Wifi-6E: the latest wireless solution support 6GBz spectrum, MU-MIMO and BSS color technology, delivering speeds up to 2400Mbps.
Lightning USB 20G: Built-in USB 3.2 Gen 2X2 port.
Extended Heatsink Design: MSI extended PWM heatsink and enhanced circuit designs ensures even high-end processors to run in full speed.
M. 2
Shield FROZR: Strengthened build- in M. 2 thermal solution. Keeps M. 2 SSDs safe.
2.5G network solution: Featuring premium 2.5 LAN to delivery better network experience.
EZ Debug Led: Easiest way to troubleshoot.

Model
Brand	MSI
Model	PRO Z790-P WIFI

Supported CPU
CPU Socket Type	LGA 1700
CPU Type	Supports 13th / 12th Gen Intel Core Processors, Intel Pentium Gold, Celeron Processors

Chipsets
Chipset	Intel Z790

Memory
Number of Memory Slots	4x288pin (DDR5)
Memory Standard	Supports 1R 5600 MHz (by JEDEC & POR) Max. overclocking frequency: - 1DPC 1R Max speed up to 7000+ MHz - 1DPC 2R Max speed up to 6400+ MHz - 2DPC 1R Max speed up to 6400+ MHz - 2DPC 2R Max speed up to 5600+ MHz Supports Intel XMP 3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory
Maximum Memory Supported	192GB
Channel Supported	Dual Channel

Expansion Slots
PCI Express 5.0 x16	PCI_E1 slot (From CPU) - Supports up to PCIe 5.0 x16
PCI Express 4.0 x16	PCI_E3 slot (From Z790 chipset) - PCI_E3 supports up to PCIe 4.0 x4
PCI Express 3.0 x16	PCI_E4 slot (From Z790 chipset) - PCI_E4 supports up to PCIe 3.0 x1
PCI Express x1	1x PCIe x1 slot (From Z790 chipset) - PCI_E2 supports up to PCIe 3.0 x1

Storage Devices
Serial ATA (SATA)	6x SATA 6Gb/s ports (From Z790 chipset)
M.2	1 x Key M (CPU PCIe) + 1 x Key M (PCH PCIe) + 2 x Key M (PCIe/SATA) + 1 x Key E (WiFi/BT) 4x M.2 slots (Key M) M2_1 slot (From CPU) - Supports up to PCIe 4.0 x4 - Supports 2242/ 2260/ 2280/ 22110 storage devices M2_2 slot (From Z790 chipset) - Supports up to PCIe 4.0 x4 - Supports 2242/ 2260/ 2280 storage devices M2_3 slot (From Z790 chipset) - Supports up to PCIe 4.0 x4 - Supports SATA 6Gb/s - Supports 2242/ 2260/ 2280 storage devices M2_4 slot (From Z790 chipset) - Supports up to PCIe 4.0 x4 - Supports SATA 6Gb/s - Supports 2242/ 2260/ 2280 storage devices
SATA RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices

Onboard Audio
Audio Chipset	Realtek ALC897
Audio Channels	7.1 Channels

Onboard LAN
LAN Chipset	1x Intel 2.5Gbps LAN controller
Max LAN Speed	2.5Gbps
Wireless LAN	Intel Wi-Fi 6E - The Wireless module is pre-installed in the M.2 (Key-E) slot - Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (160MHz)up to 2.4Gbps - Supports 802.11 a/ b/ g/ n/ ac/ ax * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 10 build 21H1 and Windows 11.
Bluetooth	- Supports Bluetooth 5.2, FIPS, FISMA Bluetooth 5.2 will be ready in Windows 10 build 21H1 and Windows 11.

Rear Panel Ports

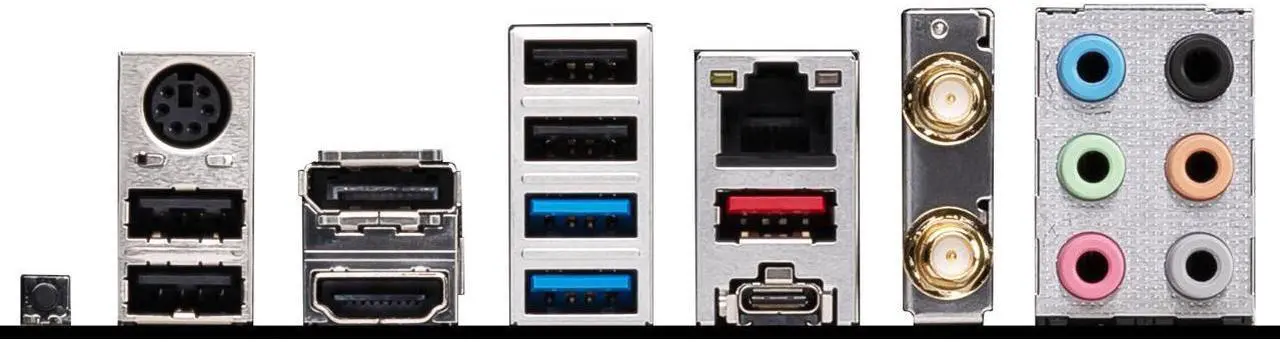

Back I/O Ports	1x Flash BIOS button 1x PS/2 port 4x USB 2.0 Type-A ports (From Z790 chipset) 1x DisplayPort 1x HDMI port 1x LAN (RJ45) jack 2x USB 3.2 Gen 1 5Gbps Type-A ports (From Z790 chipset) 1x USB 3.2 Gen 2 10Gbps Type-A port (From Z790 chipset) 1x USB 3.2 Gen 2x2 20Gbps Type-C port (From Z790 chipset) 2x Wi-Fi Antenna connectors 6x Audio jacks

Internal I/O Connectors
Onboard USB	1x USB 3.2 Gen 2 10Gbps Type-C port (From Z790 chipset) 2x USB 3.2 Gen 1 5Gbps connector (From Z790 chipset) - Supports additional 4 USB 3.2 Gen 1 5Gbps ports 2x USB 2.0 Type-A connectors (From Hub-GL850G) - Supports additional 4 USB 2.0 ports
Other Connectors	Fan Connectors 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 6x 4-pin system fan connectors System Connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x TPM module connector 1x Tuning controller connector 1x TBT connector (Supports RTD3) Jumpers 1x Clear CMOS jumper LED Features 4x EZ Debug LED 1x 4-pin RGB LED connector 2x 3-pin ARGB Gen2 LED connectors

Software Feature
Windows 11	Supported

Physical Spec
Form Factor	ATX
LED Lighting	RGB
Dimensions (W x L)	12.0" x 9.6"
Power Pin	1x 24-pin ATX main power connector 2x 8-pin ATX 12V power connectors

Features
Features	MSI Center - LAN Manager - Mystic Light - Frozr AI Cooling - User Scenario - True Color - Live Update - Super Charger - Speed Up Cooling - M.2 Shield Frozr - Pump Fan - Smart Fan Control LED - Mystic Light Extension (ARGB GEN2/ RGB) - Mystic Light SYNC - EZ DEBUG LED - EZ LED Control Performance - DDR5 Boost - Core Boost - Lightning USB 20G - USB 3.2 Gen 2 10G - USB with Type A+C - Front USB Type-C Protection - PCI-E Steel Armor Experience - MSI Center - Frozr AI Cooling - Click BIOS 5 - Flash BIOS button

Additional Information
First Listed on Newegg	August 28, 2024
