MSI Radeon HD 7770 DirectX 11 R7770-PMD1GD5 1GB 128-Bit GDDR5 PCI Express 3.0 x16 HDCP Ready Video Card

MSI Video Card R7770-PMD1GD5

---

• Core/Memory
• 1000MHz Core
• 1024MB GDDR5 4500MHz Memory
• Video Output Function
• Dual-link DVI-I x 1
• DisplayPort x 1 (version 1.2)
• HDMI x 1 (version 1.4a)

MSI Afterburner overclocking utility

Support Kombustor to test user’s graphics cards.

Support Real-Time Video Capturing function to record in-game scenes and share with friends.

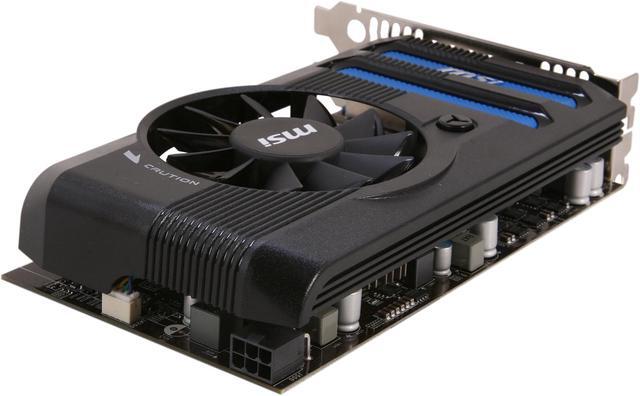

8CM PWM fan with Propeller Blade technology

8cm PWM fan provides better dissipation than reference.

Propeller Blade technology offers 20% more airflow than traditional fan design.

AMD GHz Edition

The default core clock is up to 1GHz.

Provides better performance and visual experience.

All Solid Capacitors

10 years ultra-long lifetime (under full load).

Lower temperature and higher efficiency.

Aluminum core without explosion.

Graphics Processing Unit	ATI Radeon HD 7770
Interface	PCI Express x16 3.0
Core Clock Speed (MHz)	1000
Memory Size (MB)	1024
Memory Clock Speed (MHz)	4500
DVI Connectors	Dual-link DVI-I x 1
HDMI Connectors	1 (version 1.4a)
DisplayPort	1 (version 1.2)
HDCP Support	Y
RAMDAC speed (MHz)	400
DirectX Version Support	11
OpenGL Version Support	4.2
Card Dimensions	7.5 x 4.3 x 1.5 in. (193 x 111 x 38mm)
Card Weight	12.9oz (366g)
