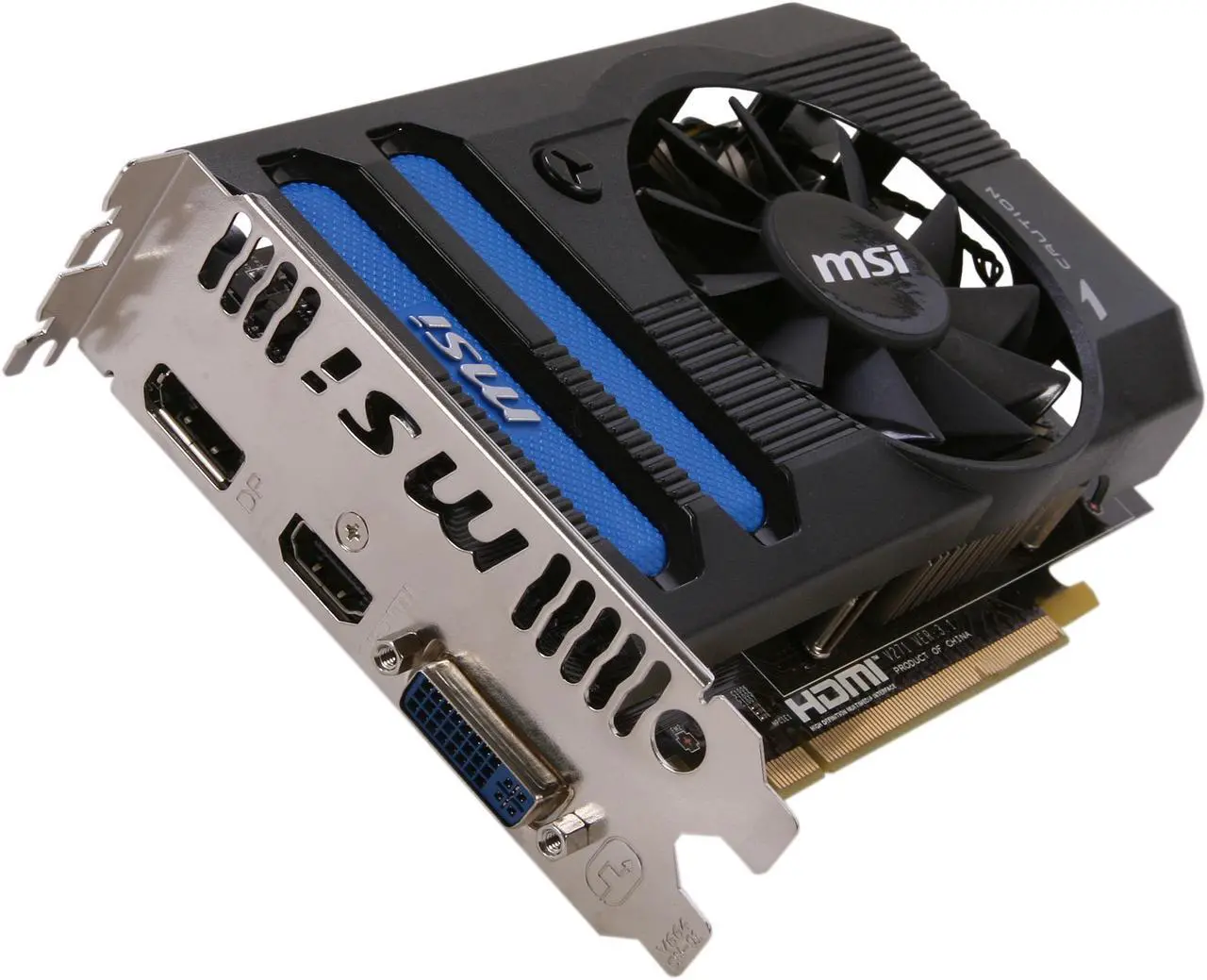

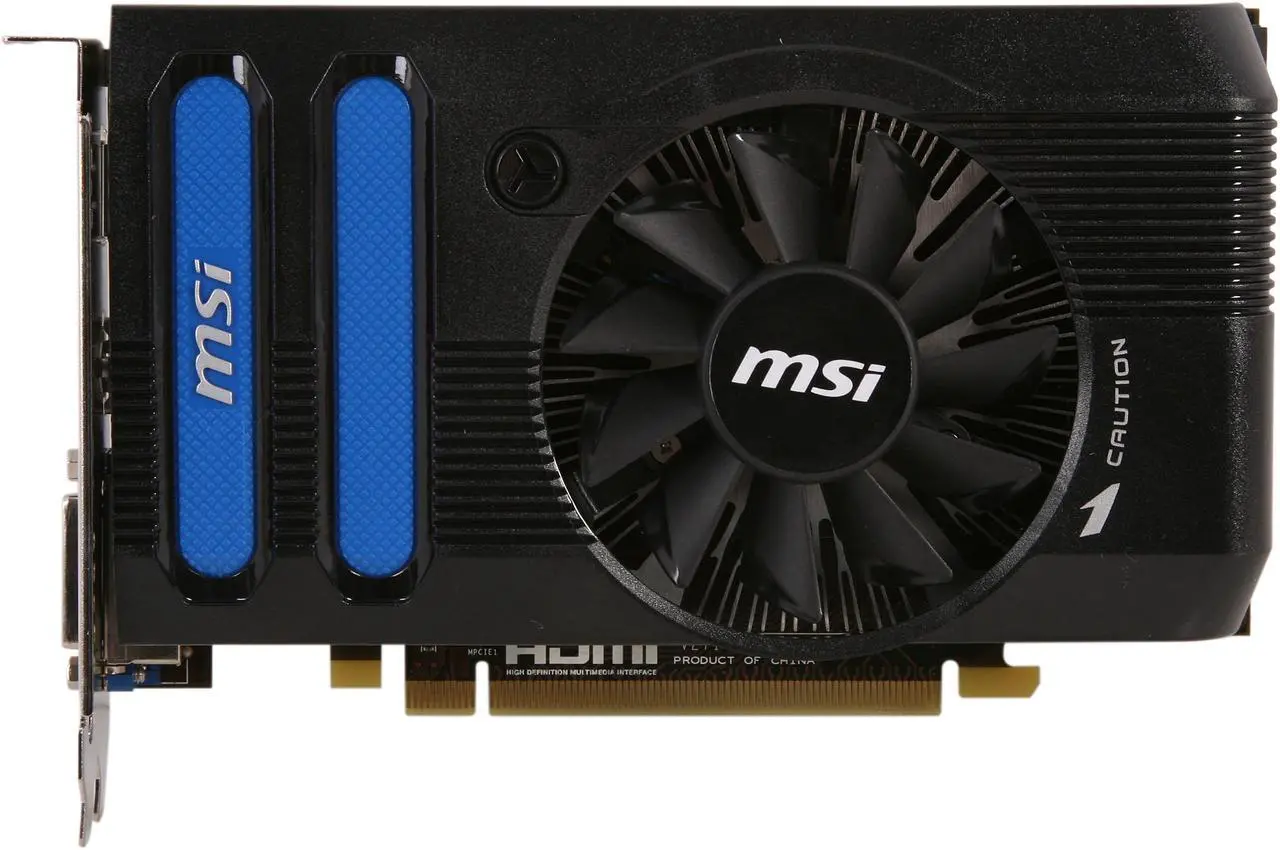

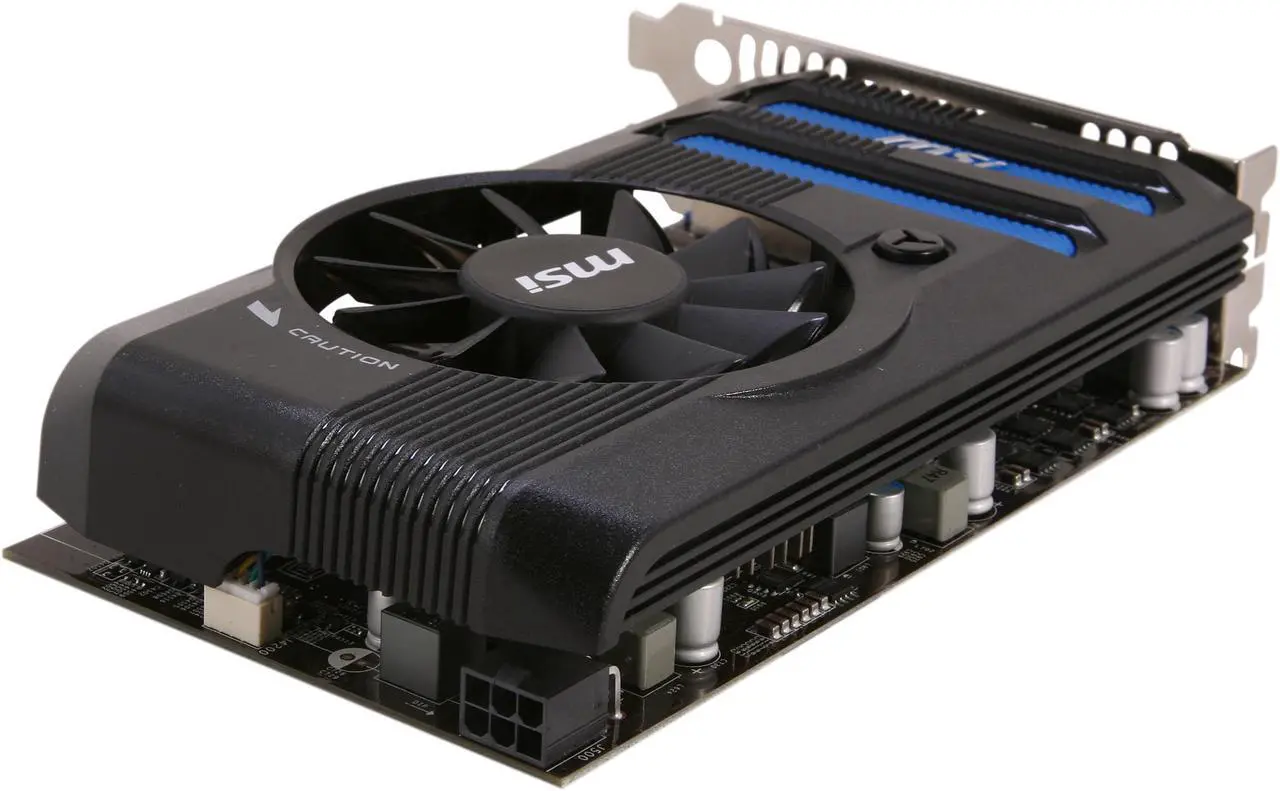

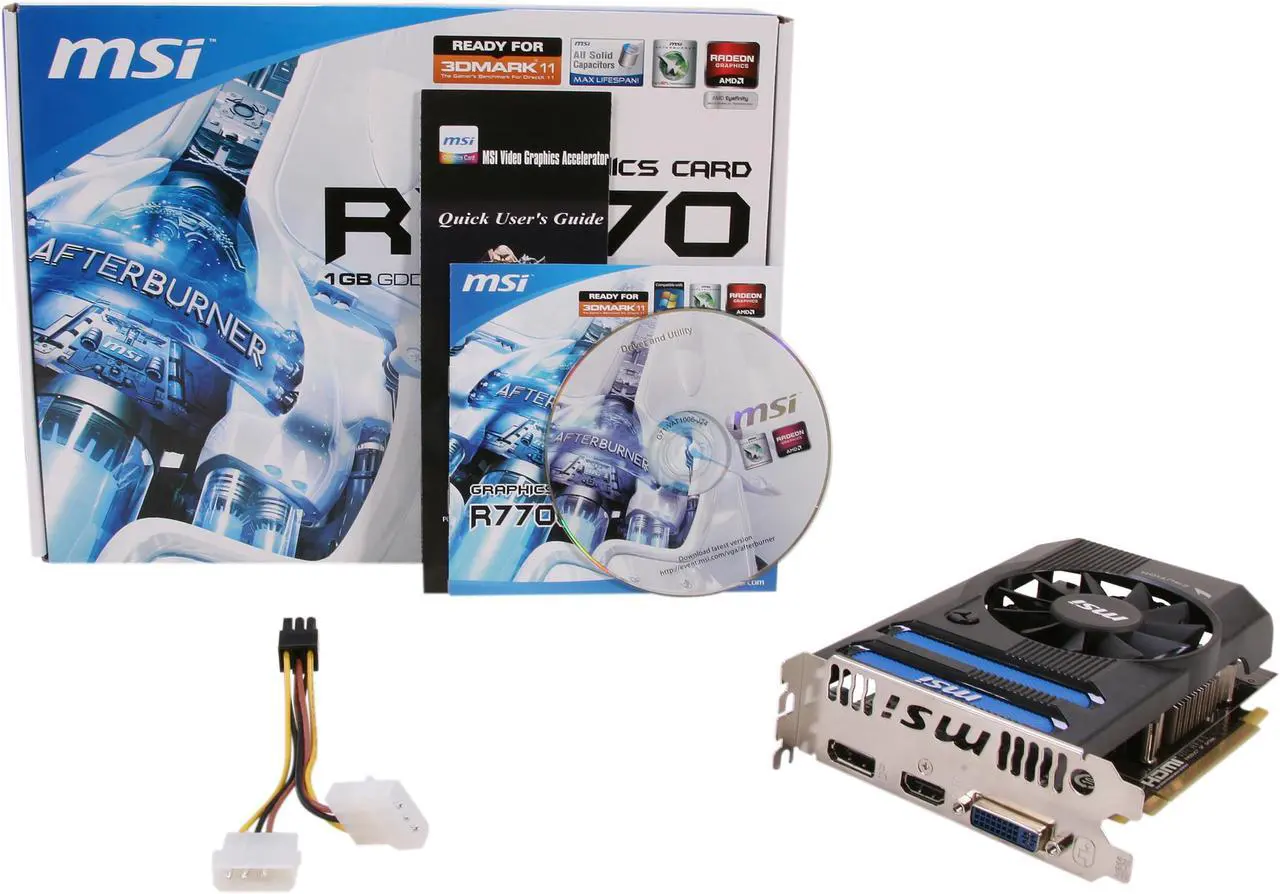

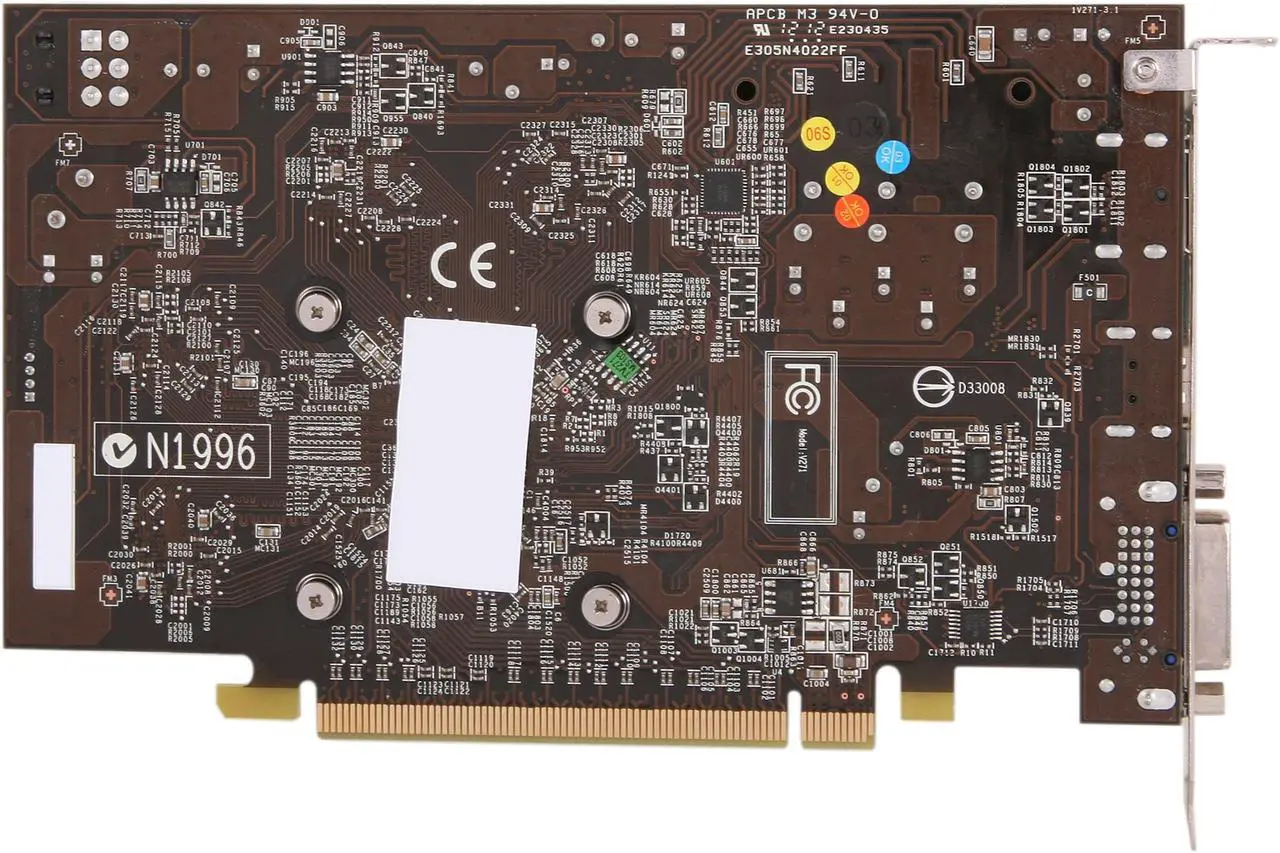

MSI Radeon HD 7770 DirectX 11 R7770-PMD1GD5 1GB 128-Bit GDDR5 PCI Express 3.0 x16 HDCP Ready Video Card
OUT OF STOCK.
- 1GB 128-Bit GDDR5
- Core Clock 1000 MHz
- 1 x DVI 1 x HDMI 1 x DisplayPort
- 640 Stream Processors
- PCI Express 3.0 x16
LOADING...
Overview
Specs
Reviews
MSI Video Card R7770-PMD1GD5

Features
- Core/Memory
- 1000MHz Core
- 1024MB GDDR5 4500MHz Memory

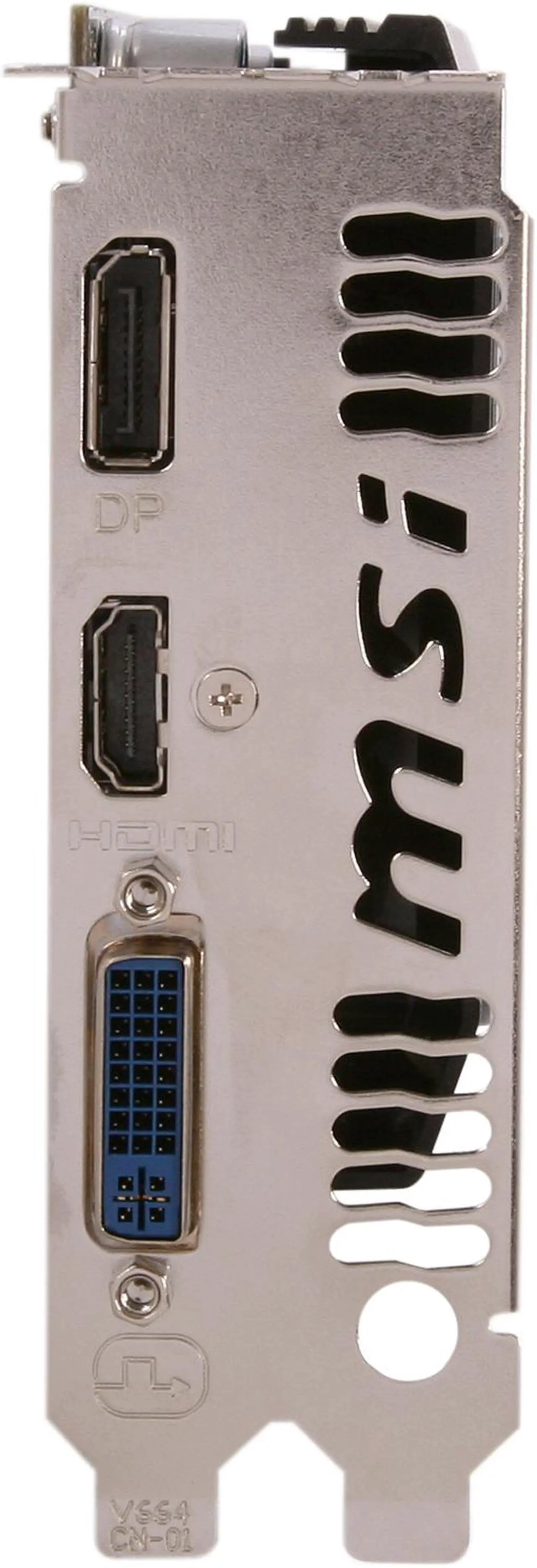

- Video Output Function
- Dual-link DVI-I x 1
- DisplayPort x 1 (version 1.2)
- HDMI x 1 (version 1.4a)
Overview
MSI Afterburner overclocking utility
Support Kombustor to test user’s graphics cards.
Support Real-Time Video Capturing function to record in-game scenes and share with friends.
8CM PWM fan with Propeller Blade technology
8cm PWM fan provides better dissipation than reference.
Propeller Blade technology offers 20% more airflow than traditional fan design.
AMD GHz Edition
The default core clock is up to 1GHz.
Provides better performance and visual experience.
All Solid Capacitors
10 years ultra-long lifetime (under full load).
Lower temperature and higher efficiency.
Aluminum core without explosion.


Specifications
Graphics Processing Unit
|
ATI Radeon HD 7770
|
Interface
|
PCI Express x16 3.0
|
Core Clock Speed (MHz)
|
1000
|
Memory Size (MB)
|
1024
|
Memory Clock Speed (MHz)
|
4500
|
DVI Connectors
|
Dual-link DVI-I x 1
|
HDMI Connectors
|
1 (version 1.4a)
|
DisplayPort
|
1 (version 1.2)
|
HDCP Support
|
Y
|
RAMDAC speed (MHz)
|
400
|
DirectX Version Support
|
11
|
OpenGL Version Support
|
4.2
|
Card Dimensions
|
7.5 x 4.3 x 1.5 in. (193 x 111 x 38mm)
|
Card Weight
|
12.9oz (366g)
|





Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Limited Warranty period (parts): 3 years
- Limited Warranty period (labor): 3 years
- Read full details
Return Policies
- Return for refund within: 30 days
- Return for replacement within: 30 days
- This item is covered by Newegg.com's Standard Return Policy
Manufacturer Contact Info
- Manufacturer Product Page
- Manufacturer Website
- Support Phone: 1-626-913-0828
- Support Website
- View other products from MSI
LOADING...
LOADING...
Pros: Compact design. Not as long as the HD5670 it replaced. Runs much cooler than the 5670 it replaced even under full gaming mode. Low power consumption. Fan is not loud at all Great performance. Can play any of the games I play maxed out.
Cons: Still requires a PCI-e power cable, but no eggs docked for this. Took over a week to come even though it was supposed to be three day shipping. Not docking an egg for that, it ain't MSI's fault.
Overall Review: I caught this on sale for under $100 on a Christmas sale and then has a $30 rebate on top of that. To me that is great bang for the buck, and this card delivers. I like the fan and heat sink layout and it seems very, very efficient.
