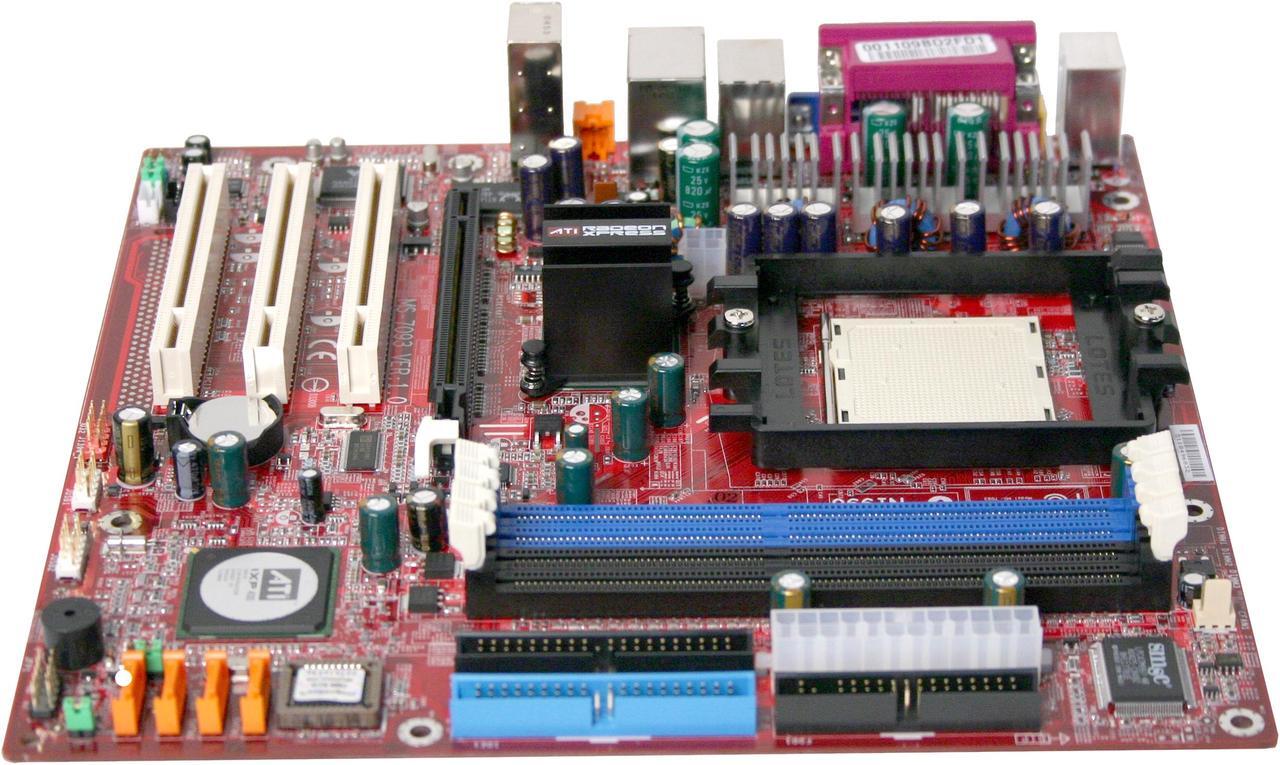

MSI RS480M2-IL 939 ATI Radeon Xpress 200 Micro ATX AMD Motherboard
- ATI Radeon Xpress 200
- Athlon 64 FX / Athlon 64 / Sempron
- DDR 400
Specs
Reviews (72)
Learn more about the MSI RS480M2-IL
| Brand | MSI |
|---|---|
| Model | RS480M2-IL |
| CPU Socket Type | 939 |
|---|---|
| CPU Type | Athlon 64 FX / Athlon 64 / Sempron |
| FSB | 1000 MHz |
| Chipset | ATI Radeon Xpress 200 |
|---|---|
| South Bridge | ATI SB400 |
| Number of Memory Slots | 4x184pin |
|---|---|
| Memory Standard | DDR 400 |
| Maximum Memory Supported | 4GB |
| Channel Supported | Dual Channel |
| PCI Express x16 | 1 x PCI Express x16 |
|---|---|
| PCI Slots | 3 x PCI Slots |
| PATA | 2 x ATA100 4 Dev. Max |
|---|---|
| SATA RAID | 0/1 |
| Onboard Video Chipset | ATI Radeon X300-based 2D/3D |
|---|
| Audio Chipset | Realtek ALC658C |
|---|---|
| Audio Channels | 6 Channels |
| LAN Chipset | Realtek 8100C |
|---|---|
| Max LAN Speed | 100Mbps |

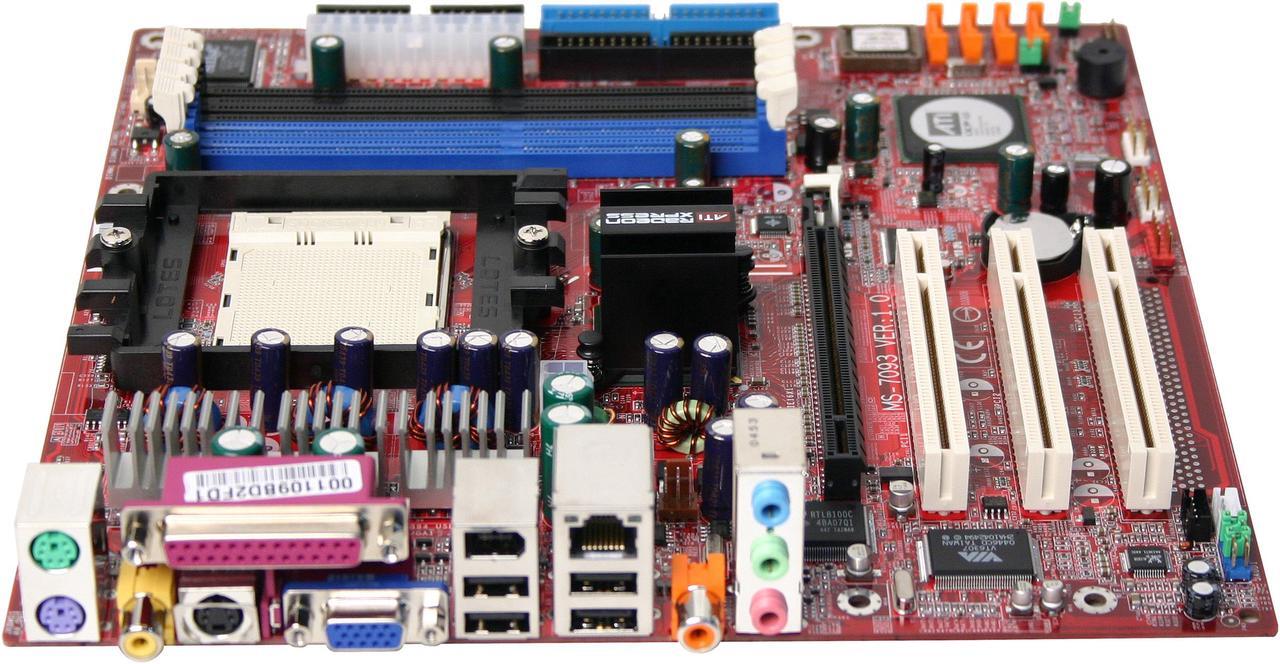

| Back I/O Ports | 1 x D-Sub / 1 x LPT (Parallel Port) / 2 x PS/2 / 3 x Audio Jacks / 4 x USB 2.0/1.1 |
|---|---|
| PS/2 | 2 |
| LPT | 1 |
| Video Ports | D-Sub + TV-Out |
| USB 1.1/2.0 | 4 x USB 2.0 |
| IEEE 1394 | 1 x IEEE 1394a |
| S/PDIF Out | 1 x Coaxial |
| S/PDIF In | 1 x Coaxial |
| Audio Ports | 3 Ports |
| Onboard USB | 4 x USB 2.0 |
|---|---|
| Onboard 1394 | 1 x 1394a |
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 9.6" x 9.6" |
| Date First Available | February 16, 2005 |
|---|
