Max Resolution: 7680 x 4320 DisplayPort: 3 x DisplayPort HDMI: 1 x HDMI 2.0b Card Dimensions (L x H): 9.84" x 5.08" DirectX: DirectX 12 Chipset Manufacturer: NVIDIA Boost Clock: 1680 MHz CUDA Cores: 2176
Learn more about the MSI RTX 2060 SUPER ARMOR OC
Model
Brand
MSI
Model
RTX 2060 SUPER ARMOR OC
Interface
Interface
PCI Express 3.0 x16
Chipset
Chipset Manufacturer
NVIDIA
GPU
GeForce RTX 2060 SUPER
Boost Clock
1680 MHz
CUDA Cores
2176 Cores
Memory
Effective Memory Clock
14 Gpbs
Memory Size
8GB
Memory Interface
256-Bit
Memory Type
GDDR6
3D API
DirectX
DirectX 12
OpenGL
OpenGL 4.5

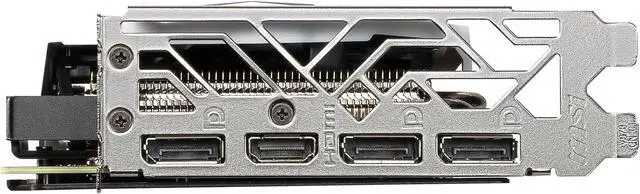

Ports
Multi-Monitor Support
4
HDMI
1 x HDMI 2.0b
DisplayPort
3 x DisplayPort
Details
Max Resolution
7680 x 4320
Virtual Reality Ready
Yes
Thermal Design Power
175W
System Requirements
Power consumption: 175W/Recommended PSU: 550W
Recommended PSU Wattage
550W
Power Connector
8-Pin
HDCP Ready
2.2
Features
Features

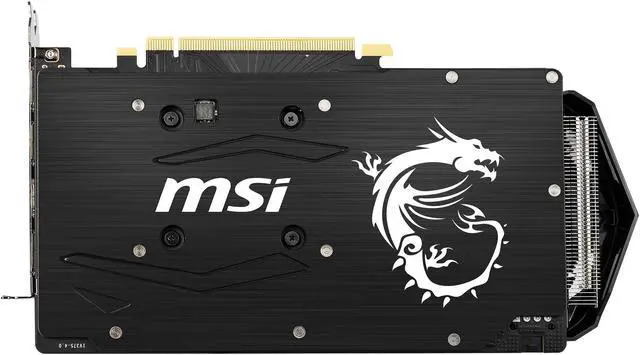

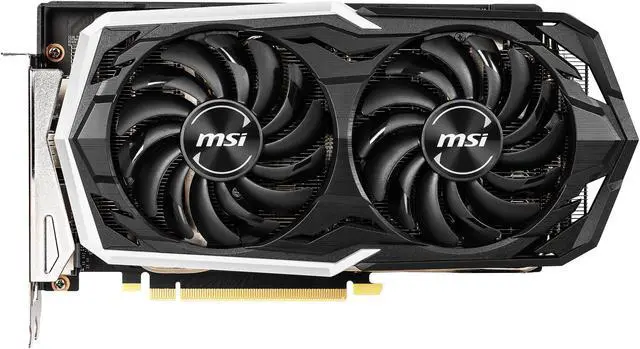

TORX FAN 2.0/Award-winning fan design combining two different fin designs for cool & quiet gaming.//MASTERY OF AERODYNAMICS/Using groundbreaking aerodynamic techniques, the heatsink is optimized for efficient heat dissipation.//ZERO FROZR/Eliminates fan noise by stopping the fans in low-load situations so you can focus on your game.//CUSTOM PCB/An optimized PCB design with enhanced power delivery provides a solid base for high performance gaming.//SOLID BLACK BACKPLATE/Increases toughness of the card to prevent bending while complementing the sleek MSI GAMING design.//RGB MYSTIC LIGHT/Customize colors and LED effects with exclusive MSI software and synchronize the look & feel with other components.//OC PERFORMANCE/MSI OC graphics cards are equipped with higher clock speeds out of the box for increased performance.//MSI AFTERBURNER/The ultimate overclocking software with advanced control options and real-time hardware monitor.
Form Factor & Dimensions
Max GPU Length
250 mm
Card Dimensions (L x H)
9.84" x 5.08"
Additional Information
First Listed on Newegg
September 13, 2022
