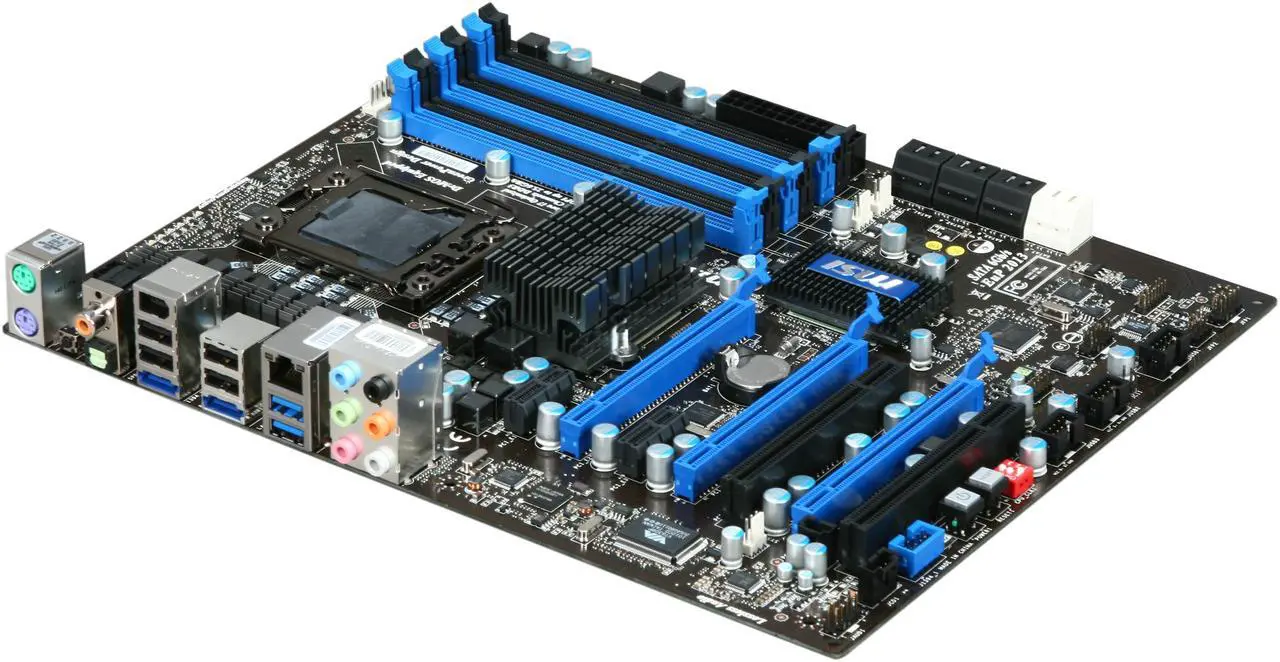

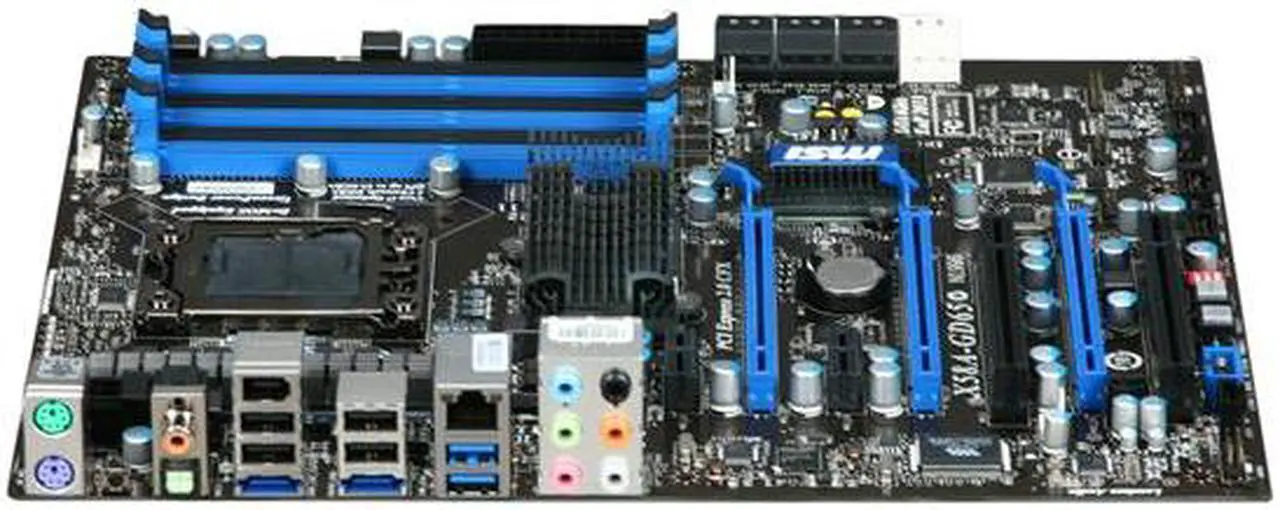

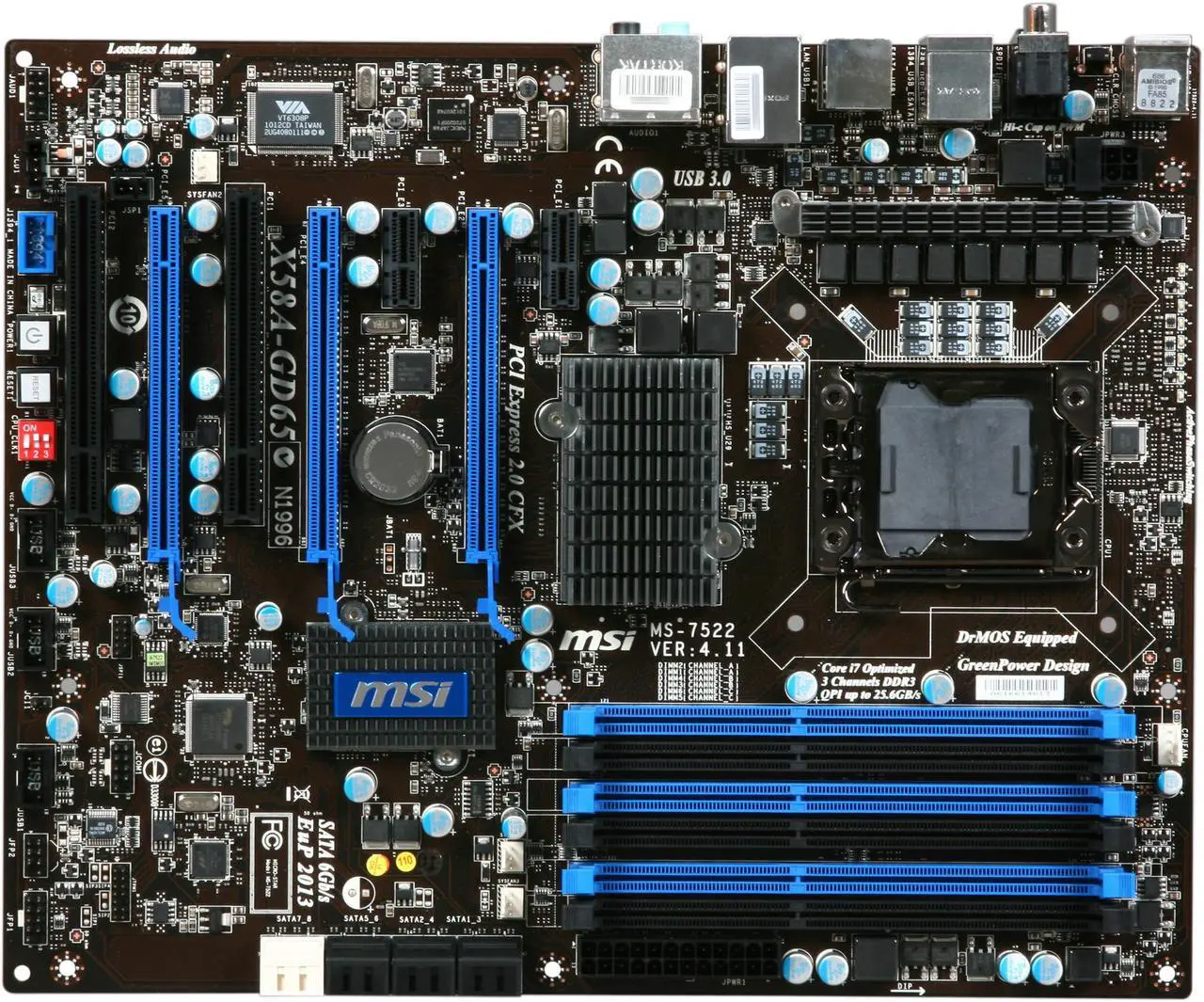

Master everything with powerful X58A-GD65 motherboard from MSI. Based on Intel’s high-end X58 chipsets, this ATX form-factor board is designed to support the latest Core i7 processors.
It delivers everything you need to build your dream system, including triple channel, up to 24GB DDR3 memory support, USB 3.0, IEEE 1394, eSATA and optical ports, as well as SATA 6Gbps for unprecedented data transfer speed. You'll also benefit from the most powerful and fastest video processing when you install two ATI video cards in CrossFireX configuration or two NVIDIA video cards in SLI. Best of all, the use of Military Class Components adds unparalleled durability and reliability to your system.
Master everything with powerful X58A-GD65 motherboard from MSI. Based on Intel’s high-end X58 chipsets, this ATX form-factor board is designed to support the latest Core i7 processors.
It delivers everything you need to build your dream system, including triple channel, up to 24GB DDR3 memory support, USB 3.0, IEEE 1394, eSATA and optical ports, as well as SATA 6Gbps for unprecedented data transfer speed. You'll also benefit from the most powerful and fastest video processing when you install two ATI video cards in CrossFireX configuration or two NVIDIA video cards in SLI. Best of all, the use of Military Class Components adds unparalleled durability and reliability to your system.
Core i7 SupportBased on the Intel X58 chipset, the MSI X58A-GD65 motherboard supports Intel’s latest generation Core i7 processors in LGA1366 socket, providing unprecedented computing power to match the performance levels you are looking for.
Military Class ComponentsThe Military Class Components powered motherboard features the highest quality components in the industry including server-grade Solid Cap for incredible stability and lifespan, and icy choke for lower temperature, improved power efficiency and better overclocking potential.
DrMOS TechnologyMIS's DrMOS technology combines the traditional discrete MOS into a high quality, 3-in-1 server class power component to deliver excellent energy-saving capability, high-computing performance and low temperature operation.
SuperSpeed USB 3.0 TechnologyThe MSI X58A-GD65 equips the revolutionary SuperSpeed USB 3.0 technology to deliver up to 5Gbps bandwidth which is 10x faster than USB 2.0 boosts data transfer rate between the PC and USB device.
SATA 6Gb/s CompliantThe MSI X58A-GD65 features next-generation SATA Revision 3.0 compliant internal SATA ports to provide 6Gb/s data transfer rates for optimal performance, efficiency, convenience and flexibility.
ATi CrossFireX & NVIDIA SLI SupportSupporting the powerful ATi CrossFireX & NVIDIA SLI multi-GPU technology, the MSI X58A-GD65 allows two or more discrete graphics processors to work together for boosted system performance and a breakthrough gaming experience.
Learn more about the MSI X58A-GD65
Model
Brand
MSI
Model
X58A-GD65
Supported CPU
CPU Socket Type
LGA 1366
CPU Type
Core i7 (LGA1366)
FSB
QPI 6.4GT/S
Chipsets
Chipset
Intel X58
South Bridge
Intel ICH10R
Onboard Video
Onboard Video Chipset
None
Memory
Number of Memory Slots
6x240pin
Memory Standard
DDR3 800/1066/1333/1600 (OC)/1800 (OC)/2133 (OC)
Maximum Memory Supported
24GB
Channel Supported
Triple Channel
Expansion Slots
PCI Express 2.0 x16
3 x PCI Express 2.0 x16
PCI Express x1
2 x PCI Express x1
PCI Slots
2 x PCI Slots
Storage Devices
Serial ATA (SATA)
2 x SATA 6Gb/s
SATA RAID
SATA1~6 support AHCI controller with SATA RAID 0/1/5/10 by ICH10R. SATA7~8 support SATA RAID 0/1 by Marvell SE9128. eSATA1~2 support SATA RAID 0/1 & JBOD mode by JMicron JMB362.
Onboard Audio
Audio Chipset
Realtek ALC892
Audio Channels
8 Channels
Onboard LAN
LAN Chipset
Realtek 8111DL
Max LAN Speed
1Gbps
Rear Panel Ports
Back I/O Ports
1 x Optical S/PDIF Out / 1 x S/PDIF Coaxial Out / 2 x eSATA 3GB/S / 2 x PS/2 / 2 x USB 3.0 / 4 x USB 2.0/1.1
PS/2
2
USB 3.0
2 x USB 3.0
USB 1.1/2.0
4 x USB 2.0
IEEE 1394
1 x IEEE 1394a
eSATA
2 x eSATA 3Gb/s
S/PDIF Out
1 x Optical, 1 x Coaxial
Audio Ports
6 Ports
Internal I/O Connectors
Onboard USB
6 x USB 2.0
Onboard 1394
1 x 1394a
Physical Spec
Form Factor
ATX
Dimensions (W x L)
12.0" x 9.6"
Power Pin
24 Pin
Features
Features
DrMOS, the highest performance with best power-saving
BIOS-level power-saving design
True Blu-ray audio support
The extra storage – Drive Booster
The highest quality and most stable passive components
New BIOS feature M-Flash
Supports ATI Crossfire
