Does this motherboard support RAID through the BIOS? If so, what types of RAID? (I have RAID 5 specifically in mind.)

Did a bit more in-depth searching and found that yes, this motherboard supports various RAID setups. – SATA1~6 support RAID 0, RAID 1, RAID 5 and RAID 10 – SATA7~10 ports only support IDE mode and AHCI mode. Thanks to the review from Modders Inc.

Would anyone know if a SAMSUNG SM951 M.2 128GB PCI-Express 3.0 Internal Solid State Drive (SSD) - OEM would require a adapter or could i just plug it in? Im still new to m.2 and require this for some epic boot speeds.

You should just be able to plug it in. This board is ready for the M.2

does the M.2 pcie gen3 X 4 support NVME protocol I don't see any bios update that says NVME support added ?

Per intel's website (search on google for "Intel 750 SSD tested motherboards"), it does support NVMe. I'd put the url in here...but it's forbidden.

Out of stock

This item is currently out of stock and it may or may not be restocked.

Out of Stock

Add to wish list(Found on 2 wish lists)

Sold by Newegg

Shipped by Newegg

Get Educated

Make informed decisions with expert advice. Learn More

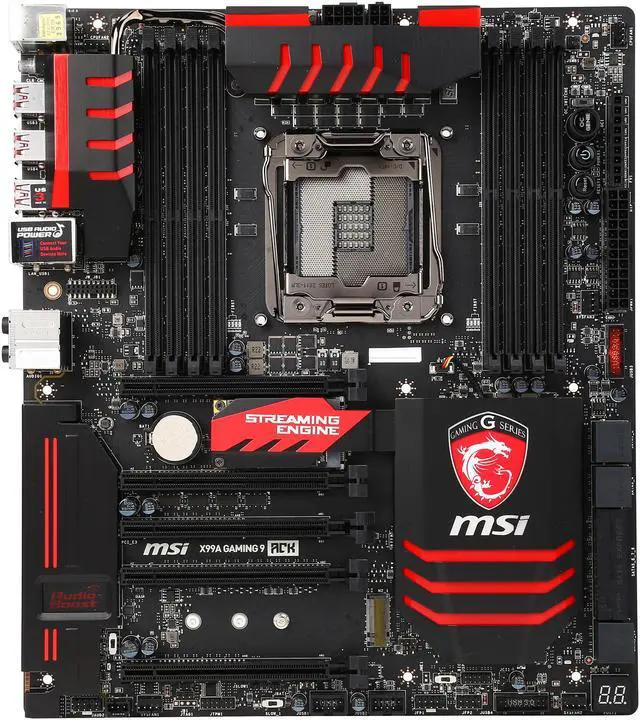

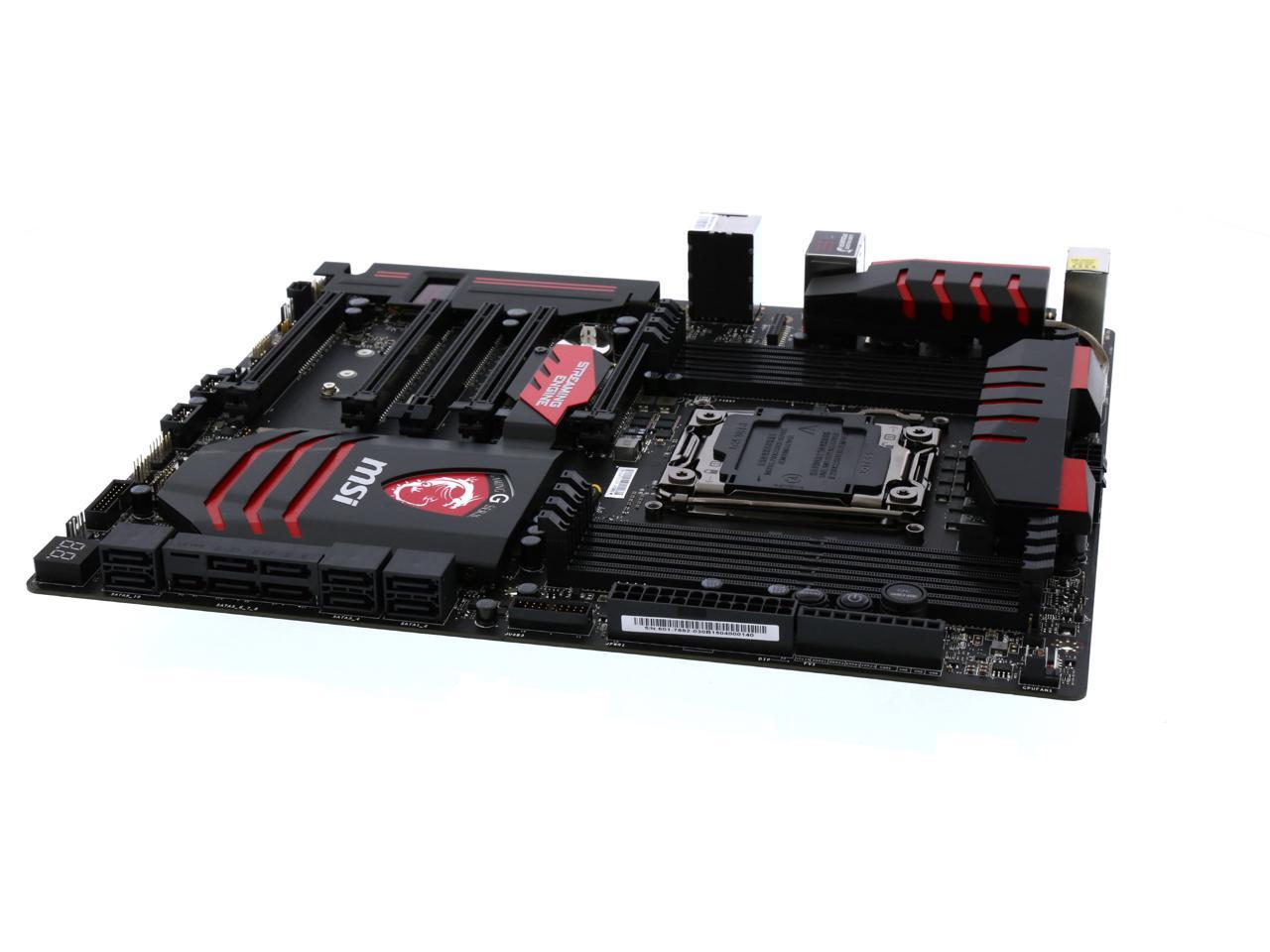

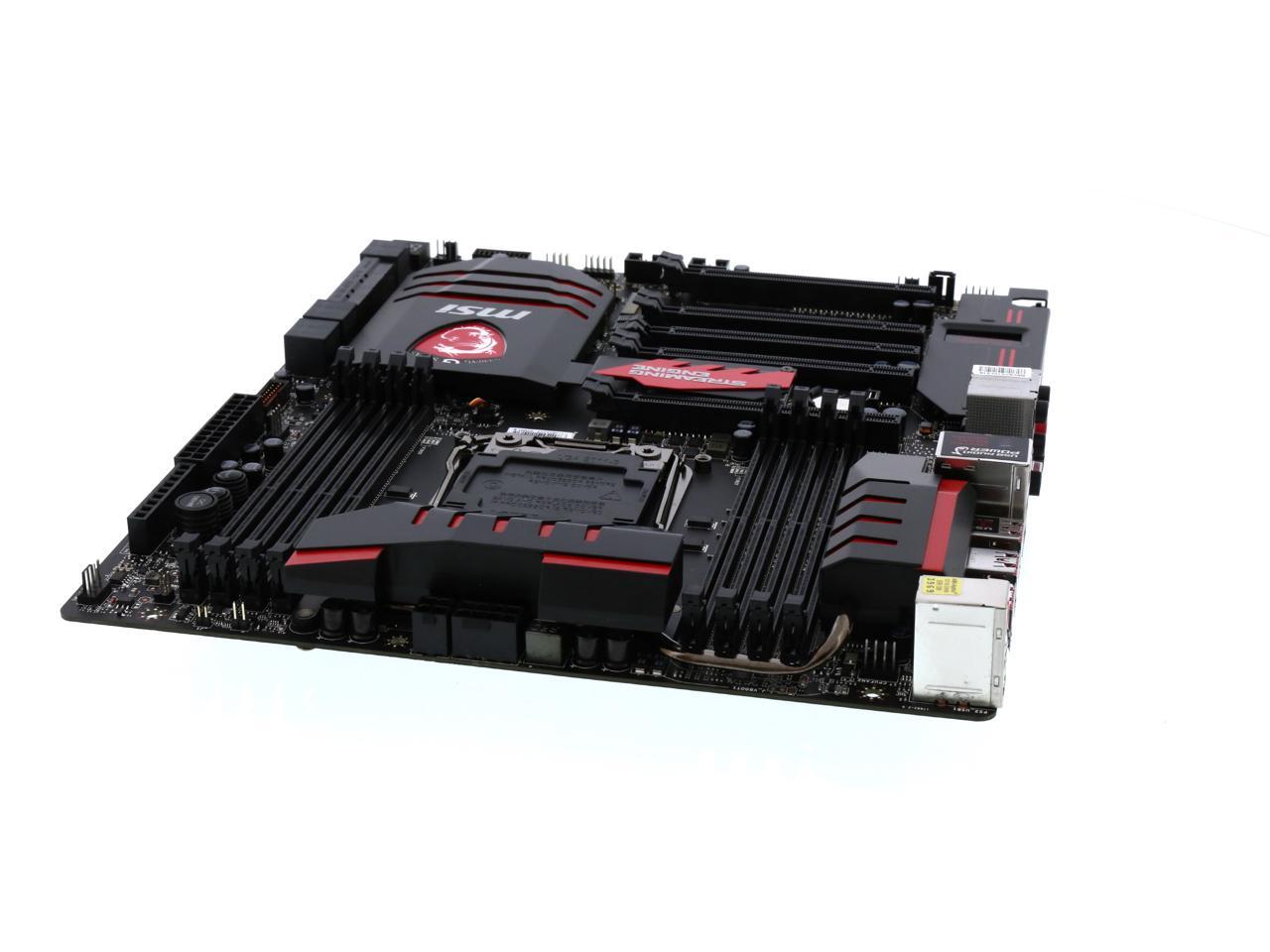

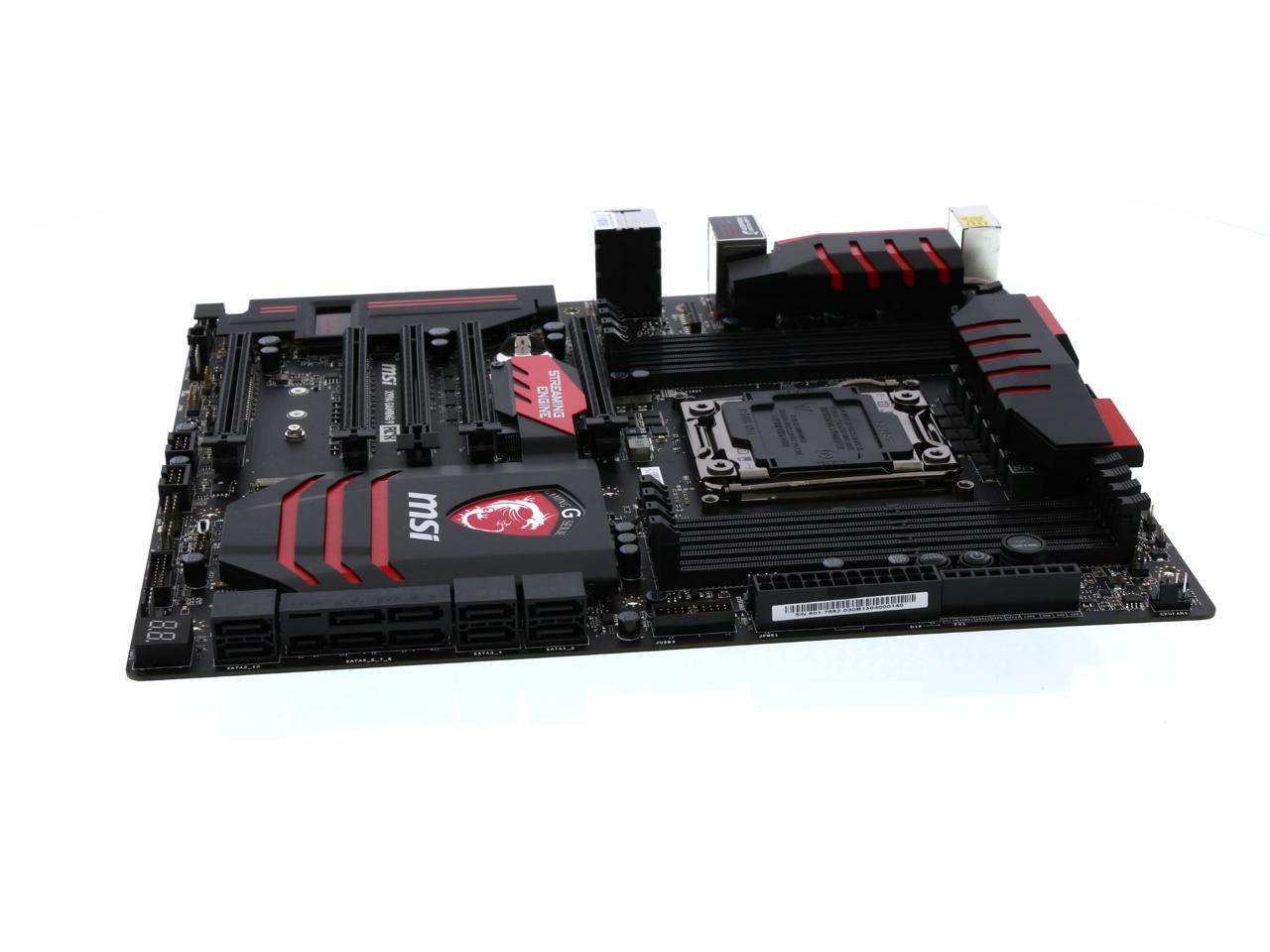

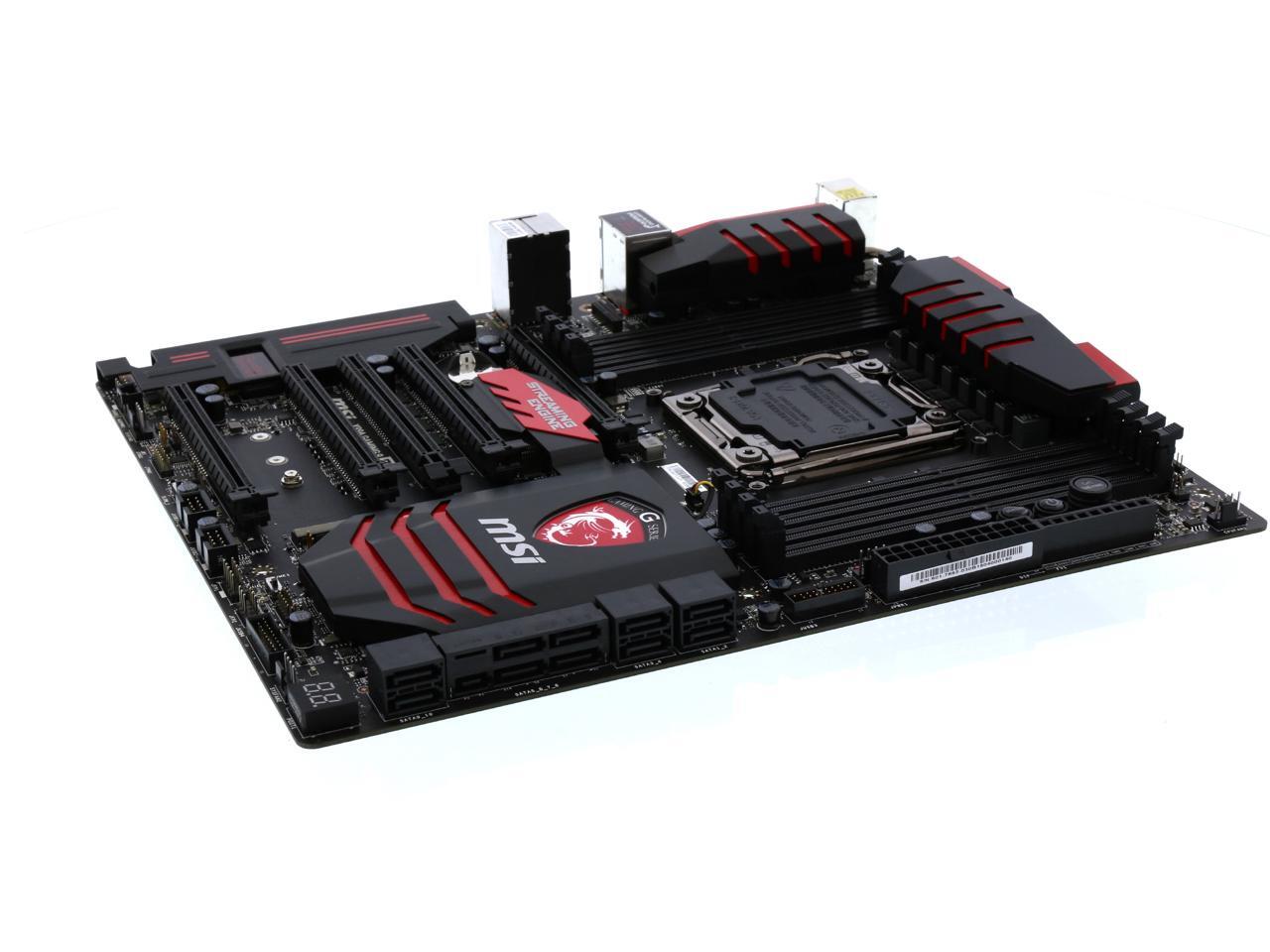

Main image of MSI X99A GAMING 9 ACK LGA 2011-v3 Intel X99 USB 3.1 USB 3.0 Extended ATX Intel Motherboard

100%

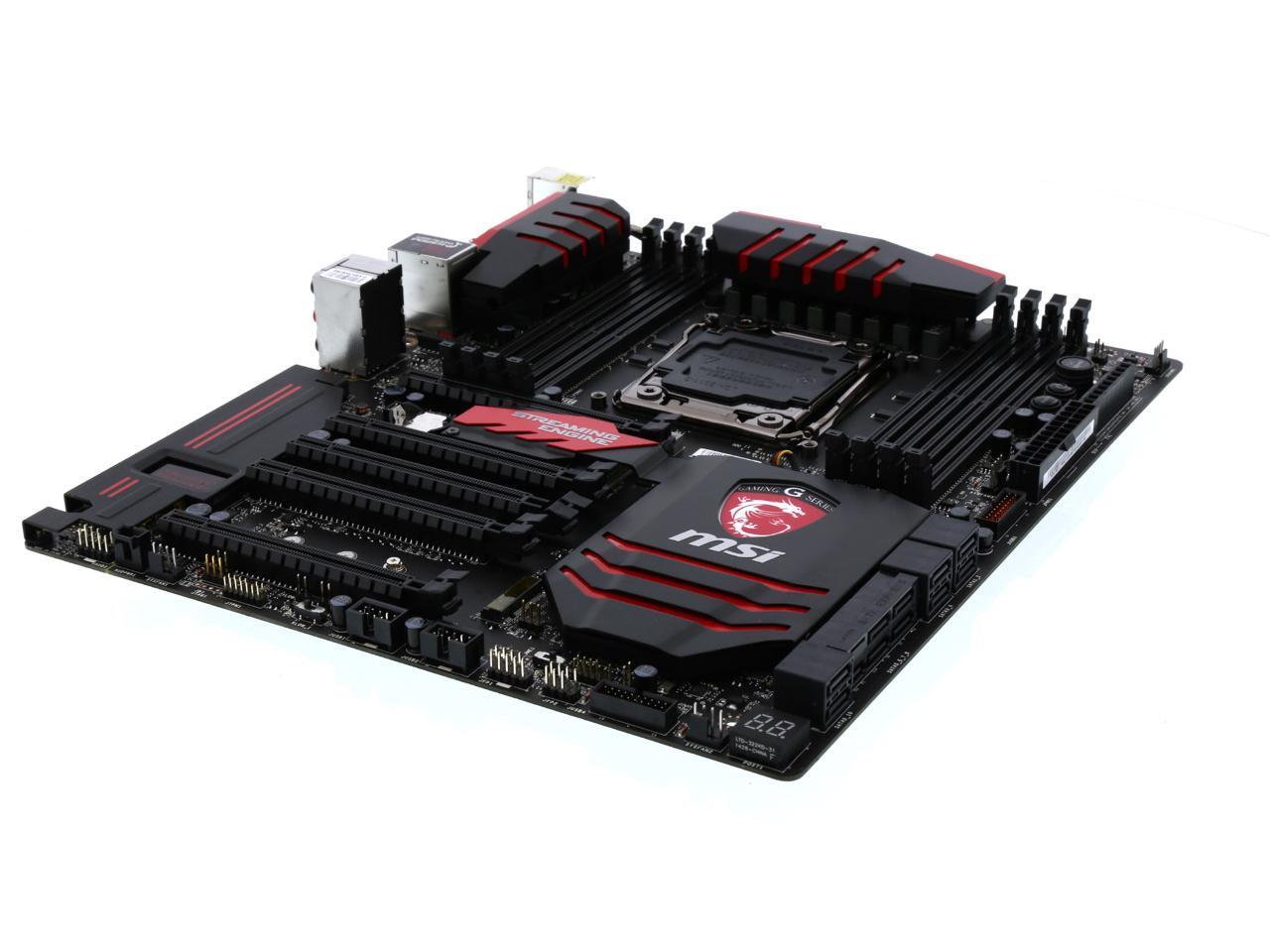

Alt view image 2 of 5 - MSI X99A GAMING 9 ACK LGA 2011-v3 Intel X99 USB 3.1 USB 3.0 Extended ATX Intel Motherboard

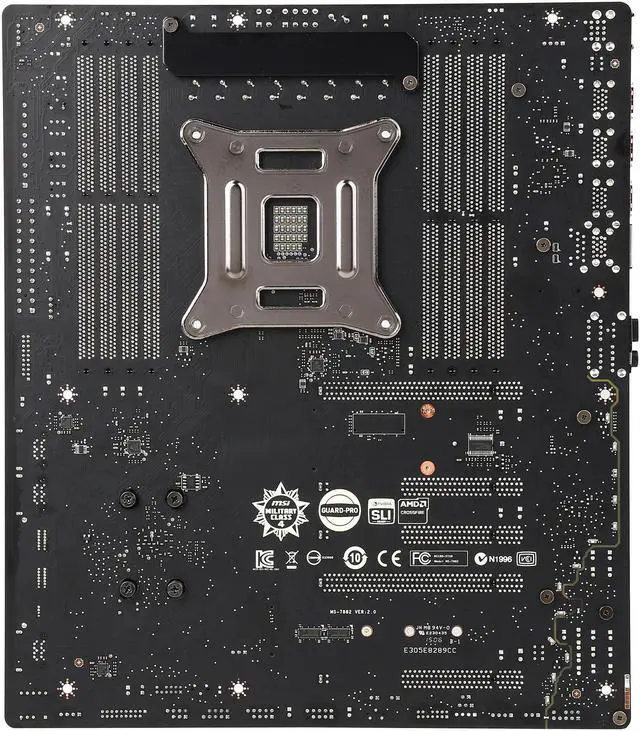

Alt view image 3 of 5 - MSI X99A GAMING 9 ACK LGA 2011-v3 Intel X99 USB 3.1 USB 3.0 Extended ATX Intel Motherboard

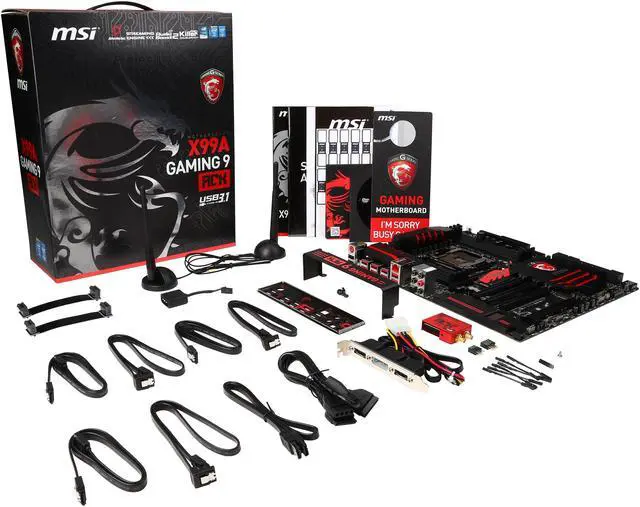

Alt view image 4 of 5 - MSI X99A GAMING 9 ACK LGA 2011-v3 Intel X99 USB 3.1 USB 3.0 Extended ATX Intel Motherboard

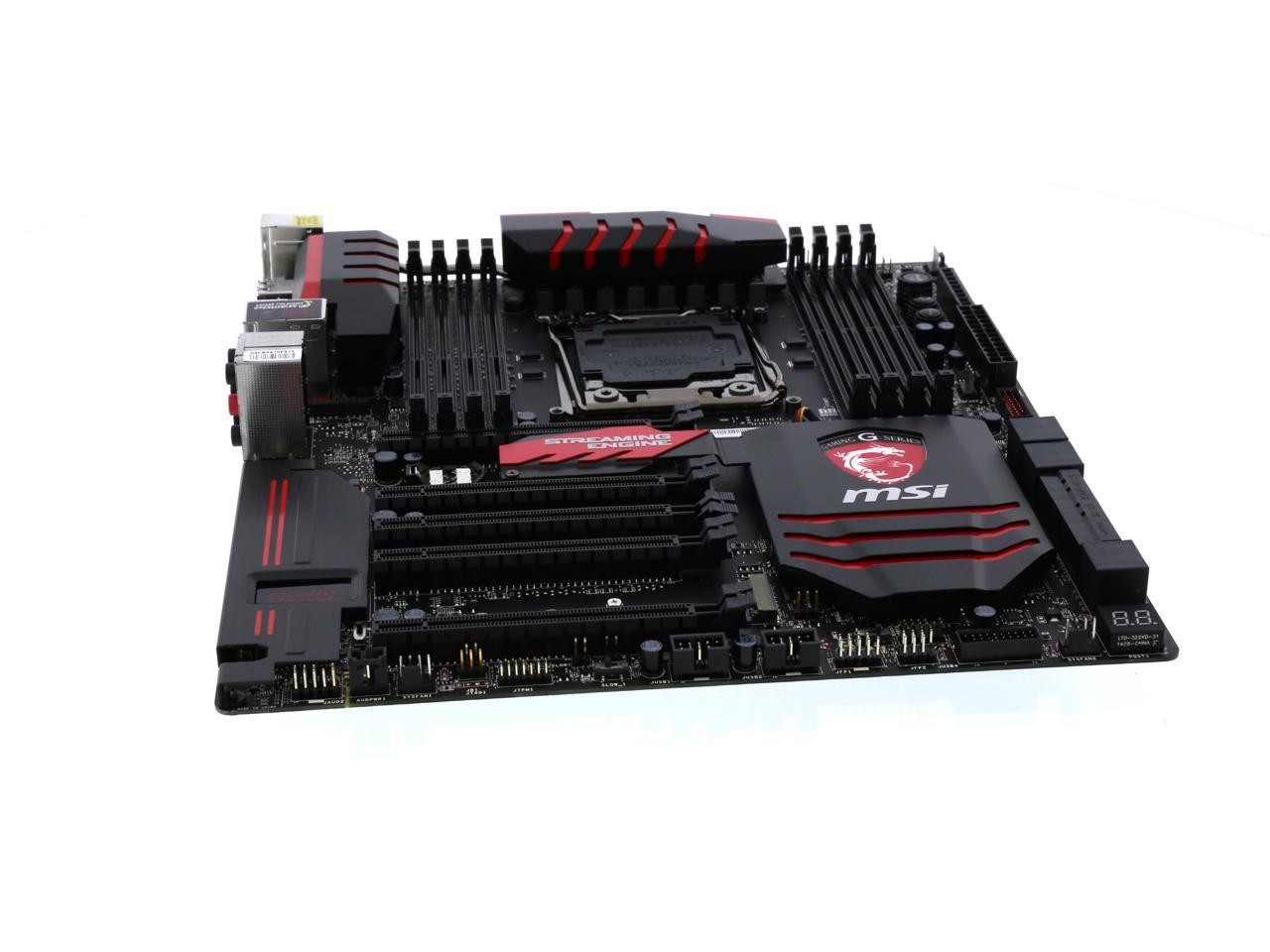

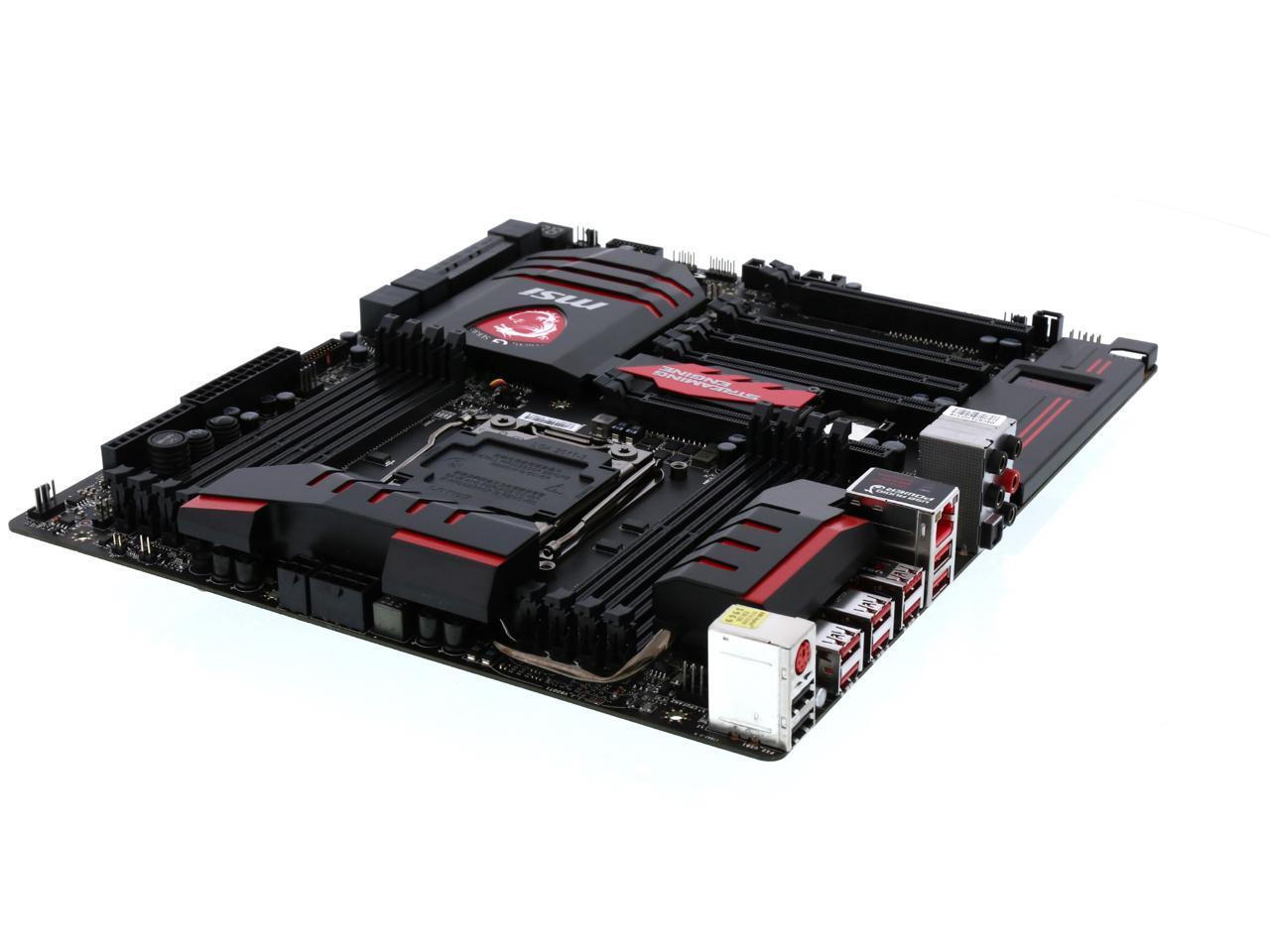

Alt view image 5 of 5 - MSI X99A GAMING 9 ACK LGA 2011-v3 Intel X99 USB 3.1 USB 3.0 Extended ATX Intel Motherboard

360^°

Shop All MSI Products

MSI X99A GAMING 9 ACK LGA 2011-v3 Intel X99 USB 3.1 USB 3.0 Extended ATX Intel Motherboard

(18) Write a Review

Intel X99
Supports New Intel Core i7 Processor Extreme Edition (LGA2011-v3)
DDR4 3333*(*OC)/ 3110*/ 3000*/ 2750*/ 2666*/ 2600*/ 2400*/ 2200*/ 2133

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews (18)

Any questions? Our AI beta will help you find out quickly.

Try me now

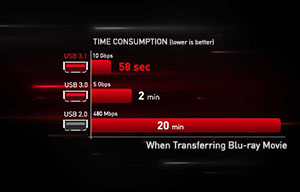

MSI USB 3.1 2X FASTER

USB 3.1 allows for speeds up to 10 Gbps, doubling the speed compared to USB 3.0 and 20x faster than legacy USB 2.0. 3.1 is even faster than SATAIII! Transferring your favorite games, music and movies over USB has never been faster.

Feature

-2x faster than USB 3.0
-20x faster than USB 2.0
-Up to 10Gbps data transfer bandwidth
-Boost transfer rate between your PC and external storage devices.

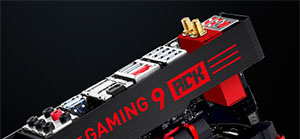

KILLER™ DOUBLESHOT PRO

Killer™ DoubleShot Pro combines Killer Ethernet and WiFi adapters, built for superior online traffic speeds and low latency. Advanced Stream Detect™ automatically classifies and prioritizes the latency-sensitive applications for online games.

Through the detection and prioritization of gaming traffic you can finally fully utilize your network without fear of being kicked from an on-line game because of high ping. This enables trye multi-tasking without manually enabling or disabling applications, updates and installations. Killer networking actually allows you to see your PC 24 hours a day.

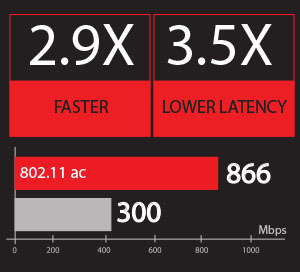

LOWEST LATENCY, FASTEST SPEEDS

Enjoy the best possible online gaming experience. Wireless AC Killer has 2.9x times faster data throughout compared to traditional Wireless-N solutions. The biggest adcantage is lower latency when gaming. Killer Wi-Fi has up to 3.5x times lower latency than other Wi-Fi solutions.

TEAM UP KILLER LAN WITH KILLER WIFI

Introducing world's first Killer LAN & Wireless gaming connection on a motherboard, the X99A GAMING 9 ACK offers unmatched gaming performance. Smart teaming combines both LAN & Wireless for the best possible gaming experience. The Killer Network Manager decides which apps runs on which connection for gaming traffic optimization. Truly unique is using Killer LAN and Killer WiFi combined for insane networking speeds.

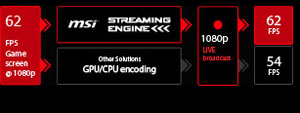

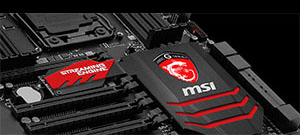

RECORD AND STREAM ALL OF YOUR IN-GAME ACTIVITY WHILE ENJOYING YOUR GAMES AT MAXIMUM FPS

Because X99 lacks an integrated GPU, Intel Quicksync is no longer available to help while streaming your gaming activity. MSI Streaming Engine captures video real-time through a dedicated hardware solution making sure you are free of any impact on CPU performance, where other solutions demand vital highly impacting FPS performance.

Record your gaming activities at amazing 1080p quality with 60Mbps bitrate, without sacrificing CPU and graphics performance.

-AVerMedia encoding chip
-HD H. 264 Hardware Compression
-1080p Full HD recording
-60Mbps bitrate
-No CPU and GPU performance impact
-Optimized for XSplit Gamecaster

WANT TO SHOW OFF YOUR SKILLS OR JUST MAKE FUN GAMING VIDEOS FOR YOUR FRIENDS?

XSplit Gamecaster & Broadcaster V2 lets you easily record your gaming moments and broadcast your live gameplay sessions to Twitch, youTube, UStream and more.
It's simple, easy to use and ideal for sharing your gameplay with friends, family or the world- Or for capturing those perfect gaming moments, just for the heck of it.
So what are you waiting for? Join the revolution and start streaming and recording with XSplit Gamecaster today.

Model
Brand	MSI
Model	X99A GAMING 9 ACK

Supported CPU
CPU Socket Type	LGA 2011-v3
CPU Type	Supports New Intel Core i7 Processor Extreme Edition (LGA2011-v3)

Chipsets
Chipset	Intel X99

Memory
Number of Memory Slots	8x288pin (DDR4)
Memory Standard	DDR4 3333(OC)/ 3110/ 3000/ 2750/ 2666/ 2600/ 2400/ 2200*/ 2133
Maximum Memory Supported	128GB
Channel Supported	Quad Channel

Expansion Slots
PCI Express 3.0 x16	5 x PCIe 3.0 x16 slots, support up to 4-way mode - 1-way mode: x16/ x0/ x0/ x0/ x0 - 2-way mode: x16/ x0/ x0/ x16/ x0, 16/ x0/ x0/ x8/ x0* - 3-way mode: x16/ x0/ x0/ x16/ x8, x8/ x8/ x0/ x8/ x0* - 4-way mode: x8/ x8/ x0/ x16/ x8, x8/ x8/ x0/ x8/ x4* * For the CPU that supports 40 PCIe lanes ** For the CPU that supports 28 PCIe lanes

Storage Devices
Serial ATA (SATA)	10 x SATA 6Gb/s ports (2 ports reserved for SATA Express port)*
SATA Express	1 x SATA Express port* * The SATA Express port or SATA5~6 ports will be unavailable when installing the M.2 SATA interface module in the M.2 port.
M.2	1 x M.2 port, supports up to 32Gb/s speed - M.2 port supports 4.2cm/ 6cm/ 8cm length module - M.2 PCIe interface does not support RAID 0, RAID1, RAID 5 and RAID 10. Intel RST does not support M.2 PCIe interface module.

Onboard Audio
Audio Chipset	Realtek ALC1150
Audio Channels	7.1 Channels

Onboard LAN
LAN Chipset	Killer E2205
Max LAN Speed	1Gbps
Wireless LAN	Killer Wireless 1525 module. - Supports 2x2 802.11a/b/g/n/ac with advanced features - Supports 20/ 40MHz at 2.4GHz and 20/ 40/ 80MHz at 5GHz.
Bluetooth	Killer Wireless 1525 module. - Supports Bluetooth v4.1

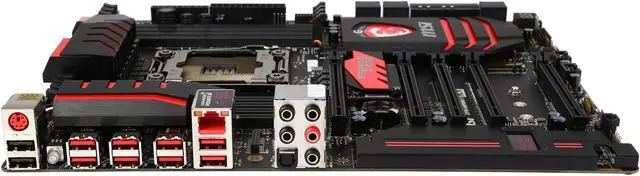

Rear Panel Ports
Back I/O Ports	1 x Optical S/PDIF Out / 1 x PS/2 Keyboard/Mouse Combo / 2 x USB 2.0/1.1 / 2 x USB 3.1 Gen 2 Type-A / 6 x USB 3.0
PS/2	1 x PS/2 keyboard/mouse port
RJ45	1 x RJ45
USB 3.1	2 x USB 3.1
USB 3.0	6 x USB 3.0
USB 1.1/2.0	2 x USB 2.0
S/PDIF Out	1 x Optical
Audio Ports	5 x OFC audio jacks

Internal I/O Connectors
Onboard USB	2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 2 x USB 3.0 connectors (supports additional 4 USB 3.0 ports)
Other Connectors	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 2 x 4-pin CPU fan connectors 3 x 4-pin system fan connectors 1 x Front panel audio connector 2 x System panel connectors 1 x TPM module connector 1 x Chassis Intrusion connector 9 x V-Check connectorsts 1 x Clear CMOS jumper 1 x Power button 1 x Reset button 1 x OC Genie button 1 x Multi-BIOS switch 1 x OC Genie mode switch 1 x Audio power switch 1 x Slow mode booting switch 1 x 2-Digit Debug Code LED 1 x Wi-Fi/Bluetooth module connector

Physical Spec
Form Factor	Extended ATX
Dimensions (W x L)	12" x 10.4"
Power Pin	24 Pin

Features
Features	Supports New Intel Core i7 processors Extreme Edition in LGA 2011-3 socket Supports Quad Channel DDR4-3333(OC) Memory USB 3.1: Delivering speeds up to 10Gb/s, USB 3.1 offers performance twice as fast as a regular USB 3.0 connection. ACK: Use Killer DoubleShot Pro to combine Killer WIFI with Killer LAN for the best online gaming experience Turbo M.2 : Delivering next generation M.2 Gen3 x4 performance with transfer speeds up to 32 Gb/s SATA Express + USB 3.1 + SATA 6Gb/s Streaming Engine: Fantastic Full HD hardware streaming at 60 Mbps without impacting CPU performance Multi-GPU: 4-Way NVIDIA SLI & AMD CrossFire Support OC Engine: Reach higher overclocking results with more flexible BCLK adjustments at 100/125/167MHz. Audio Boost 2: Reward Your Ears with True Quality USB Audio Power: Serve Stable 5V Power & Better Signal Transmission over USB XSplit Gamecaster: Show off you skills to the world with a 2 year premium license for this popular streaming software Guard-Pro: Improved Protection and Power Efficiency OC Genie 4: Overclock in 1 Second Gaming App: Boost your framerate Click BIOS 4: Easily Fine-tune Your System Sound Blaster Cinema 2: Benefit from Creative software to get a more realistic surround sound experience Gaming Device Port: Optimized with Triple Gold-plating for High Polling Rate Gaming Devices BIOS: The motherboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and expansion cards of the board automatically. The motherboard provides a Desktop Management Interface(DMI) function which records your motherboard specifications. Mounting: 9 mounting holes.
