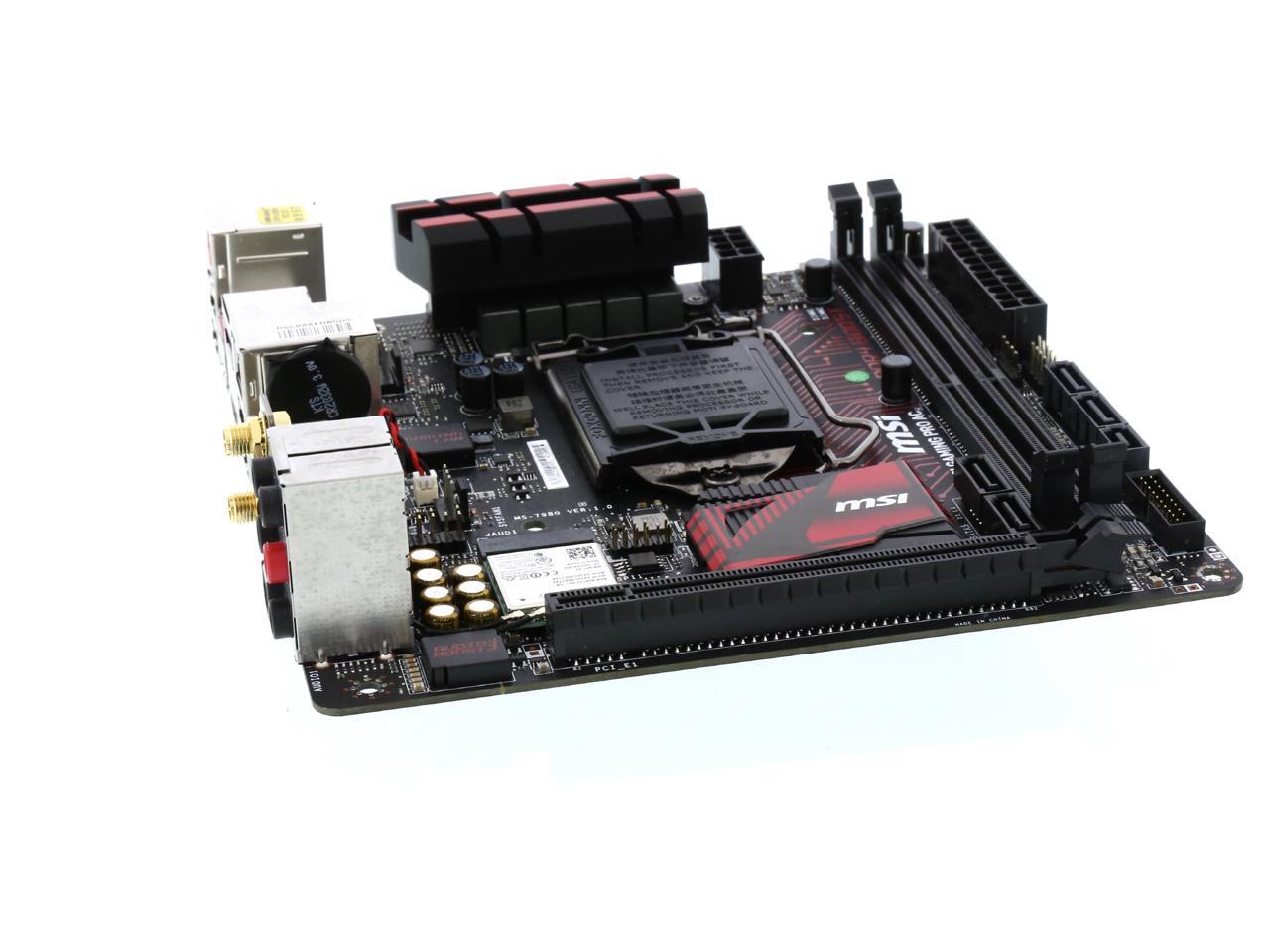

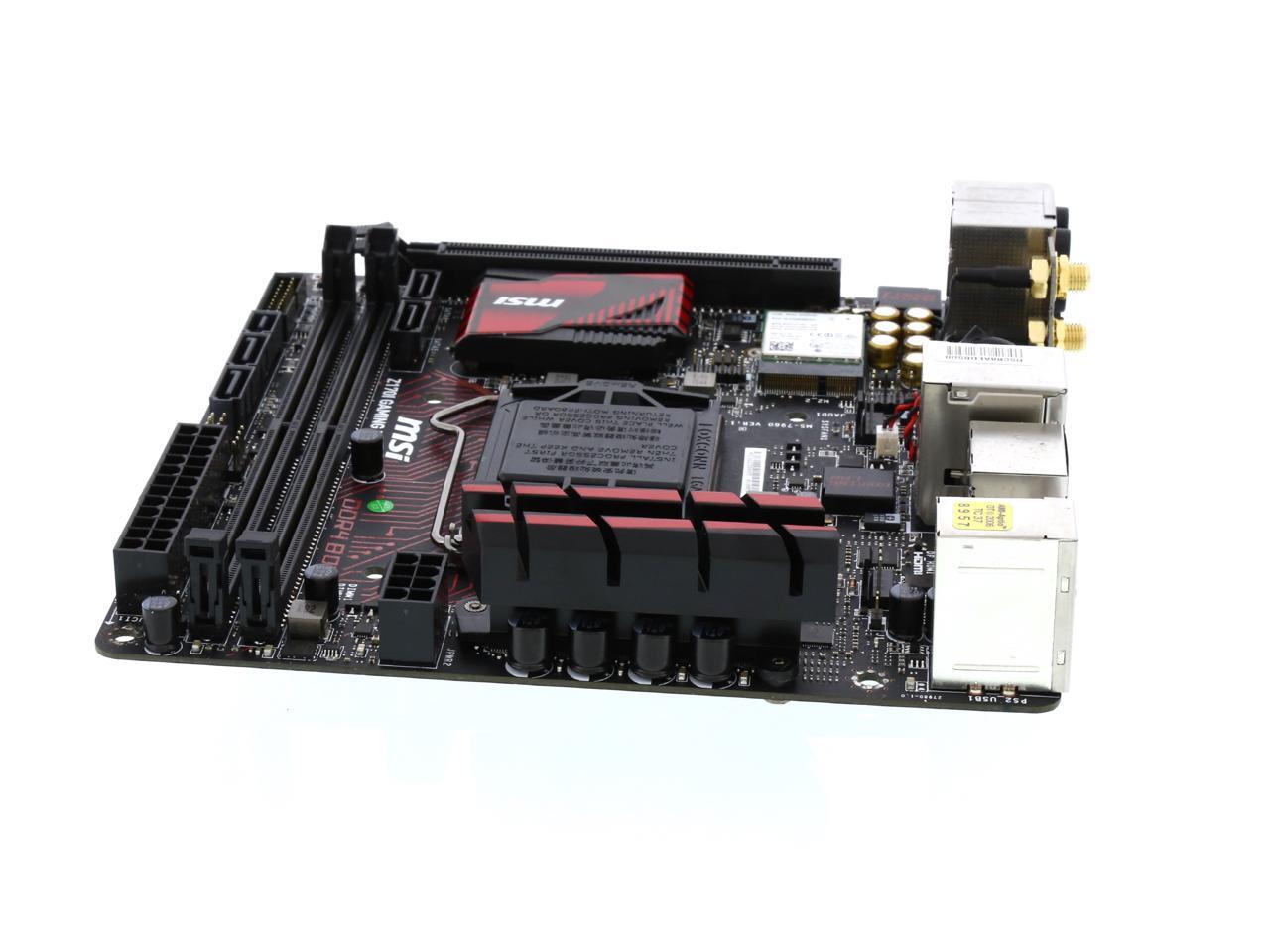

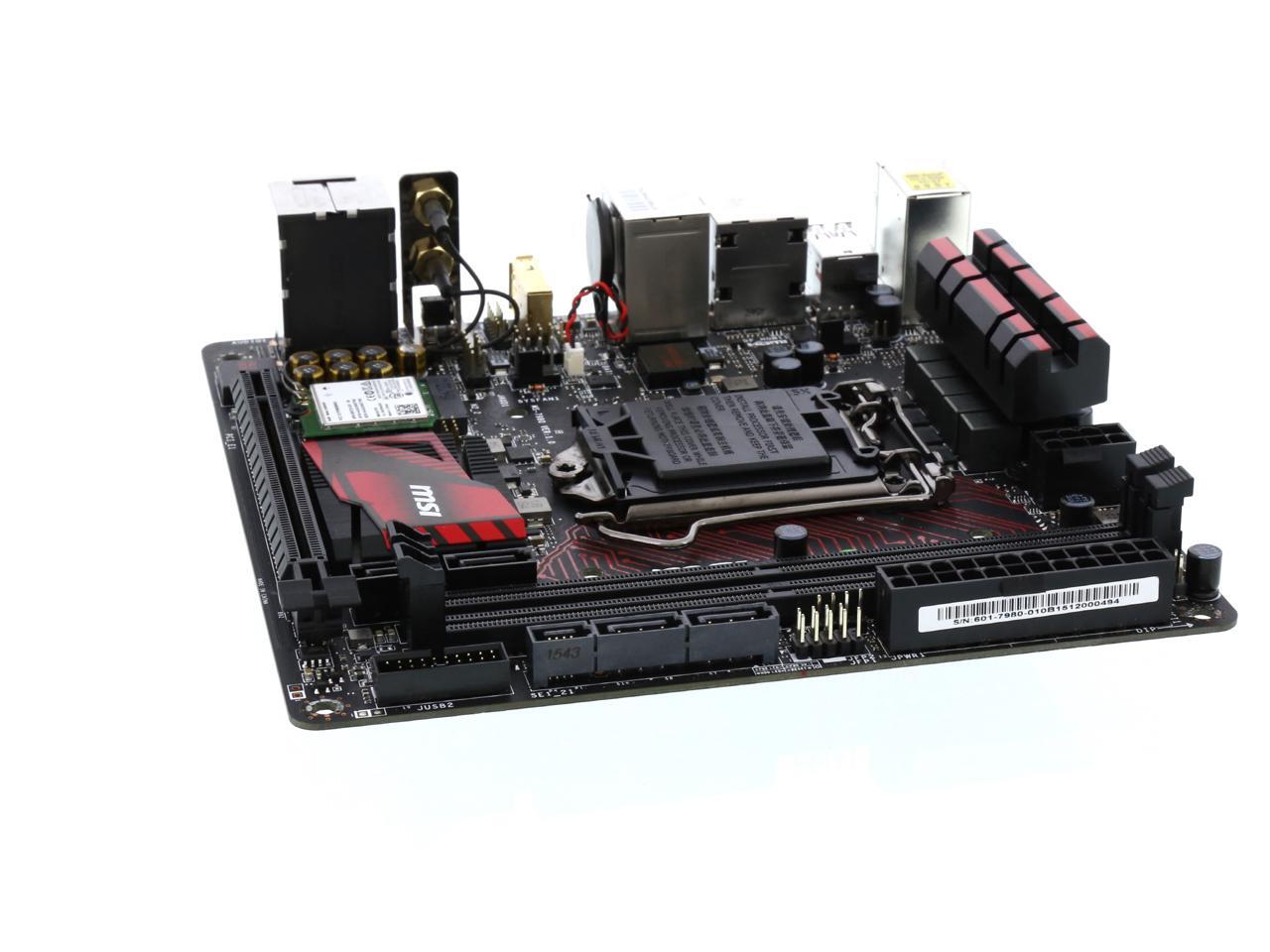

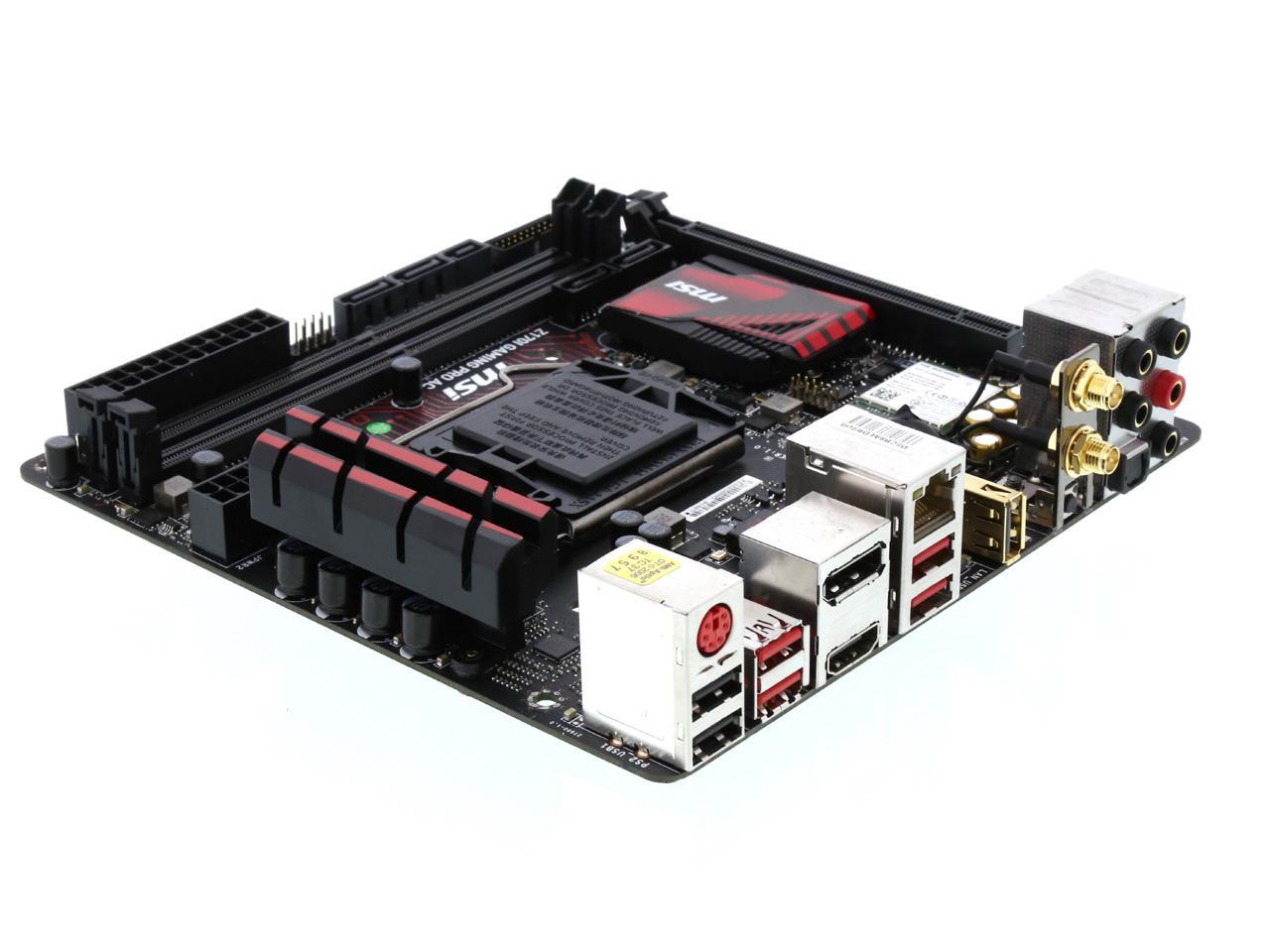

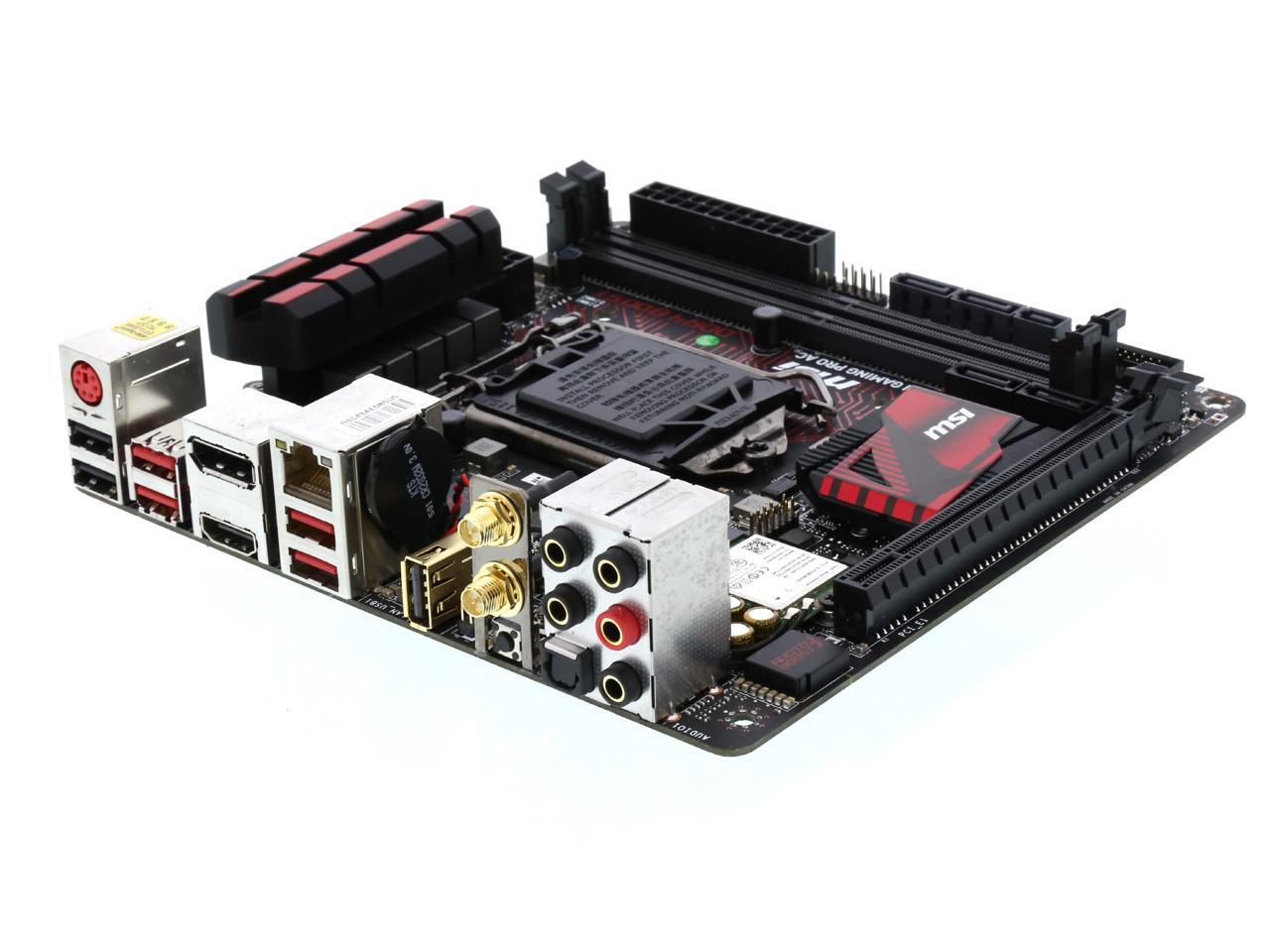

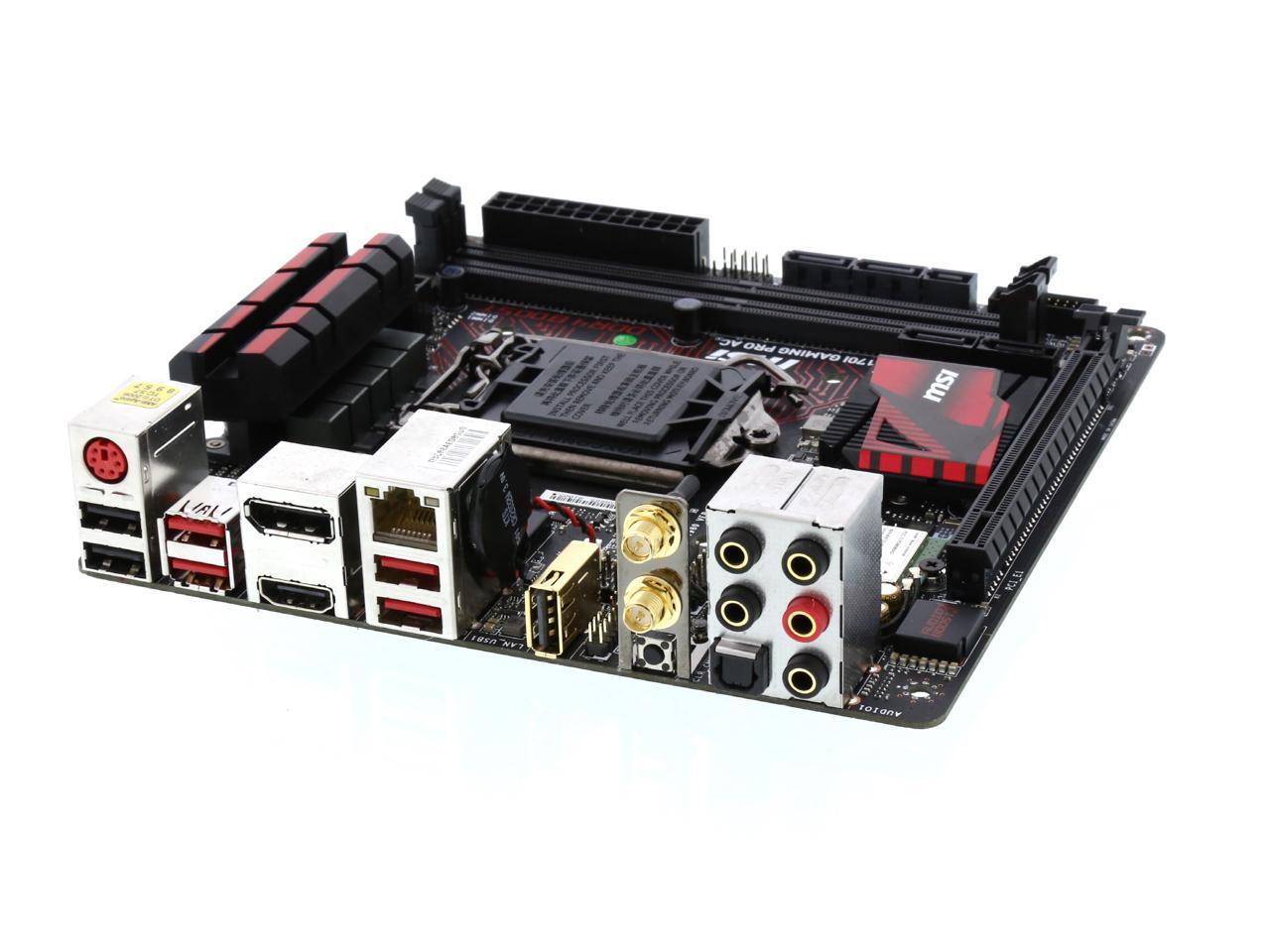

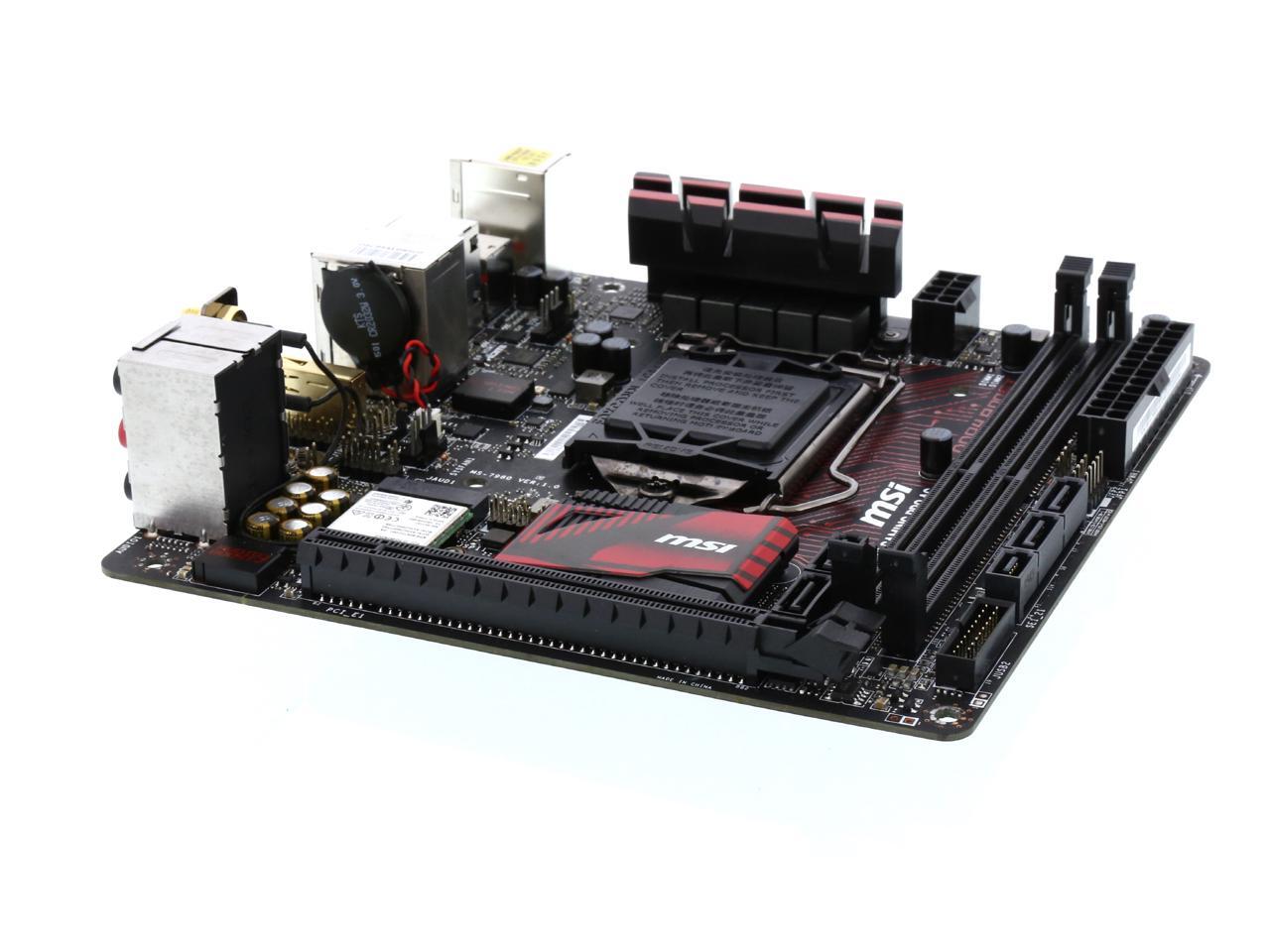

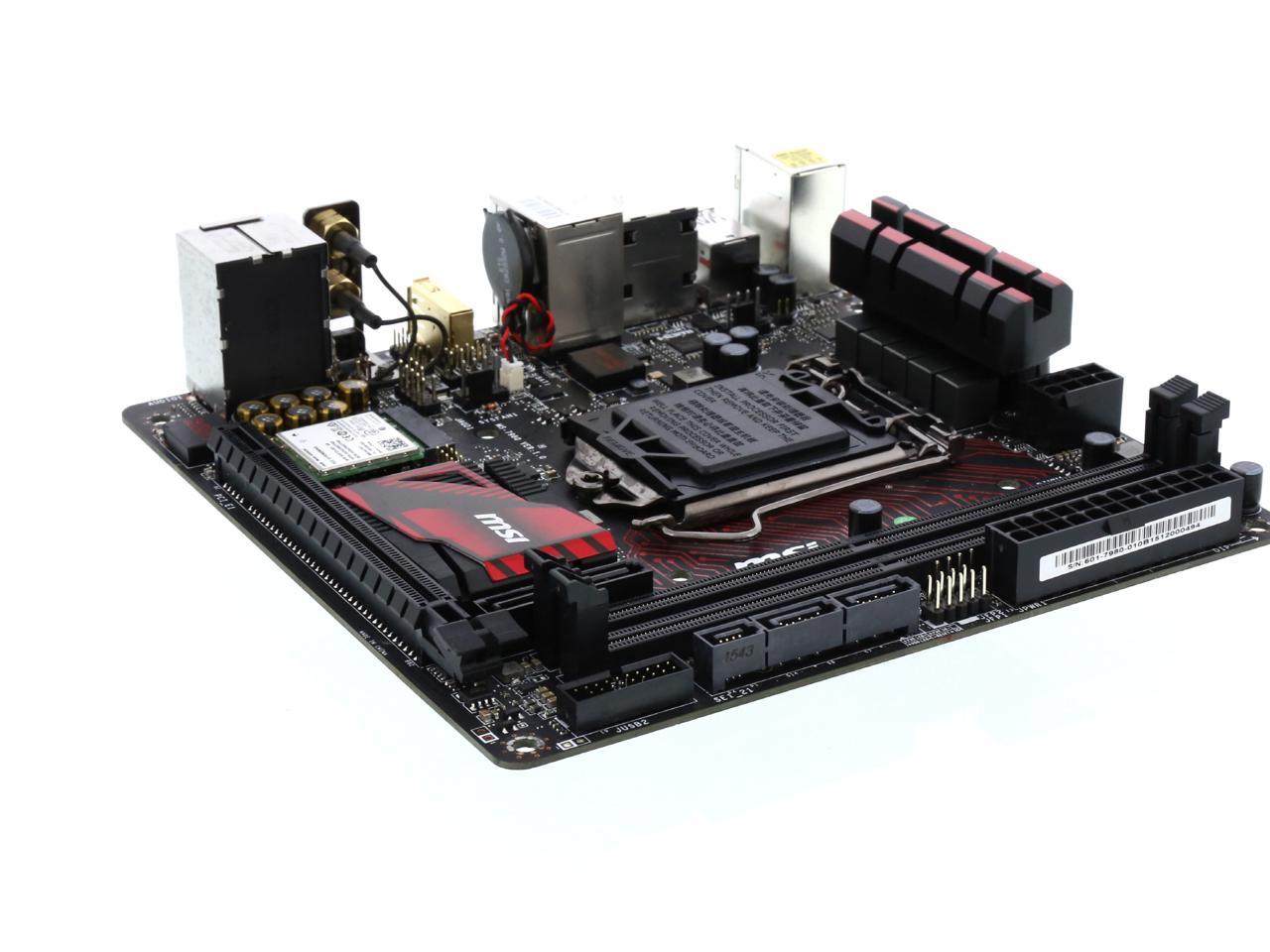

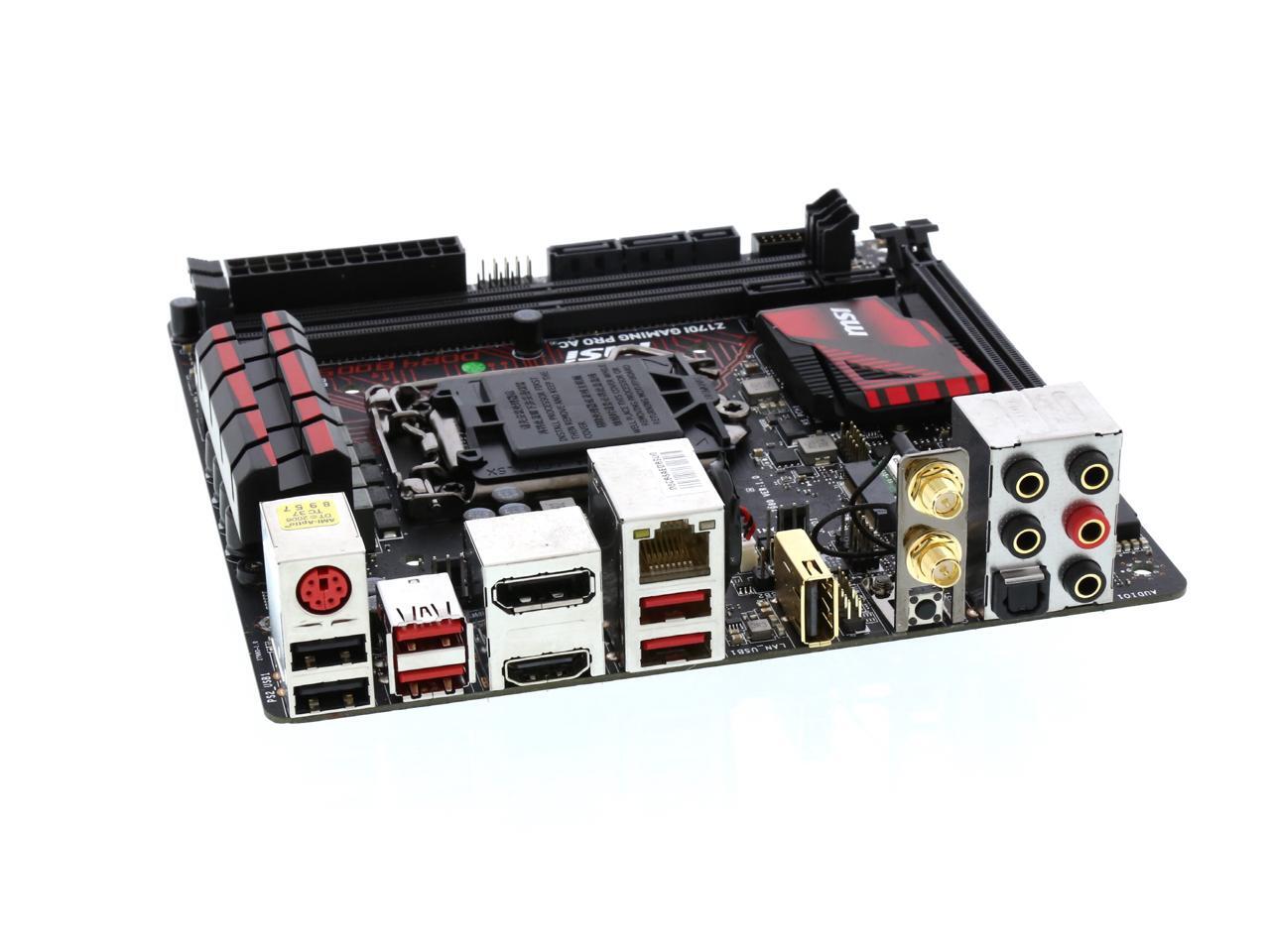

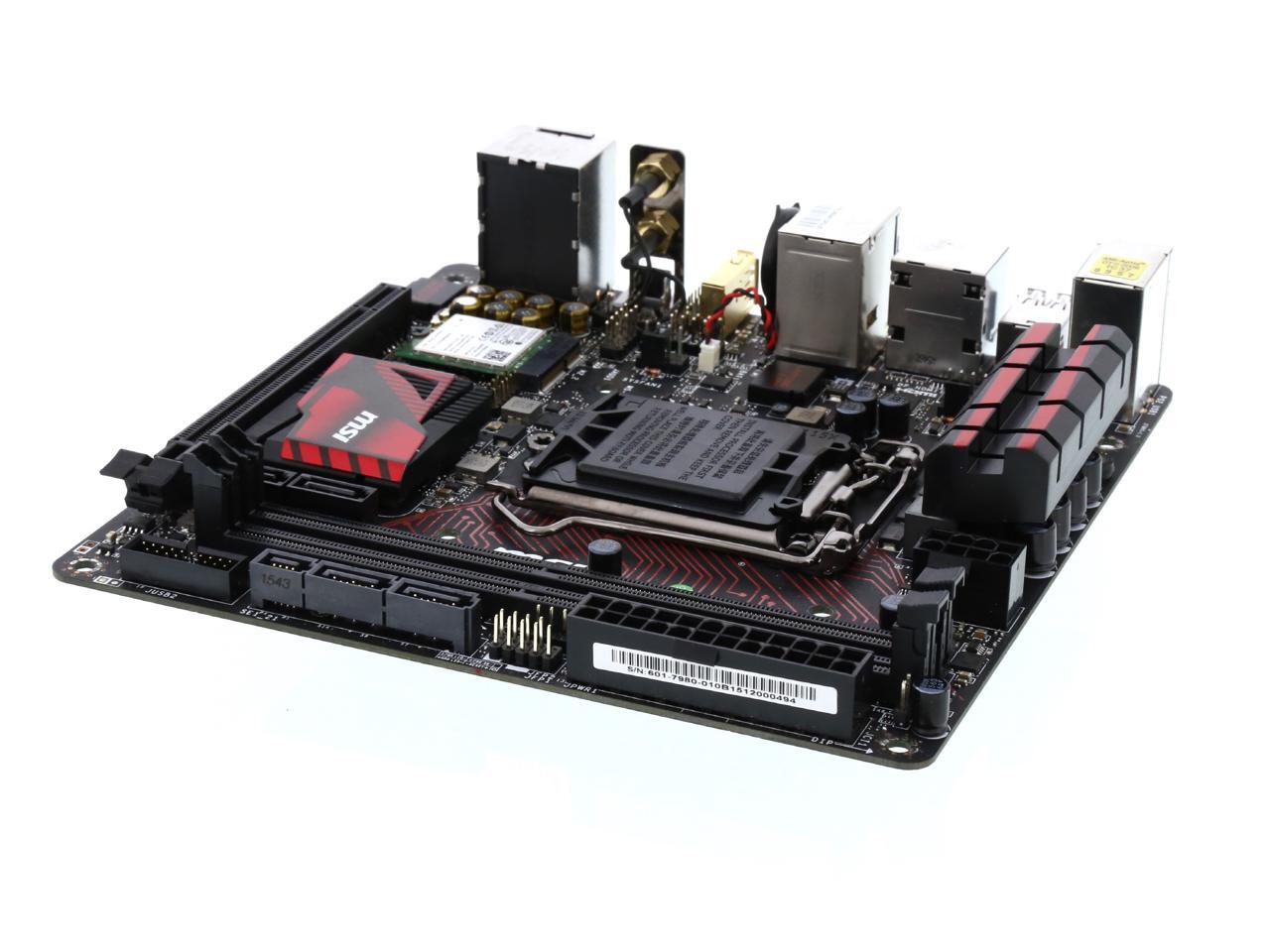

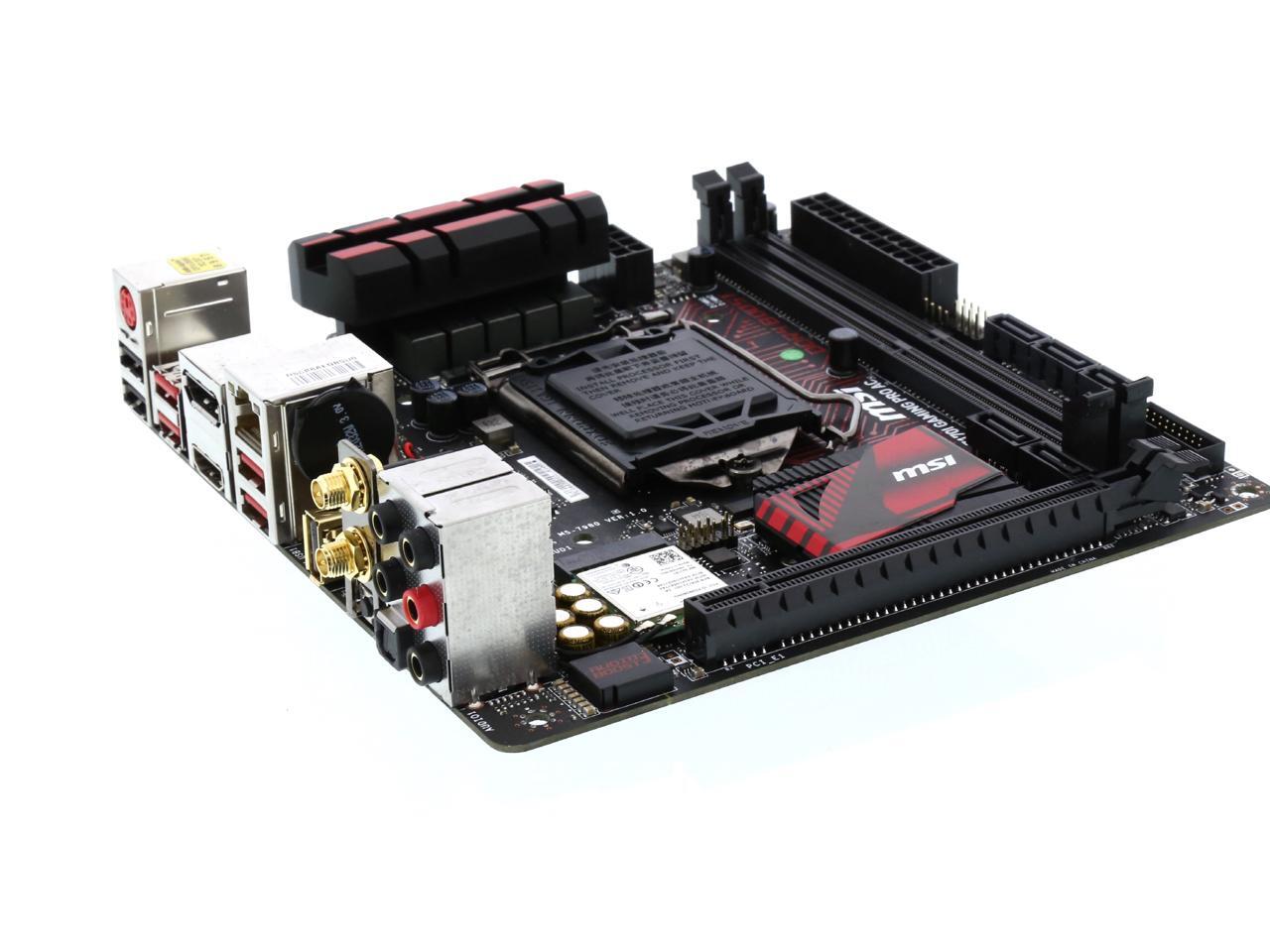

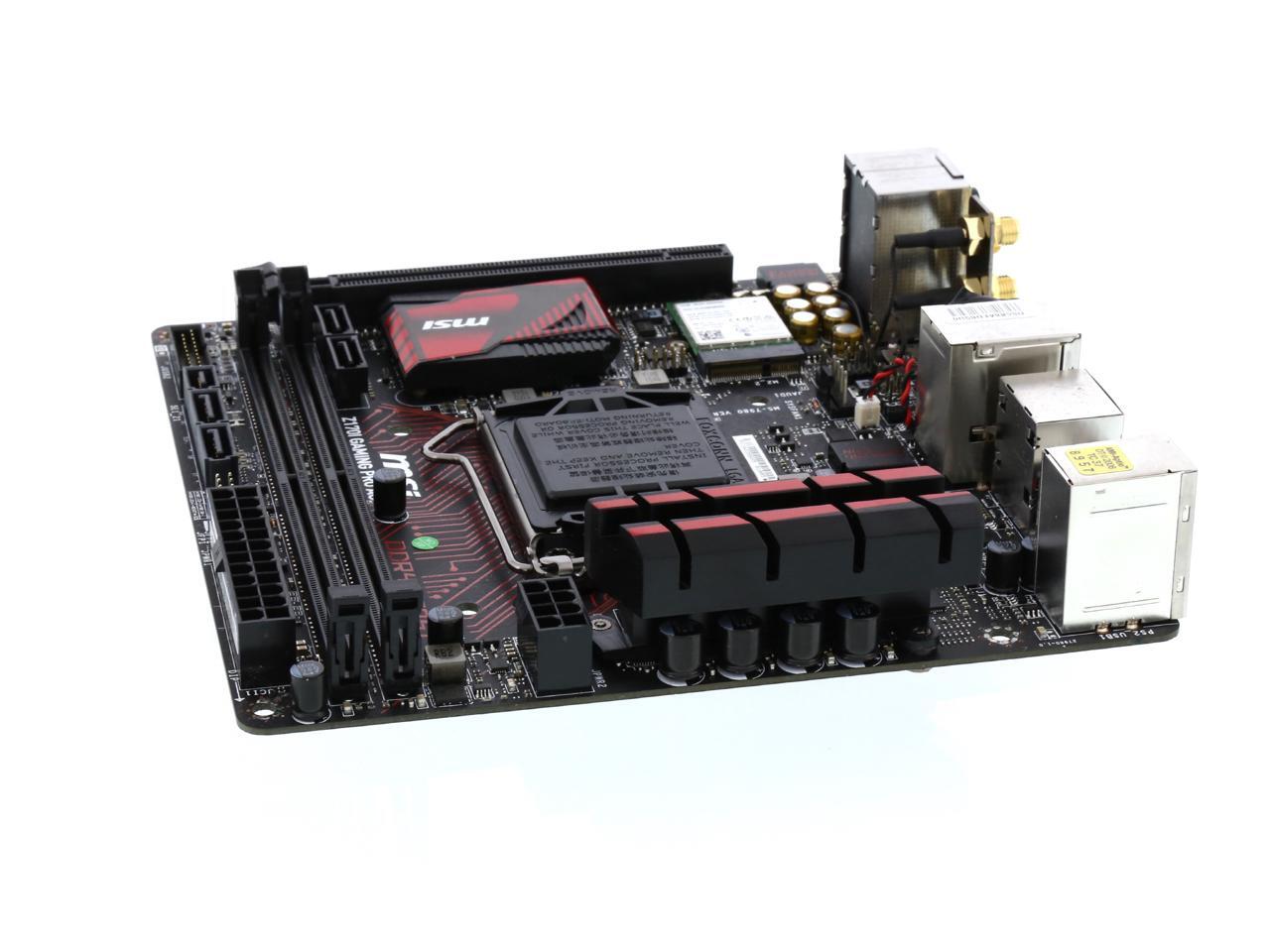

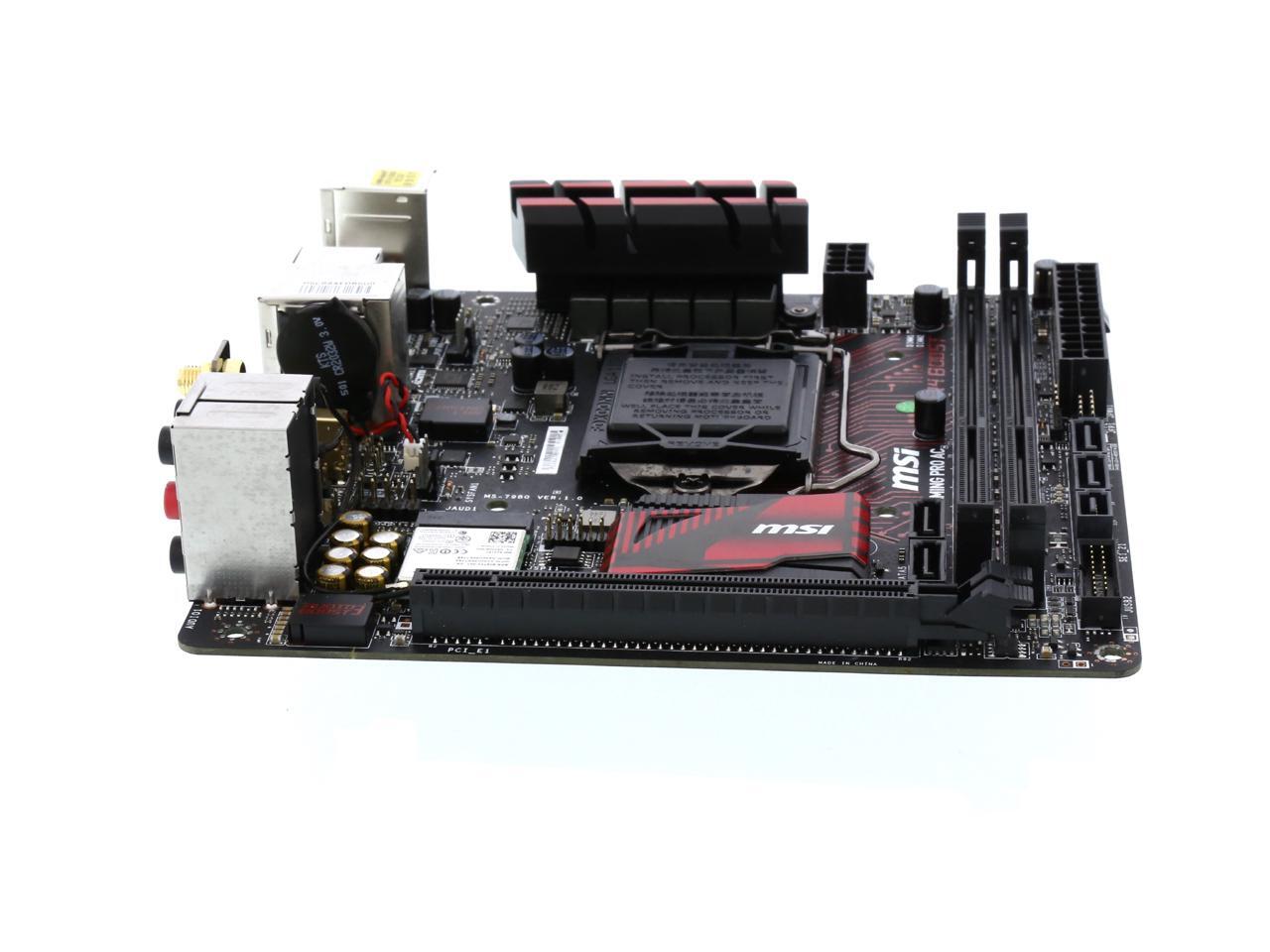

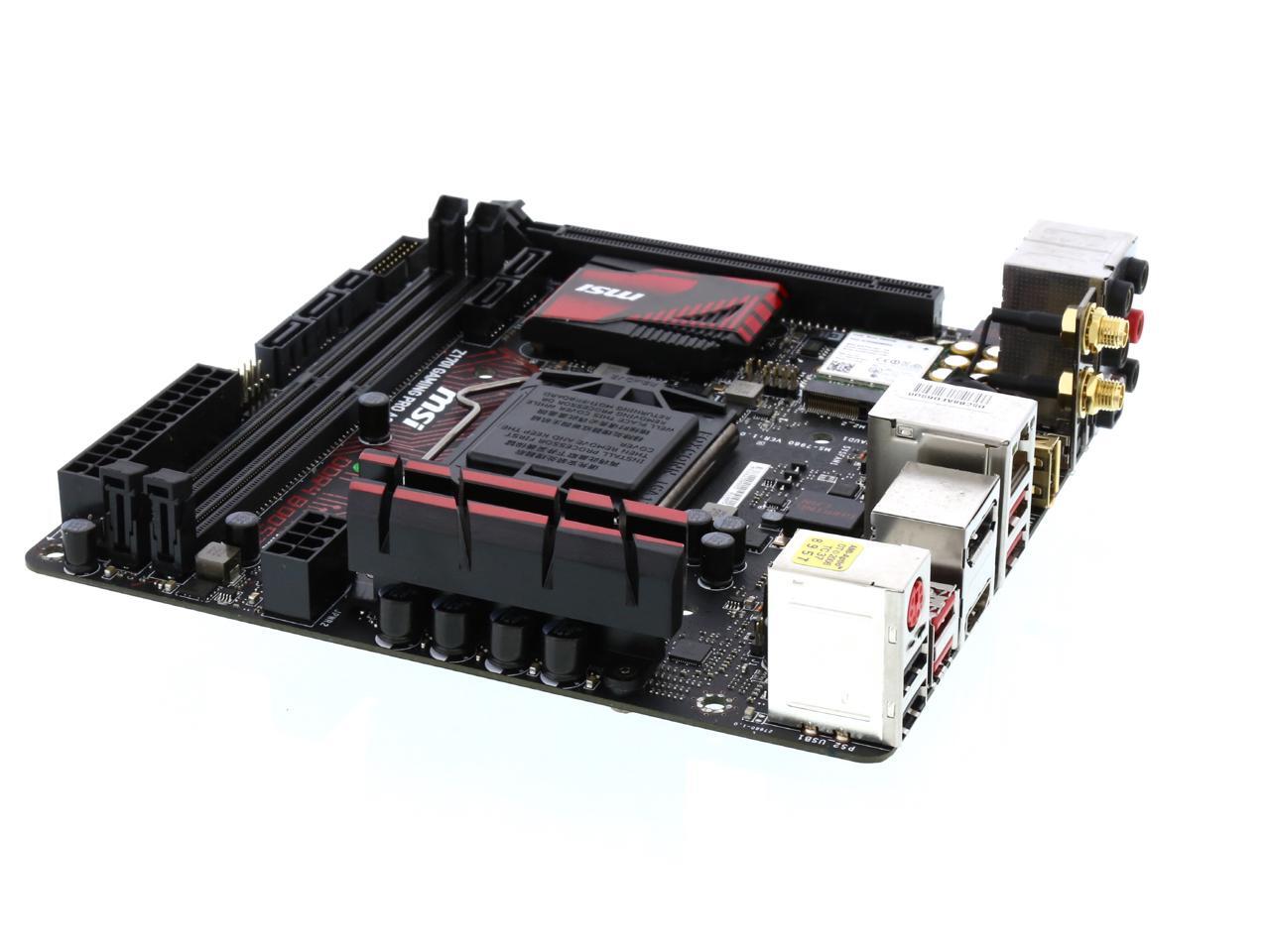

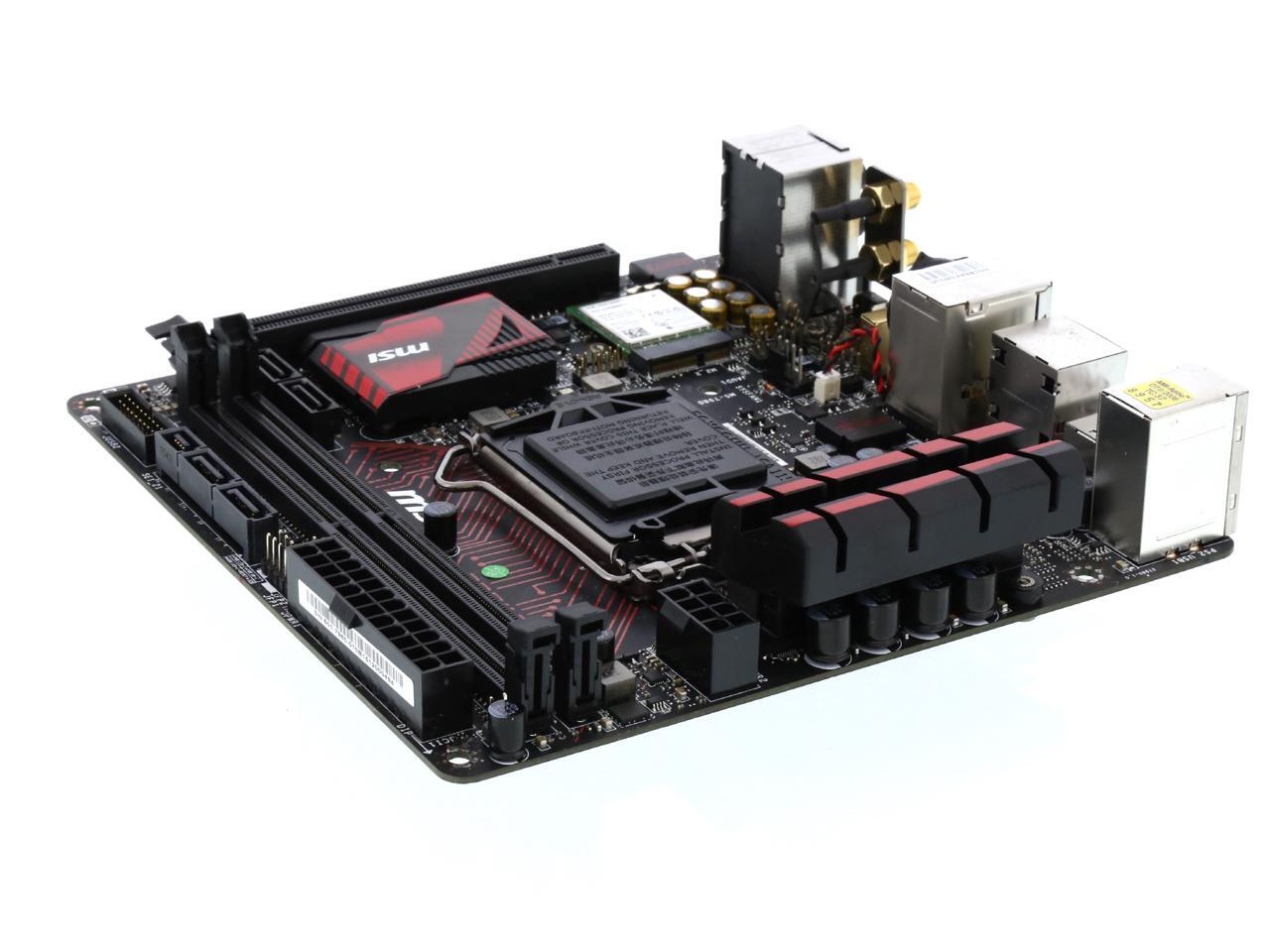

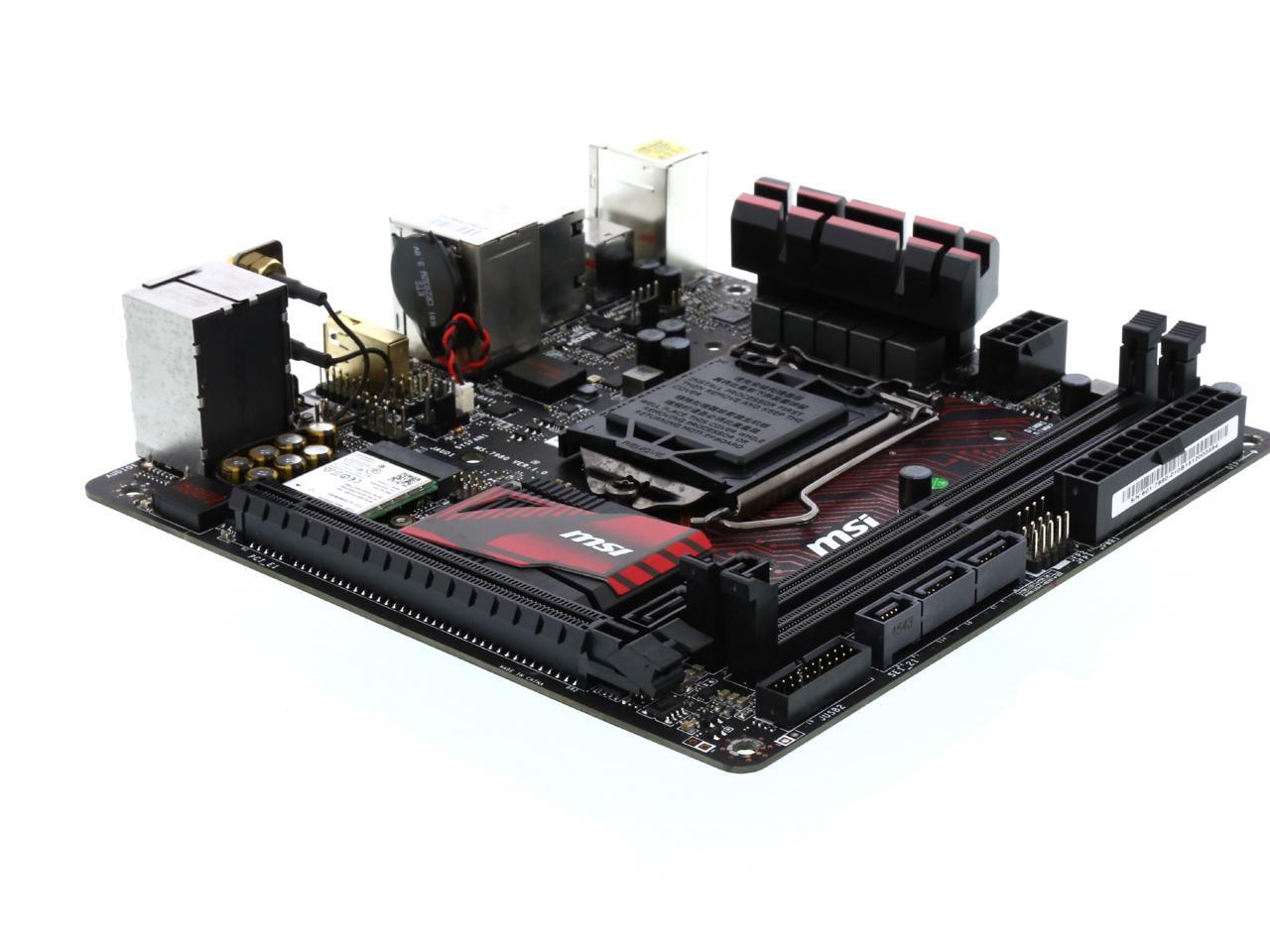

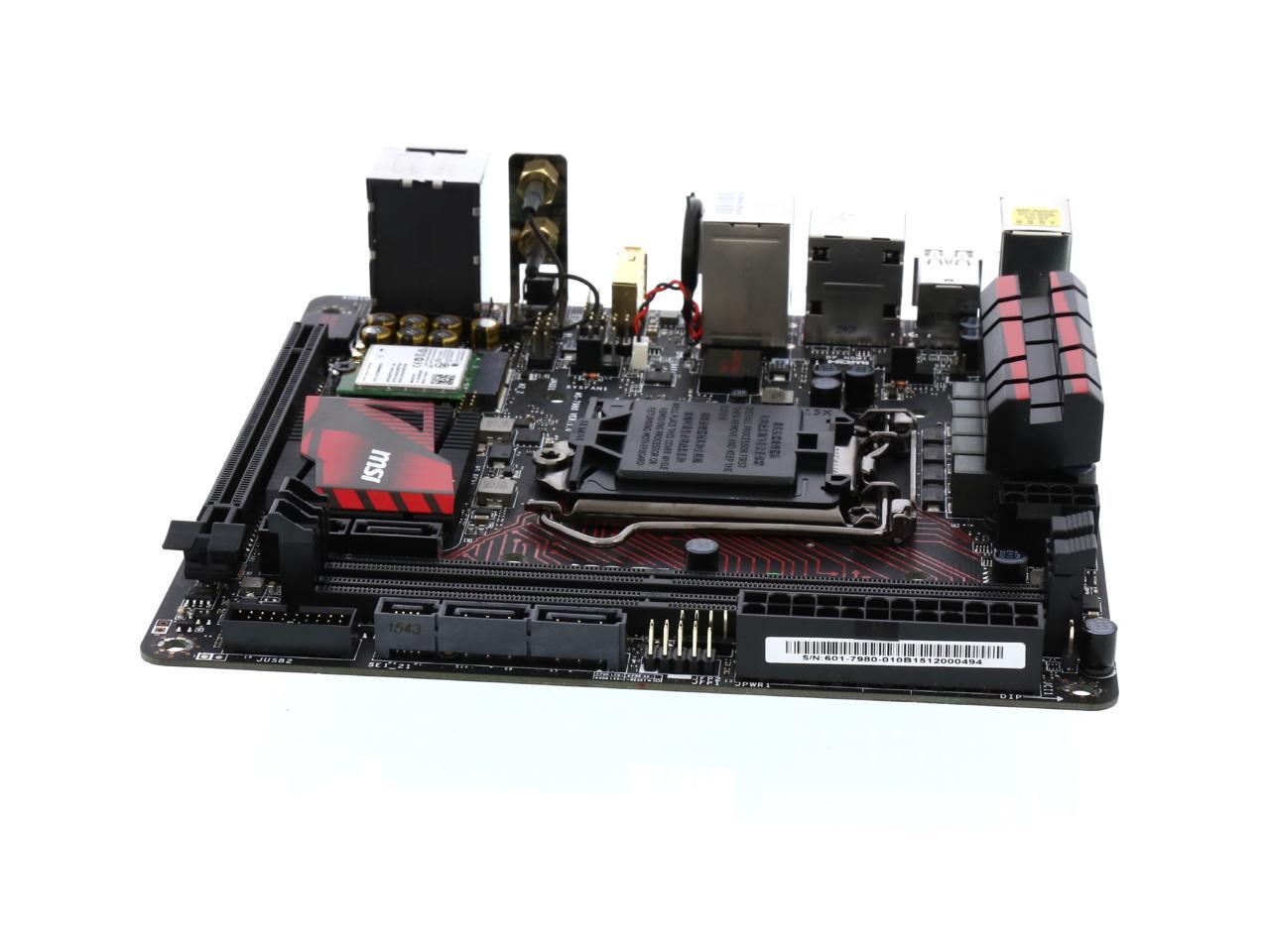

MSI Z170I Gaming Pro AC LGA 1151 Intel Z170 HDMI USB 3.1 Mini ITX Intel Motherboard
REFURBISHED Product Type
- Intel Z170
- Celeron / Core i3 / Core i5 / Core i7 / Intel Core 6th Gen (LGA 1151) / Intel Core 7th Gen (LGA 1151) / Pentium
- DDR4 3200*(*OC)/ 3000*/ 2800*/ 2600*/ 2400/ 2133
+
+
Specs
Reviews (9)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the MSI Z170I Gaming Pro AC
| Brand | MSI |
|---|---|
| Model | Z170I Gaming Pro AC |
| CPU Socket Type | LGA 1151 |
|---|---|
| CPU Type | Celeron / Core i3 / Core i5 / Core i7 / Intel Core 6th Gen (LGA 1151) / Intel Core 7th Gen (LGA 1151) / Pentium |
| Chipset | Intel Z170 |
|---|
| Onboard Video Chipset | Intel HD 5000/4000 Series |
|---|
| Number of Memory Slots | 2x288pin (DDR4) |
|---|---|
| Memory Standard | DDR4 3200*(*OC)/ 3000*/ 2800*/ 2600*/ 2400/ 2133 |
| Maximum Memory Supported | 32GB |
| Channel Supported | Dual Channel |
| PCI Express 3.0 x16 | 1 x PCI Express 3.0 x16 |
|---|
| Serial ATA (SATA) | 4 x SATA 6Gb/s |
|---|---|
| SATA Express | 1 x SATAe port (PCIe 3.0 x 2) |

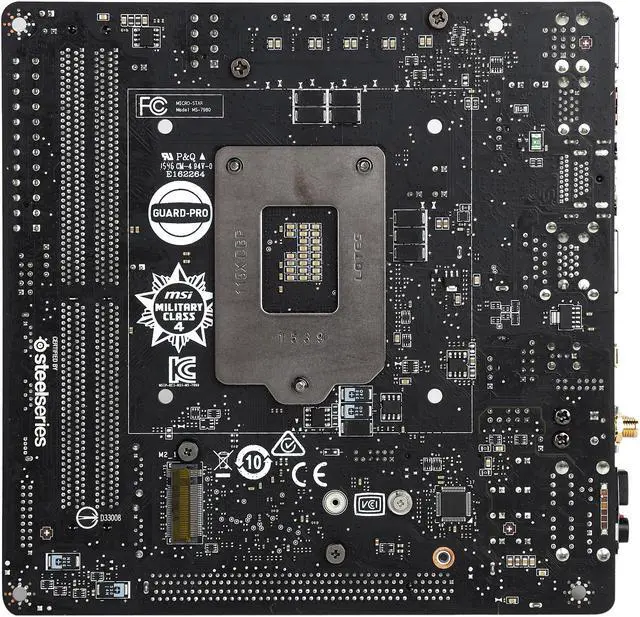

| M.2 | 1 x M.2 slot (on the botton of the motherboard)* * SATAe port is backward compatible with SATA. |
| SATA RAID | 0/1/5/10 |
| Audio Chipset | Realtek ALC1150 |
|---|---|
| Audio Channels | 7.1 Channels |
| LAN Chipset | Intel I219-V |
|---|---|
| Max LAN Speed | 1Gbps |
| Wireless LAN | Wi-Fi 802.11 a/b/g/n/ac, dual band (2.4GHz, 5GHz) up to 867Mbps speed |
| Bluetooth | Dual Mode Bluetooth 2.1, 2.1+EDR, 3.0, 4.0 BLE, 4.2 |

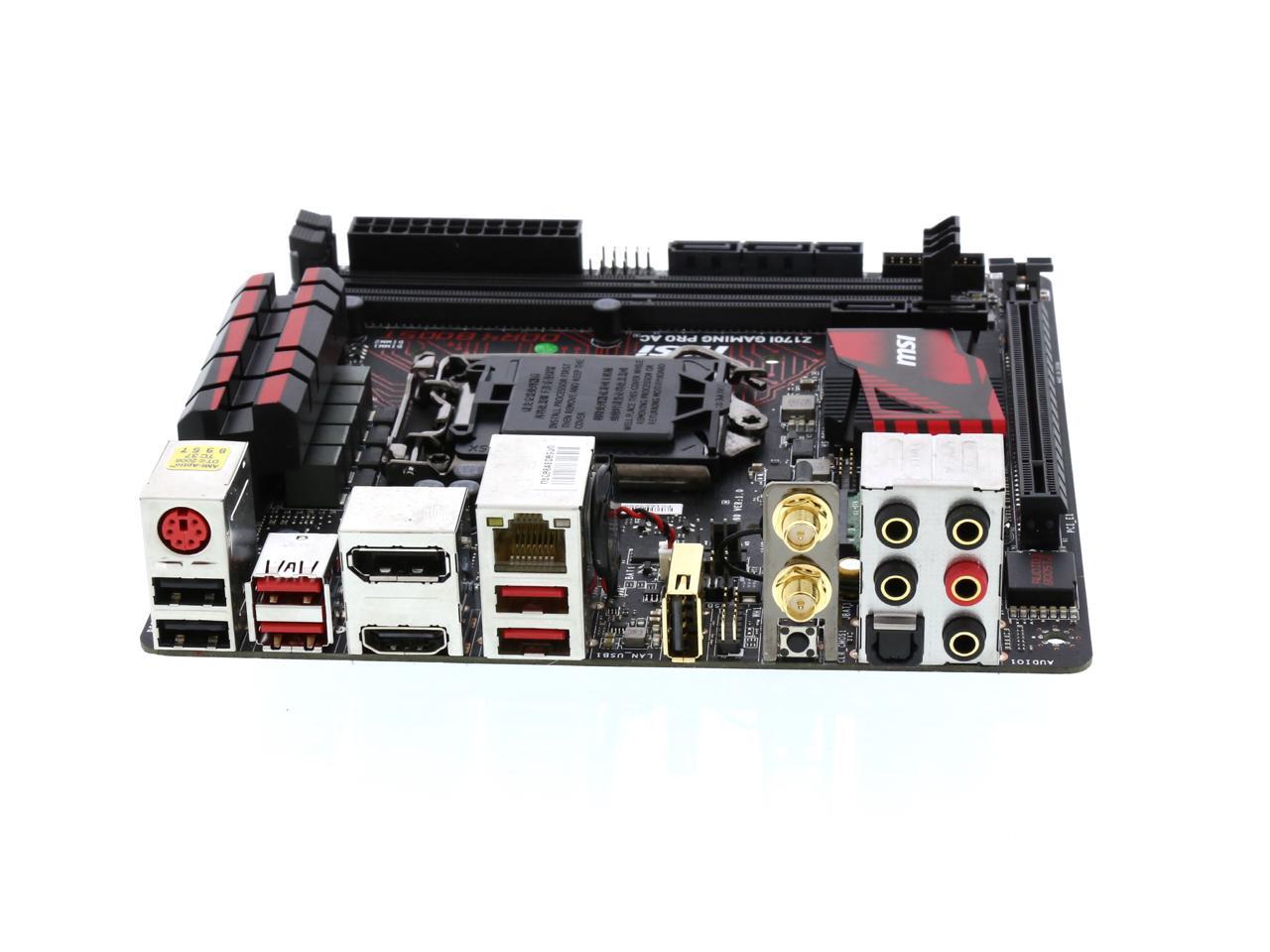

| Back I/O Ports | 1 x DisplayPort / 1 x HDMI / 1 x Optical S/PDIF Out / 1 x PS/2 Keyboard/Mouse Combo / 3 x USB 2.0/1.1 / 4 x USB 3.1 Gen 2 Type-A |
|---|---|
| PS/2 | 1 x PS/2 keyboard/mouse port |
| HDMI | 1 x HDMI |
| RJ45 | 1 x LAN (RJ45) port |
| DisplayPort | 1 x DisplayPort |
| USB 3.1 | 4 x USB 3.1 Gen1 ports |
| USB 1.1/2.0 | 3 x USB 2.0 |
| S/PDIF Out | 1 x Optical |
| Audio Ports | 5 x OFC audio jacks |
| Antenna Connectors | 2 x antenna connectors |
| Onboard USB | 1 x USB 2.0 connector (supports additional 2 USB 2.0 ports) 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports) |
|---|---|
| Other Connectors | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin CPU fan connectors 1 x 4-pin system fan connectors 1 x Front panel audio connector 2 x Front panel connectors 1 x TPM module connector 1 x Chassis Intrusion connector 1 x Clear CMOS jumper |
| Form Factor | Mini ITX |
|---|---|
| Dimensions (W x L) | 6.7" x 6.7" |
| Power Pin | 24 Pin |
| Features | Supports 6th Gen Intel Core / Pentium / Celeron processors for LGA 1151 socket Supports DDR4-3600+(OC) Memory DDR4 Boost: Give your DDR4 memory a performance boost Turbo M.2 32Gb/s: Supports 2 sizes of M.2 SSDs, on the back of the motherboard SATA Express 10 Gb/s + SATA 6Gb/s GAMING LAN powered by Intel: The best online gaming experience with lowest latency LAN Protect: 15KV Anti-surge protection with stylish red LED Audio Boost 3: Reward your ears with studio grade sound quality Golden USB Audio Power: Serve Stable 5V Power & Better Signal Transmission over USB Wi-Fi 802.11ac, Bluetooth 4.2, Supports Intel Wireless Display Military Class 4: Top Quality & Stability Guard-Pro: Improved Protection and Power Efficiency OBS Streaming software: Share your gaming achievements with the world! Game Boost: Generate more FPS in games with 1 push of a button DPC Latency Tuner: Optimize to get a smooth audio/video playback experience Overcurrent Protection:Prevent Unforeseen Damage GAMING Hotkey: Launch your favorite games with a single button Click BIOS 5: Award-winning brand new Click BIOS 5 with high resolution scalable font SteelSeries Certified: Optimized for SteelSeries gaming gear GAMING CERTIFIED: 24-hour on- and offline game testing by eSports players for the best gaming experience |
|---|
| First Listed on Newegg | May 30, 2025 |
|---|
