The item is in very good condition. The BIOS has been upgraded to the latest version. Tested, only the motherboard and I/O shield are included in the package. please leave a message if you need screws.
Learn more about the MSI Z270 GAMING M5
Model
Brand
MSI
Model
Z270 GAMING M5
Supported CPU
CPU Socket Type
LGA 1151
CPU Type
Supports 7th/6th Gen Intel Core i3/i5/i7 processors, and Intel Pentium and Celeron processors for Socket LGA1151
Supported CPU Technologies
* Not Compatible with Intel 8th Gen CPUs
Chipsets
Chipset
Intel Z270
Onboard Video
Onboard Video Chipset
Supported only by CPU with integrated graphic
Memory
Number of Memory Slots
4x288pin (DDR4)
Memory Standard
7th Gen processors support DDR4 3800(OC)/ 3600(OC)/ 3200(OC)/ 3000(OC)/ 2800(OC)/ 2600(OC)/ 2400/ 2133 6th Gen processors support DDR4 3600(OC)/ 3200(OC)/ 3000(OC)/ 2800(OC)/ 2600(OC)/ 2400(OC)/ 2133
Maximum Memory Supported
64GB
Channel Supported
Dual Channel
Expansion Slots
PCI Express 3.0 x16
3 x PCIe 3.0 x16 slots (support x16/x0/x4, x8/x8/x4 modes)
PCI Express x1
3 x PCIe 3.0 x1 slots
Storage Devices
Serial ATA (SATA)
6 x SATA 6Gb/s ports The SATA1/ SATA5 port will be unavailable when an M.2 SATA SSD module has been installed in the M.2_1/ M.2_2 slot. The SATA5 and SATA 6 ports will be unavailable when M.2 PCIe SSD module has been installed in the M.2_2 slot. Please refer to page 33 for M.2 & SATA combination table.
M.2
2 x M.2 slots (Key M) Support up to PCIe 3.0 x4 and SATA 6Gb/s M2_1 slot supports 2242/ 2260 /2280/ 22110 storage devices M2_2 slot supports 2242/ 2260 /2280 storage devices Intel Optane Memory Ready for all M.2 slots
1 x U.2 port Supports up to PCIe 3.0 x4 NVMe U.2 SSD The U.2 port will be unavailable when an PCIe expansion card has been installed in PCI_E6 slot.
SATA RAID
0/1/5/10
Onboard Audio
Audio Chipset
Realtek ALC1220
Audio Channels
7.1 Channels
Onboard LAN
LAN Chipset
Killer E2500
Max LAN Speed
1Gbps

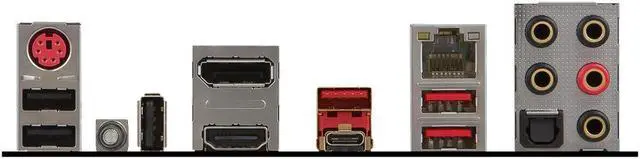

Rear Panel Ports
PS/2
1 x PS/2 keyboard/mouse port
HDMI
1 x HDMI
RJ45
1 x RJ45
DisplayPort
1 x DisplayPort
USB 3.1
1 x USB 3.1 Gen2 Type-A port 1 x USB 3.1 Gen2 Type-C port 2 x USB 3.1 Gen1 Type-A ports
USB 1.1/2.0
3 x USB 2.0 ports *1 x BIOS FLASHBACK+ port
S/PDIF Out
1 x Optical
Audio Ports
5 x OFC audio jacks
Internal I/O Connectors
Onboard USB
2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports) 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
Other Connectors
1 x 4-pin CPU fan connector 1 x 4-pin water pump fan connector 4 x 4-pin system fan connectors 1 x Front panel audio connector 2 x Front panel connectors 1 x Serial port connector 1 x RGB LED connector 1 x TPM module connector 1 x Chassis Intrusion connector 1 x Clear CMOS jumper 1 x BIOS FLASHBACK+ button 1 x 2-Digit Debug Code LED
Physical Spec
Form Factor
ATX
LED Lighting
RGB
Dimensions (W x L)
12.0" x 9.6"
Power Pin
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector
Features
Features
Supports 7th / 6th Gen Intel Core / Pentium / Celeron processors for LGA 1151 socket
Supports DDR4-3800+(OC) Memory
DDR4 Boost with Steel Armor: Give your DDR4 memory a performance boost
VR Ready and VR Boost: Best virtual reality game experience without latency, reduces motion sickness
Mystic Light RGB and Mystic Light Sync: 7 colors / 5 effects controlled in one click with GAMING APP or a mobile device
