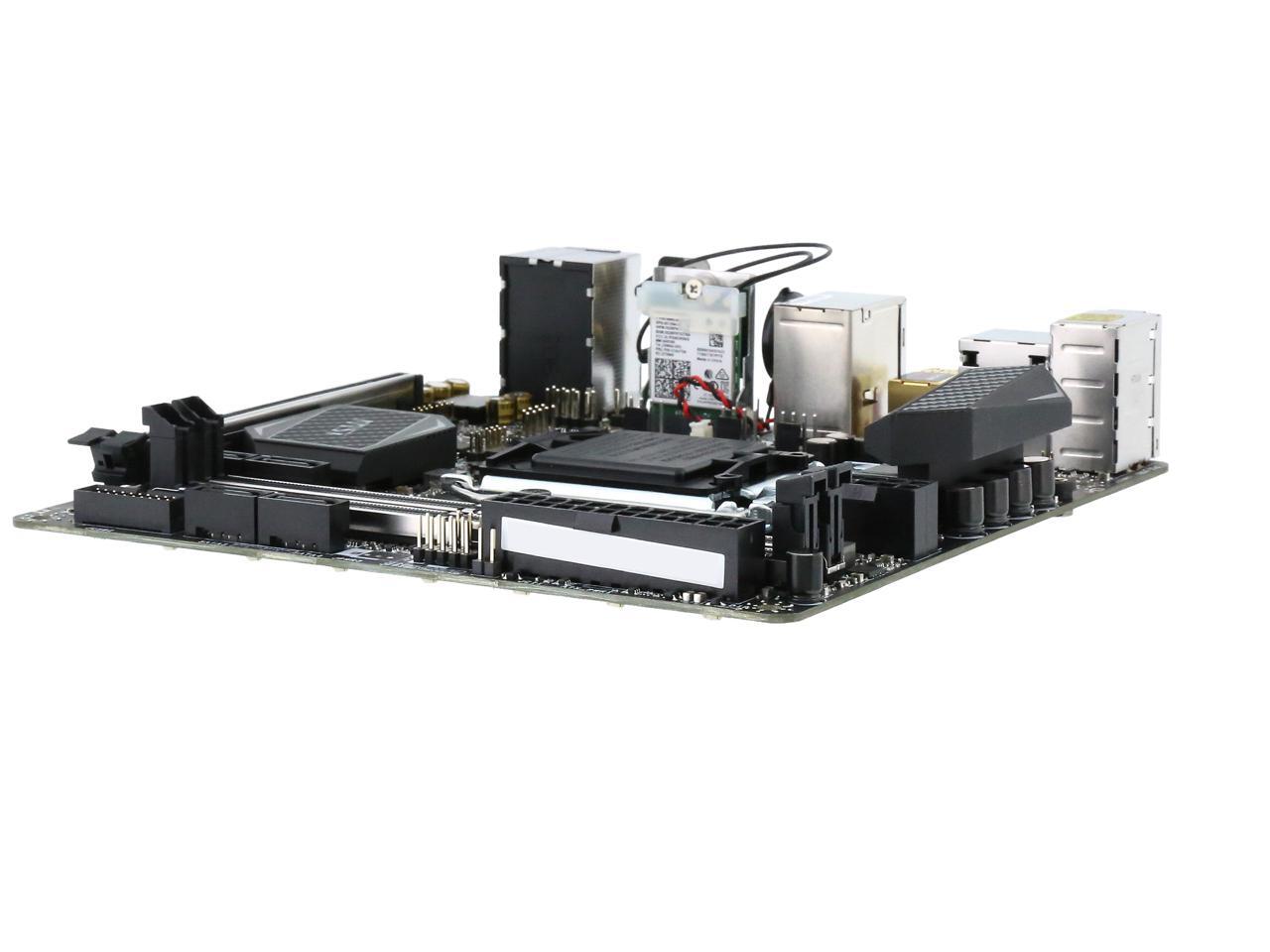

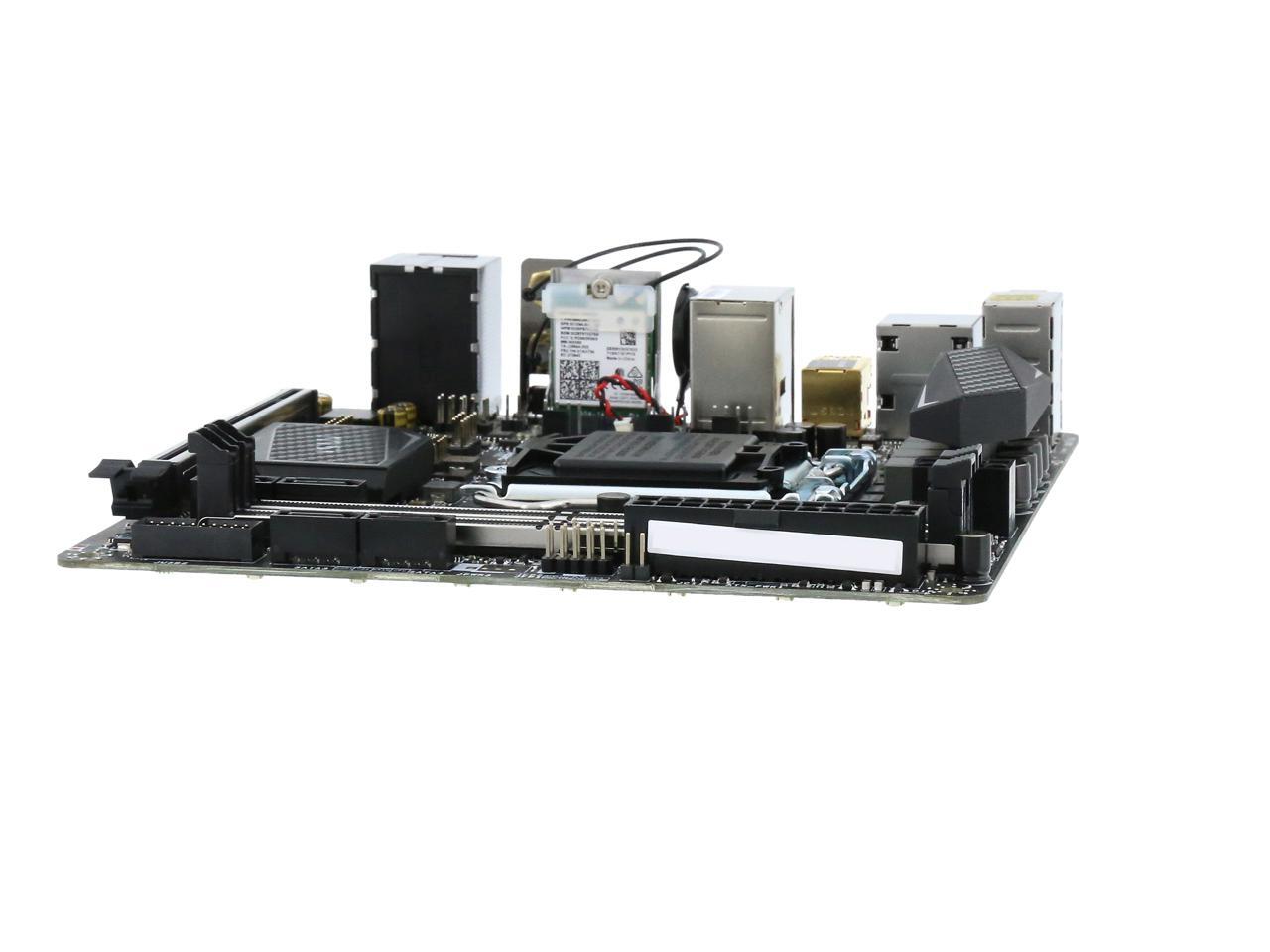

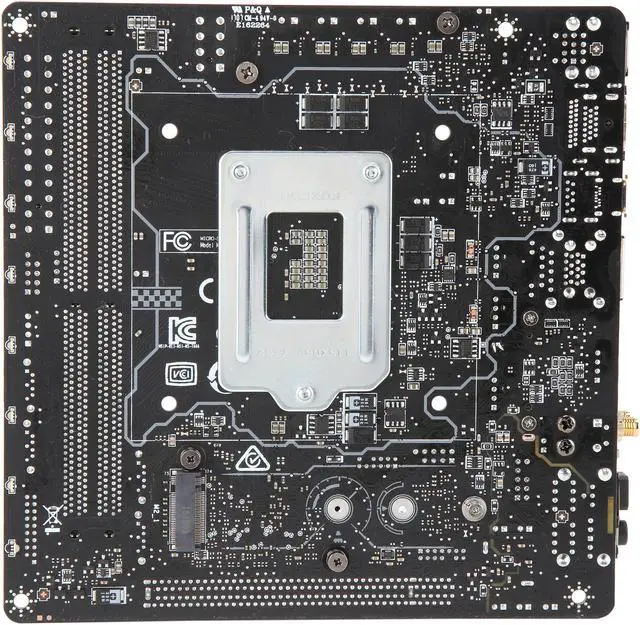

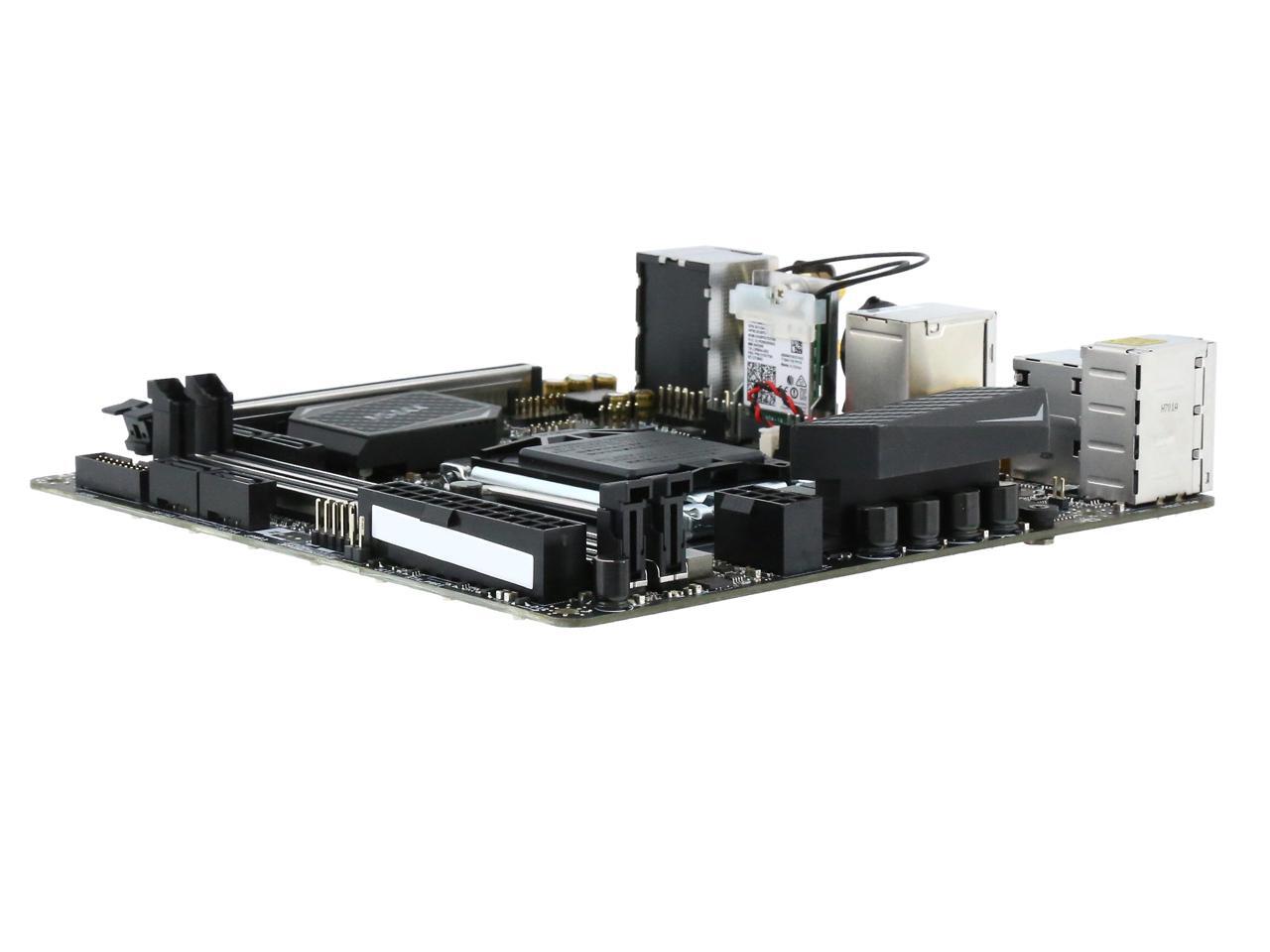

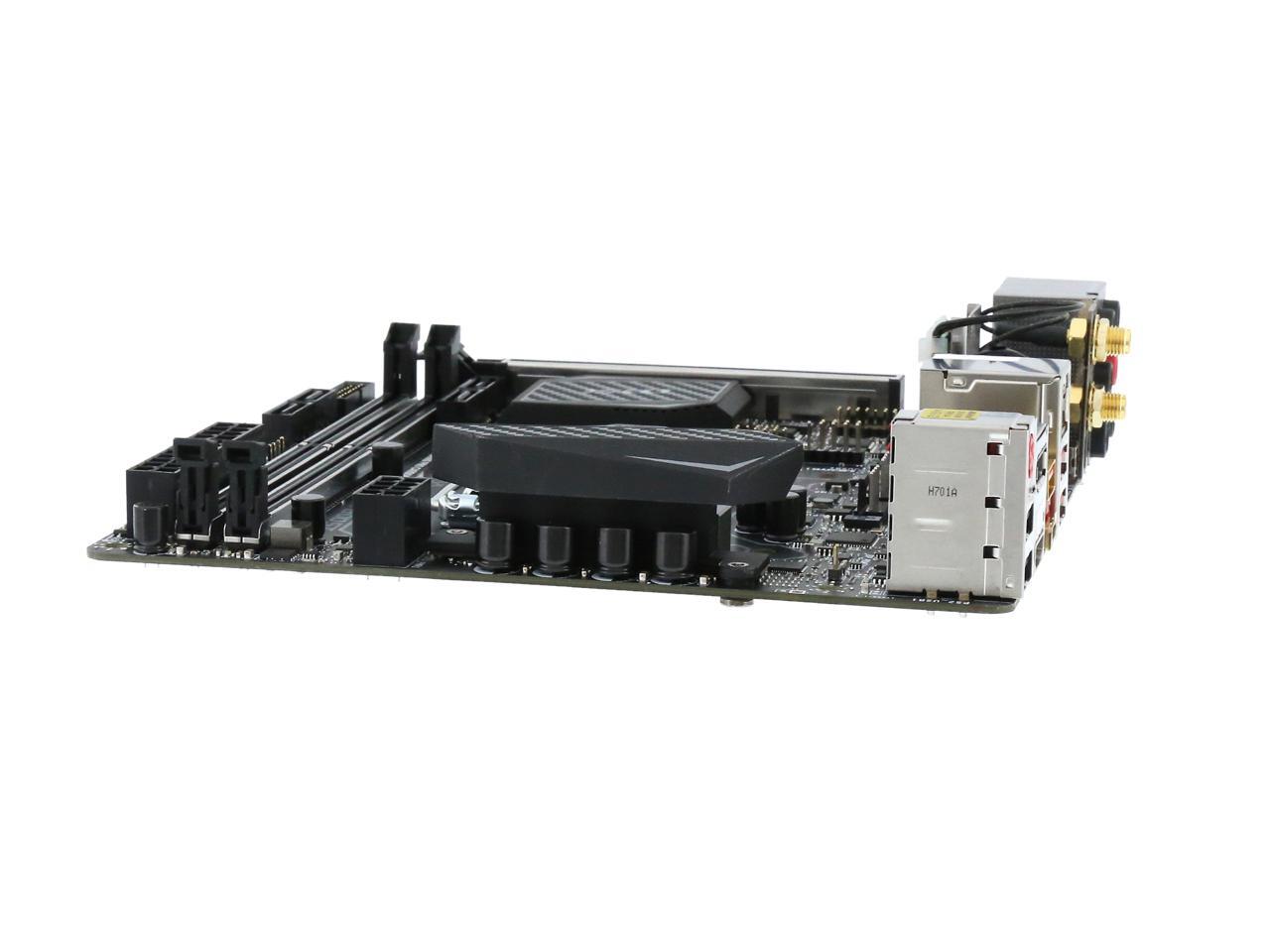

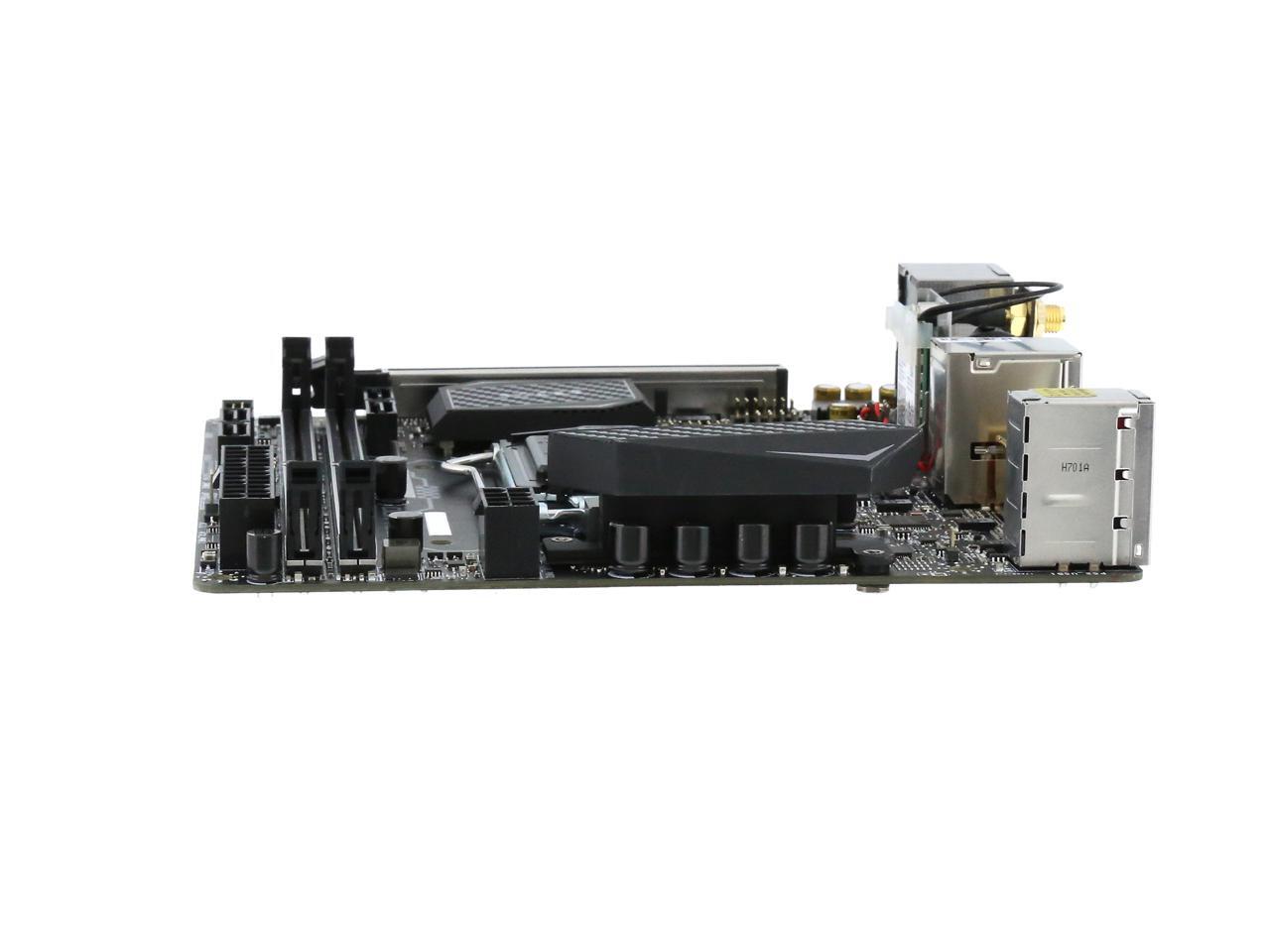

MSI Z270I GAMING PRO CARBON AC LGA 1151 Intel Z270 HDMI USB 3.1 Mini ITX Intel Motherboard

REFURBISHED Product Type
Be the first to review this product...
  • Intel Z270
  • Supports 6th/7th Gen Intel Core i3/i5/i7 processors, and Intel Pentium and Celeron processors for Socket LGA1151
  • * Not Compatible with Intel 8th Gen CPUs
  • 7th processors support DDR4 3800(OC)/ 3600(OC)/ 3200(OC)/ 3000(OC)/ 2800(OC)/ 2600(OC)/ 2400/ 2133
  • 6th processors support DDR4 3600(OC)/ 3200(OC)/ 3000(OC)/ 2800(OC)/ 2600(OC)/ 2400(OC)/ 2133
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Specs
Reviews
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the MSI Z270I GAMING PRO CARBON AC

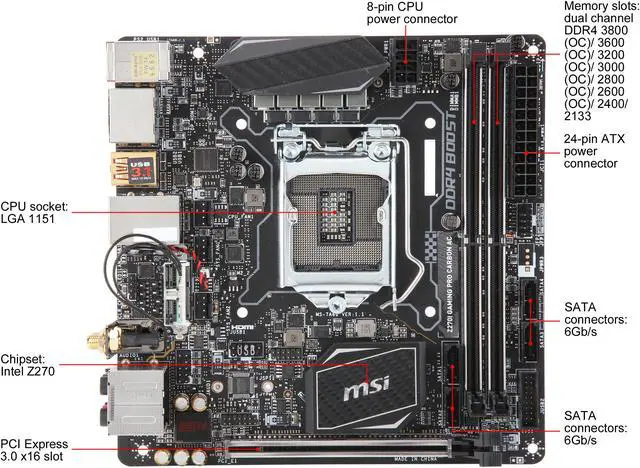

Model
Brand MSI
Model Z270I GAMING PRO CARBON AC
Supported CPU
CPU Socket Type LGA 1151
CPU Type Supports 6th/7th Gen Intel Core i3/i5/i7 processors, and Intel Pentium and Celeron processors for Socket LGA1151
* Not Compatible with Intel 8th Gen CPUs
Chipsets
Chipset Intel Z270
Onboard Video
Onboard Video Chipset Supported only by CPU with integrated graphic
Memory
Number of Memory Slots 2x288pin (DDR4)
Memory Standard 7th processors support DDR4 3800(OC)/ 3600(OC)/ 3200(OC)/ 3000(OC)/ 2800(OC)/ 2600(OC)/ 2400/ 2133
6th processors support DDR4 3600(OC)/ 3200(OC)/ 3000(OC)/ 2800(OC)/ 2600(OC)/ 2400(OC)/ 2133
Maximum Memory Supported 32GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 3.0 x16 1 x PCI Express 3.0 x16
Storage Devices
Serial ATA (SATA) 4 x SATA 6Gb/s
M.2 1 x M.2 slot (Key M)
- Supports up to PCIe 3.0 x4 and SATA 6Gb/s
- Supports 2242/ 2260 /2280 storage devices
- Intel Optane Memory Ready
SATA RAID 0/1/5/10
Onboard Audio
Audio Chipset Realtek ALC1220
Audio Channels 7.1 Channels
Onboard LAN
LAN Chipset Intel I219-V
Max LAN Speed 1Gbps
Wireless LAN Intel Dual Band Wireless-AC 8265 module
- Supports Wi-Fi 802.11 a/b/g/n/ac, dual band (2.4GHz, 5GHz) up to 867 Mbps speed.
Bluetooth Supports Dual Mode Bluetooth 2.1, 2.1+EDR, 3.0, 4.0, BLE, 4.2

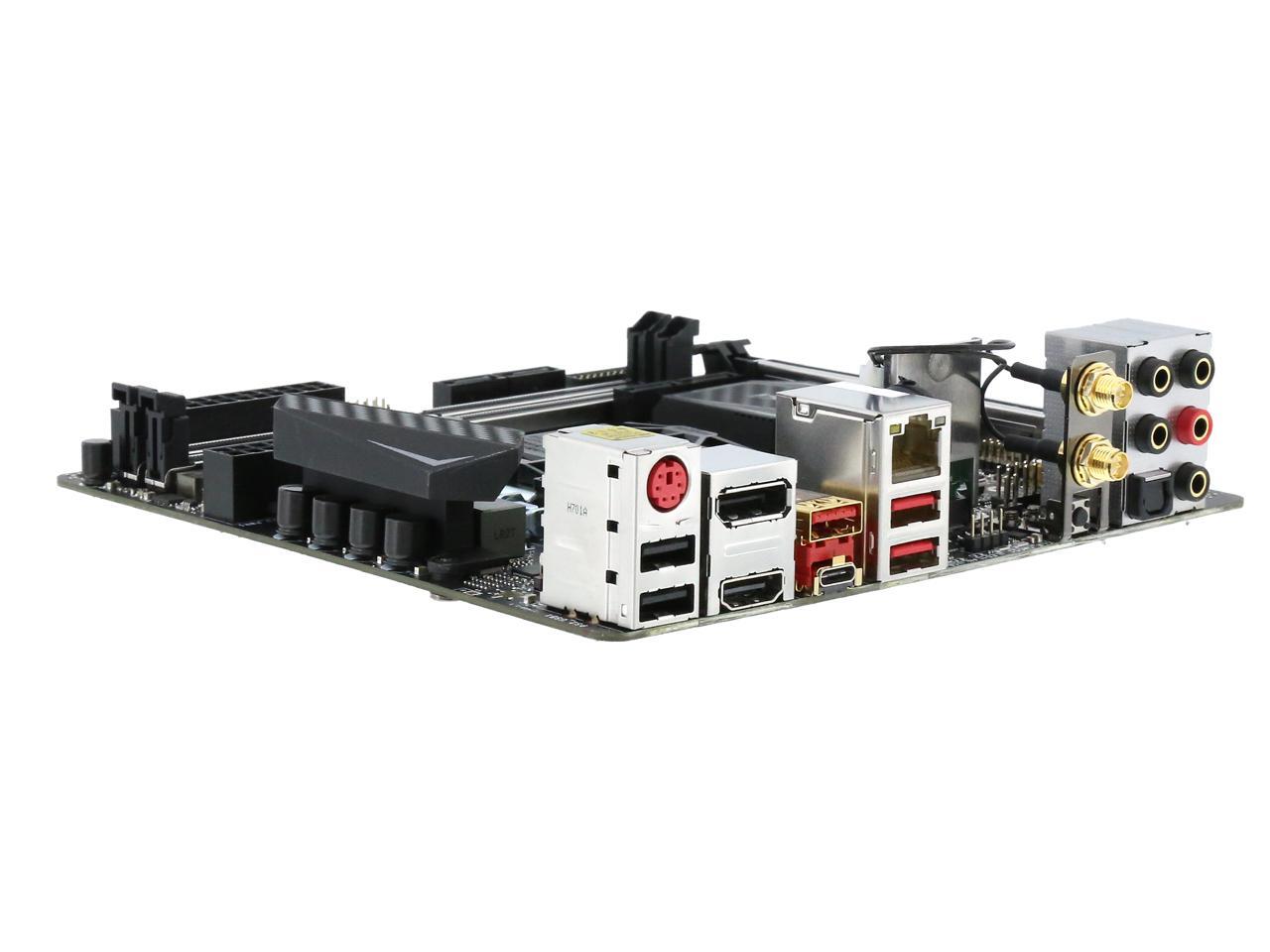

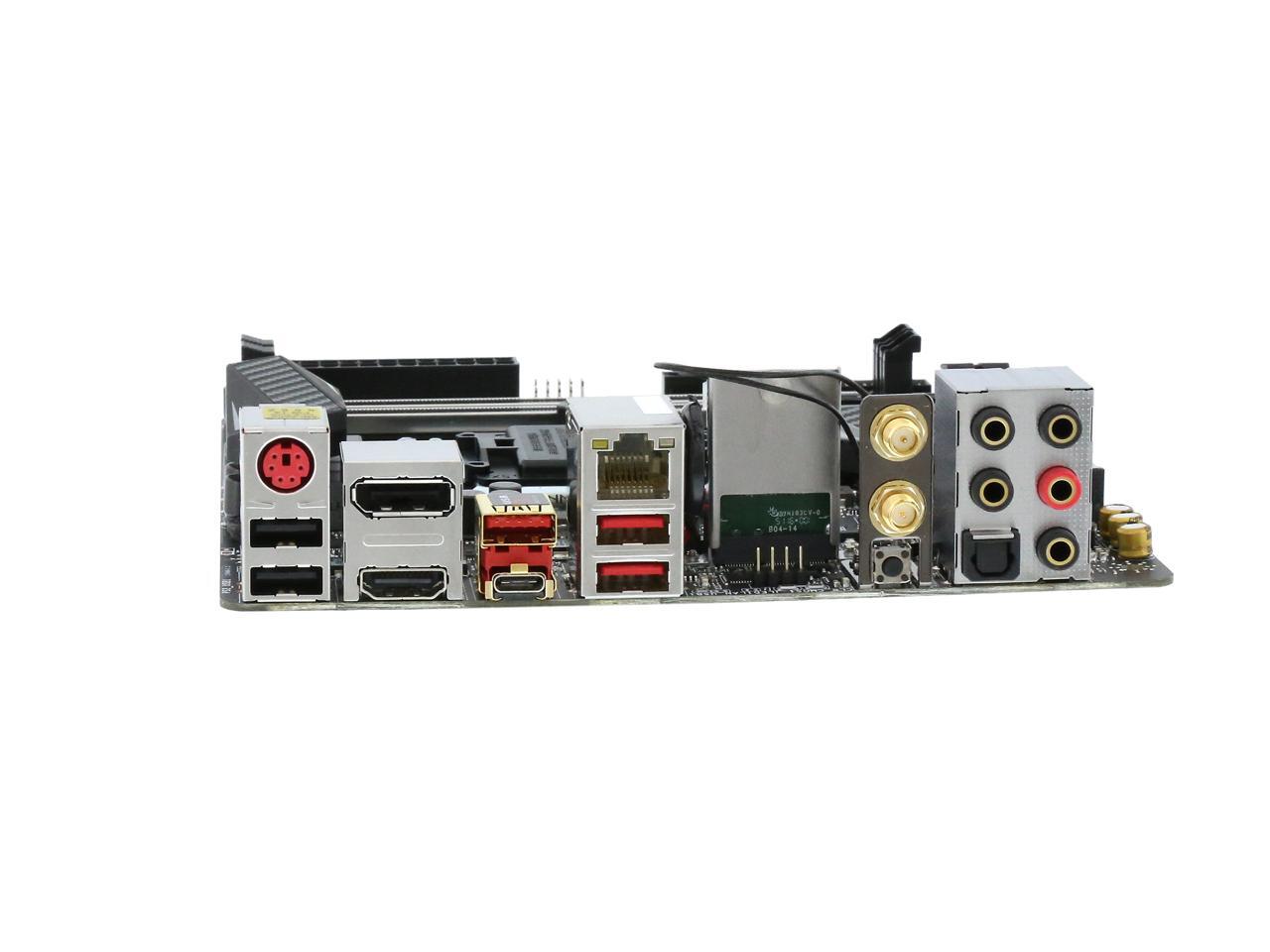

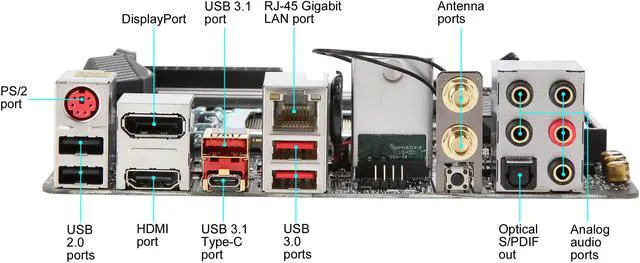

Rear Panel Ports
Back I/O Ports 1 x DisplayPort / 1 x HDMI / 1 x Optical S/PDIF Out / 1 x PS/2 Keyboard/Mouse Combo / 1 x USB 3.1 Gen 2 Type-A / 1 x USB 3.1 Gen 2 Type-C / 2 x USB 2.0/1.1 / 2 x USB 3.1 Gen 1 Type-A
PS/2 1 x PS/2 keyboard/mouse port
HDMI 1 x HDMI
RJ45 1 x RJ45
DisplayPort 1 x DisplayPort
USB 3.1 1 x USB 3.1 Gen2 Type-A port
1 x USB 3.1 Gen2 Type-C port
2 x USB 3.1 Gen1 Type-A ports
USB 1.1/2.0 2 x USB 2.0
S/PDIF Out 1 x Optical
Audio Ports 5 x OFC audio jacks
Antenna Connectors 2 x antenna connectors
Internal I/O Connectors
Onboard USB 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
1 x USB 2.0 connector (supports additional 2 USB 2.0 ports)
Other Connectors 1 x 4-pin CPU fan connector
2 x 4-pin system fan connectors
1 x Front panel audio connector
2 x Front panel connectors
1 x RGB LED connector
1 x TPM module connector
1 x Chassis Intrusion connector
1 x Clear CMOS jumper
Physical Spec
Form Factor Mini ITX
LED Lighting RGB

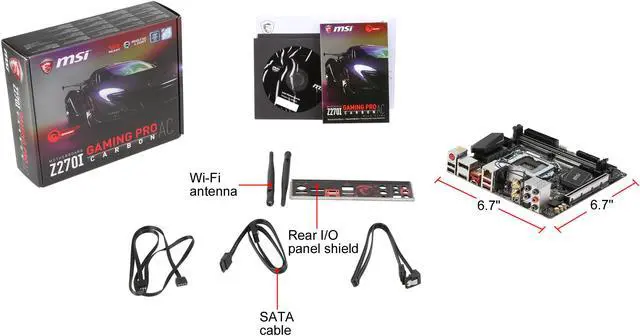

Dimensions (W x L) 6.7" x 6.7"
Power Pin 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
Features
Features Supports 7th/6th Gen Intel Core / Pentium / Celeron processors for LGA 1151 socket

Supports DDR4-4133+(OC) Memory

DDR4 Boost with Steel Armor: Give your DDR4 memory a performance boost.

VR Ready: Best virtual reality game experience without latency

Mystic Light and Mystic Light Sync: 16.8 milliom colors / 17 effects controlled in one click with GAMING APP or mobile devices.

Lightning Fast Game experience: Turbo M.2, Intel Optane Memory Ready, Lightning USB 3.1 Gen2

Audio Boost 4 with Nahimic 2: Reward your ears with studio grade sound quality for the most immersive gaming experience

GAMING LAN with LAN Protect, powered by Intel: The best online gaming experience with lowest latency and bandwidth management

Military Class 5, Guard-Pro: Latest evolution in high quality components for best protection and efficiency

In-Game Weapons: Game Boost, GAMING Hotkey, X-Boost, Xsplit Gamecaster

EZ Debug LED: Easiest way to troubleshoot

Click BIOS 5: Award-winning BIOS with high resolution scalable font, favorites and search function

GAMING CERTIFIED: 24-hour on- and offline game and motherboard testing by eSports players
Additional Information
First Listed on Newegg October 22, 2018
