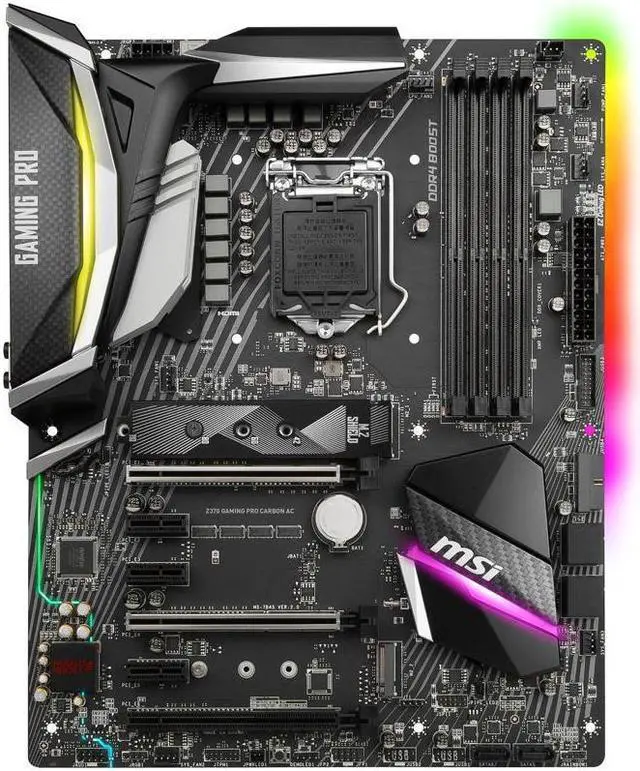

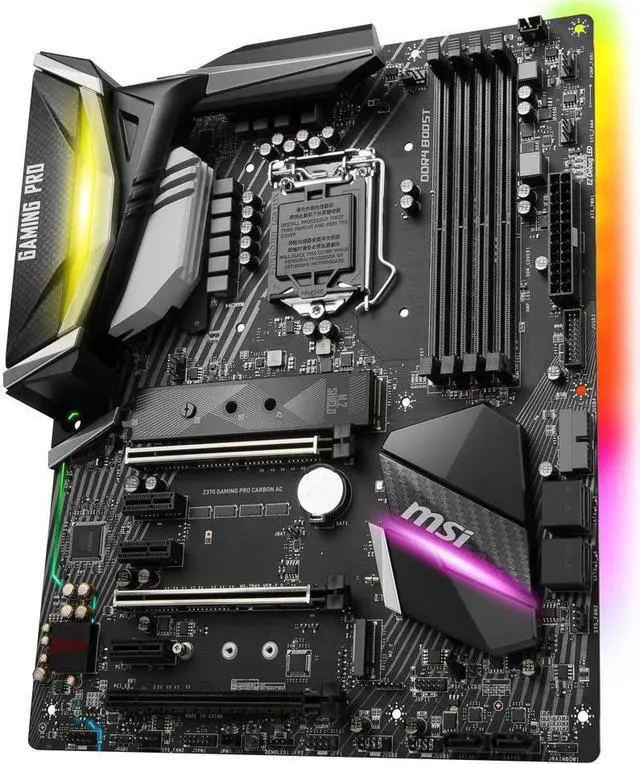

MSI Z370 GAMING PRO CARBON AC LGA 1151 (300 Series) Intel Z370 HDMI SATA 6Gb/s USB 3.1 ATX Intel Motherboard
REFURBISHED Product Type
- Intel Z370
- Supports 8th Generation Intel Core Processors, and Intel Pentium and Celeron Processors for Socket LGA1151
- * Not backward compatible with older generation of LGA 1151 CPUs
- DDR4 4000+(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC)/ 2800(OC)/ 2667/ 2400/ 2133
+
+
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the MSI Z370 GAMING PRO CARBON AC
| Brand | MSI |
|---|---|
| Model | Z370 GAMING PRO CARBON AC |
| CPU Socket Type | LGA 1151 (300 Series) |
|---|---|
| CPU Type | Supports 8th Generation Intel Core Processors, and Intel Pentium and Celeron Processors for Socket LGA1151 * Not backward compatible with older generation of LGA 1151 CPUs |
| Chipset | Intel Z370 |
|---|
| Onboard Video Chipset | Supported only by CPU with integrated graphic |
|---|
| Number of Memory Slots | 4x288pin (DDR4) |
|---|---|
| Memory Standard | DDR4 4000+(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC)/ 2800(OC)/ 2667/ 2400/ 2133 |
| Maximum Memory Supported | 64GB |
| Channel Supported | Dual Channel |
| PCI Express 3.0 x16 | 3 x PCIe 3.0 x16 slots (support x16/x0/x4, x8/x8/x4 modes) |
|---|---|
| PCI Express x1 | 3 x PCIe 3.0 x1 slots |
| Serial ATA (SATA) | 6 x SATA 6Gb/s ports* * M.2 and SATA ports maximum support 1 x M.2 PCIe SSD + 1 x M.2 SATA SSD + 5 x SATA HDDs. |
|---|---|
| M.2 | 2 x M.2 slots (Key M) - Support up to PCIe 3.0 x4 and SATA 6Gb/s - Support PCIe 3.0 x4 NVMe U.2 SSD with Turbo U.2 Host Card** - M2_1 slot supports 2242/2260/2280/22110 storage devices - M2_2 slot supports 2242/2260/2280 storage devices - Intel Optane Memory Ready for all M.2 slots*** ** The Turbo U.2 Host Card is not included, please purchase separately. *** Before using Intel Optane memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website. |
| SATA RAID | 0/1/5/10 |
| Audio Chipset | Realtek ALC1220 |
|---|---|
| Audio Channels | 7.1-Channel High Definition Audio Supports S/PDIF output |
| LAN Chipset | Intel I219-V |
|---|---|
| Max LAN Speed | 1Gbps |
| Wireless LAN | Intel Dual Band Wireless-AC 8265 card Supports Wi-Fi 802.11 a/b/g/n/ac, dual band (2.4 GHz, 5 GHz) up to 867 Mbps speed |
| Bluetooth | Supports Dual Mode Bluetooth 2.1, 2.1+EDR, 3.0, 4.0, BLE, 4.2 |

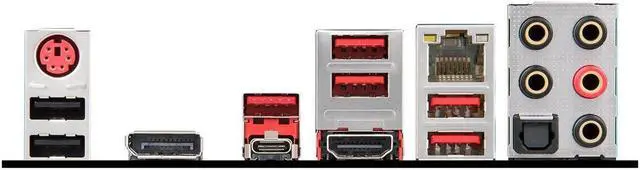

| Back I/O Ports | 1 x DisplayPort / 1 x HDMI / 1 x Optical S/PDIF Out / 1 x PS/2 Keyboard/Mouse Combo / 1 x USB 3.1 Gen 2 Type-A / 1 x USB 3.1 Gen 2 Type-C / 2 x USB 2.0/1.1 / 4 x USB 3.1 Gen 1 Type-A |
|---|---|
| PS/2 | 1 x PS/2 keyboard/mouse port |
| HDMI | 1 x HDMI |
| RJ45 | 1 x RJ45 |
| DisplayPort | 1 x DisplayPort |
| USB 3.1 | 1 x USB 3.1 Gen2 Type-A port 1 x USB 3.1 Gen2 Type-C port 4 x USB 3.1 Gen1 Type-A ports |
| USB 1.1/2.0 | 2 x USB 2.0 Type-A ports |
| S/PDIF Out | 1 x Optical |
| Audio Ports | 5 Ports |
| Onboard USB | 2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports) 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports) |
|---|---|
| Other Connectors | 1 x 4-pin CPU fan connector 1 x 4-pin water pump fan connector 4 x 4-pin system fan connectors 1 x Front panel audio connector 2 x Front panel connectors 2 x 5050 RGB LED strip 12V connectors 1 x WS2812B Individually Addressable RGB LED strip 5V connector 1 x CORSAIR Individually Addressable RGB LED strip 5V connector 1 x TPM module connector 1 x Chassis Intrusion connector 1 x Clear CMOS jumper |
| Form Factor | ATX |
|---|---|
| LED Lighting | RGB |
| Dimensions (W x L) | 12.0" x 9.6" |
| Power Pin | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector |
| Features | Supports 8th Gen Intel Core / Pentium Celeron processors for LGA 1151 socket. Supports DDR4 Memory, up to 4000+(OC) MHz. MYSTIC LIGHT: 16.8 million colors / 17 effects controlled in one click. MYSTIC LIGHT EXTENSION supports both RGB and RAINBOW LED strip. Lightning Fast Game experience: 2x TURBO M.2, Intel Optane Memory Ready. M.2 Shield, LIGHTNING USB 3.1 GEN2. AUDIO BOOST 4 with NAHIMIC 2+: Reward your ears with studio grade sound quality for the most immersive gaming experience. DDR4 Boost: Fully isolated, shielded and optimized DDR4 PCB design to give your DDR4 memory a performance boost. GAMING LAN and Wireless support, powered by Intel: The best online gaming experience with lowest latency and bandwidth management. MULTI-GPU: With STEEL ARMOR PCI-E slots. Supports 2-Way NVIDIA SLI & 3-Way AMD Crossfire. VR Ready: Best virtual reality game experience without latency, reduces motion sickness. Military Class 5, Guard-Pro: Latest evolution with high quality Japanese components for best protection and efficiency. In-Game Weapons: Game Boost, GAMING Hotkey, X-Boost, WTFast. EZ Debug LED: Easiest way to troubleshoot. Click BIOS 5: Award-winning BIOS with high resolution scalable font, favorites and search function. GAMING CERTIFIED: 24-hour on- and offline game and motherboard testing by eSports players. |
|---|
| First Listed on Newegg | November 05, 2024 |
|---|
