MSI PRO Z490-A PRO LGA 1200 Intel Z490 ATX Intel Motherboard
REFURBISHED Product Type
- Intel Z490
- Supports 11th / 10th Gen Intel Core processors
- Supports Intel Pentium Gold and Celeron processors
- Supports 1R 2933 / 2666 / 2133
- 1DPC 1R Max speed up to 5000+
- 1DPC 2R Max speed up to 4500+
- 2DPC 1R Max speed up to 4400+
- 2DPC 2R Max speed up to 4000+
+
+
Specs
Reviews (15)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the MSI Z490-A PRO
| Brand | MSI |
|---|---|
| Series | PRO |
| Model | Z490-A PRO |
| CPU Socket Type | LGA 1200 |
|---|---|
| CPU Type | Supports 11th / 10th Gen Intel Core processors Supports Intel Pentium Gold and Celeron processors * Onboard graphics output are disabled when using the F SKU processors. * BIOS updated to be compatible with 11th Gen Intel Core Processors. |
| Chipset | Intel Z490 |
|---|
| Onboard Video Chipset | Supported only by CPU with integrated graphic |
|---|
| Number of Memory Slots | 4x288pin (DDR4) |
|---|---|
| Memory Standard | Supports 1R 2933 / 2666 / 2133 * 1DPC 1R Max speed up to 5000+ 1DPC 2R Max speed up to 4500+ 2DPC 1R Max speed up to 4400+ 2DPC 2R Max speed up to 4000+ * Please refer www.msi.com for more information on compatible memory. |
| Maximum Memory Supported | 128GB |
| Channel Supported | Dual Channel |
| PCI Express 4.0 x16 | 1 x PCI Express 4.0 x16* * Actual support may vary by CPU. |
|---|---|
| PCI Express 3.0 x16 | 1 x PCI Express 3.0 x16 |
| PCI Express x1 | 3 x PCI Express x1 |
| Serial ATA (SATA) | 6 x SATA 6Gb/s |
|---|---|
| M.2 | 2 x M.2 slots (Key M): - M2_1 slot: - CPU support mode (From 11th Gen Intel CPU only) - supports PCIe 4.0 x4/3.0 x4 - Chipset support mode - supports PCIe 3.0 x4 and SATA 6Gb/s - Supports 2242/2260/2280/22110 storage devices* - M2_2 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/2260/2280 storage devices ** - Intel Optane Memory Ready *** - Supports Intel Smart Response Technology for Intel Core processors * SATA2 will be unavailable when installing M.2 SATA SSD in the M2_1 slot. ** SATA5 & SATA6 will be unavailable when installing M.2 SATA/PCIe SSD in the M2_2 slot. *** Before using Intel Optane memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website. |
| Intel Optane Ready | Yes |
| SATA RAID | 0/1/5/10 |
| Audio Chipset | Realtek ALC892/ALC897 |
|---|---|
| Audio Channels | 7.1 Channels |
| LAN Chipset | Realtek RTL8125B-CG |
|---|---|
| Max LAN Speed | 2.5Gbps |

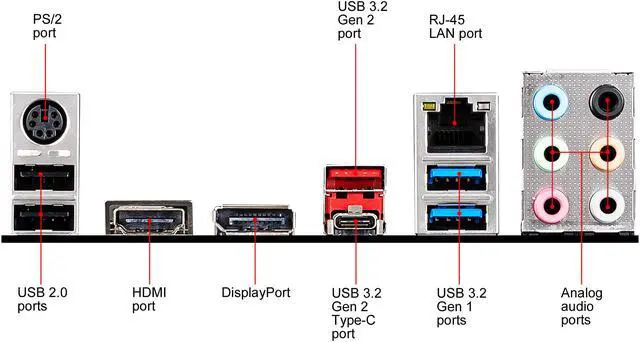

| Back I/O Ports | 1 x DisplayPort 1 x HDMI 1 x LAN (RJ45) 1 x PS/2 Keyboard/Mouse Combo 1 x USB 3.2 Gen 2 Type-A 1 x USB 3.2 Gen 2 Type-C 2 x USB 3.2 Gen 1 Type-A 2 x USB 2.0/1.1 6 x Audio Jacks |
|---|
| Onboard USB | 1 x USB 3.2 Gen 1 5Gbps Type-C port 2 x USB 3.2 Gen 1 5Gbps connectors (support additional 4 USB 3.2 Gen 1 5Gbps ports) 2 x USB 2.0 connectors (support additional 4 USB 2.0 ports) |
|---|---|
| Other Connectors | 1 x 4-pin CPU fan connector 1 x 4-pin water pump connector 6 x 4-pin system fan connectors 1 x front panel audio connector 2 x system panel connectors 1 x Chassis Intrusion connector 1 x Clear CMOS jumper 1 x 4-pin RGB LED connector 2 x 3-pin RAINBOW LED connectors 1 x serial port connector 1 x TPM module connector 1 x TBT connector * * Thunderbolt card need support RTD3 |
| Windows 11 | Supported |
|---|
| Form Factor | ATX |
|---|---|
| LED Lighting | RGB |
| Dimensions (W x L) | 12.0" x 9.6" |
| Power Pin | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector |
| Features | Supports 10th Gen Intel Core, 11th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1200 socket Supports DDR4 Memory, up to 5000(OC) MHz Ready 4 the Future: Support Lightning Gen 4 Solution for the future Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works 2.5G LAN: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs Intel Turbo USB 3.2 Gen 2: Powered by Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds Audio Boost: Reward your ears with studio grade sound quality Multi-GPU: With Steel armor PCI-E slots. Supports 2-Way AMD Crossfire |
|---|
| First Listed on Newegg | May 27, 2025 |
|---|
