Brand | Mushkin Enhanced |
---|---|
Model | 550250 |
Type | ATX12V / EPS12V |
---|---|
Maximum Power | 580 W |

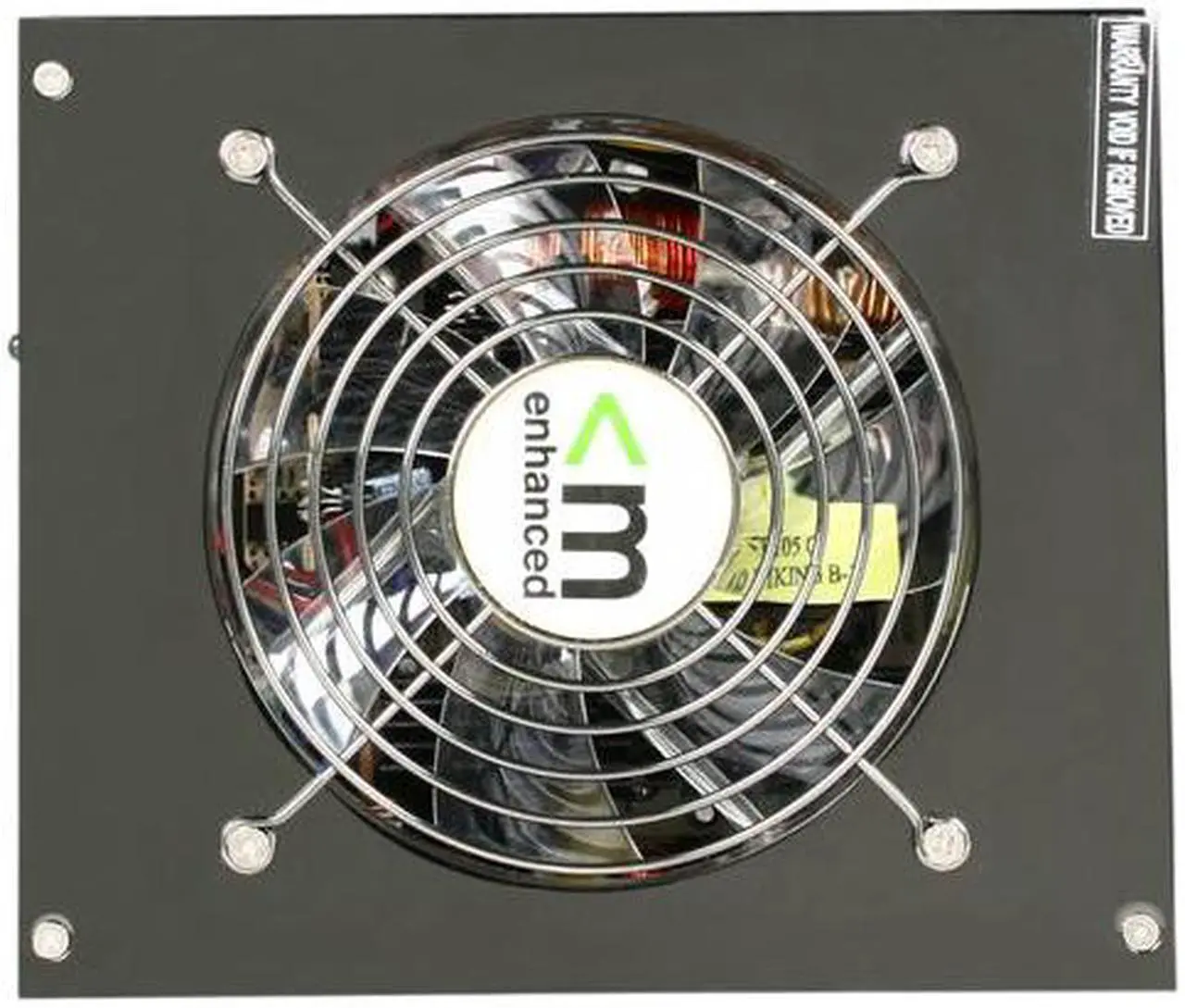

Fans | 1 x 120mm LED Fan |

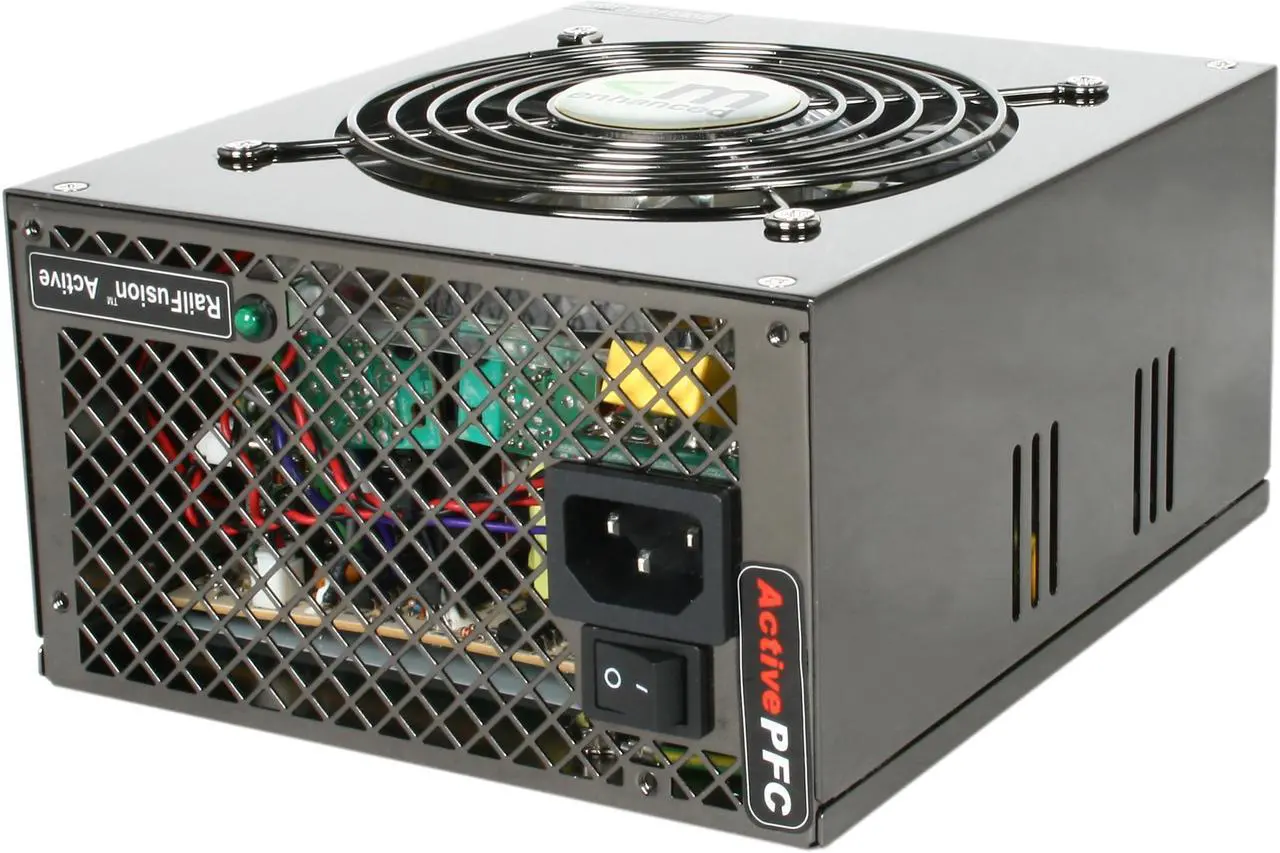

PFC | Active |

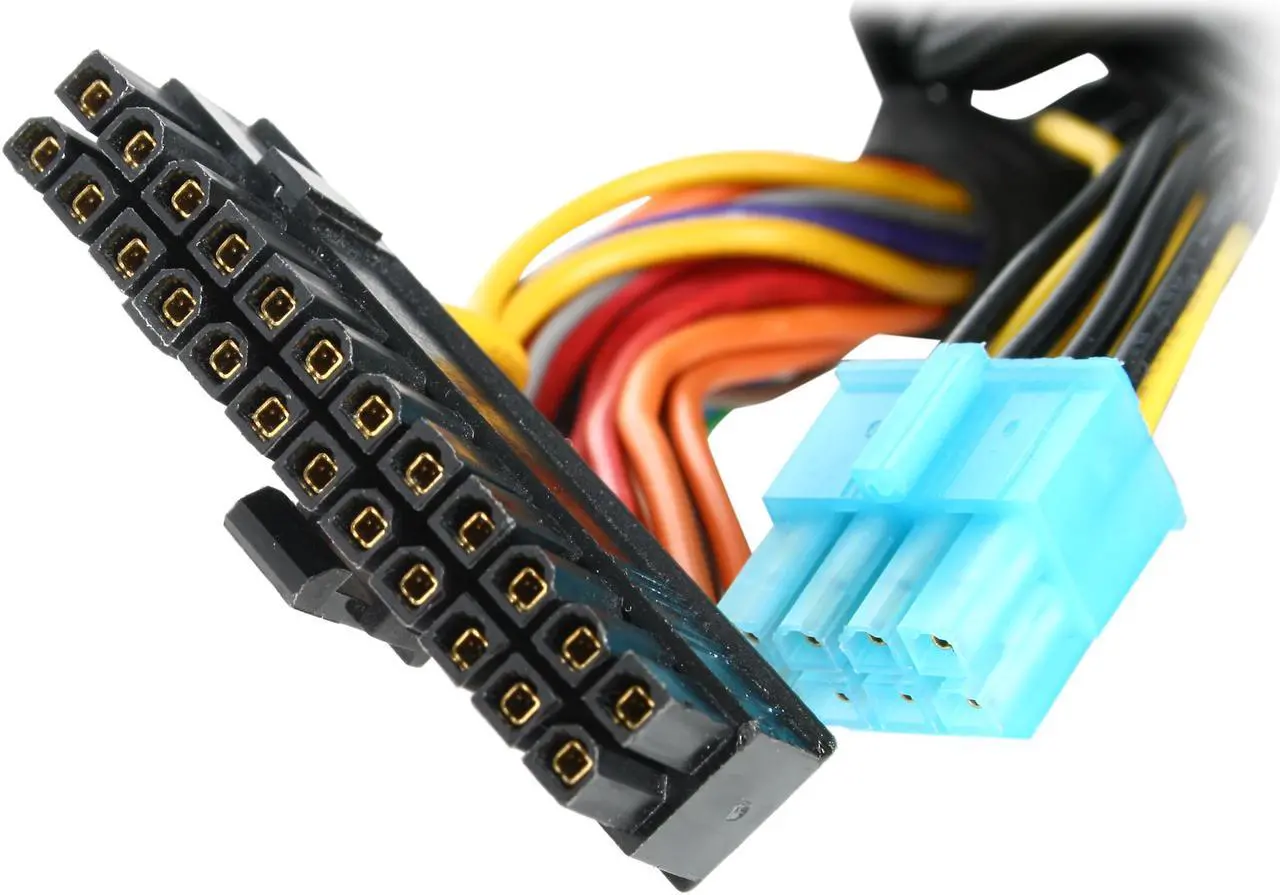

Main Connector | 20+4Pin |
+12V Rails | 4 |
PCI-Express Connector | 2 x 6-Pin |
SATA Power Connector | 8 |
SLI | SLI Certified |
CrossFire | CrossFire Ready |

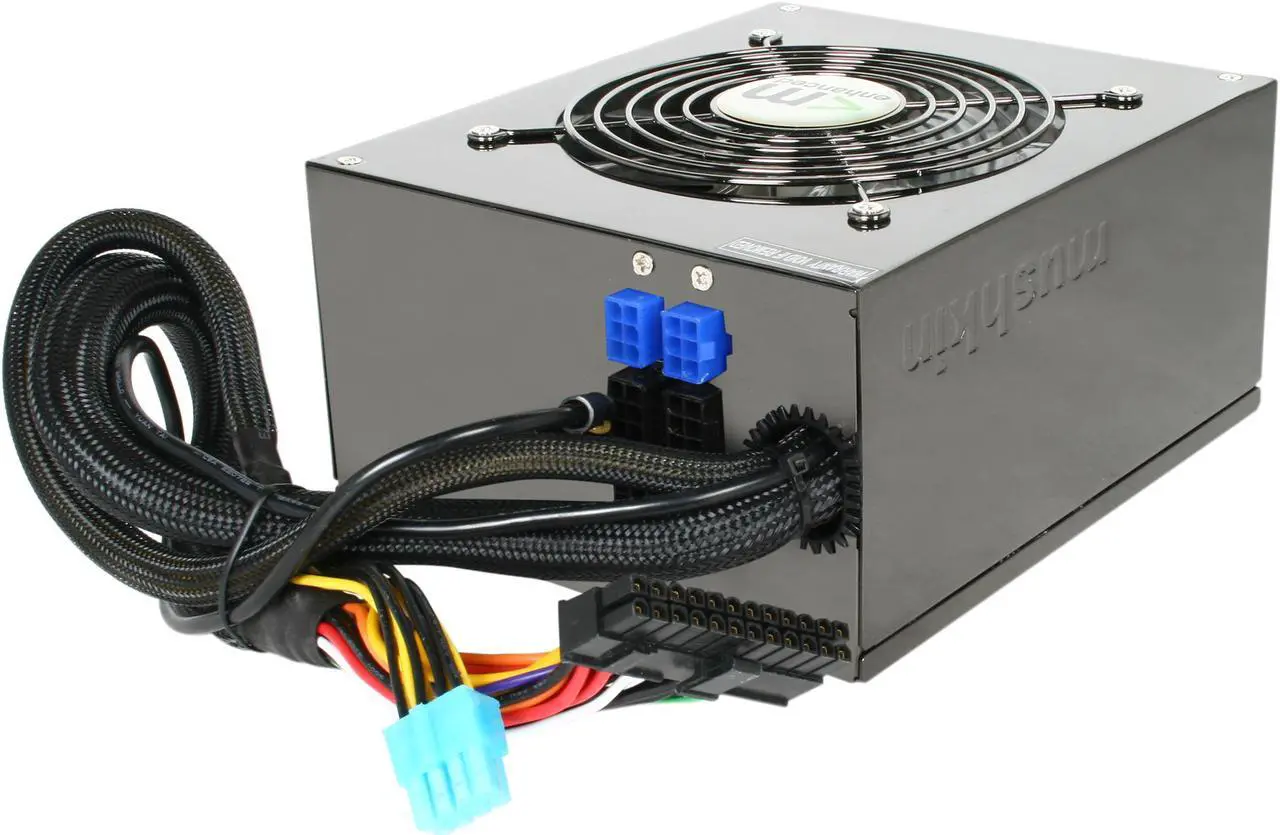

Modular | Modular |
Efficiency | Up to 84% |
Over Voltage Protection | +5V trip point < +7V +3.3V trip point < +4.3V +12V trip point < +15.6V |
Input Voltage | 115 / 230 V |
Input Frequency Range | 50/60 Hz |
Input Current | 10A @ 115V, 5A @ 230V |

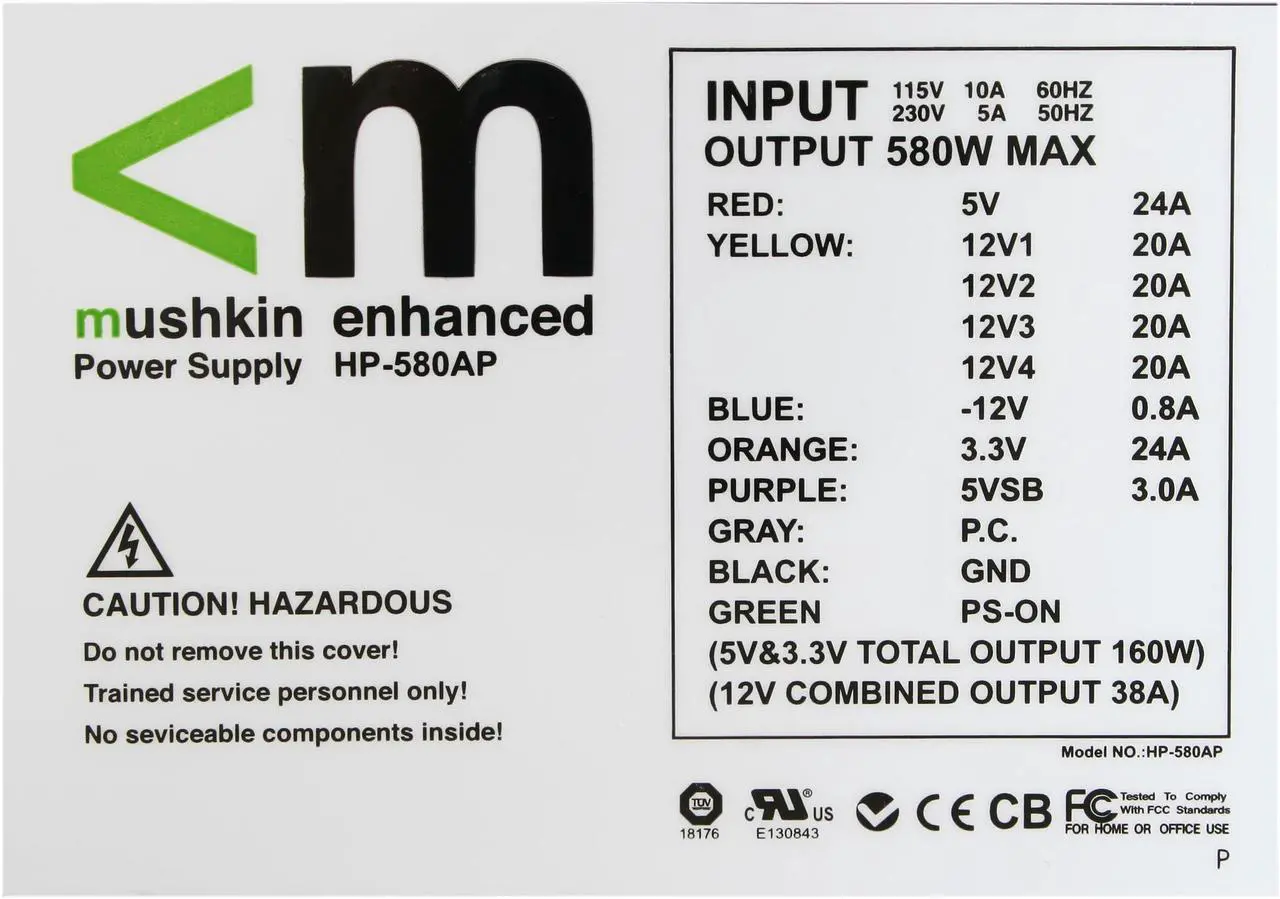

Output | +3.3V@24A, +5V@24A,+12V1@20A, +12V2@20A, +12V3@20A, +12V4@20A, [email protected], [email protected] |
MTBF | >100,000 Hours |
Approvals | TUV, CE, CB, cUL, FCC |

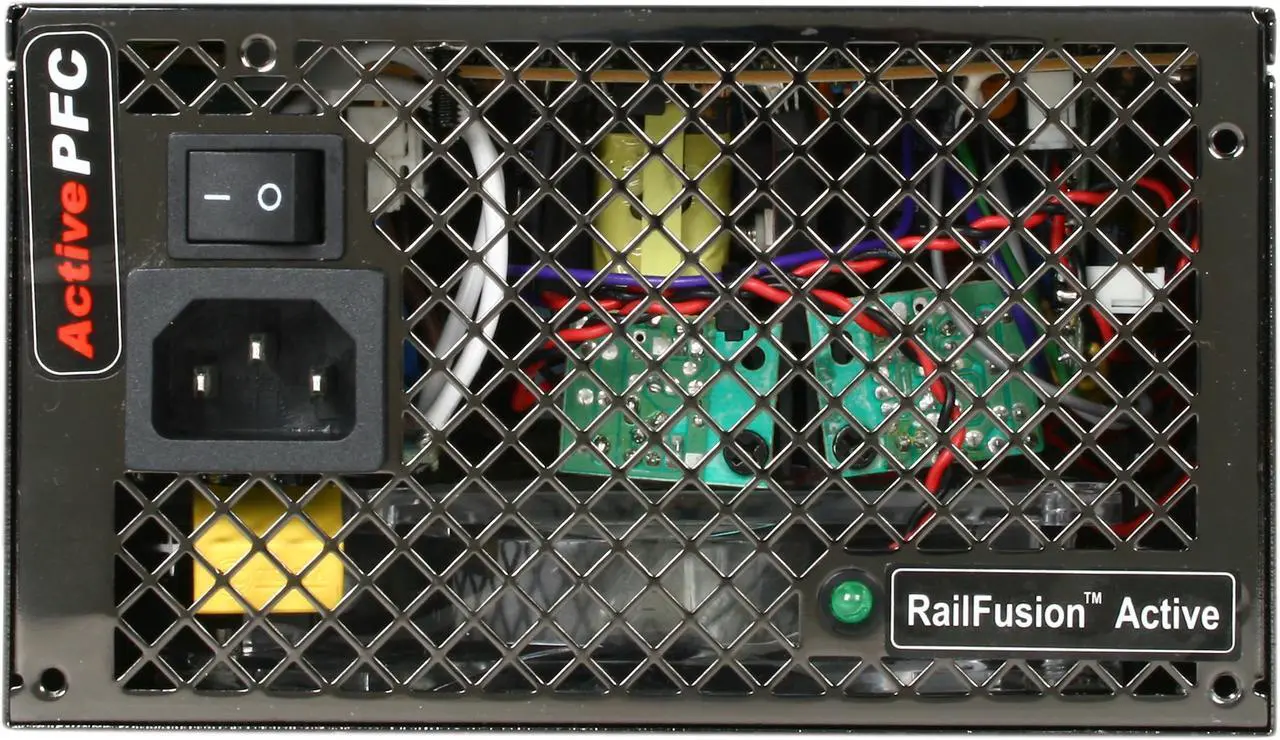

Features | RailFusion: responds to increased loads by automatically combining 12V rails when required QuadRail: Four +12V rails distribute load evenly for maximum stability Enhanced Power Conditioning ActiveShield Technology |
---|
Date First Available | December 08, 2006 |
---|
