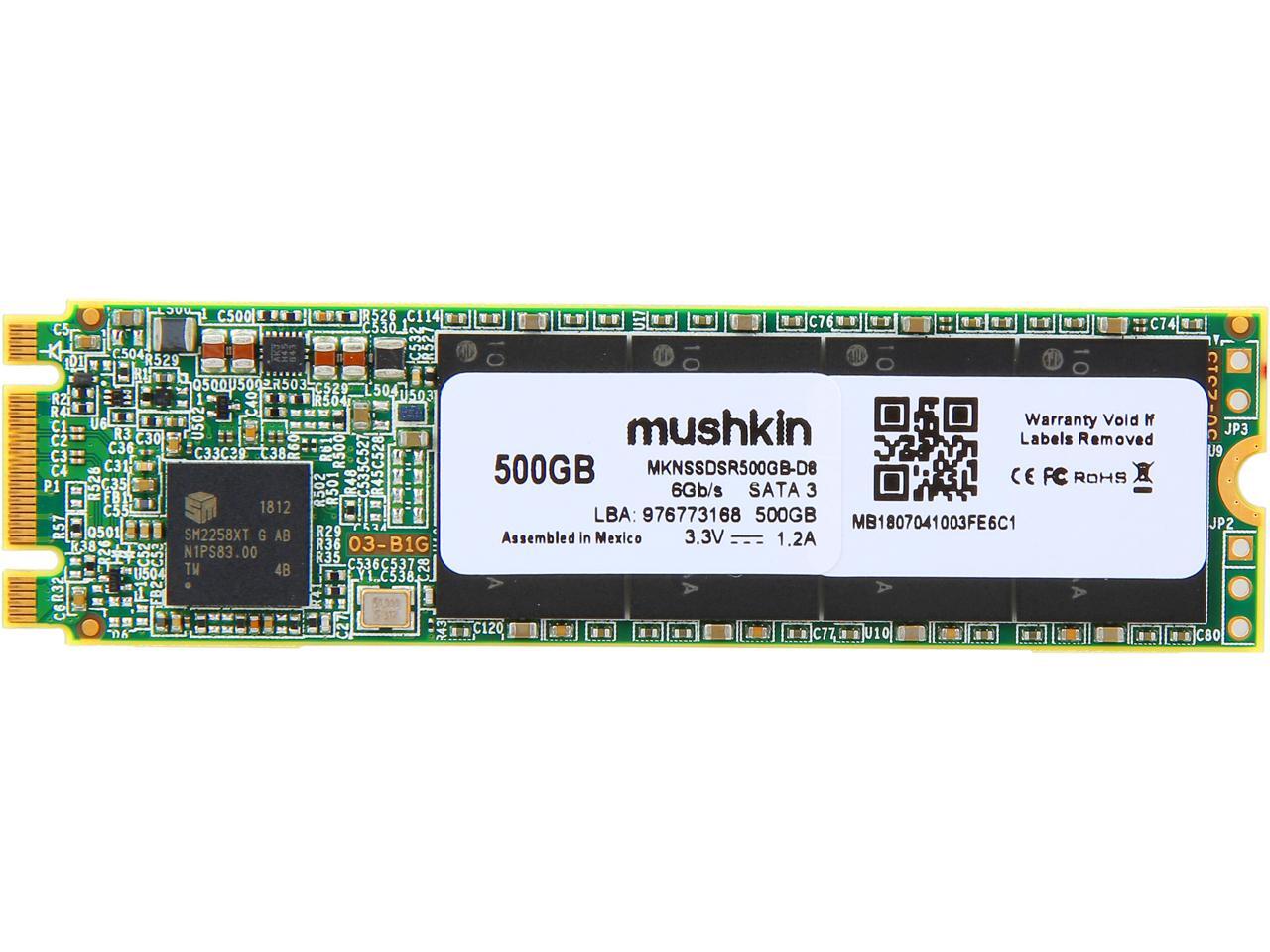

Learn more about the Mushkin Enhanced MKNSSDSR500GB-D8
Model
Brand
Mushkin Enhanced
Series
Source
Model
MKNSSDSR500GB-D8
Device Type
Internal Solid State Drive (SSD)
Used For
Consumer
Details
Form Factor
M.2 2280
Capacity
500GB
Memory Components
3D TLC
Interface
SATA III
Controller
Silicon Motion SM2258XT
Performance
Max Sequential Read
Up to 560 MBps
Max Sequential Write
Up to 520 MBps
4KB Random Read
Up to 75,000 IOPS
4KB Random Write
Up to 81,000 IOPS
Seek Time
< 0.1 ms
MTBF
1,500,000 hours
Features
Features
MEDS (Mushkin Enhanced Data-protection Suite) ensures valuable data is protected - Built-in LDPC ECC provides the most-powerful data correction level in use today - Data shaping increases endurance - StaticDataRefresh ensures data integrity - Global wear-leveling evens program/erase counts across data blocks to extend lifespan
SLC caching accelerates burst performance
Device Sleep mode (DEVSLP) supported
Supports Security Erase
TRIM support (OS/driver support required)
High-reliability 3D TLC NAND flash
S.M.A.R.T. support
User-upgradeable firmware
Temperature sensor
RoHS, FCC, CE
Max sequential speeds measured using CrystalDiskMark 5.2.1 x64. Max IOPS measured using IOMeter 1.1 with 4-thread, 128 queue depth per thread
Environmental
Power Consumption (Idle)
0.08W
Power Consumption (Active)
2W
Operating Temperature
0°C ~ +70°C
Storage Temperature
-40°C ~ +85°C
Max Shock Resistance
1500G
Dimensions & Weight
Height
3.80mm
Width
22.00mm
Depth
80.00mm
Weight
7.00g
Additional Information
Date First Available
January 14, 2023
