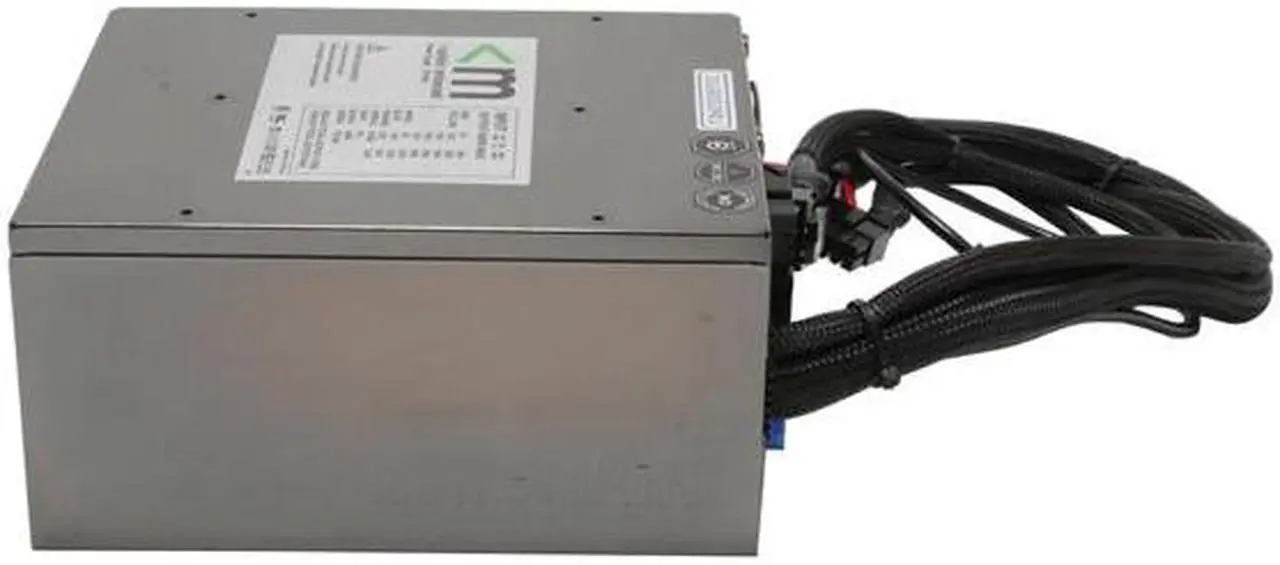

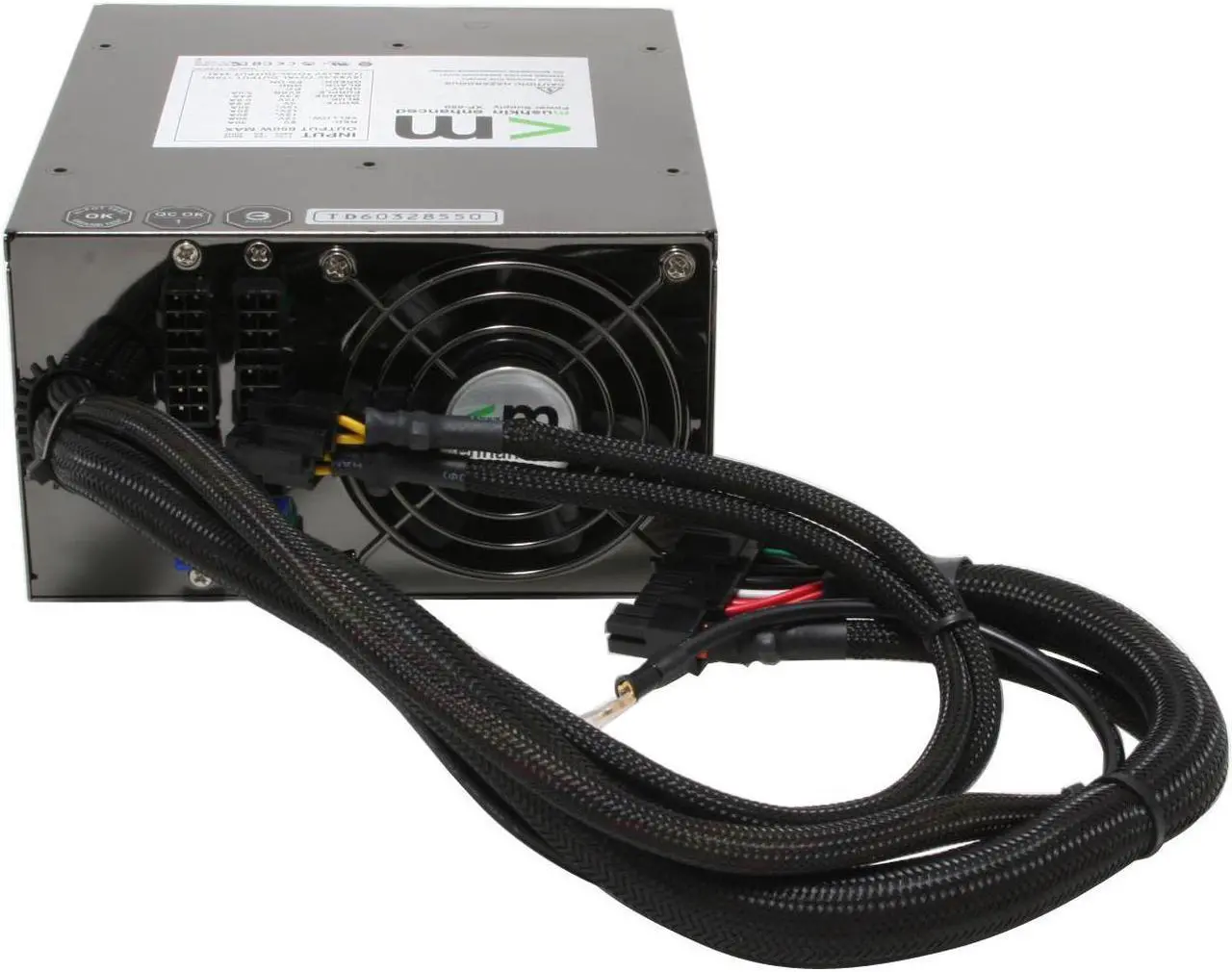

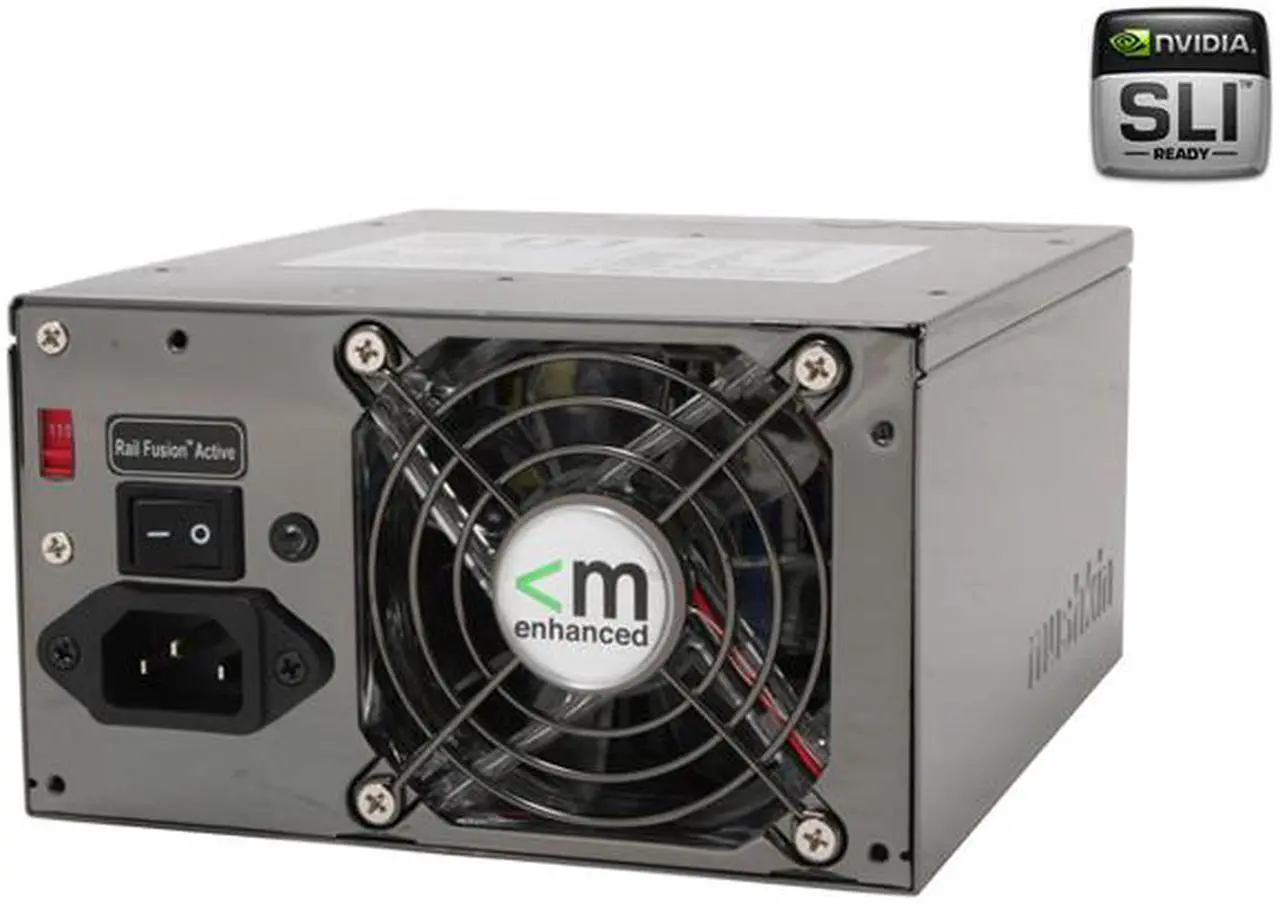

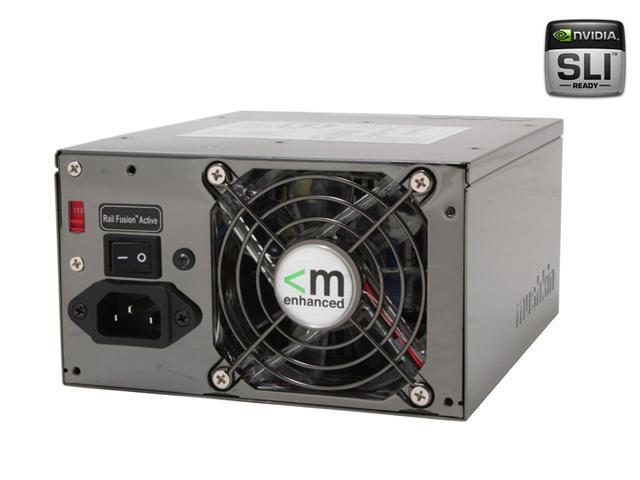

mushkin XP-650 650W ATX12V SLI Ready Modular Power Supply

(37) Write a Review
  • ATX12V
  • Modular
  • 115 / 230 V 50/60 Hz
  • +3.3V@24A, +5V@30A, +12V1@20A, +12V2@20A, +12V3@20A, +12V4@20A, [email protected], +5VSB@3A
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Specs
Reviews (37)
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the Mushkin Enhanced XP-650

General
Brand Mushkin Enhanced
Model XP-650
Details
Type ATX12V
Maximum Power 650 W
Fans 1
PFC No

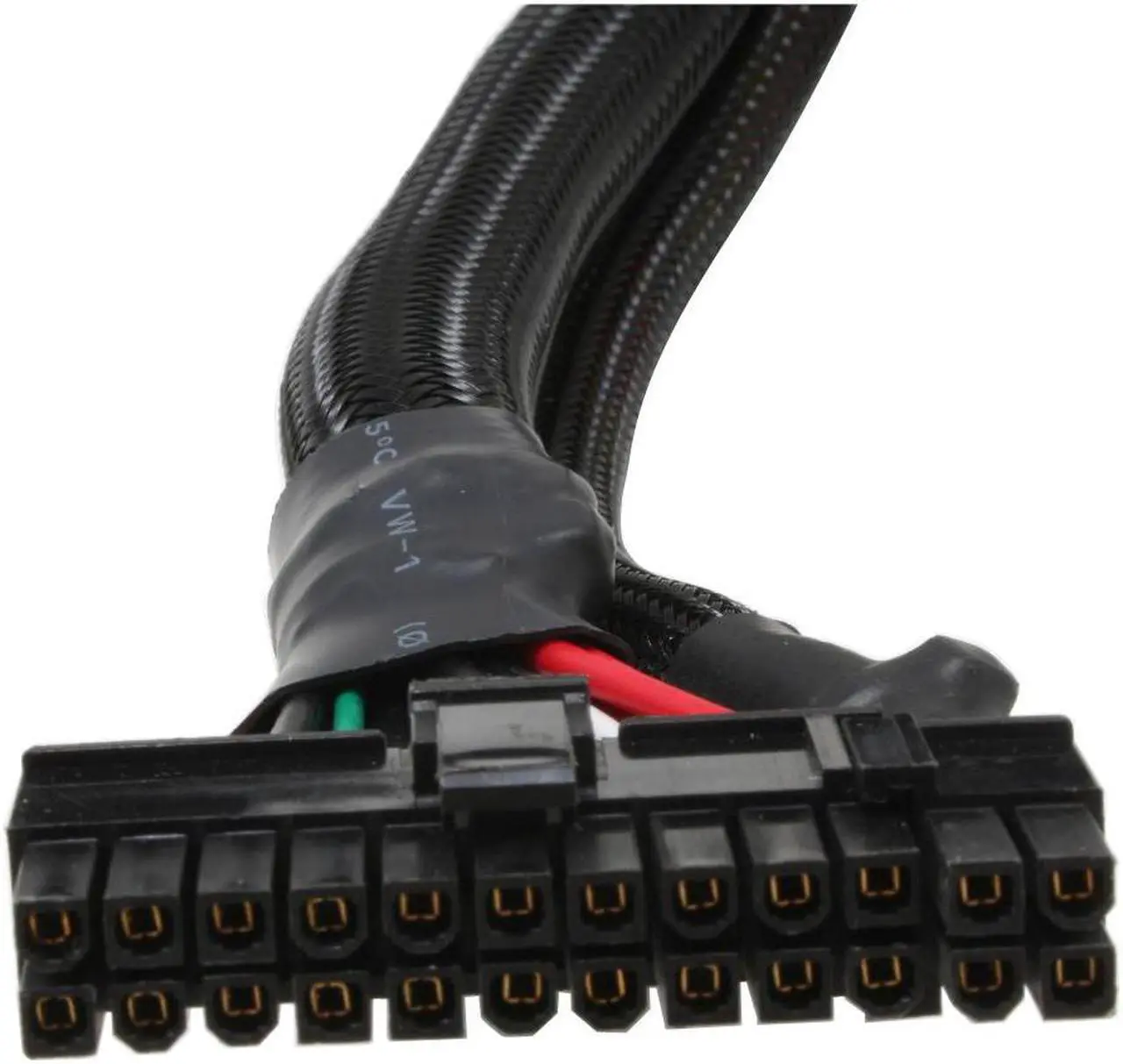

Main Connector 20+4Pin
+12V Rails Quad +12V
PCI-Express Connector 2 x 6-Pin
SLI SLI Ready
Modular Modular
Over Voltage Protection Yes
Input Voltage 115 / 230 V
Input Frequency Range 50/60 Hz
Input Current 10A @ 115V, 6A @ 230V

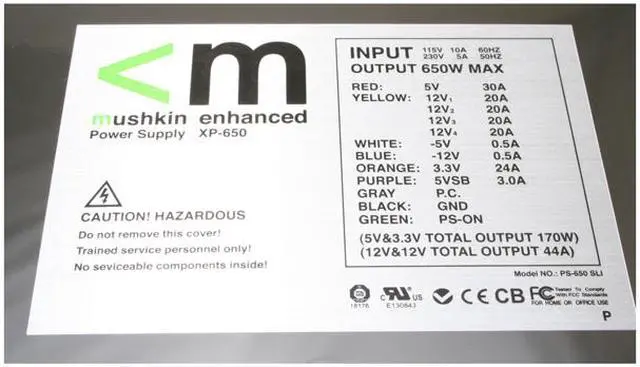

Output +3.3V@24A, +5V@30A, +12V1@20A, +12V2@20A, +12V3@20A, +12V4@20A, [email protected], +5VSB@3A
MTBF >100,000 Hours
Approvals CE, CB, FCC, cUL, TUV
Features
Features Quad Rail provides four independent +12V rails for balanced power distribution.
RailFusion responds to increased loads by automatically combining the +12V rails. Ample power for multi-GPU systems.
Enhanced Power Conditioning provides ultra-low ripple (1%) and superior voltage regulation (1%) under all load levels.
Advanced Thermal & Acoustic Design will automatically vary the PSU fan speed depending on the system load and
temperature, allowing for the most stable and quite computing enviroment no matter what programs are running.

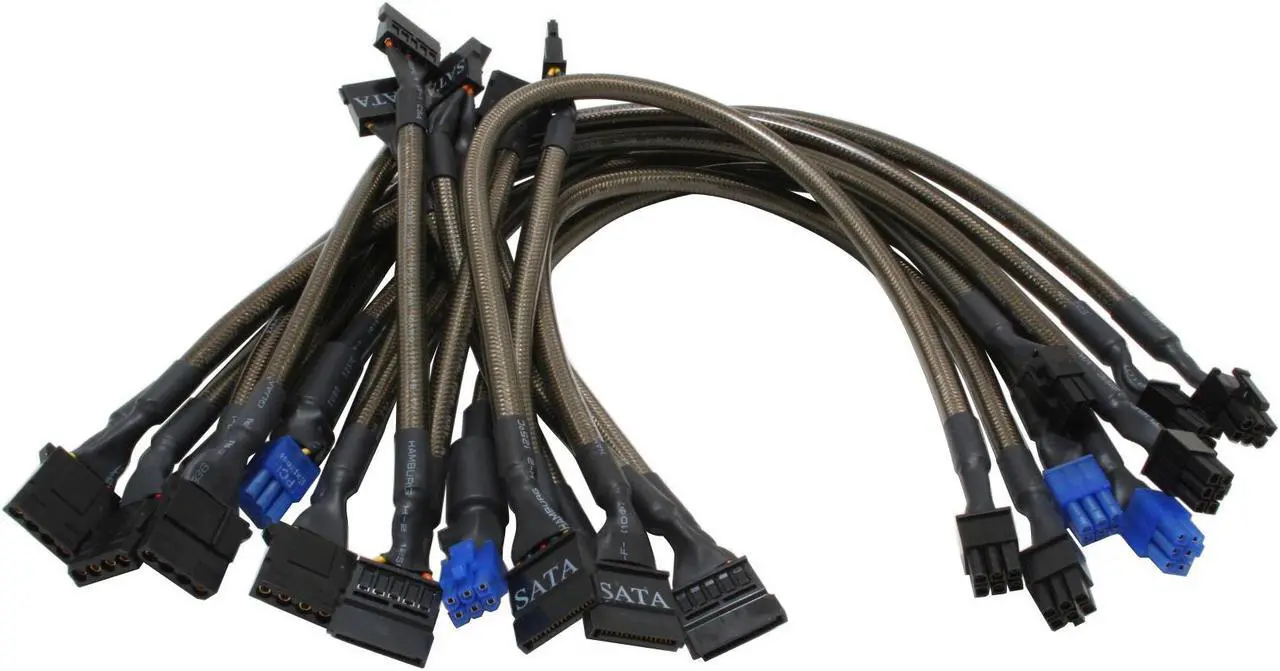

VersaPlug allows for an organized case and improves airflow by using only the required cables.

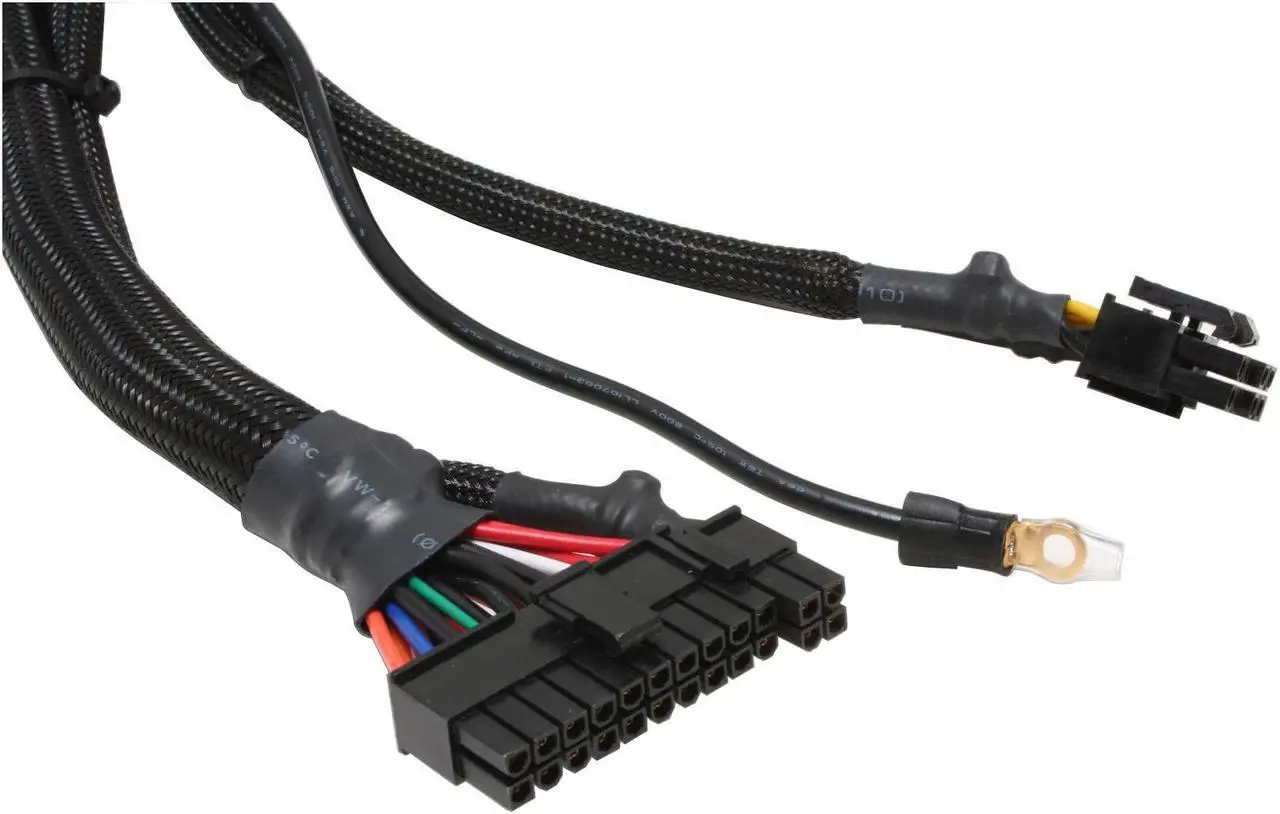

Compatible with ATX, ATX12V, EPS, and BTX standard (20/24-pin ATX, 4/8-pin +12V). Includes two PCIe cables for multi-GPU systems,
and eight SATA power connectors.
RailFusion: auto combine & split +12V by system loading
Quad +12V@ 44A in RailFusion Mode
Support Quad SLI system
Enhanced Power Conditioning: ultra-low ripple and regulation under all load levels
VersaPlug: 20/24Pin ATX, 4/8Pin +12V compatible. (ATX, BTX, SATA, P4 and EPS12V)
ActiveShield Technology
2 x 6-pin PCIe with EMI shielding
Maximum Power: 750W
Continue Power: 650W
Additional Information
Date First Available May 09, 2006

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
