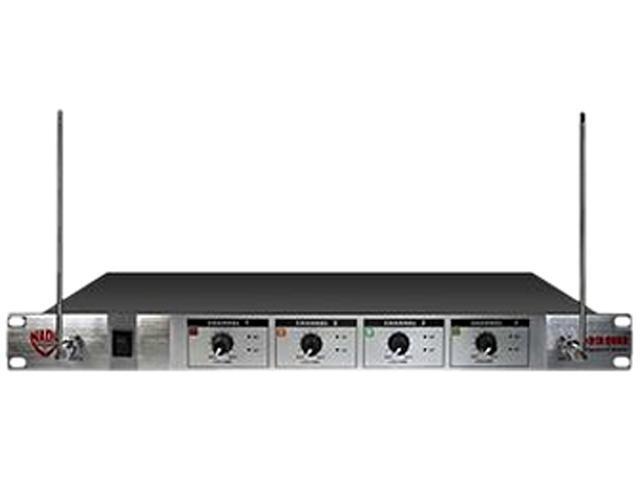

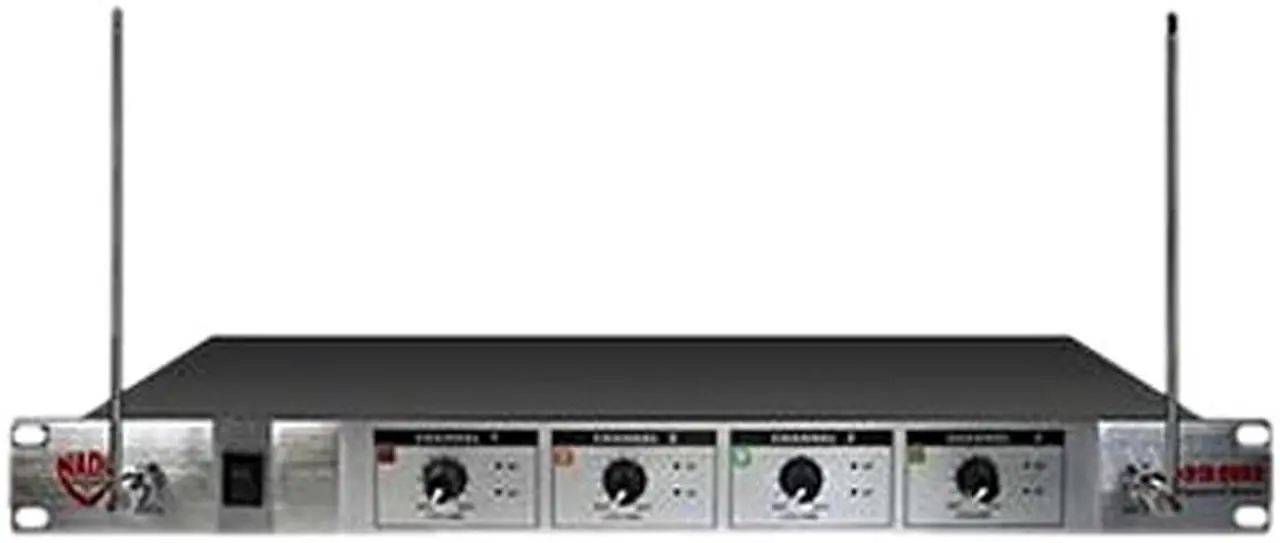

Nady 401X Quad 4-Channel VHF Wireless Microphone System

Be the first to review this product...
Specs
Reviews

Learn more about the Nady Systems 401X Quad

Model
Brand Nady
Model 401X Quad
Part Number 401XQ HT A/B/D/N
Details
Type Wireless Microphone Systems
Modulation FM (F3E), +/-15KHz nor,+/-30KHz max
Wireless
Wireless Frequency 170-230MHz (Factory installed Channels)
Wireless Range 250 feet typical - up to 500+ feet optimum line-of-sight
Sound
Channels 4-channels
Frequency Response 30-18KHz (-3dB)
Power
Specification WHT Handheld Microphone Transmitter
- Transmitters: Nady DM-10D neodymium dynamic cartridge
- Controls: OFF/STANDBY/ON switch
- Dimensions: 9.5" x 1.4" diameter. (24.1 X 3.5 cm)
- Weight (w/o battery): 6.9 oz (193 g)
- LED Indicator: Unit "ON" (single flash), Low Battery Alert (steady)
- RF Power Out: 50mW (Max allowed by FCC)
- Harmonic & Spurious Emissions: <-40dB
- Battery: 9V Alkaline
- Battery Life: Up to 20 hours

RECEIVER
- Controls: Power ON/OFF, volume control, mute control
- Connectors: 1 unbalanced adjustable mixed (all four channel) / 1/4" T-S audio output jack. Line level, 600 ohms / 4 balanced fixed level XLR. #1=GND, #2-3=signals / Line/Mic level, 11k/600 ohms / 2.1 mm barrel-type DC input jack (tip=positive)
- LED Indicator: 1 Power ON LED, 4 AF LED, 4 TX ON LED
- Dimensions: 1.75" x 7.5" x 16.5" (4.4 x 19 x 42 cm)
- Weight (w/o battery): 4.5 lbs (2 Kg)
- Power Requirements: 16V @ 800mA, nominal, AC/DC adapter supplied
- Antenna Connectors: Dual female BNC connectors
Features
Feature Four independent VHF receivers in one convenient, rugged, all-metal single-rack space housing

Front dual antenna jacks for either onboard or remote antennas

Front panel Power On/Off switch, plus Power On LED, TX On and AF signal level LED displays

Rear panel individual XLR output jacks; volume and RF mute controls for each of the four channels; 4-channels-mixed AF out 1/4" phone jack

Noise-free transmitter On/Off operation

High performance - unmatched transparent audio with 120 dB dynamic range and up to 250+ ft. optimum line-of-sight operation

WHT Handheld Microphone Transmitter
- Operates on a separate single frequency in the VHF 170-216MHz band
- Features the Nady DM-10D unidirectional neodymium dynamic cartridge for optimum true sound, maximum feedback rejection and minimal handling noise
- Off/Standby/On switch allows convenient audio muting with transmitter on
- Low-battery LED indicator flashes once for Unit On; lights steady for low-battery alert
- Uses one 9V alkaline battery for 15+ hours operation
Additional Information
Date First Available June 26, 2013

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 1 year
