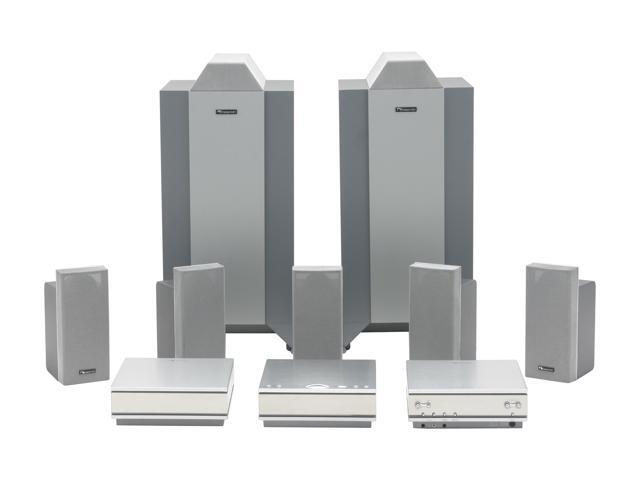

Nakamichi SoundSpace8.5 Home Theater System w/ Dual Subwoofers
- 1-Disc DVD Player
- 5.2 Channels

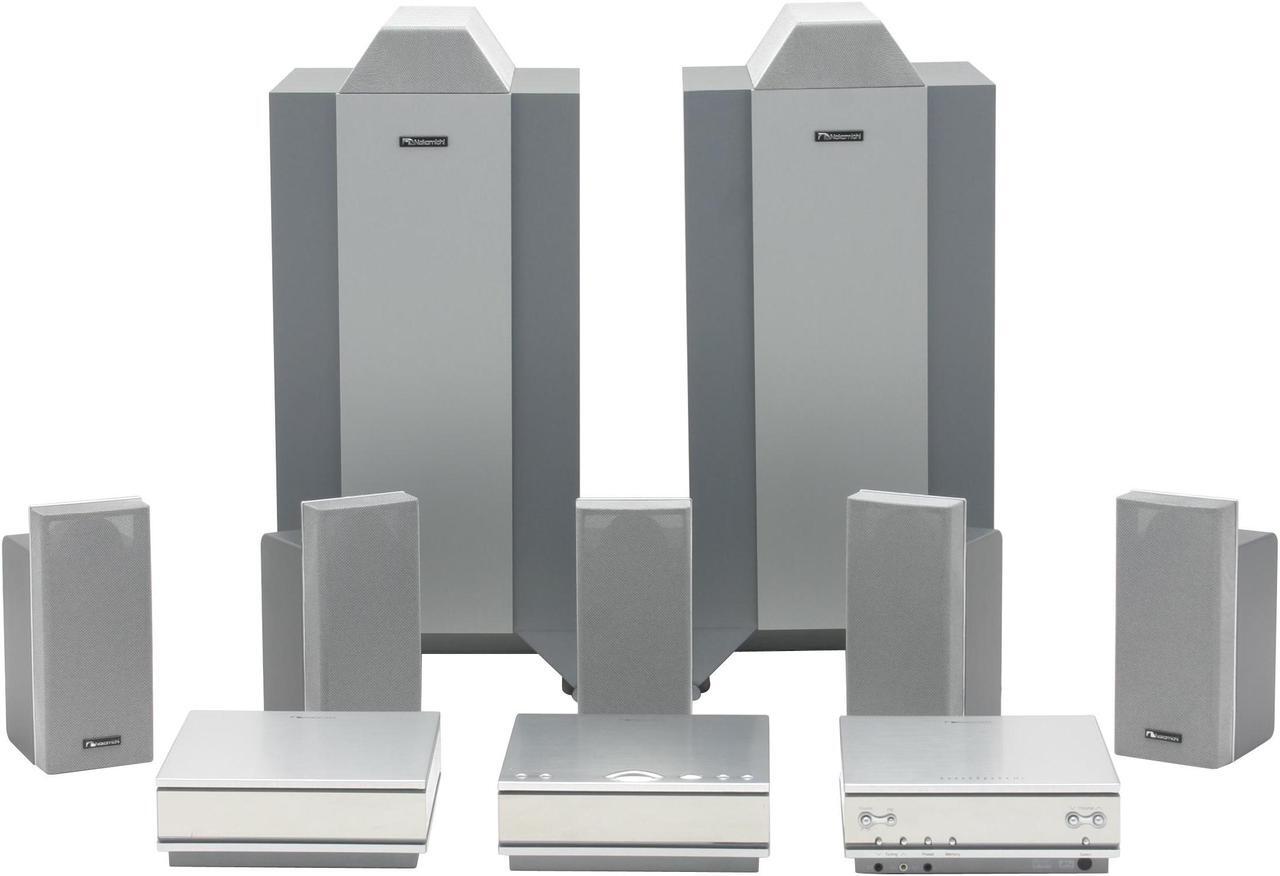

- Satellite Speaker (5) Subwoofer Unit-L Subwoofer Unit-R Main Remote Control Unit Sub Remote Control Unit Satellite Speaker Enclosure 2-Way Sealed Speaker Unit
Specs
Reviews
Learn more about the NAKAMICHI SoundSpace8.5
| Brand | Nakamichi |
|---|---|
| Model | SoundSpace8.5 |
| Player Type | 1-Disc DVD Player |
|---|---|
| Compatible Discs | DVD-Video Discs: 12 cm, single / dual layer, single-sided / double-sided; 8 cm, single / dual layer, single-sided / double-sided DVD-R recorded movie data Compact Disc: 12 cm, 8 cm discs CD, CD-R / RW recorded music data or MP3 files |
| Channels | 5.2 |

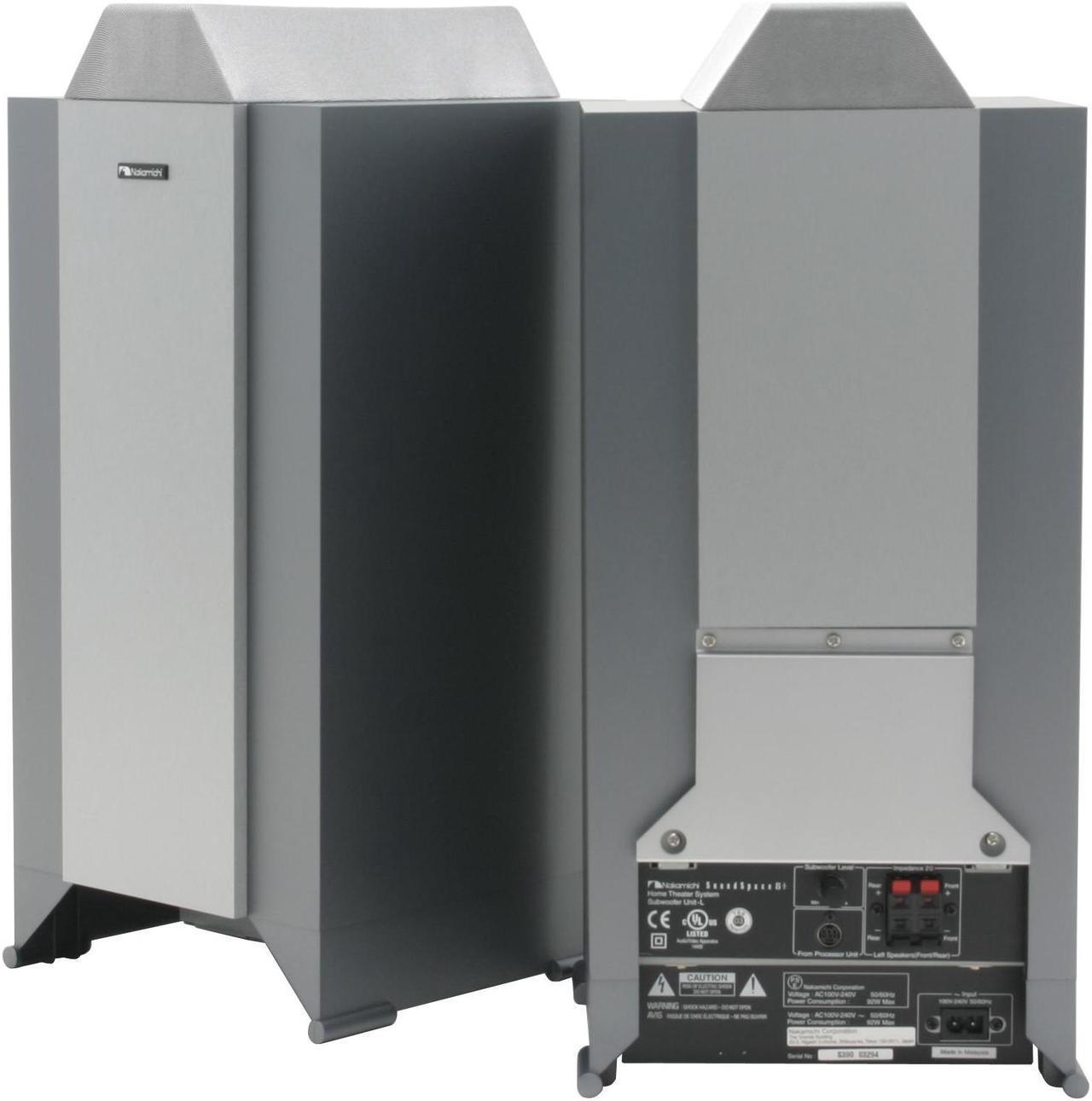

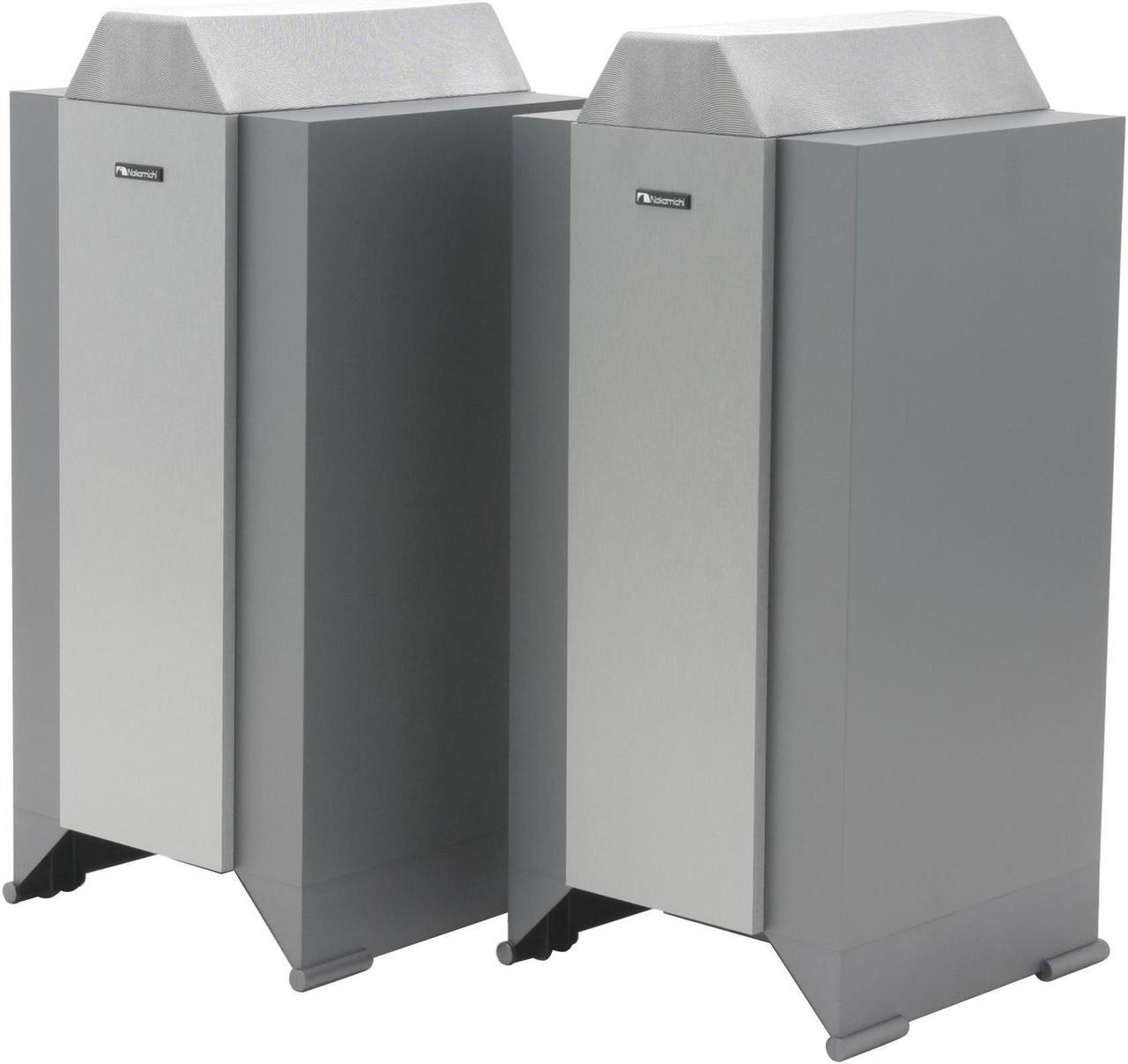

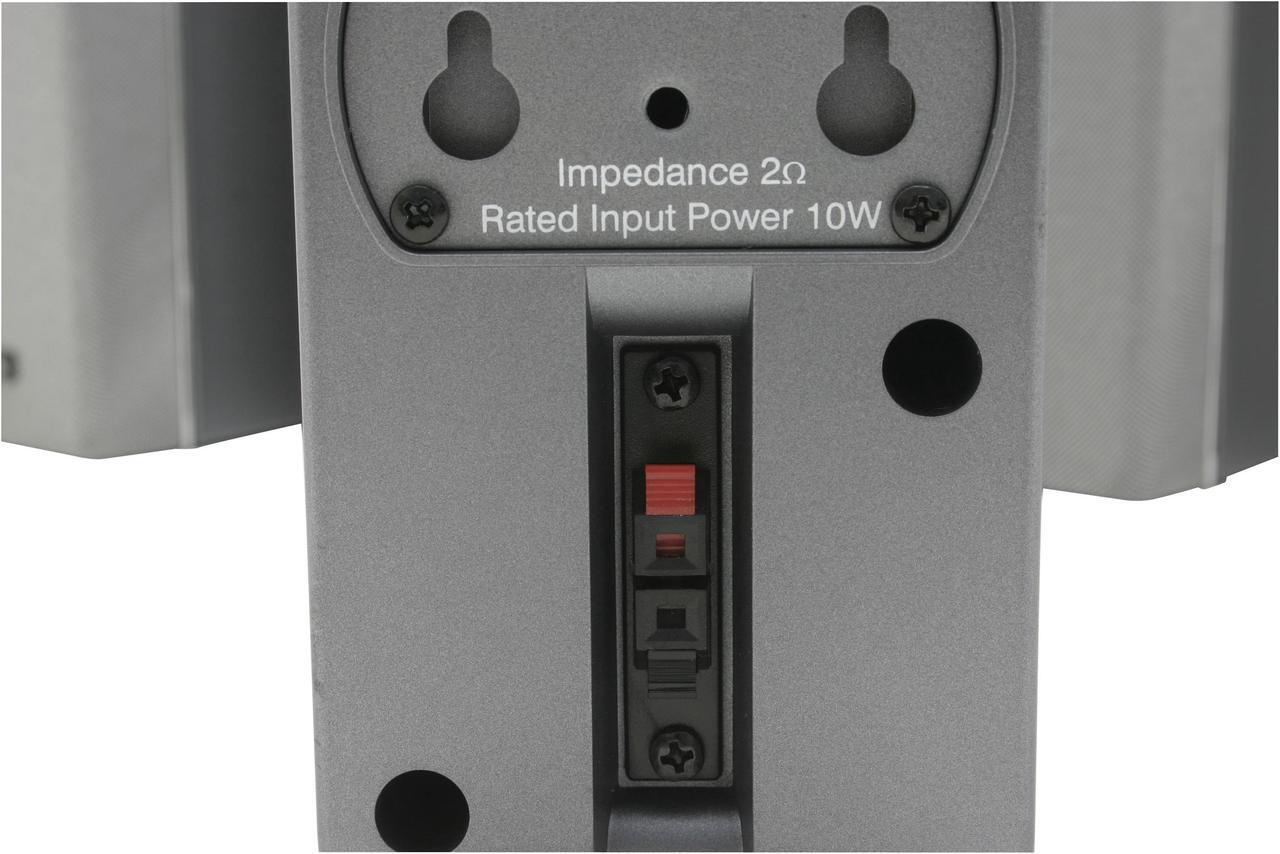

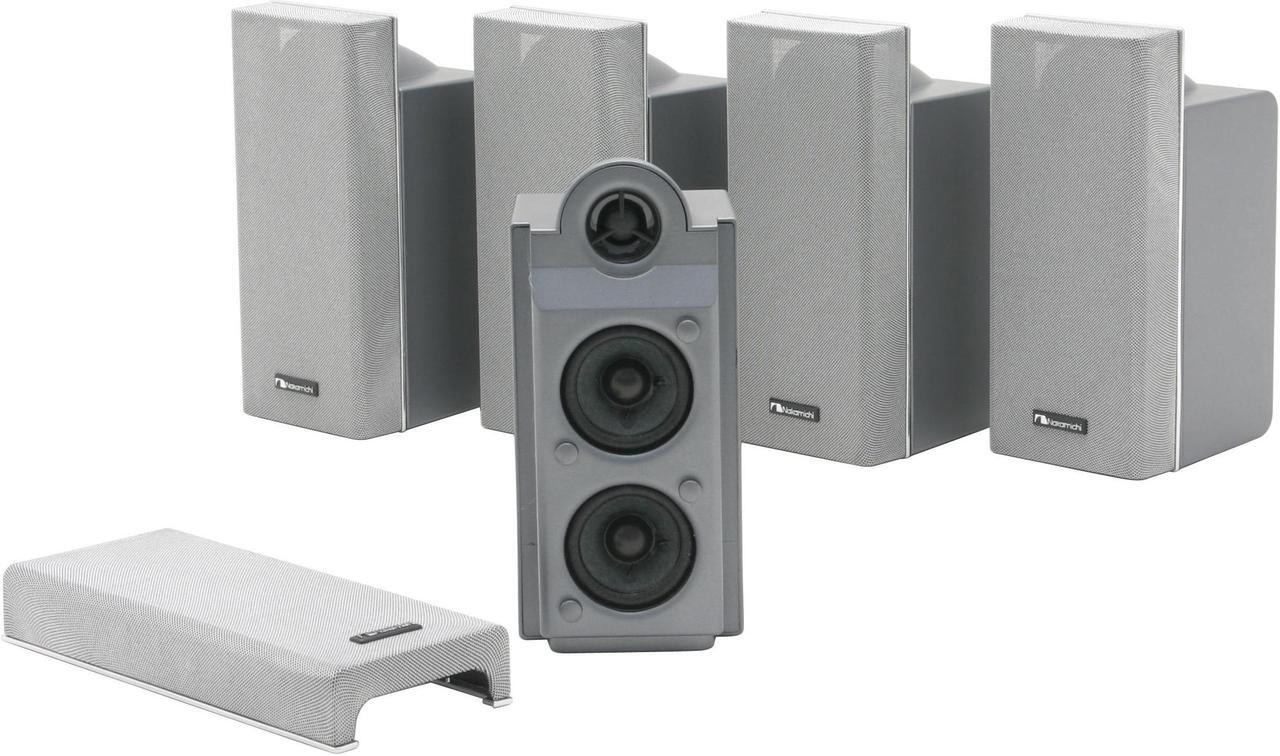

| Speakers Configuration | Satellite Speaker (5) Subwoofer Unit-L Subwoofer Unit-R Main Remote Control Unit Sub Remote Control Unit Satellite Speaker Enclosure 2-Way Sealed Speaker Unit Midrange / Woofer 5 cm (1-15/16 inches) Round Cone x 2 Tweeter 2.5 cm (1 inch) Semi Dome Impedance 2 ohms Rated Power Handling 10 W Maximum Power Handling 15 W Subwoofer Speaker Enclosure Band pass Speaker Unit 16 cm (6-5/16 inches) Round Cone Impedance 3 ohms Rated Power Handling 20 W Maximum Power Handling 30 W Remote Control Unit Principle Infrared Pulse System |

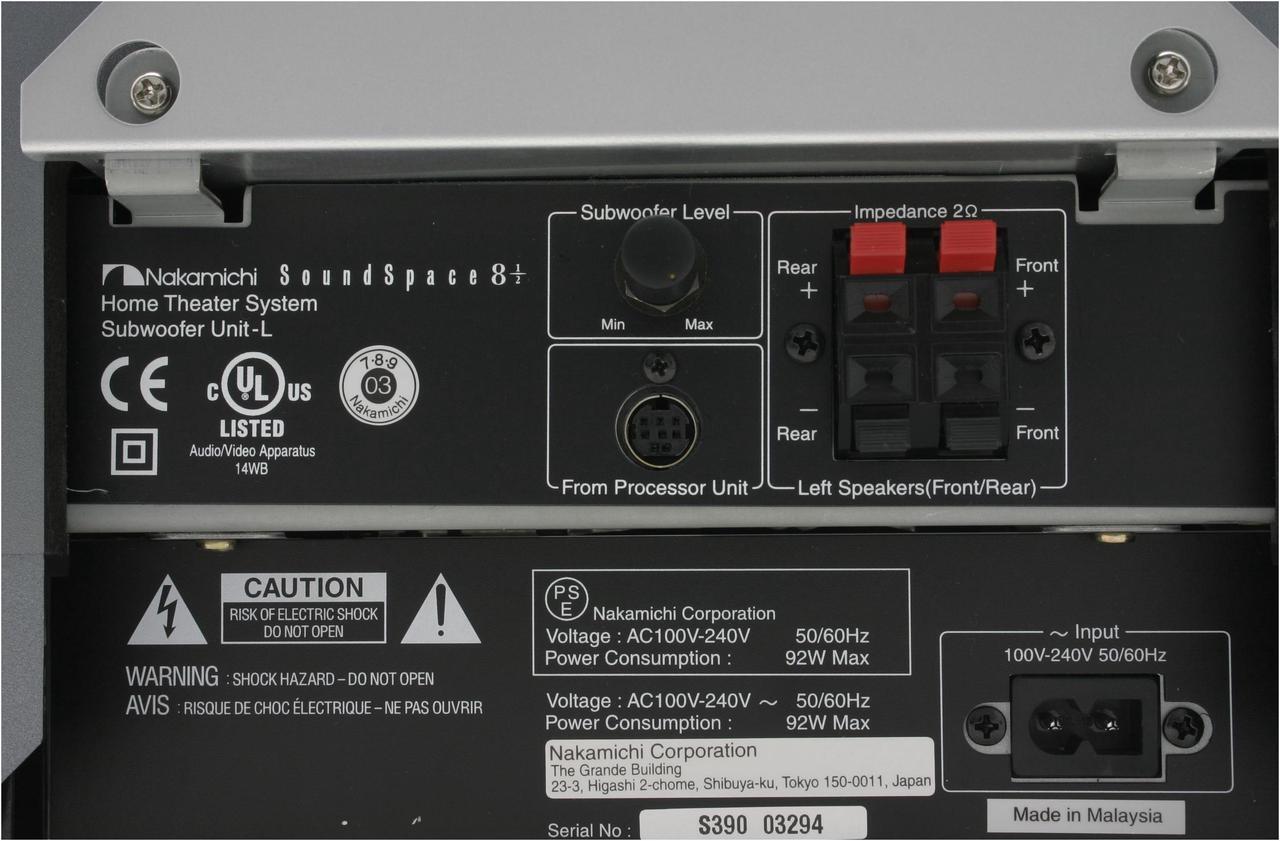

| Speakers Power Rating | Power Consumption Center Channel Power Amplifier Unit System: 56 W max. Subwoofer Unit L/R: 92 - 88 W max. Power Output Front, Rear, Center: 10W x 5 (2ohms, 1KHz, 1% THD) Subwoofer L/R: 20W x 2 (3ohms, 150Hz, 1% THD) Max. Power Output Front, Rear, Center: 15W x 5 Subwoofer L/R: 30W x 2 Total harmonic distortion: Less than 0.1% (1W) |
| Receivers Spec | AV Tuner/Processor Unit Center Channel Power Amplifier Unit System Digital Section Input Impedance 75 ohms Frequency Response LPCM 96 KHz 5 - 44,000 Hz LPCM 48 KHz 5 - 22,000 Hz LPCM 44.1 KHz 5 - 20,000 Hz Total Harmonic Distortion 0.01% or less (1 kHz, 0 dB) Signal-to-Noise Ratio Better than 90 dB (A-WTD) Dynamic Range Better than 90 dB Channel Separation Better than 80 dB Analog Audio Section Total Harmonic Distortion Less than 0.04% (20 - 20,000 Hz at 8 P DIN output) Frequency Response 10 - 50,000 Hz +0 -3dB Signal-to-Noise Ratio Better than 90 dB (A-WTD) Tone Controls Bass ±10 dB at 100 Hz Treble ±10 dB at 10 kHz Loudness 100 Hz +10 dB / 10 kHz +6 dB (VR:30) Subwoofer Output 1.6 V / 1 kohm Headphone Output 40 mV (40 ohms) Surround Section Surround Modes 8 (DTS, Dolby Digital, Pro Logic II Music, Pro Logic II Movie, Pro Logic, Natural, Hall, Stadium) Channel Level Adjustment Range Center -10 to +10 dB Rear L/R -10 to +10 dB Ext. Subwoofer -10 to +10 dB Delay Time Adjustment Range Center 0 to +5 ms (DTS, Dolby Digital, Pro Logic II Music, Pro Logic II Movie, Pro Logic, Natural, Hall, Stadium) Rear L/R 0 to +15 ms (DTS, Dolby Digital, Pro Logic II Music, Natural, Hall, Stadium) +10 to +25 ms (Pro Logic II Movie, Pro Logic) |
| AM/FM Tuner | USA: 87.5~107.9 MHz in 200KHz Steps Japan: 76.0~90.0MHz in 100KHz steps Other Area: 87.5~108.0MHz in 50KHz steps |

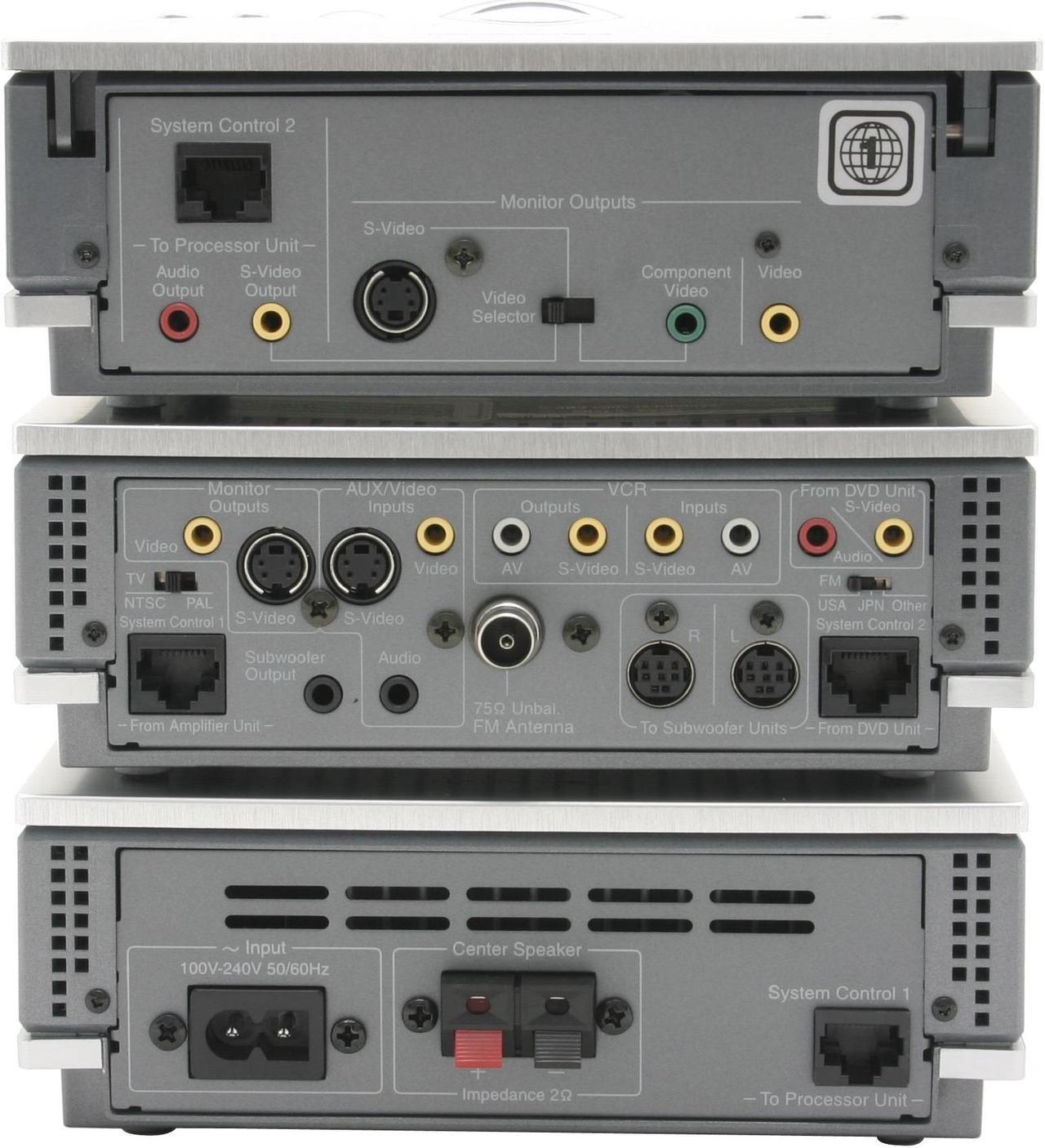

| Input | FM antenna, AV in, S-Video in |
| Output | Composite Video out, S-Video out, Component Video out, Audio out, Headphone out, Subwoofer out |
| Power Supply | 100 - 240 V AC, 50 / 60Hz Main Remote Control 3 V DC (IEC R6 size AA x 2) Sub Remote Control 3 V DC (IEC R3 size AAA x 2) |
| Features | 8 Surround mode: DTS, Dolby Digital, Pro Logic II Music, Pro Logic II Movie, Pro Logic, Natural, Hall, Stadium Region 1 Frequency Response: S-Video: 5 Hz - 10 MHz +0, -3 dB Video: 5 Hz - 10 MHz +0, -3 dB Video Format: NTSC or PAL (According To Country Of Sale) Video Signal Level / Impedance S-Video: 1 V p-p / 75 ohms (Y signal); 0.286 V p-p / 75 ohms (C signal) Video: 1 V p-p / 75 ohms Audio Input: 200 mV / 47 kohms Output: 200 mV / 1 kohm Y Output Level: 1.0 V p-p / 75 ohms (negative sync) CR Output Level: 0.7 V p-p / 75 ohms (negative sync) CB Output Level: 0.7 V p-p / 75 ohms (negative sync) |
|---|

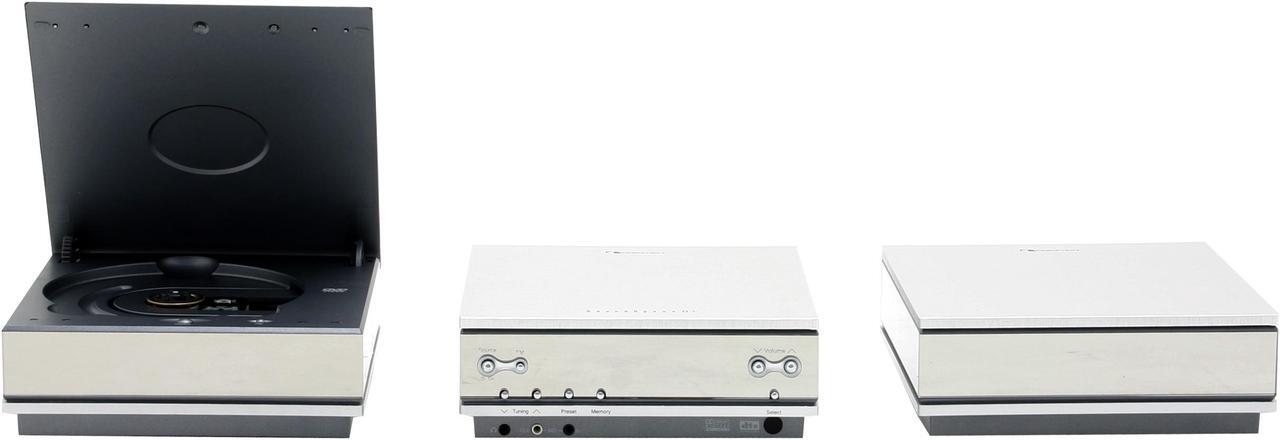

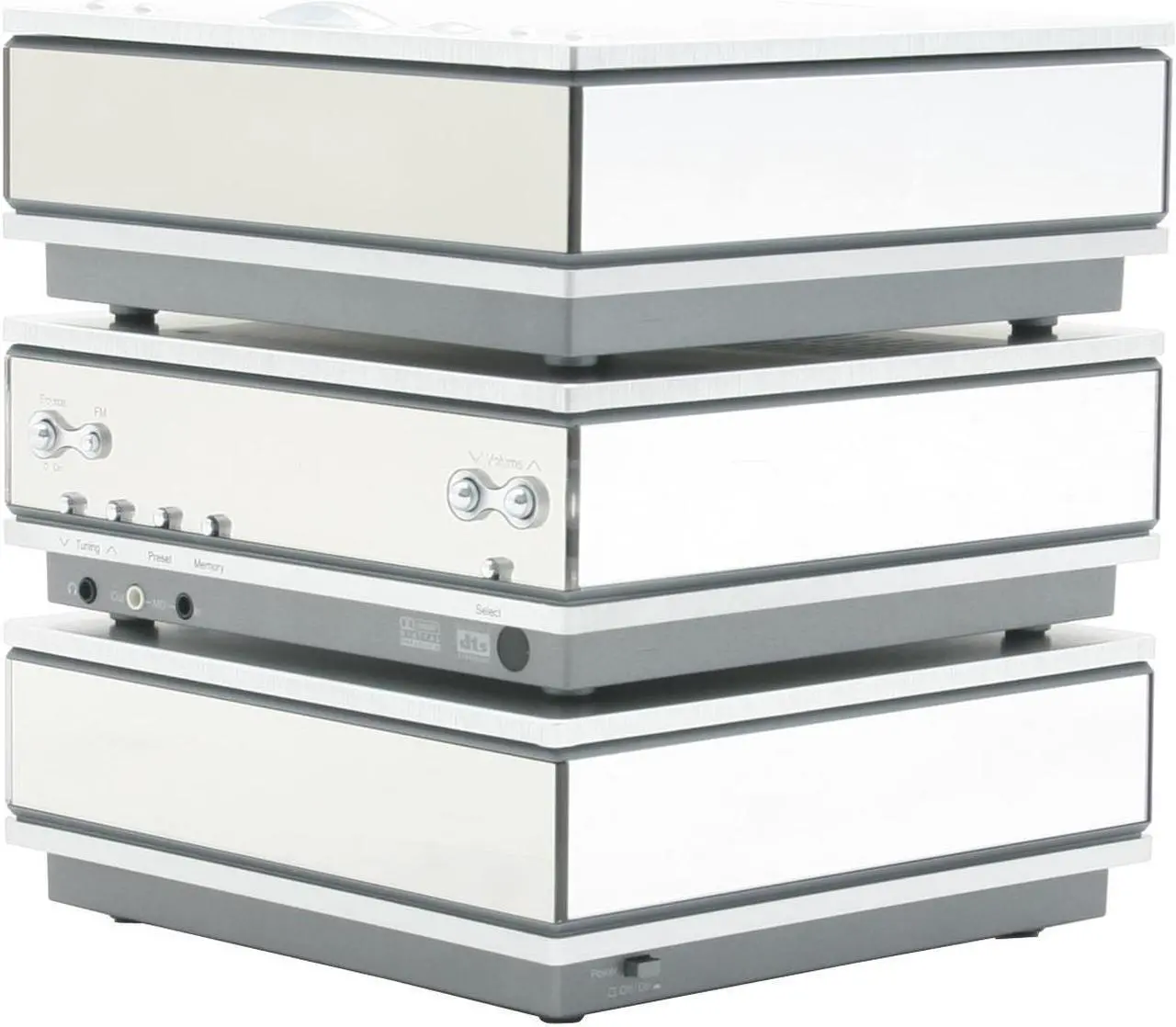

| Dimensions | DVD Player Unit: 6.57" x 2.44" x 6.57" AV Tuner / Processor Unit: 6.57" x 2.44" x 6.57" Center Channel Power Amplifier Unit: 6.57" x 2.44" x 6.57" Subwoofer Unit L/R: 8.90" x 20" x 9.61" Satellite Speaker Unit: 3.15" x 7.28" x 3.94" |
|---|---|
| Weight | DVD Player Unit: 2.51 lbs. AV Tuner / Processor Unit: 2.86 lbs. Center Channel Power Amplifier Unit: 2.84 lbs. Subwoofer Unit 21.2 lbs. Satellite Speaker Unit: 1 lbs. |
| Date First Available | May 24, 2005 |
|---|
