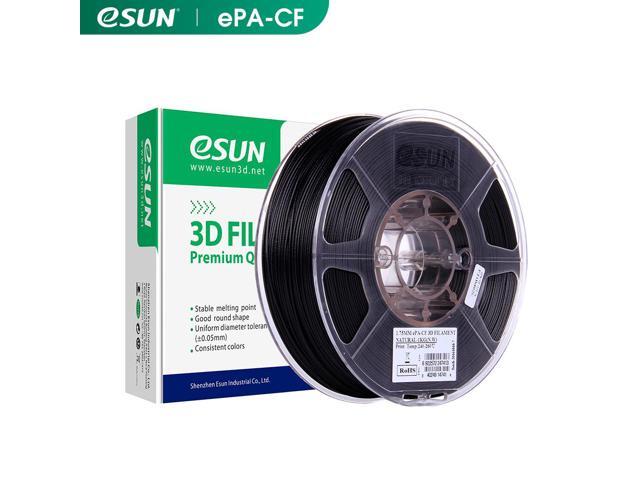

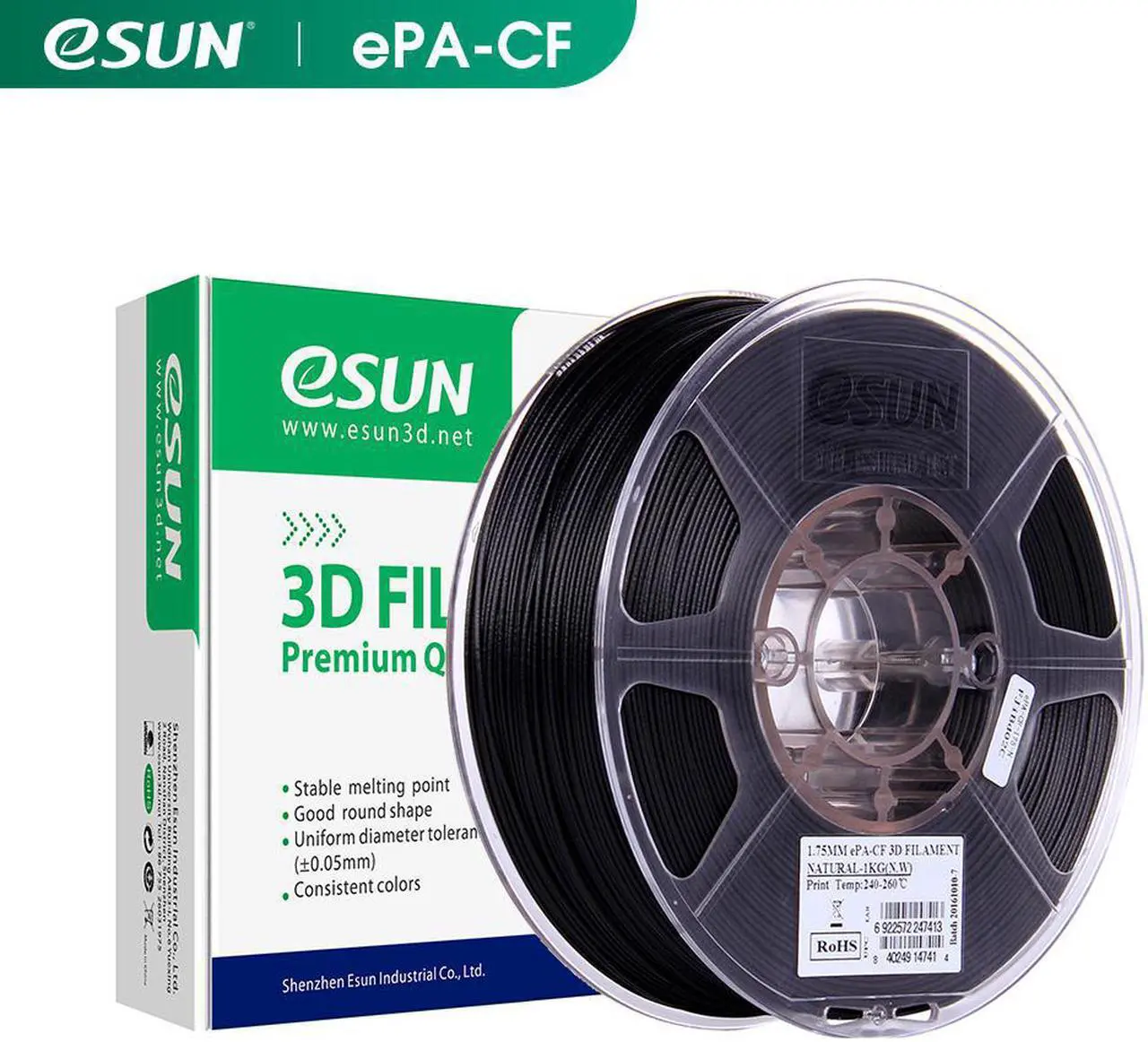

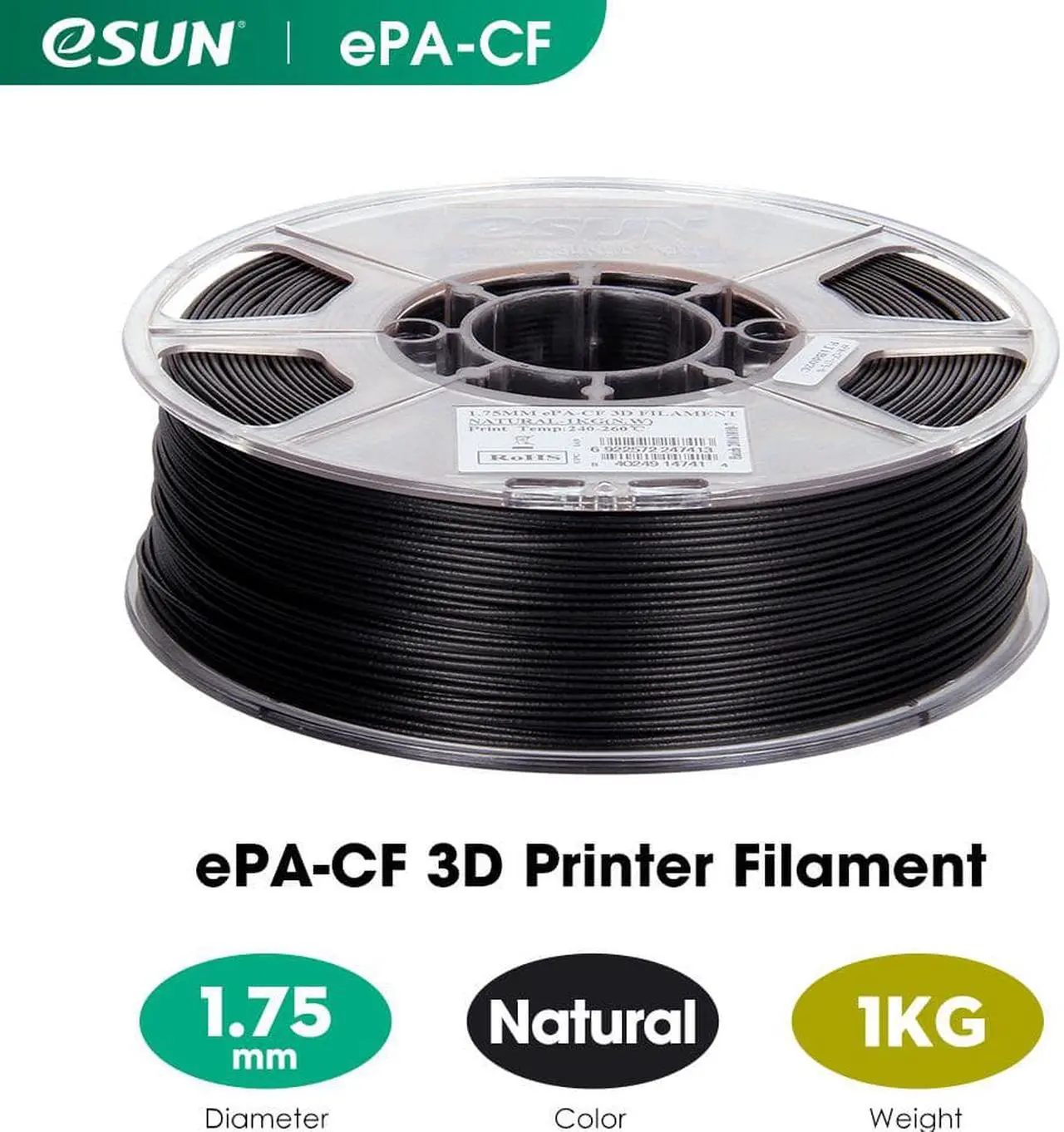

eSUN Carbon Fiber Filled Nylon Filament 1.75mm, 3D Printer Filament PA-CF, Dimensional Accuracy +/- 0.05mm, 1KG Spool (2.2 LBS) 3D Printing Filament for 3D Printers, Natural
- Features:
- 1. Carbon fiber reinforced nylon is added with 20% carbon fiber, which greatly enhances the strength, rigidity and toughness, and can be used as a substitute for metal.

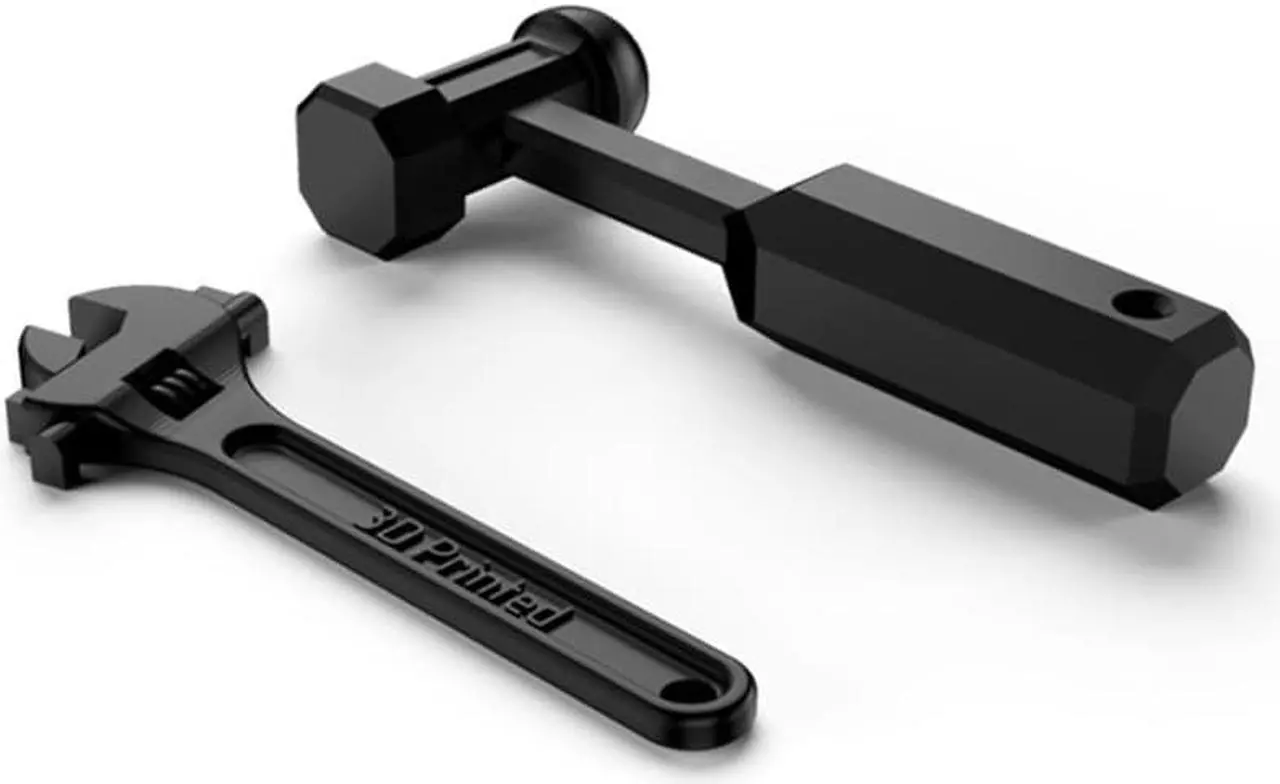

- 2. Self-lubricating and wear-resistant, can print mechanical gears, the heat distortion temperature is as high as 155 degrees Celsius, and the surface of the finished product is matte and delicate
- 3. Stable Dimensional Tolerance, minimum tolerance and low warping to ensure consistent feeding and stable prints, no clogging, extremely high successful rate, resulting in printed parts that have an outstanding surface finish and are highly precise.
- 4. Tangle Free & No Plugging, full 1KG 3D printer filament reel, perfect roundness and very tight diameter tolerance, does not overlap or tangle. Melt well, no cracking, no bubbles. feed smoothly and constantly without clogging the nozzle or extruder.
+
+
Overview
Specs
Reviews
Parameter:
Print Temp() 240-260
Bed Temp() 80-90
Density(g/cm³) 1.24
Heat Distortion Temp(, 0.45MP a) 120
Melt Flow Index(g/10min) 6(250/5kg)
Tensile Strength (MPa) 85
Elongation at Break(%) 26
Flexural Strength (MPa) 122
Flexural Modulus (MPa) 5160
IZOD Impact Strength(kJ/m³) 15.5
What is Carbon Fiber Filled Nylon PA-CF Material?
80% Nylon Coupled with 20% Carbon Fiber. It has good toughness, wear resistance, creep resistance, high temperature resistance 120°C and flame retardance UL94-V2.
Compared with traditional nylon filament, it features with higher strength and rigidity, less warpage and more resistant to wear, thermal stability has been improved. Suitable for strong and flexible industrial parts, prosthetics, medical equipment and complex costumes.
Specification of Carbon Fiber Filled Nylon PA-CF:
Material: Carbon Fiber & Nylon
Diameter: 1.75 mm
Weight: 1KG
Available Color: Natural
Recommended Printing Parameters:
Printing Temperature: 260-290 (Recommended Temperature 280)
Bed Temperature: 45-60°C
Fan Speed: 0%
Printing Speed: 40-100mm/s
Recommended Heated Build Platform: Textured Paper, PVP Solid Glue, Glass Platform, Carbon Fiber Platform, PEI
eSUN Carbon Fiber Filled Nylon Filament 1.75 mm 3D Printer Filament PA-CF 1KG 3D Printing Filament
Warm Tips:
Carbon Fiber Filled Nylon material is easy to absorb water, please dry it before printing. We recommend to use with eSUN eBOX Dryer Box together to achieve better printing effect.
Carbon Fiber Filled Nylon might wear nozzles and extruder gears, it is recommended to use hardened steel nozzles or ruby nozzles, hardened steel extruder gears will be better.
Package Contents:
1kg PA Carbon Fiber Filament
Print Temp() 240-260
Bed Temp() 80-90
Density(g/cm³) 1.24
Heat Distortion Temp(, 0.45MP a) 120
Melt Flow Index(g/10min) 6(250/5kg)
Tensile Strength (MPa) 85
Elongation at Break(%) 26
Flexural Strength (MPa) 122
Flexural Modulus (MPa) 5160
IZOD Impact Strength(kJ/m³) 15.5
What is Carbon Fiber Filled Nylon PA-CF Material?
80% Nylon Coupled with 20% Carbon Fiber. It has good toughness, wear resistance, creep resistance, high temperature resistance 120°C and flame retardance UL94-V2.
Compared with traditional nylon filament, it features with higher strength and rigidity, less warpage and more resistant to wear, thermal stability has been improved. Suitable for strong and flexible industrial parts, prosthetics, medical equipment and complex costumes.
Specification of Carbon Fiber Filled Nylon PA-CF:
Material: Carbon Fiber & Nylon
Diameter: 1.75 mm
Weight: 1KG
Available Color: Natural
Recommended Printing Parameters:
Printing Temperature: 260-290 (Recommended Temperature 280)
Bed Temperature: 45-60°C
Fan Speed: 0%
Printing Speed: 40-100mm/s
Recommended Heated Build Platform: Textured Paper, PVP Solid Glue, Glass Platform, Carbon Fiber Platform, PEI
eSUN Carbon Fiber Filled Nylon Filament 1.75 mm 3D Printer Filament PA-CF 1KG 3D Printing Filament
Warm Tips:
Carbon Fiber Filled Nylon material is easy to absorb water, please dry it before printing. We recommend to use with eSUN eBOX Dryer Box together to achieve better printing effect.
Carbon Fiber Filled Nylon might wear nozzles and extruder gears, it is recommended to use hardened steel nozzles or ruby nozzles, hardened steel extruder gears will be better.
Package Contents:
1kg PA Carbon Fiber Filament
