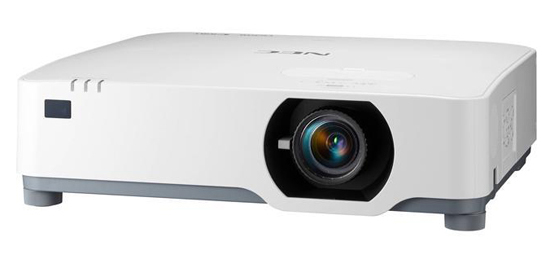

NEC NP-P605UL WUXGA LCD, Laser Entry Installation Projector 6000 lumens

Sealed optics provide a maintenance free projection solution while LCD technology delivers an impressive and accurate image
Horizontal & Vertical lens shift enables flexible projector placement
Built-in HDBaseT provides simplified installations with a single cable for video, audio, and control signals
Whisper quiet operation for minimal distraction
Powerful 20W speakers provide volume needed for most large classrooms and conference rooms
4K Ready - Display stunning 4K 30Hz content using NEC’s proprietary high performance video processing/scaling chip
Eco-friendly features, minimal maintenance and a cost saving design mean these projectors are great for demanding applications in higher education and corporate
MultiPresenter for audio and video transmission from up to 16 sources simultaneously to the projector over the network

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

The NEC P605UL Entry Installation Series, LCD, laser projector combines advanced features at a budget conscious price making it ideal for higher education classrooms and corporate conference rooms. With 6000 lumens, WUXGA resolution and improved color fidelity the P Series delivers impressive images in demanding applications. Installation flexibility is achieved with lens shift, HDBaseT, a broad 1.6x zoom lens and tilt free capability. The 20,000 hour laser life and NEC's sealed optical engine creates a maintenance free projection solution.

Model
Brand	NEC Display Solutions
Model	NP-P605UL

Details
Cabinet Color	White
Type	0.64" LCD w/ MLA

Display
Brightness	6,000 Lumen
Native Resolution	1920 x 1200
Maximum Resolution	Up to 4K@30Hz (3840x2160) with Advanced AccuBlend
Aspect Ratio	16:10
Contrast Ratio	600,000:1 with Light Adjust
Display Size	25" to 300"

Lens
Lens	Zoom: 1.6x Focus: Manual
f Number	F=1.5 - 2.1
Focal Length	f=17.2 - 27.6mm
Throw Ratio	1.23 - 2.0:1
Throw Distance	2.6 - 44.3 ft. / 0.8 - 13.5m
Projection Methods	Floor/Front, Floor/Rear, Ceiling/Front, Ceiling/Rear
Keystone Correction	+/- 30° horizontal, +/- 30° vertical

Lamps & Accessories
Lamp	Laser/Phosphor
Lamp Life	20,000 hours

Connectivity
Input Video Compatibility	Analog RGB, Digital
Input Video Connectors	RGB1(analog): VGA 15-pin D-sub RGB2(digital): HDMI w/ HDCP (v1.4) RGB3(digital): HDMI w/ HDCP (v1.4) RGB4(digital): HDBaseT
Input Audio Connectors	Stereo Mini Jack
Output Audio Connectors	Stero Mini Jack
Network Connectors	RJ45
Other Connectors	RS-232 (D-Sub 9pin), IR

Convenience
Built-in Speakers	20W
Features	Sealed optics provide a maintenance free projection solution while LCD technology delivers an impressive and accurate image Horizontal & Vertical lens shift enables flexible projector placement Built-in HDBaseT provides simplified installations with a single cable for video, audio, and control signals Whisper quiet operation for minimal distraction Powerful 20W speakers provide volume needed for most large classrooms and conference rooms 4K Ready - Display stunning 4K 30Hz content using NEC’s proprietary high performance video processing/scaling chip Eco-friendly features, minimal maintenance and a cost saving design mean these projectors are great for demanding applications in higher education and corporate MultiPresenter for audio and video transmission from up to 16 sources simultaneously to the projector over the network NaViSet Administrator 2: Free software solution that greatly eases administration and management of larger display device installations
Compatibility	Supported Video Standards: NTSC3.58/NTSC4.43/PAL/PAL-N/PAL-M/PAL-60/SECAM SD/HD Video Signal Compatibility: 4K, 1080p, 1080i, 720p, 576p, 576i, 480p, 480i PC Signal Compatibility: VGA, SVGA, XGA, WXGA, Quad-VGA, SXGA, SXGA+, WXGA+, WXGA++, WSXGA+, WUXGA Macintosh Signal Compatibility: Yes

Power
Power Supply	100 - 240 VAC, 50/60Hz
Power Consumption	367W / 261W / 1.4W / 0.13W

Environmental
Temperature Range	41-104°F / 5-40°C
Noise Level	28dB (HIGH BRIGHT) / 25dB (OTHERS) / 19dB (ECO)

Dimensions & Weight
Dimensions	5.60" x 18.90" x 16.0"
Weight	21.40 lbs.

Package Contents
Package Contents	Remote control Batteries Power cord RGB signal cable User manual Quick Start Guide Important Info Product registration card Security Stricker

Additional Information
First Listed on Newegg	October 14, 2019
