| Brand |
NEOSMAY |
| Model |
S3-B760 |
| CPU |
Intel 13th Gen Raptor Lake Core i5-13400T, 10 Cores 16 Threads,20 MB Intel® Smart Cache, 1.3GHz(Max 4.4GHz) |
| Memory |
2 x SO-DIMM DDR4 slots, support 3200MHz, Max support 64GB |
| Storage |
1 x M. 2 2280 SATA/NVME SSD & 1 x 2.5''HDD/SSD |
| OS |
Preinstalled Windows 11 pro,Support WIN10/WIN11/Linux |
| Power |
Input: 100-240V AC, Output: 19V 4.74A DC |
| LAN |
1 x RJ45 Gigabit LAN port |

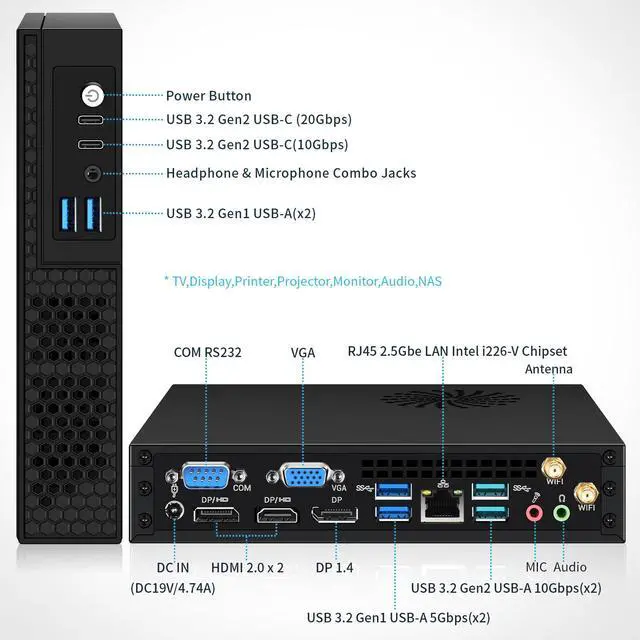

| Front I/O |
2 x USB 3.0, 1 x Combo(mic/audio), 2 x Type-C, 1 x Power Button |
| Back I/O |
1 x DC IN, 1 x COM, 1 x VGA, 2 x HD, 1 x DP, 2 x USB 3.0, 1 x 2.5Gbe LAN, 2 x USB 3.2, 1 x Line out, 1 x MIC IN, 1 x Line out |
| Operating Temperature |
-10°c~70°c |
| Storage Temperature |
0°c~70°c |
| Humidity |
0%~95%(non-condensing) |
| Other Function |
Auto Power On when power is applied, Wake on LAN,PXE boot,WIFI 6, BT 5.2 |

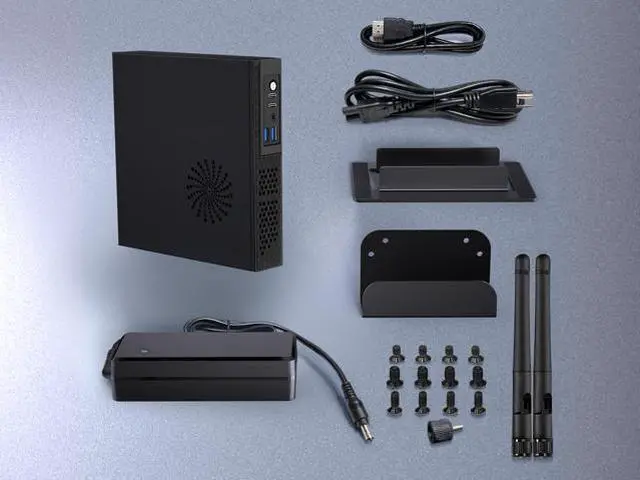

| Packing List |
MINI PC, US Power Adapter, HDMI Cable, Antenna, VESA Mount(70x70/100x100mm) |

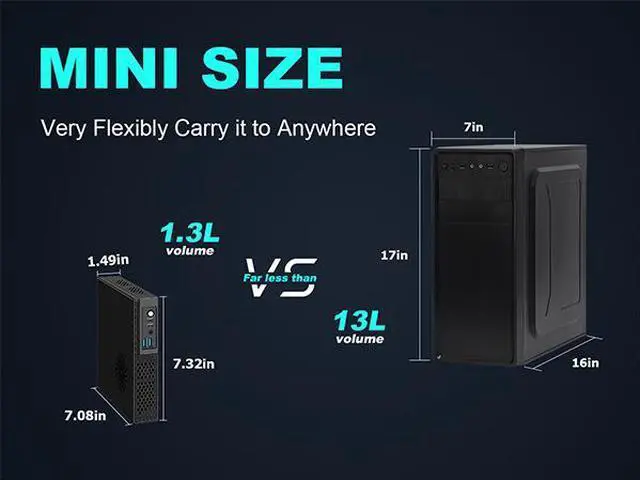

| Dimension |
182mm (L) x179mm (W) x37mm (H), 1.26kg |

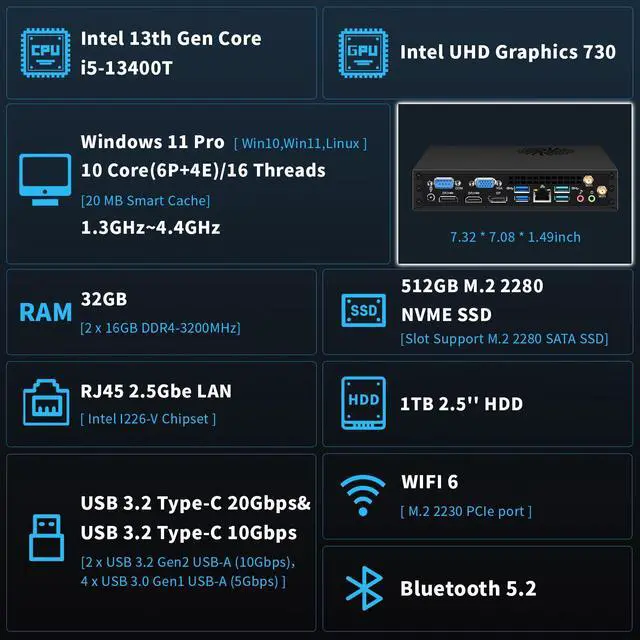

Processor & OS - This Desktop tower computer for Intel 13th Gen Core i5-13400T Processor 10 Cores 6P 4E, 16 Threads, 20MB Smart Cache.
Base Frequency at 1.3 GHz, up to 4.4 GHz at Max Turbo Frequency, power consumption is 35W; Intel UHD Graphics 730; This mini pc preinstalled with Win 11 Pro.
DUAL CHANNEL DDR4 memory, installed 16GB DDR4-3200MHz RAM[The single SODIMM expand storage up to 64GB] and 512GB M. 2 2280 NVME SSD[Supports M. 2 2280 SATA SSD up to 2TB but Not included]; Extensibile option, This tiny desktop i5 mini computer comes with 1TB 2.5 '' HDD.
Ideal for personal, industrial and commercial applications; Office work, light games, home entertainment, education, digital security surveillance, digital signage, media center, school computer room, etc; Supports Wake On LAN, PXE Boot, RTC Wake & Auto Power On.
4 displays support 4K, HD 2.0, HD 2.0, DP 1.2, VGA for conducting different tasks simultaneously, which improves work efficiency effectively; Built-in 1x 2.5G be RJ45 LAN Intel i226V Chipset.
