Provides full-duplex 1000Mbps Ethernet operation in each direction for NETGEAR managed and smart switches.
Drives Gigabit Ethernet up to 10 km (6.2 miles) distances with 9/125µm single mode fiber cables.
Automatically detects the module, so you can simply plug it into an available module slot.
Safety Certification: UL 60950-1, CSA-C22.2 No.60950-1
+
+
Overview
Specs
Reviews (2)
Small size for high density fiber connections.Meets SFP GBIC standard for use with any SFP GBIC compliant slot 1000BASE-LX connectivity over 10KmLC connector.Works with 9 m single mode cablingApplication/Usage: Data NetworkingInterfaces/Ports: 1 x 1000Base-LX LANInterfaces/Ports Details: 1 x LC 1000Base-LX LANConnectivity Media: 9 m Single-mode Optical Fiber 1000Base-LXData Transfer Rate: 1 Gbps Gigabit EthernetCompatibility: GSM7324GSM7312GSM7224FSM7326PLimited Warranty: Lifetime

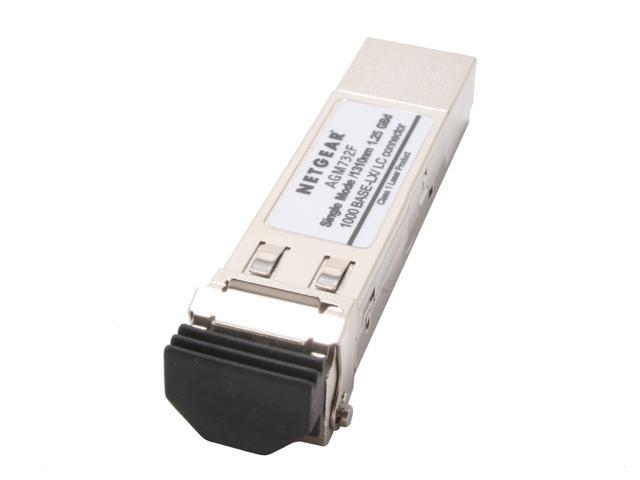

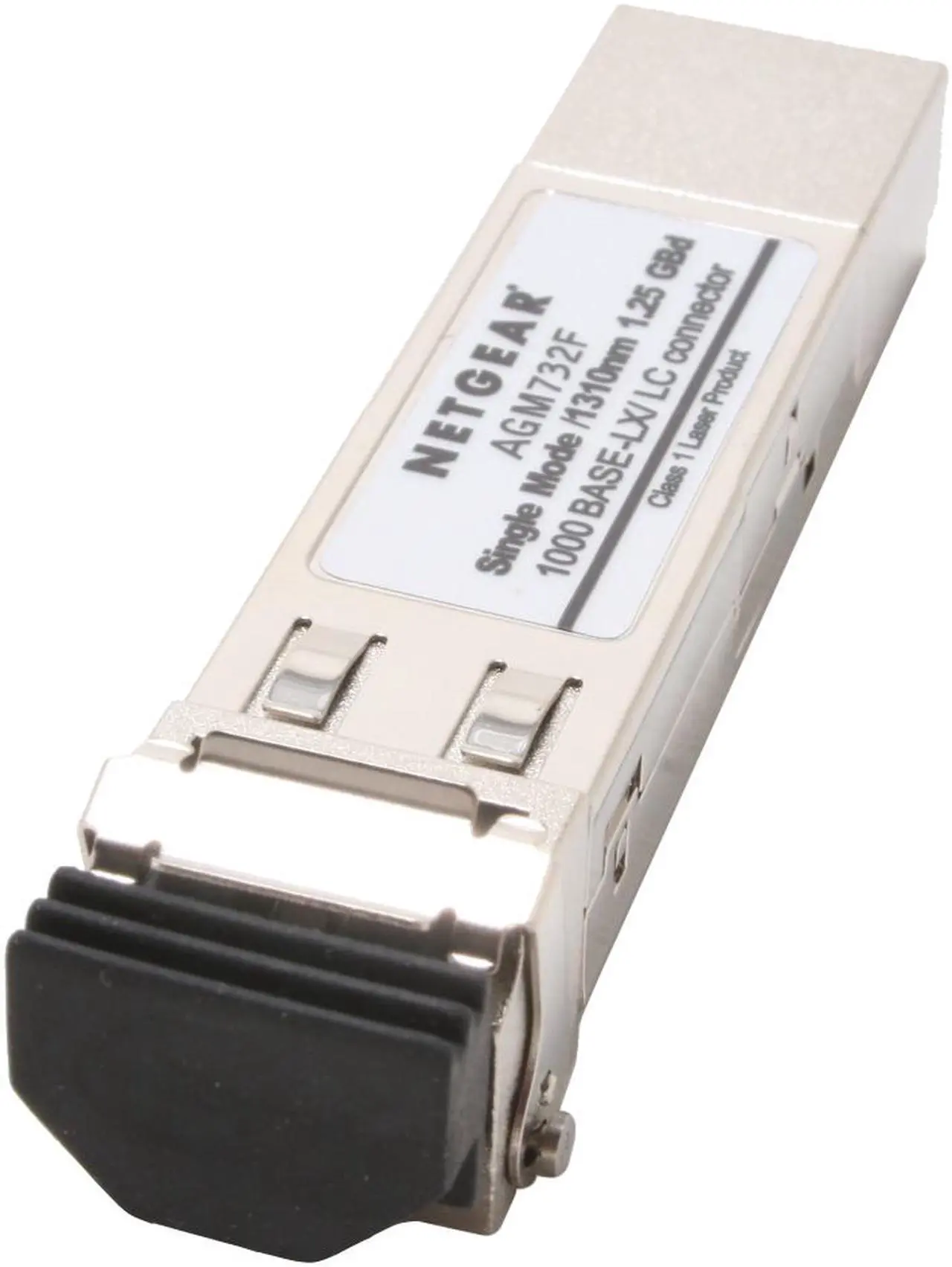

Learn more about the Netgear Inc. AGM732F
Model
Brand
Netgear
Model
AGM732F
Details
Device Type
Transceiver
Standards
IEEE 802.3z, 1000Base-LX
Protocols
TCP/IP
Ports
1000Base-LX
Environmental
Temperature
Storage temperature –40–185ºF (–40–85ºC)
Case operating temperature 23–158ºF (–5–70ºC)
Humidity
Operative relative humidity 85% at 77ºF (25ºC)
Features
Feature

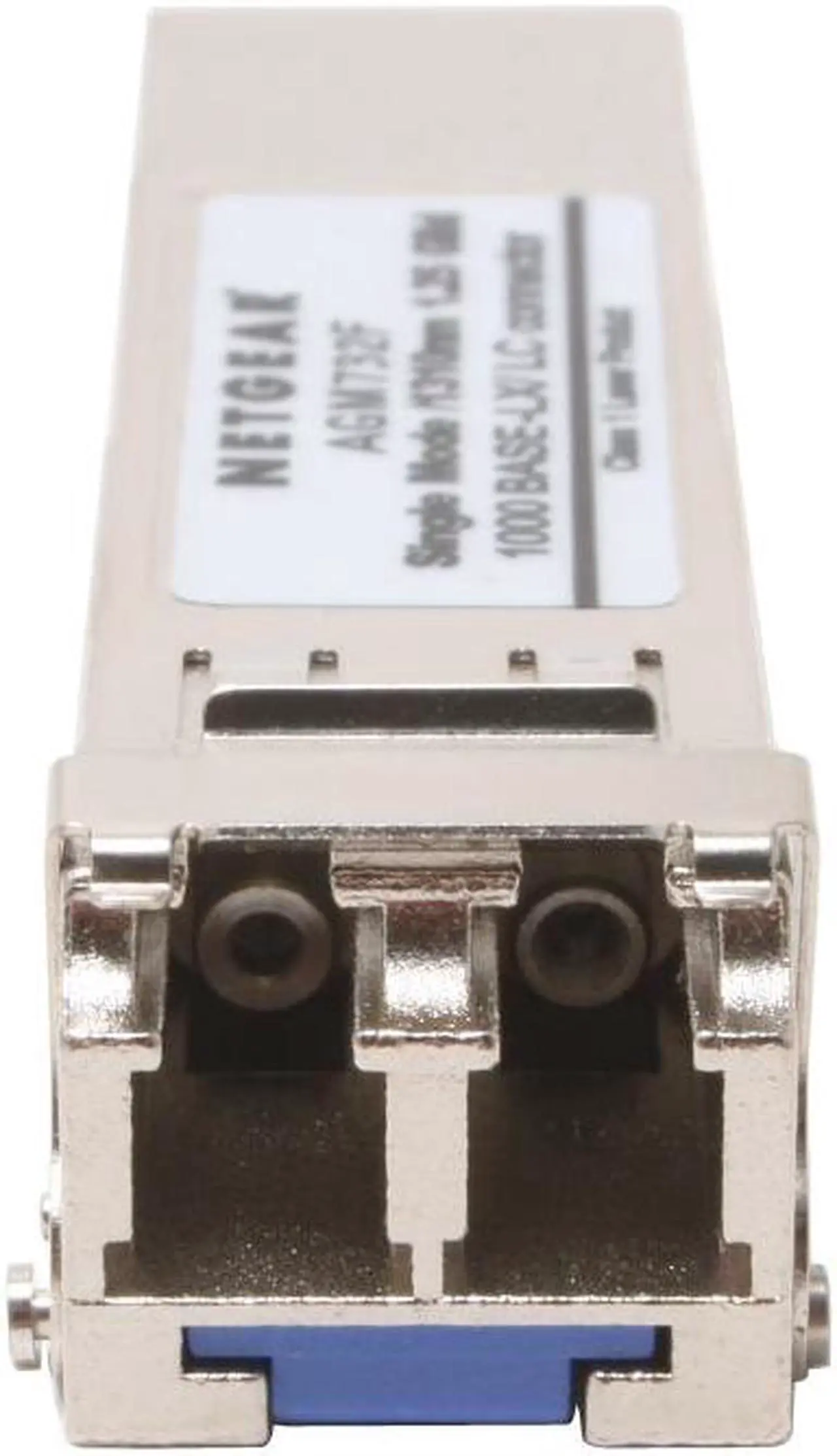

Connectors LC for 9/125µm cable
Operating distance single mode fiber (SMF) 6 mi (10 km)
Power Consumption 1.1W
MTBF >10 years
Safety certification UL 60950-1, CSA-C22.2 No.60950-1
Environmental compliance RoHS
Dimensions & Weight
Dimensions
2.26 x 0.53 x 0.33 in (57.4 x 13.4 x 8.5 mm)
Weight
0.56 oz (16.0 g)
Disclaimer
Disclaimer
WARNING: Because invisible laser radiation might be emitted from the aperture of the port when no fiber cable is connected, avoid exposure to laser radiation and do not stare into open apertures.
