What are the dimensions and weight of the Netgear GS308EPP switch?

The dimensions of the Netgear GS308EPP switch are 6.2L x 4W x 1.1H inches and it weighs 1.1 pounds.

What is the total power budget for the PoE+ ports on the Netgear GS308EPP switch?

The total power budget for the PoE+ ports on the Netgear GS308EPP switch is 123W.

What is voltage output on ports? That should be data just after power.

The answer is there in the standard used. poe+ is 50 to 57V as a standard. Its also there in watts, 8 ports with total output of 123W, 60W maximum per port.

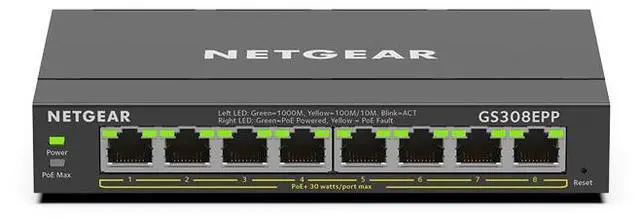

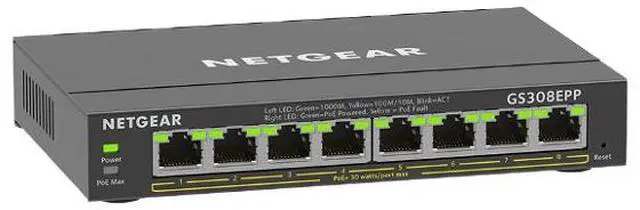

Netgear GS308EPP 8-Port PoE+ Gigabit Ethernet Plus Switch 123W, GS308EPP-100NAS

Name: Netgear GS308EPP 8-Port PoE+ Gigabit Ethernet Plus Switch 123W, GS308EPP-100NAS
Uploaded: 2025-11-22
Description: Netgear GS308EPP 8-Port PoE+ Gigabit Ethernet Plus Switch 123W, GS308EPP-100NAS

Model: GS308EPP

GS308
GS308EPP
GS308PP
GS308LP

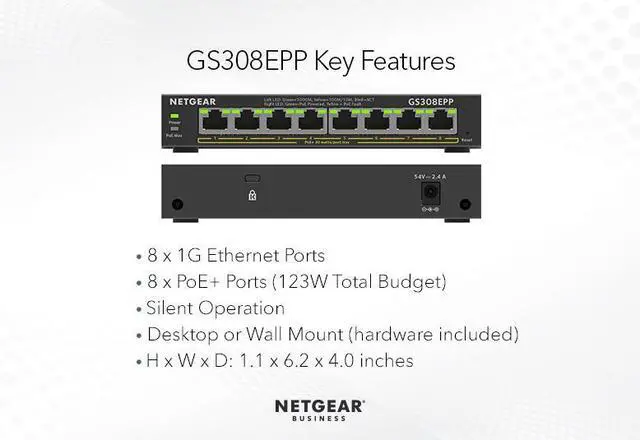

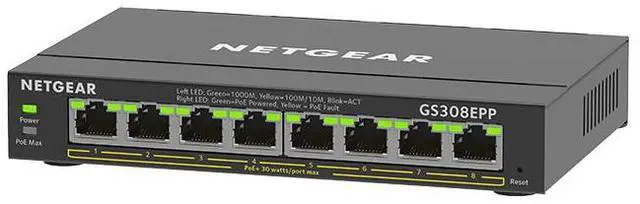

8 Gigabit Ethernet ports
8 PoE+ ports with 123W total power budget
Management software with easy-to-use GUI interface offers basic capabilities to configure, secure, and monitor your network.
Supports desktop or wall mount placement
The fanless design means zero added noise wherever its located, making it ideal for noise-sensitive environments
Supports up to 64 VLANs for traffic segmentation, and includes Quality-of-Service (QoS) for traffic prioritization.
Designed to optimize power usage lowering its cost to operate. Most models are compliant with IEEE802.3az Energy Efficient Ethernet mode.
Every NETGEAR Network switch is rigorously tested for reliability, quality, and performance.
Dimensions in Inches: 6.2L x 4W x 1.1H; Weight in Pounds: 1.1

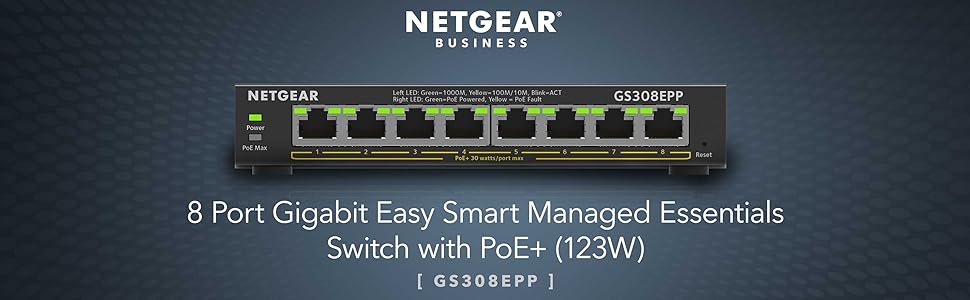

NETGEAR

BUSINESS

8 Port Gigabit Easy Smart Managed Essentials Switch with PoE+ (123W)

[ GS308EPP ]

Control and Configure Beyond Plug-and-Play

Highlights

Enable network configuration and management at the price point of unmanaged switches
Simple, yet useful network set-up on top of plug-and-play connectivity
Business-friendly and easy-to-use web browser-based management GUI
VLAN support for traffic segmentation

Quality of Service (QoS) for traffic prioritization
Auto “denial-of-service” (DoS) prevention
Troubleshoot connection issues via cable test
Loop prevention¹, loop detection², and broadcast storm controls
Rate limiting for better bandwidth allocation
Port mirroring for network monitoring

Jumbo frame support

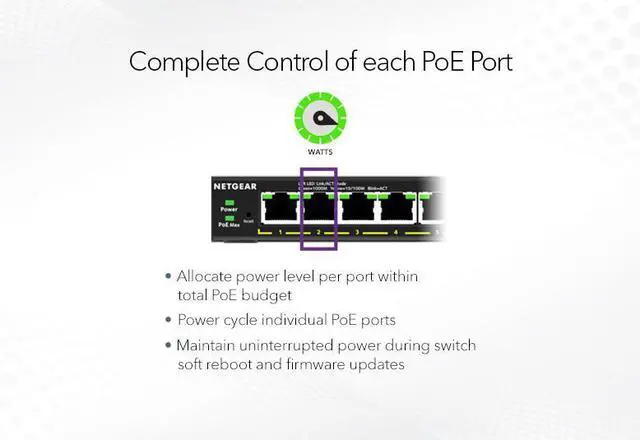

Advanced features such as per-port PoE controls
Uninterrupted PoE keeps PoE power on even when the switch is updating firmware or performing software reboot

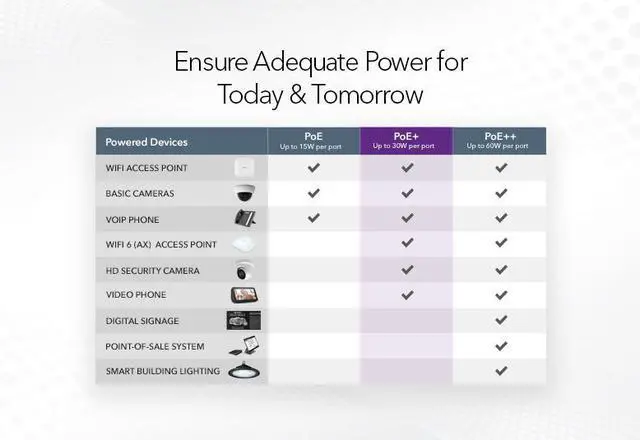

802.3at standard offering 30W/port
Fanless and versatile mounting option (desktop and wall-mountable)

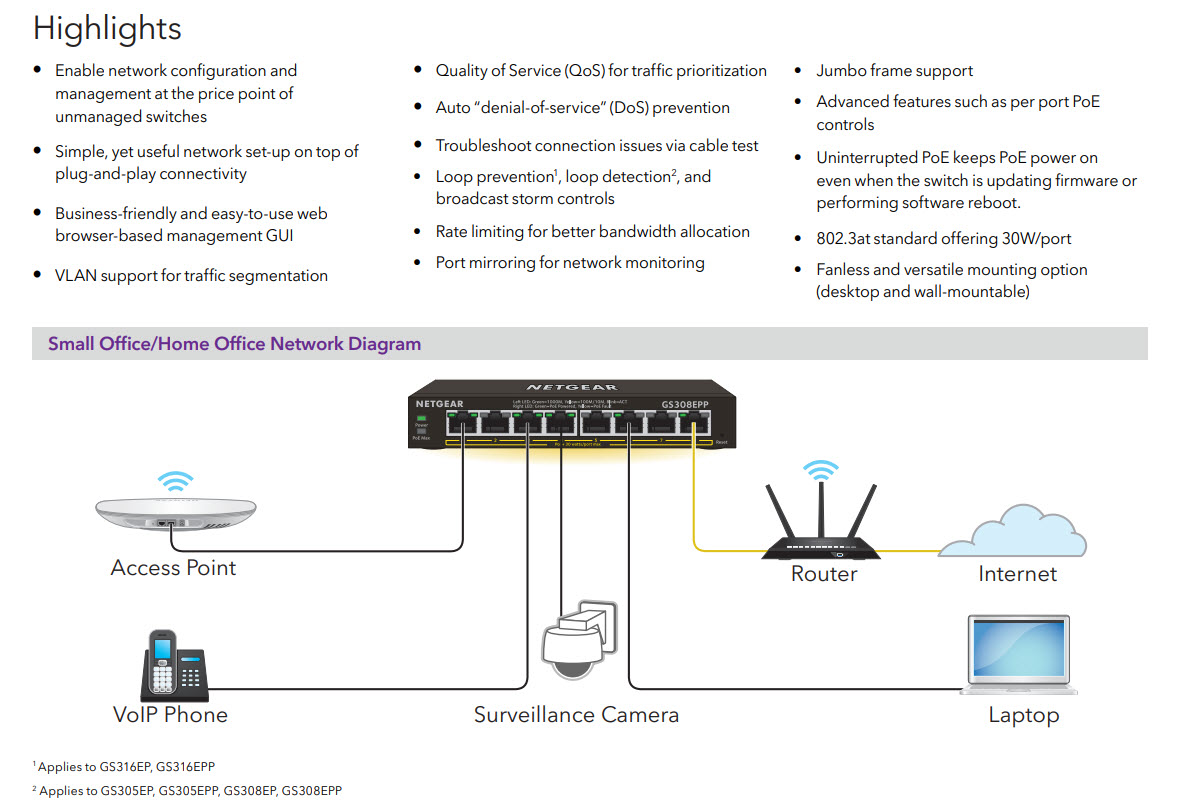

Small Office/Home Office Network Diagram Labels

1. Applies to GS316EP, GS316EPP

2. Applies to GS305EP, GS305EPP, GS308EP, GS308EPP

Consider a NETGEAR Plus Switch for Additional PoE Controls

Unmanaged switches are not upgradeable to Plus software

Features	Unmanaged Switch	Plus Switch
PoE Control by Port (select models) Allocate power level per port Power cycle individual PoE ports Schedule power on/off	—	✓
VLAN Segregate networks for security and simplified management	—	✓
QoS Determine traffic priority between file transfer, audio, video	—	✓
Priority Setting Per port for VoIP, rate limiting, and VLANs	—	✓

Whatever Your Networking Needs, NETGEAR Business has You Covered

Trusted by 50 Million Businesses Worldwide

Industry Leading Performance for Over 25 Years

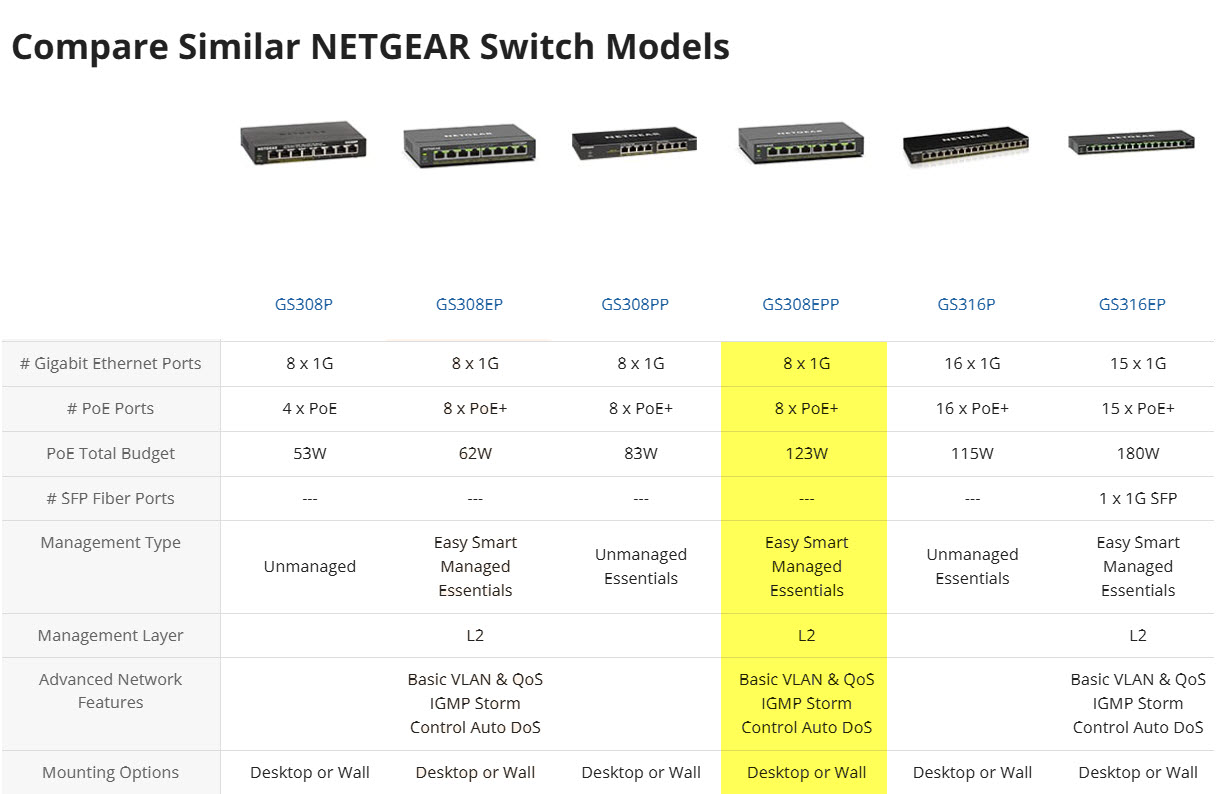

Comparison of Similar NETGEAR Switch Models

	GS308P	GS308EP	GS308PP	GS308EPP	GS316P	GS316EP
# of Gigabit Ethernet Ports	8 × 1G	8 × 1G	8 × 1G	8 × 1G	16 × 1G	15 × 1G
# of PoE Ports	4 × PoE	8 × PoE+	8 × PoE+	8 × PoE+	16 × PoE+	15 × PoE+
PoE Total Budget	53W	62W	83W	123W	115W	180W
# of SFP Fiber Ports	—	—	—	—	—	1 × 1G SFP
Management Type	Unmanaged	Easy Smart Managed Essentials	Unmanaged Essentials	Easy Smart Managed Essentials	Unmanaged Essentials	Easy Smart Managed Essentials
Management Layer	L2	L2	L2	L2	L2	L2
Advanced Network Features	—	Basic VLAN & QoS, IGMP Storm Control, Auto DoS	—	Basic VLAN & QoS, IGMP Storm Control, Auto DoS	—	Basic VLAN & QoS, IGMP Storm Control, Auto DoS
Mounting Options	Desktop or Wall	Desktop or Wall	Desktop or Wall	Desktop or Wall	Desktop or Wall	Desktop or Wall

Format	Wall Mountable Desktop Rack-mountable
Standards	IEEE 802.3 Ethernet IEEE 802.3ab 1000BASE-T IEEE 802.3u 100BASE-T IEEE 802.3ab 1000BASE-T EEE 802.1p Class of Service IEEE 802.1Q VLAN Tagging IEEE 802.3x Full-duplex Flow Control IEEE 802.3af PoE IEEE 802.3at PoE+
Network Media	Media Type Supported: Twisted Pair Ethernet Technology: Gigabit Ethernet Network Technology: 10/100/1000Base-T
Network Management Type	Smart

Primary Ports	8 x RJ45
Primary Port Speed	10/100/1000Mbps
Primary Port Type	8 x PoE+ 802.3at Ports

MAC Address Table	4K
VLAN Support	64 VLANs
Jumbo Frames	9216 bytes
Buffer Memory	192KB

PoE	123W Budget
QoS	Yes
Layer	3
LEDs	Per port: Speed, Link, Activity, PoE Per device: Power, system, PoE Max

Certification	NDAA Compliant: Yes Environmentally Friendly: Yes Energy Efficiency Compliance: Energy-related Products Directive (ErP) Environmental Compliance: Waste Electrical and Electronic Equipment Directive (WEEE) Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) Restriction of Hazardous Substances (RoHS)
Temperature	Operating temperature: 32° to 104°F (0° to 40°C) Storage temperature: -4° to 158°F (-20° to 70°C)
Humidity	Operating Humidity (relative): 90% maximum relative humidity (RH), non-condensing Storage Humidity (relative): 95% maximum relative humidity (RH), non-condensing
