NETGEAR
BUSINESS

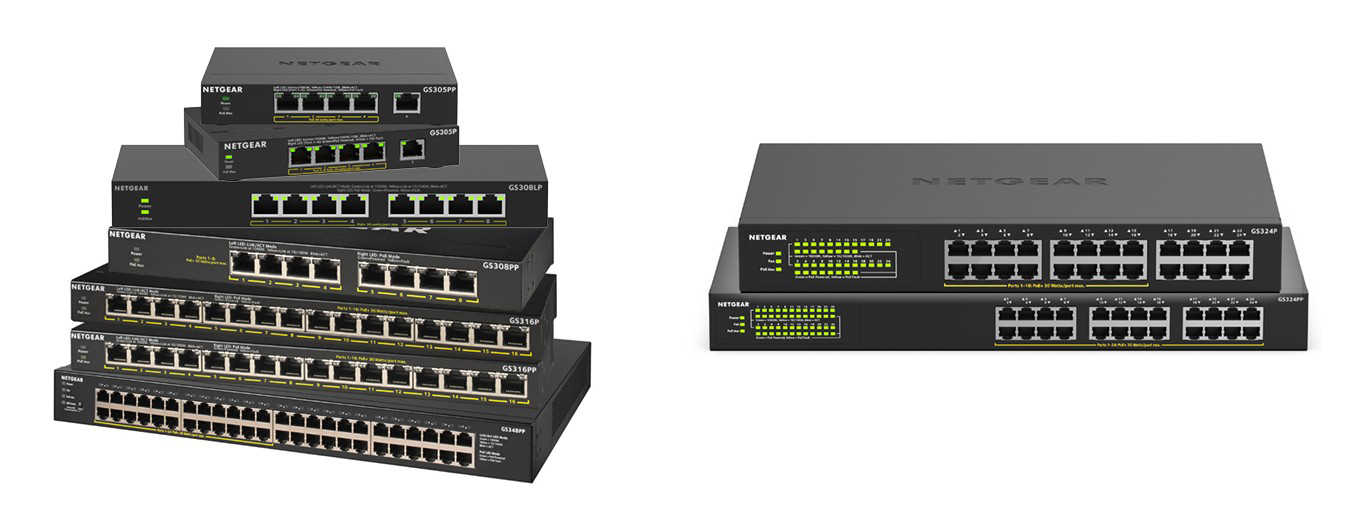

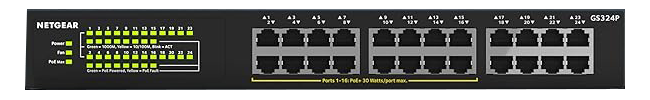

24 Port Gigabit Unmanaged Essentials Switch with PoE+ (190W)
[ GS324P ]
Expanding Wired Connectivity for Small Business Networks needing PoE
Highlights
- Auto-MDI/MDIX eliminates the need for crossover cables
- LED indicators for ease of use
- Energy-efficient technology for power savings
- Fanless design for silent operation
- Auto-negotiation for automatic connection at the highest common speed between switch and an end device
- Non-blocking switching architecture for maximum throughput at wire speed
- Plug-and-play; no setup required
- Durable and rugged metal case
- Desktop, wall-mount or rack-mount (depends on specific model)
- Ideal for small office and home networks
- Standards-based technology ensures interoperability with any standards-based devices in the existing network
- 802.3af and 802.3at Power over Ethernet (PoE and/PoE+, depending on specific model) for IP cameras, VoIP/Internet-based phones, wireless access points
Technical Specifications
|
Features |
GS305P |
GS305PP |
GS308LP |
GS308PP |
GS316P |
GS316PP |
GS324P |
GS324PP |
GS348PP |
| 10/100/1000Mbps Ports (Auto Uplink) | 5 | 5 | 8 | 8 | 16 | 16 | 24 | 24 | 48 |
| Enclosure | Metal | Metal | Metal | Metal | Metal | Metal | Metal | Metal | Metal |
| Connector Type | Metal | Metal | Metal | Metal | Metal | Metal | Metal | Metal | Metal |
| Form Factor | Desktop or wall-mountable | Rack mount/Desktop | Rack mount/Desktop | Rack mount/Desktop | |||||
| Power On/Off Switch | No | No | No | No | No | No | NA | NA | NA |
|
PoE Configuration |
|||||||||
| 802.3af PoE Ports | 4 | 4 | 8 | 8 | 16 | 16 | 16 | 24 | 24 |
| 802.3at PoE+ Ports | 4 | 4 | 8 | 8 | 16 | 16 | 16 | 24 | 24 |
| PoE Max Power Per Port | Up to 30W | Up to 30W | Up to 30W | Up to 30W | Up to 30W | Up to 30W | 30W | 30W | 30W |
| Total PoE Power Budget | up to 63W | 83W | Up to 60W | 83W (FlexPoE upgradeable to 123W using 130W power adapter) | 115W (FlexPoE upgradeable to 183W using 200W power adapter) | 183W | 190W | 380W | 380W |
| PoE auto-balance | Yes | Yes | Yes | Yes | Yes | Yes | |||
|
Power Consumption |
|||||||||
| DC Input/Power In | 54V, 1.25A | 54V, 1.66A | 54V, 1.25A | 54V/1.66A (FlexPoE 130W power adapter: 54V/2.4A) | 54V, 2.4A | 54V, 3.7A | Internal (100-240VAC, 50/60Hz, 3A max) | Internal (100-240VAC, 50/60Hz, 8A max) | Internal (AC: 110-240V, 50/60Hz, 8A max) |
| Power Consumption (Max and Standby) | 66.78W/1.02W | 85.77W/1.01W | 67.5W/1.23W | 90W/3.86W | 127.9W/2.68W | 195.9W/2.67W | 210W/10W | 400W/10W | 410W/10W |
| Heat Dissipation (Max and Standby) (BTU/hr) | 228.38 BTU/3.24 BTU | 293.33 BTU/3.078 BTU | 230.85 BTU/3.69 BTU | 300.6 BTU/3.69 BTU | 437.42 BTU/9.18 BTU | 669.9 BTU/9.14 BTU | 718.2 BTU/34.2 BTU | 1368 BTU/34.2 BTU | 1402.2 BTU/34.2 BTU |
|
Performance Specifications |
|||||||||
| Bandwidth (Non-Blocking) | 10 Gbps | 10 Gbps | 16 Gbps | 16 Gbps | 32 Gbps | 32 Gbps | 48 Gbps | 48 Gbps | 96 Gbps |
| Packet Buffer Memory (Dynamically shared across only used ports) | 128 KB | 128 KB | 192 KB | 192 KB | 1MB | 1MB | 192 KB | 192 KB | 1.5MB |
| Jumbo Frame Support | 9,216 bytes | 9,216 bytes | 9,216 bytes | 9,216 bytes | 9,216 bytes | 9,216 bytes | 10,000 bytes | 10,000 bytes | 12,288 bytes |
| Queue WRR (Weighted Round Robin) Ratio | 1:2:4:8 | 1:2:4:8 | 1:3:5:7:8:10:12:15 | 1:3:5:7:8:10:12:15 | 1:3:5:7:8:10:12:15 | 1:3:5:7:8:10:12:15 | 1:2:4:8 | 1:2:4:8 | 1:3:5:7:8:10:12:15 |
| Forwarding Rate (using 64-byte packets) 1000Mbps Port | 1,488,000 pps | 1,488,000 pps | 1,488,000 pps | 1,488,000 pps | 1,488,000 pps | 1,488,000 pps | 1,488,000 pps | 1,488,000 pps | 1,488,000 pps |
| Latency (using 64-byte packets) - 1000Mbps Port (average) | < 2.4 µsec | < 2.4 µsec | < 2.6 µsec | < 3.0 µsec | < 3.7 µsec | < 3.7 µsec | < 4 µsec | < 4 µsec | < 4 µsec |
| MAC Address Table Size | 2K | 2K | 4K | 4K | 4K | 4K | 8K | 8K | 8K |
|
Physical Specifications |
|||||||||
| Dimensions (W x D x H) | 158 x 101 x 27 mm (6.2 x 4.0 x 1.1 in) | 158 x 101 x 27 mm (6.2 x 4.0 x 1.1 in) | 236 x 102 x 27 mm (9.3 x 4 x 1.1 in) | 236 x 102 x 27 mm (9.3 x 4 x 1.1 in) | 286 x 102 x 27 mm (11.3 x 4 x 1.1 in) | 286 x 102 x 27 mm (11.3 x 4 x 1.1 in) | 330 x 206 x 43 mm (13 x 8.1 x 1.7 in) | 440 x 204 x 43 mm (17.3 x 8 x 1.7 in) | 440 x 310 x 43 mm (17.3 x 12.2 x 1.7 in) |
| Weight | 0.40 kg (0.88 lb) | 0.40 kg (0.88 lb) | 0.6 kg (1.32 lb) | 0.6 kg (1.32 lb) | 0.88 kg (1.94 lb) | 0.88 kg (1.94 lb) | 2.44 kg (5.38 lb) | 3.30 kg (7.3 lb) | 4.56 kg (10.05 lb) |
