Management software with easy-to-use GUI interface offers refined control for secure setup, access, and SNMP (NMS 300) management.
Supports desktop or rackmount placement, and includes all the necessary mounting hardware in the box
The fanless design means zero added noise wherever its located, making it ideal for noise-sensitive environments
Covered by an industry-leading 5-year limited hardware warranty
Designed to optimize power usage lowering its cost to operate. Most models are compliant with IEEE802.3az Energy Efficient Ethernet mode.
Every NETGEAR Network switch is rigorously tested for reliability, quality, and performance.

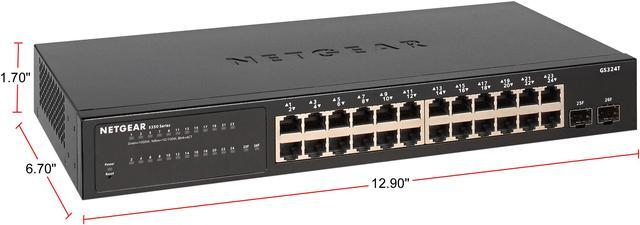

Dimensions in Inches: 12.9L x 6.7W x 1.7H; Weight in Pounds: 3.6
Overview
Specs
Reviews (1)
Any questions? Our AI beta will help you find out quickly.
Try me now
As a leading provider of network equipment for SMBs, NETGEAR understands the importance of reliable and high performance networks that are SMB budget aware. With the growth of virtualization, cloud-based services and applications like VoIP, video streaming and IP surveillance, SMB networks need to extend beyond simple reliability to performance and security. The NETGEAR S350 Gigabit Smart Managed Pro Switch series is tailored to these essential network needs of your business; delivering unprecedented non-blocking Gigabit bandwidth and solid network security at an affordable cost.NETGEAR Smart Managed Pro S350 series consists of five switch models, including 8-, 24- and 48-port Gigabit Ethernet switches and 8-, and 24-port Gigabit Ethernet PoE+ switches with 2 or 4 SFP ports for fiber uplinks, offering powerful Layer 2 features, enhanced performance and ease of use. They ...Total Number of Network Ports: 24Modular: YesPort/Expansion Slot Details: 24 x Gigabit Ethernet NetworkPort/Expansion Slot Details: 2 x Gigabit Ethernet Expansion SlotMedia Type Supported: Twisted PairMedia Type Supported: Optical FiberEthernet Technology: Gigabit EthernetNetwork Technology: 10/100/1000Base-TNetwork Technology: 1000Base-XNumber of Total Expansion Slots: 2Expansion Slot Type: SFP (mini-GBIC)Shared SFP Slot: NoNumber of SFP Slots: 2Layer Supported: 4Manageable: YesPower Source: Power SupplyForm Factor: Rack-mountable
Learn more about the Netgear Inc. GS324T-100NAS
Model
Brand
NETGEAR
Series
S350
Model
GS324T-100NAS
Format & Standards
Format
Rackmount
Standards
IEEE 802.3 Ethernet IEEE 802.3u 100BASE-T IEEE 802.3ab 1000BASE-T IEEE 802.3af PoE IEEE 802.3at PoE+ IEEE 802.3az Energy Efficient Ethernet (EEE) IEEE 802.3ad Dynamic Link Aggregation (LACP) IEEE 802.3z Gigabit Ethernet 1000BASE-SX/LX IEEE 802.3x Full-Duplex Flow Control IEEE 802.1Q VLAN Tagging IEEE 802.1AB LLDP with ANSI/TIA-1057 (LLDP-MED) IEEE 802.1p Class of Service (CoS) IEEE 802.1D Spanning Tree Protocol (STP) IEEE 802.1s Multiple Spanning Tree (MSTP) IEEE 802.1w Rapid Spanning Tree (RSTP) IEEE 802.1x RADIUS Network Access Control
Network Management Type
Managed
Ports & Interface
Primary Ports
24 x RJ45 + 2 x SFP
Primary Port Speed
10/100/1000Mbps
Primary Port Type
24 x 10M/100M/1G RJ-45 copper ports 2 x 1G SFP (fiber) ports
Data Transmission
MAC Address Table
16K
Switching Method
Store and Forward
VLAN Support
64 VLANs
Jumbo Frames
9216 bytes
Details
Buffer Memory
512KB
SNMP
Yes
QoS
Yes
Port Mirroring
Yes
LEDs
Per port: Speed, Link / Activity Per device: Power
Power
Power Consumption: Max power (worst case, all ports used, full PoE, line-rate traffic) (Watts): 13.5W Iddle power consumption (all ports link-down standby) (Watts): 6.5W
Dimensions & Weight
Dimensions
1.70" x 12.90" x 6.70"
Weight
3.57 lbs.
Environmental
Temperature
Operating Temperature: 0° to 45°C (32° to 113°F) Storage Temperature: –20° to 70°C (-4° to 158°F)
Humidity
Operating Humidity: 95% maximum relative humidity (RH), non-condensing Storage Humidity: 95% maximum relative humidity, non-condensing
Additional Information
Date First Available
March 27, 2019
