The Netgear ProSafe GS716T-200NAS Gigabit switch brings gigabit speeds to your employees, while adding a whole new level of intelligence and security to network. The 24 10/100/1000 Mbps ports enable you to take advantage of the Gigabit Ethernet interfaces shipping on the current generation of servers, workstations and storage devices, in addition to supporting existing 10/100 Mbps clients.
Two optional SFP GBIC ports allow you to expand network as your business grows. An intuitive, web-browser interface provides simple and comprehensive management, including monitoring performance, configuring ports and even setting up port trunks, VLANs, and traffic prioritization. Housed in a 17-inch metal box and coming with a rack mounting kit, the sturdy Netgear GS716T is a smart and economical path to Gigabit connectivity with scalability and reliability!
Learn more about the Netgear Inc. GS716T-200NAS
Model
Brand
NETGEAR
Series
ProSafe
Model
GS716T-200NAS
Format & Standards
Format
Rackmount
Standards
IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3x full-duplex flow control
Network Management Type
Smart
Ports & Interface
Uplink Ports
2
Uplink Interface
SFP
Uplink Speed
10/100/1000 Mbps
Primary Ports
16 x RJ45
Primary Port Speed
10/100/1000Mbps
Data Transmission
MAC Address Table
8,000 media access control (MAC) addresses per system
Switching Method
Store and Forward
VLAN Support
64 Static VLANs Supports 16 port-based VLAN
Jumbo Frames
Yes
Buffer Memory
256KB
Details
PoE
No
Stackable
No
SNMP
Yes
QoS
Yes
LACP
No
Layer
Layer 3 Light
Port Mirroring
Yes
Module Support
Yes
LEDs
Per port: Link/Activity, Speed Per device: Power
Power Supply
Power
Power consumption: 32W max 100-240VAC/50-60 Hz universal input
Dimensions & Weight

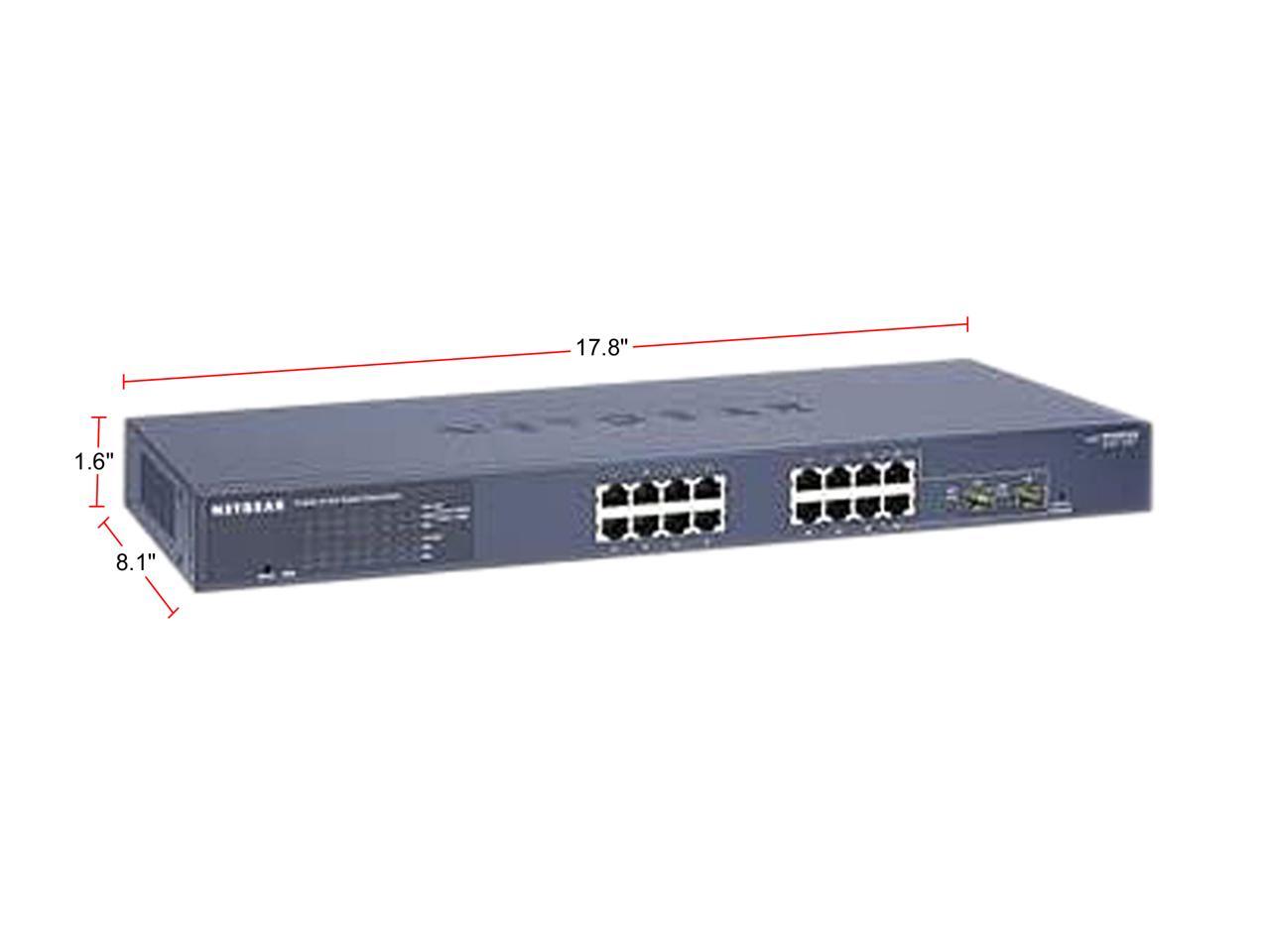

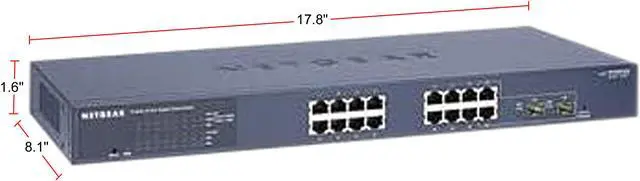

Dimensions
17.8" x 8.1" x 1.6"
Weight
6.03 lbs.
Environmental
Temperature
0°C to 40°C (32°F to 104°F)
Humidity
90% Maximum, Non-condensing
Features
Features
Easy, browser-based switch management
For ProSafe Lifetime Warranty please see: http://www.netgear.com/warranty Power Adapter Warranty : 2 years
Packaging
Package Contents
GS716T Power Cord Rack mount kit Resource Disk
Additional Information
Date First Available
June 16, 2005
