Question 1

Is this switch fanless?

Accepted Answer

From what the netgear website specs says, this model is fanless.

Question 2

Does the rack mount kit work in a standard 19" rack?

Accepted Answer

Yes, I believe so. It is a 1U box, and is standard 19" x like 1 5/8". I have it mounted in my standard rack. Hope this helps.

Question 3

Do you need the PC Configuration Utility to do the initial set up and firmware updates?

Accepted Answer

It is not required to use the configuration utility after initial configuration, everything can be done via the web console. I don't recall if it is required to do the initial configuration or not.

Question 4

Is this switch POE?

Accepted Answer

Nope, this switch is not POE..it is however a great switch..model GSM7224P will give you all POE

Question 5

Does this work with POE cameras? if so is it just first 12 ports or all ports?

Accepted Answer

There are no POE ports on this device.  This is just a gigabit switch with management from a web front end.

While this may sound like a stupid way to see if there are POE ports on a device, Netgear labels the POE ports with a yellow marking on the front near the switch port.  These switches are examples...  GS728TPP & GS110TP-200NAS

search for Netgear POE in newegg's search site to find all the Netgear POE switches.  POE switches will also tell you what the overall POE Wattage rating is, as well as the number of POE ports.  Good luck!

Question 6

Does this device require the Utility Configuration software to setup the device or to update the firmware, or can that all be done via the web GUI?

Accepted Answer

Web GUI or software

Question 7

is this the JGS524Ev2 or the JGS524E ?

Accepted Answer

The one I received was the JGS524Ev2.

Brand	NETGEAR
Series	ProSafe
Model	JGS524E

Format	Rack-mountable
Standards	IEEE 802.3 Ethernet: IEEE 802.1p Class of Service IEEE 802.3i 10 BASE-T: IEEE 802.3 af (PoE) IEEE 802.3u 100 BASE-T: IEEE 802.1Q VLAN Tagging IEEE 802.3ab 1000 BASE-T: IEEE 802.3x full-duplex flow control
Network Management Type	Smart

Primary Ports	24 x RJ45
Primary Port Speed	10/100/1000Mbps

MAC Address Table	16K
VLAN Support	Yes
Jumbo Frames	Up to 9K packet size
Buffer Memory	768KB

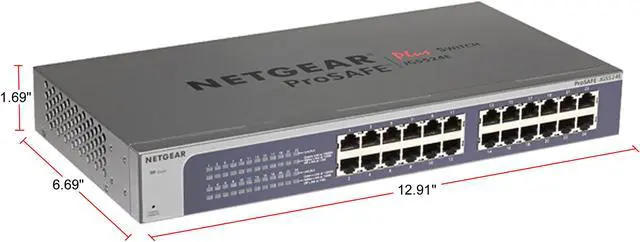

Dimensions	1.69" x 12.91" x 6.69"
Weight	3.09 lbs.

NETGEAR 24-Port Gigabit Rackmount Smart Managed Plus Switch, ProSAFE Lifetime Protection (JGS524E)

Learn more about the Netgear Inc. JGS524E

Customer Reviews of the Netgear Inc. JGS524E

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Return Policies

Manufacturer Contact Info

Temperature	0°C to 50°C (32°F to 122°F)
Humidity	90% Maximum, Non-condensing

Item#: N82E16833122594
