NETIS PE6108G Unmanaged 8-Port Gigabit Switch with 8 PoE Port 120W IEEE802.3af/at
- 8 10/100/1000Mbps RJ45 port, with PoE function
- 4K MAC Address Table
- PoE
+
+
Overview
Specs
Reviews (3)

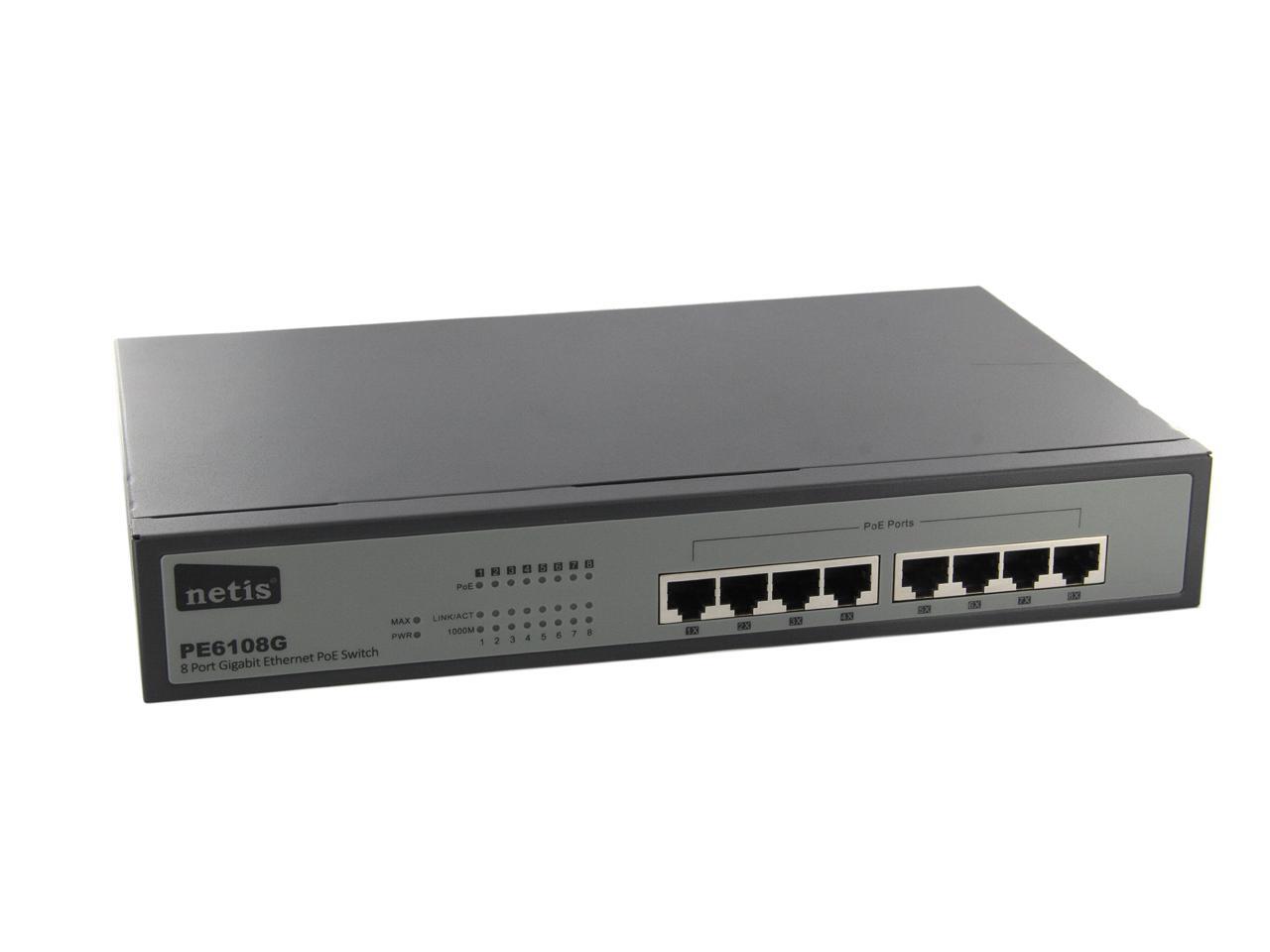

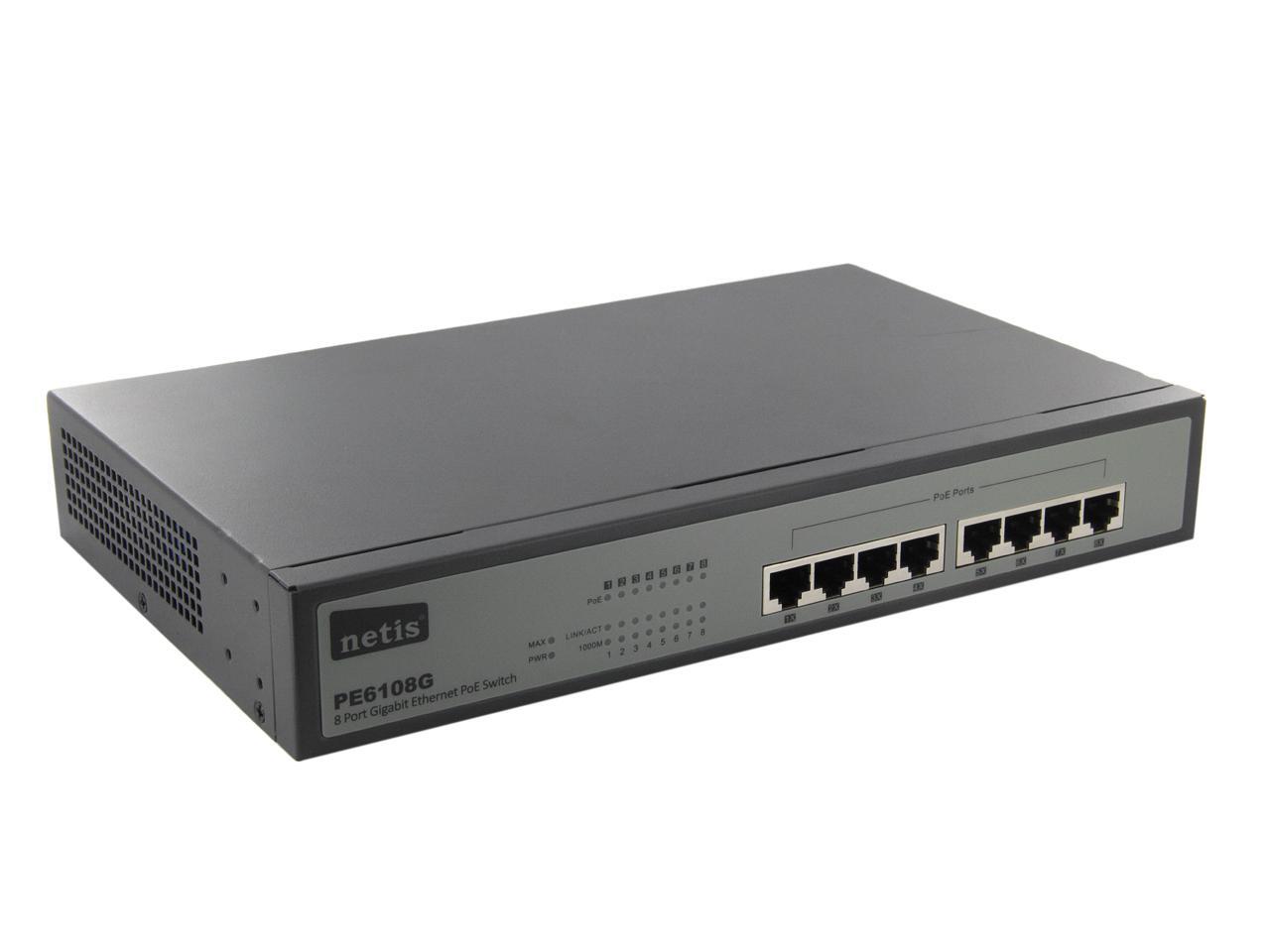

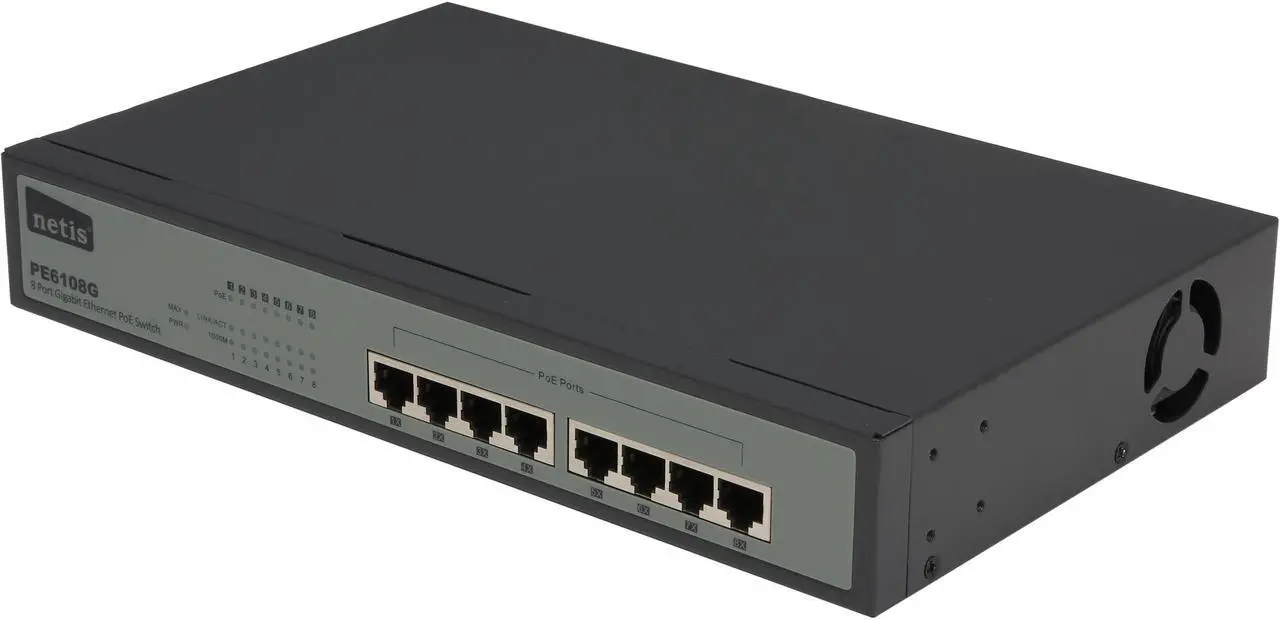

Netis PE6108G Unmanaged Eight-Port Gigabit Switch
What it Does
The Netis PE6108G Gigabit Ethernet PoE Switch provides a great selection for expanding your home or office network. Each of the eight 10/100/1000Mbps RJ45 ports support Power over Ethernet (PoE) functionality. It can automatically detect and supply power with the IEEE 802.3at/af compliant Powered Devices (PDs), like PoE APs, IP Phones, IP cameras, etc. In this case, the electrical power is transmitted along with data in one single cable, allowing you to expand your network where there are no power lines or outlets.
Features
- Eight 10/100/1000Mbps Auto-Negotiation RJ45 ports, all with PoE function
- Complies with IEEE 802.3at/af standards
- Supports PoE power up to 30W for each PoE port, 120W for all PoE ports
- Supports PoE+ IEEE 802.3at/af compliant Powered Device (PD)
- Supports 4K MAC address table, MAC address auto-learning & auto-aging
- Supports IEEE 802.3x flow control for Full-duplex mode,Back-pressure flow control for Half-duplex mode ports
- Plug and play, no configuration required
- Power MAX LED to monitor the PoE power status
- Steel desktop design, with internal power supply
Specifications
| Hardware | |
|---|---|
| Interface | Eight (8) 10/100/1000Mbps RJ45 ports, with PoE function |
| LED | PWR, MAX, 1-8 PoE, 1-8 1000M, 1-8 LINK/ACT |

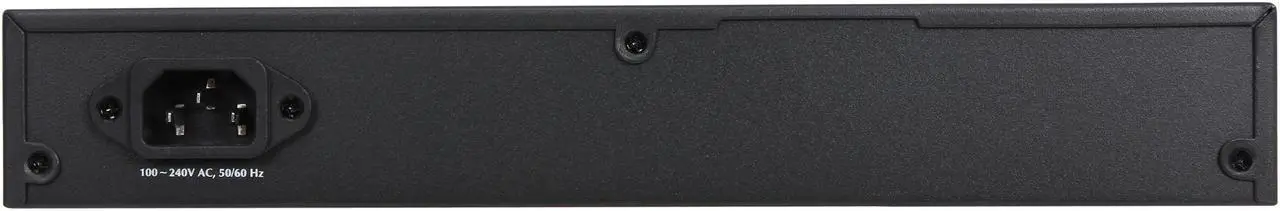

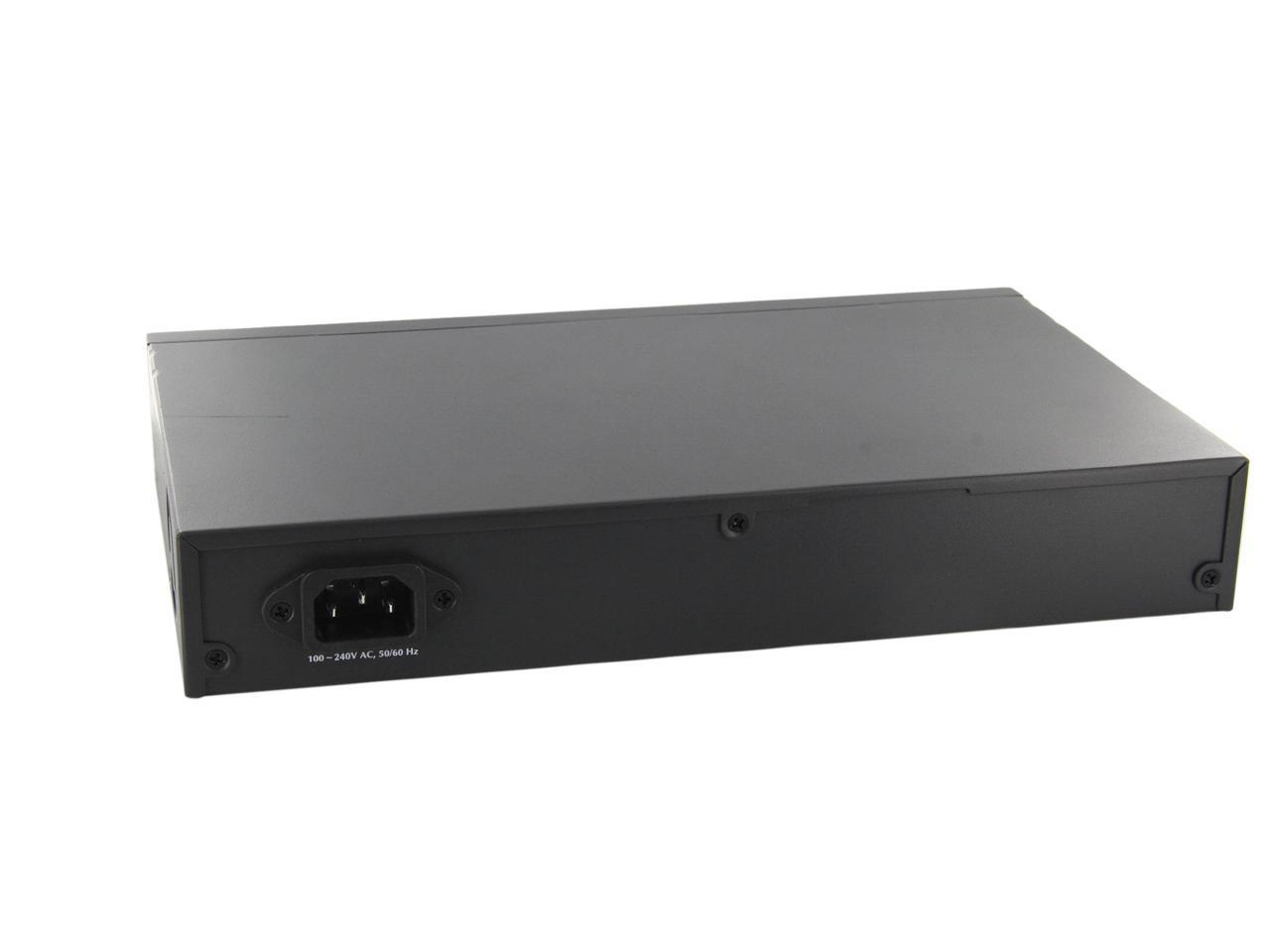

| Power Supply | 100 ~ 240VAC / 50 - 60Hz |
| PoE Power | 155 Watts (max. with PD connected) |
| Dimensions (L x W x H ) | 11.0 x 6.8 x 1.7 inches (280 x 173 x 43mm) |
| Switching Features | |
| Standard | IEEE 802.3u 1000Base–TX, IEEE 802.3u 100BASE–TX, IEEE 802.3 10BASE–T, IEEE 802.3at/af, IEEE 802.3x Flow Control |
| Access Method | CSMA/CD |
| Transmission Method | Store and Forward |
| Switching Fabric Capacity | 16Gbps |
| MAC Address Table | 4K, auto-learning & auto-aging |
| Flow Control | IEEE 802.3x Flow Control, Full-Duplex mode Back-Pressure Flow Control, Half-Duplex mode |
| PoE | 30 Watts (Max. each port) 120 Watts (Max. all ports) |
| Others | |
| Certification | FCC, CE |
| Environment | Operating Temperature: 32 - 104°F (0 - 40°C) Storage Temperature: -40 - 158°F (-40 - 70°C) Operating Humidity: 10% - 90%RH, non-condensing Storage Humidity: 5% - 90%RH, non-condensing |

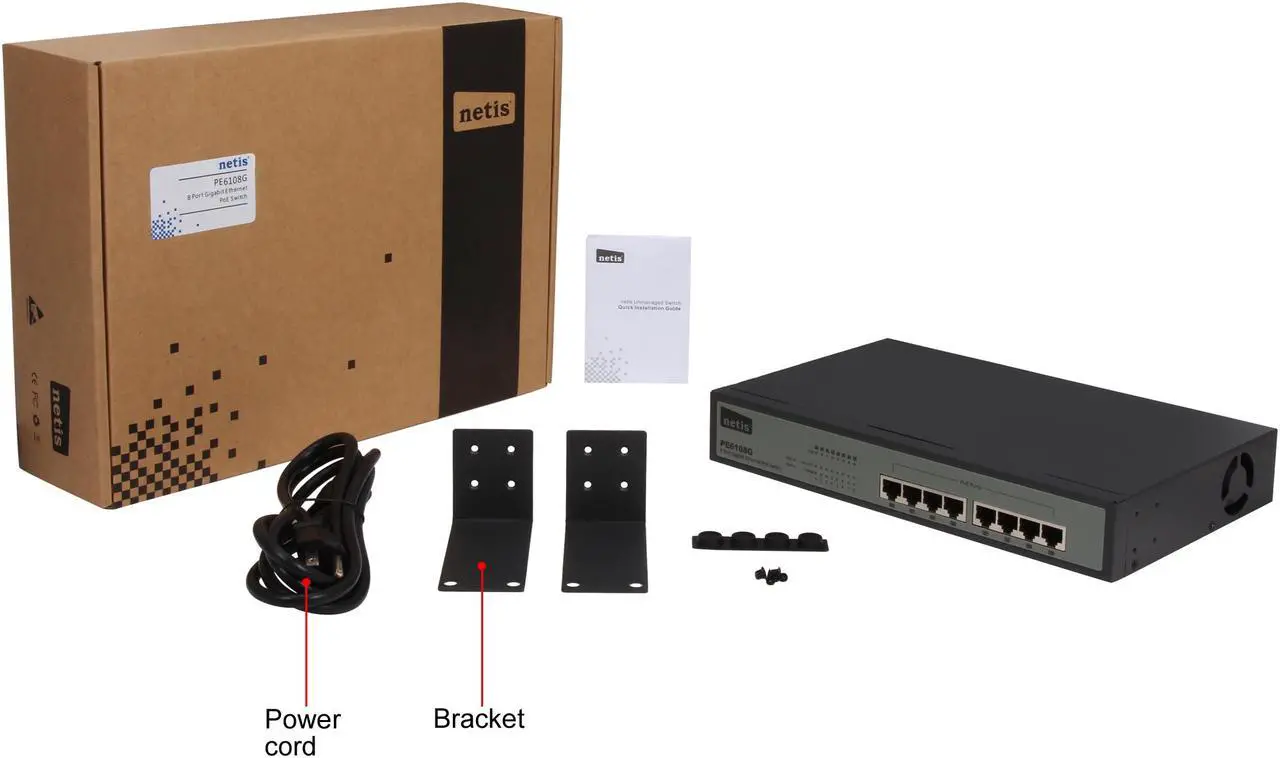

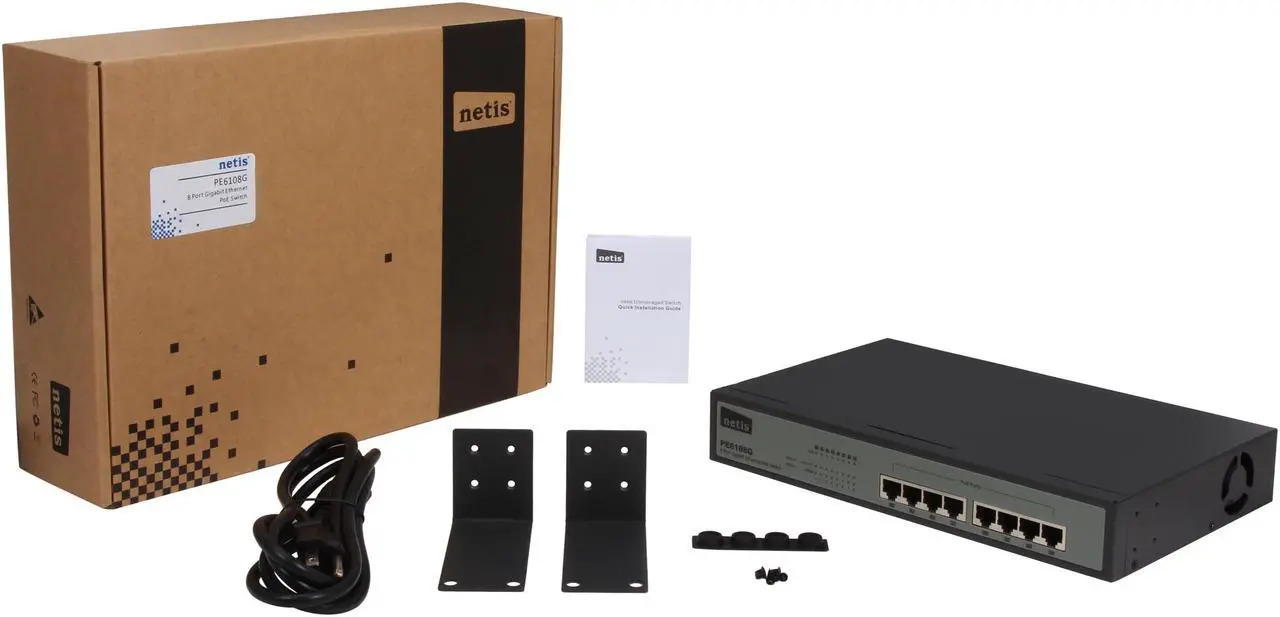

Contents
- PE6108G
- Power Cord
- Brackets
- Quick Installation Guide
