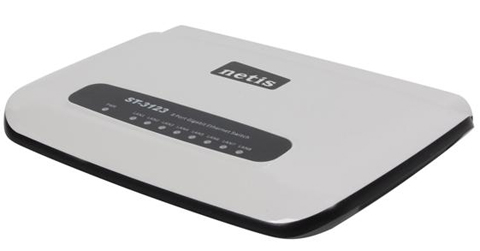

NETIS ST-3123 8-Port Giga Ethernet Switch

(9) Write a Review
  • 8K MAC Address Table
Overview
Specs
Reviews (9)
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Netis ST-3123 Eight-Port Giga Ethernet Switch

What this Ethernet Switch Does

Netis

The Netis ST3108G Gigabit Ethernet Switch provides eight 10/100/1000Mbps Auto-Negotiation RJ45 ports. All ports support Auto MDI/MDIX function, eliminating the need for crossover cables or Uplink ports. It provides high performance with minimum power consumption. It will cut power consumption when cable disconnected, then it wakes up and operates in normal mode when incoming signal detected, in which way that greatly reduces the power consumption.

Features


  • Eight (8) 10/100/1000Mbps auto-negotiation RJ45 ports, supports auto MDI/MDIX
  • Green Ethernet technology link down power saving and link on various cable length power saving
  • IEEE 802.3x flow control provides reliable data transfer
  • Plastic case, desktop or wall-mounting design better for home and office use
  • Plug and play, no configuration required

Gallery



Netis Netis

Specifications


Wireless

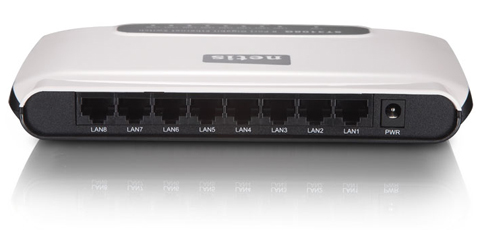

Interface 8 x 10/100/1000M RJ45 port, Auto-Negotiation, Auto MDI/MDIX
LED PWR, 1-8 Link/Activity
Power Supply DC 5V/2A (Output)
Dimensions (L x W x H ) 7.2 x 4.9 x 1.2 in. (183 x 125 x 31mm)
Switching Features
Standard IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX,
IEEE 802.3ab 1000Base-T, IEEE 802.3x Flow Control
Access Method CSMA/CD
Transmission Method Store and Forward
Switch Architecture Non-blocking
Data Transmission Rate 10/100/1000Mbps (Half-duplex)
20/200/2000Mbps (Full-duplex)
Switching Fabric Capacity 32Gbps
Built-In Buffer 2M bits
Jumbo Frame 9KB
MAC Address Table 8K
Others
Certifications FCC, CE
Environment
  • Operating Temperature: 32 - 104°F (0 - 40°C)
  • Storage Temperature: -4 - 158°F (-20 - 70°C)
  • Operating Humidity: 5% - 90% non-condensing S
  • Storage Humidity: 5% - 90% non-condensing

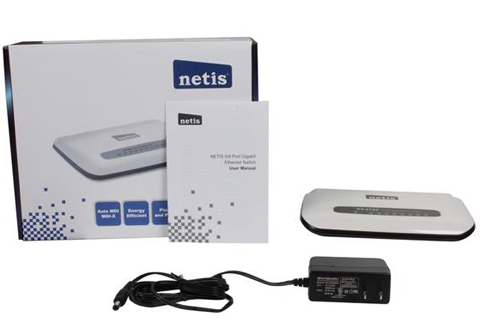

Package
  • NETIS ST-3123 8-Port Giga Ethernet Switch
  • Quick Installation Guide
  • Power Adapter

Contents

Netis

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 1 year
