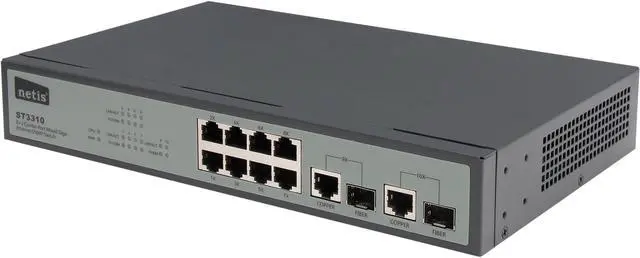

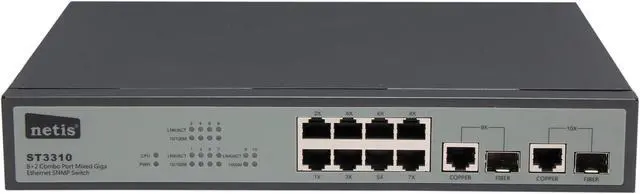

NETIS ST3310 8FE+2 Combo-Port Gigabit Ethernet SNMP Switch

In stock.
Ships from United States.
Most customers receive within 5-9 days.
  • 8 x 10/100 Mbps RJ45 port, Auto-Negotiation, Auto MDI/MDIX
  • 2 x Combo port: 2 x 10/100/1000 Mbps RJ45 port + 2 x SFP slot(Mini-GBIC), 1000 full mode supported
  • 1 x RS232 Console port
  • 8K MAC Address Table
Specs
Reviews

Learn more about the Netis Systems ST3310

Model
Brand NETIS
Model ST3310
Format & Standards
Format Desktop
Standards IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3x, IEEE 802.3ad,
IEEE 802.1p, IEEE 802.1q, IEEE 802.1d, IEEE 802.1w, IEEE 802.1s, IEEE 802.1x
Network Management Type Managed
Ports & Interface
Primary Ports 8 x 10/100Mbps RJ45 port, Auto-Negotiation, Auto MDI/MDIX
2 x Combo port: 2 x 10/100/1000Mbps RJ45 port + 2 * SFP slot(Mini-GBIC), 1000 full mode supported

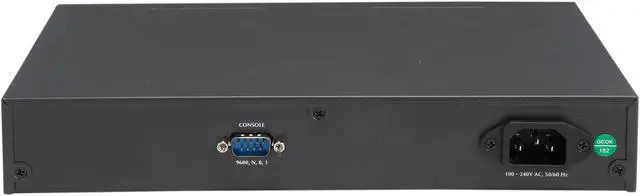

1 x RS232 Console port
Primary Port Speed 10/100Mbps + 1000Mbps
Data Transmission
MAC Address Table 8K
Switching Method Store and Forward
VLAN Support IEEE 802.1Q Tag-based VLAN
Up to 4K VLANs groups, out of 4094 VLAN IDs
GVRP protocol for VLAN Management
Details
Buffer Memory 4MB
Security IEEE 802.1x Port-Based/MAC-Based Authentication
RADIUS/TACACS+ users access authentication
Access Control List(ACL)
Dynamic ARP inspection
MAC Binding
Broadcast Storm Control
PoE No
Stackable No
SNMP Yes
QoS 8 priority queues
Strict priority(SP), Weighted Round Robin(WRR), SP+WRR CoS policies
Traffic-policing policies
Port Mirroring Yes
Module Support No
LEDs PWR, SYS, 1-8 10/100M, 1-8 LNK/ACT, 9X-10X 10/100/1000M, 9X-10X LNK/ACT
Power 100-240V AC/50-60Hz
Features
Features 8 10/100Mbps Ethernet ports, 2 Combo Gigabit ports supporting both copper and SFP connections
5.6 Gbps switching fabric capacity
IEEE 802.3x compliant Flow Control support for full duplex
Supports IEEE 802.1Q VLAN
Supports Spanning Tree Protocol
Supports Port Mirroring, Flow mirroring
Supports LLDP, DLDP
Supports DHCP Snooping, Relay and Option 82
Supports IGMP Snooping v1/v2/v3
Supports powerful security functions like ACL, dynamic ARP inspection and more
Provides high performance of Store-and-Forward architecture, broadcast storm control
Supports SNMP v1/v2c/v3 , SSH v1/v2 switch management

Link Aggregation
Cisco ether-Channel (Static Trunk)
IEEE 802.3ad LACP (Link Aggregation Control Protocol)
Up to 8 Trunk groups
Up to 8 ports per trunk group

Spanning Tree Protocol (STP)
STP, IEEE 802.1D (Classic Spanning Tree Protocol)
RSTP, IEEE 802.1w (Rapid Spanning Tree Protocol)
MSTP, IEEE 802.1s (Multiple Spanning Tree Protocol, spanning tree by VLAN)
Loopback detection

Multicast
IGMP Snooping V1/V2/V3
Multicast VLAN Registration (MVR)

Flow Control
IEEE 802.3x PAUSE frame Flow Control, Full-Duplex mode
Back-Pressure Flow Control, Half-Duplex mode

DHCP
DHCP Snooping
DHCP Relay
DHCP option 82

Port mirroring
flow mirroring
LLDP(Link Layer Discovery Protocol)
DLDP (Device Link Detection Protocol)
Egress and Ingress Bandwidth Control

Console/Telnet Command Line Interface
Web
SNMP v1/v2c/v3,
SSH v1/v2
Dimensions & Weight
Dimensions 11.02" x 6.81" x 1.73"
Environmental
Temperature Operating Temperature: 0 degree~40 degree
Storage Temperature: -40 degree~70 degree
Humidity Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Packaging

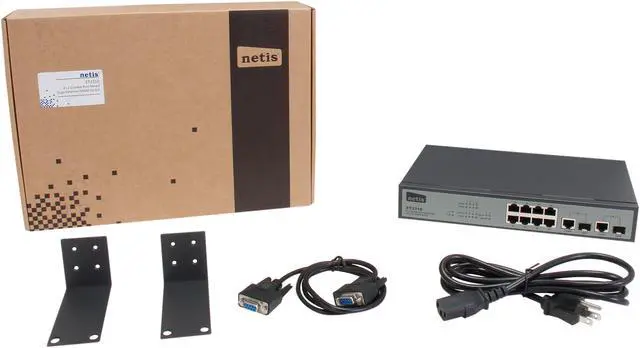

Package Contents 1 x ST3310
2 x Brackets
1 x RS232 Cord
1 x Power Cord
Group
Case Metal Case
Additional Information
Date First Available October 09, 2019

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 1 year
  • Read full details
