Do these rails ship as a pair, or do I need to buy two of them?

They shipped to us as pairs. Note they come "collapsed" which may make you believe they are the wrong size. They do telescope with a bit of elbow grease.

Will these rails attach to a Norco RPC-231 case without any drilling?

I have a rpc-4020 with these and didn't require any drilling.

Out of stock

This item is currently out of stock and it may or may not be restocked.

Out of Stock

Add to wish list

Sold by Newegg

Shipped by Newegg

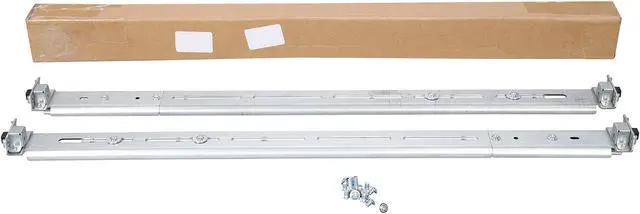

Main image of NORCO RL-20 Heavy Duty Slide Rail

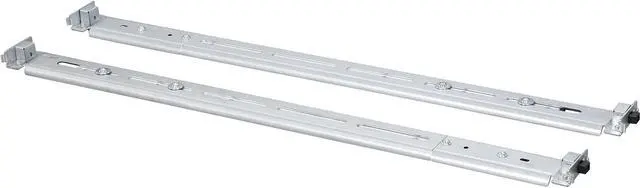

Alt view image 2 of 5 - NORCO RL-20 Heavy Duty Slide Rail

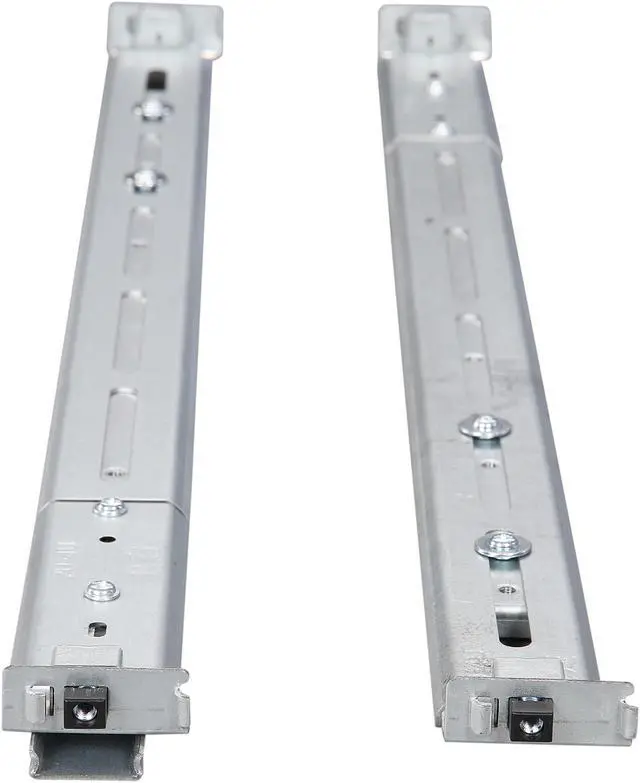

Alt view image 3 of 5 - NORCO RL-20 Heavy Duty Slide Rail

Alt view image 4 of 5 - NORCO RL-20 Heavy Duty Slide Rail

Alt view image 5 of 5 - NORCO RL-20 Heavy Duty Slide Rail

Shop All Norco Technologies Inc. Products

NORCO RL-20 Heavy Duty Slide Rail

(37) Write a Review

RL-20

Overview

Specs

Reviews (37)

Any questions? Our AI beta will help you find out quickly.

Try me now

Features

1U to 5U height, heavy duty slide rail.
With stop-latch, lock chassis in extended position for easy access. Tapped screw holes on outer member for secure and easy mounting.
Load rating up to 145 Lbs.
With additional dia. 4.4 x 45 mm. slotted mounting holes(2x).
Standard screws 10-32 and Metric screws M4 x 6, M5 x1 2 included, mountable to most chassis.
Expendable to 32 in. depth.

Model
Brand	NORCO
Model	RL-20

Details
Type	Heavy Duty Slide Rail
Specifications	Support 1U to 4U Norco rackmount cases. Ball bearing sliding rails. 22 inch (L) x 1.79 inch (H) x 0.5 inch (Thickness). With stop-latch, lock chassis in extended position for easy access. Tapped screw holes on outer member for secure and easy mounting. Load rating up to 145 Lbs; W/additional dia. 4.4mm x 45mm slotted mounting holes(2x). Standard screws #10-32 and Metric screws M4x6, M5x12 included, mountable to most chassis. Extendable to 32" depth.

Additional Information
First Listed on Newegg	September 16, 2005
