Learn more about the Intel RNUC12WSHI70001
General| Brand | Intel |
|---|
| Series | NUC 12 Pro |
|---|
| Model | RNUC12WSHI70001 |
|---|
| Part Number | RNUC12WSHI70001 |
|---|
| Color | Black |
|---|
CPU Supported| CPU Type | 12th Gen Intel® Core™ i7-1260P ( 4P+8E/16T / P-Cores: up to 4.7GHz - E-Cores: up to 3.4GHz / 18MB Intel® Smart Cache / 35W TDP) |
|---|
Memory Supported| Memory installed | No Memory |
|---|
| Memory slot | Dual DDR4-3200 SODIMMs, 1.2V, up to 64GB |
|---|
| Memory Type Supported | DDR4 3200 |
|---|
| Max Memory Supported | 64GB |
|---|
| Dual Channel Memory Supported | Yes |
|---|
Storage| M.2 | 1x M.2 22x80 socket supporting PCIe x4 Gen 4 NVMe from 128GB to 8TB or SATA SSD from 128GB to 2TB / 1x M.2 22x42 socket (non-dual-LAN only) supporting PCIe x1 Gen3 NVMe from 128GB to 512GB or SATA SSD from 128GB to 512GB |
|---|
Graphics| Integrated Graphics | Intel® Iris® Xe Graphics |
|---|
Audio| Onboard Audio | High Definition Audio |
|---|
| Channel | 7.1 multichannel digital audio via HDMI or Thunderbolt |
|---|
Communications| LAN | 1x Intel 2.5Gb LAN |
|---|
| Max LAN Speed | 2.5 Gigabit Ethernet |
|---|
| Wireless LAN | Intel Wi-Fi 6E AX211, 802.11ax |
|---|
| Bluetooth | Bluetooth 5.2 |
|---|
Extension Bays| 2.5" Internal Bays | 2.5'' bay |
|---|

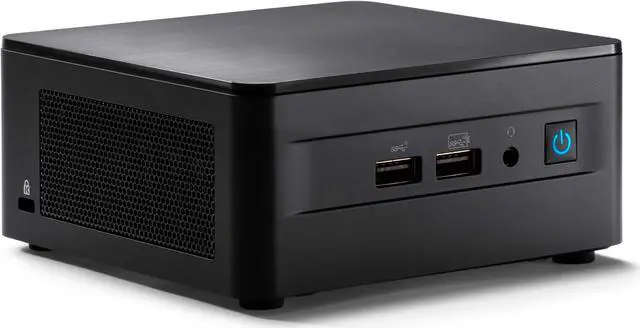

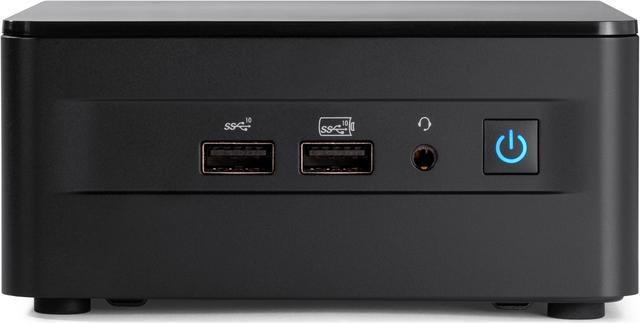

Front Panel Ports| Front USB | 2x Front USB 3.2 Gen2 type-A |
|---|
| Front Audio Ports | 3.5mm stereo headset jack |
|---|

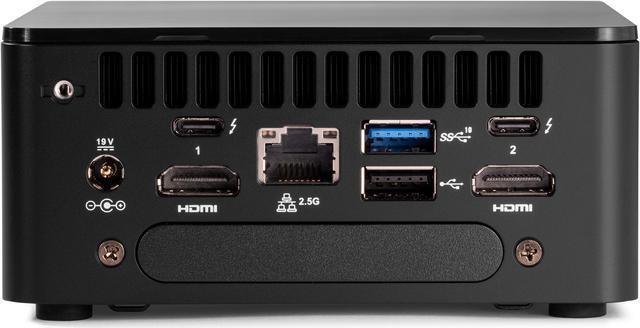

Back Panel Ports| HDMI | 2x HDMI 2.0b |
|---|
| Thunderbolt 3 | 2x Thunderbolt 4 (Alt-DP) |
|---|
| Rear USB | 1 x Rear USB 3.2 Gen2 type-A 1 x Rear USB 2.0 type-A |
|---|
| RJ45 | 1 |
|---|
Power Supply| Input | 12-20VDC variable DC input |
|---|
| Power Supply | 120W 19V PSU supplied |
|---|
Physical SPEC| Dimensions | 117x112x54mm |
|---|
Features| Features | Display emulation via HDMI (Virtual display, persistent display, headless display) / Delayed AC start / Auto CMOS reset / DC transient voltage suppression |
|---|
Additional Information| First Listed on Newegg | June 30, 2023 |
|---|
