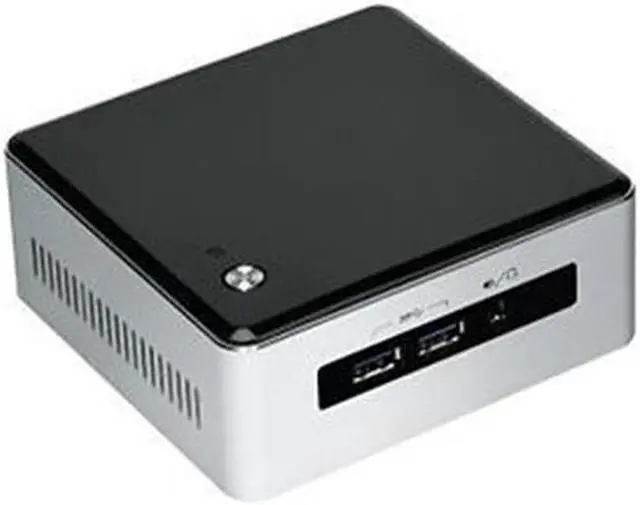

Main image of Intel NUC (Next Unit of Computing) BLKNUC5I3MYHE-SINGLE NUC Kit (Maple Canyon)

Alt view image 2 of 3 - Intel NUC (Next Unit of Computing) BLKNUC5I3MYHE-SINGLE NUC Kit (Maple Canyon)

Alt view image 3 of 3 - Intel NUC (Next Unit of Computing) BLKNUC5I3MYHE-SINGLE NUC Kit (Maple Canyon)

Shop All Intel Products

Intel NUC (Next Unit of Computing) BLKNUC5I3MYHE-SINGLE NUC Kit (Maple Canyon)

Be the first to review this product...

Intel Core i3-5010U Processor (3M Cache, 2.10 GHz)
1 x 204Pin SO-DIMM DDR3L 1600/1333

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

General
Brand	Intel
Series	NUC (Next Unit of Computing)
Model	BLKNUC5I3MYHE-SINGLE
Form Factor	UCFF (mini PC)

CPU Supported
CPU Type	Intel Core i3-5010U Processor (3M Cache, 2.10 GHz)

Memory Supported
Memory installed	No Memory
Memory slot	1 x 204Pin SO-DIMM
Memory Type Supported	DDR3L 1600/1333
Max Memory Supported	16GB
Dual Channel Memory Supported	Yes

Storage
Hard Drive Installed	No Hard Drive
Serial ATA	1 x SATA 6.0Gb/s
SATA RAID	RAID 0, 1

Graphics
Integrated Graphics	Intel HD Graphics 5500

Audio
Channel	7.1 Channel

Communications
Max LAN Speed	10/100/1000Mbps

Extension Bays
2.5" Internal Bays	1

Front Panel Ports
Front USB	2 x USB 3.0 2 x Internal USB 2.0 via header

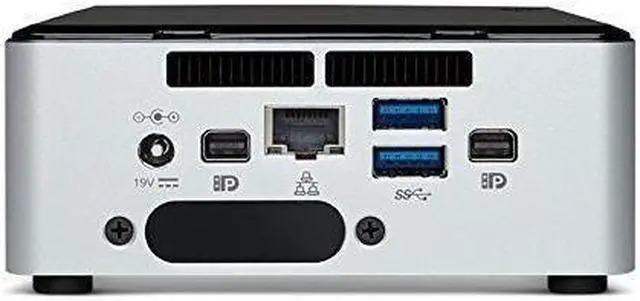

Back Panel Ports
DisplayPort	2 x Mini-DP 1.2
Rear USB	2 x USB 3.0

Features
Features	The Intel NUC with a 5th generation Intel Core i3 processor packs a wealth of features in a compact design. This highly versatile computing solution provides a powerful engine to drive intelligent computing into small spaces, while still allowing internal support for 2.5-inch drives. And with its three-year supply availability, the Intel NUC Kit NUC5i5MYHE will be around to support long development and production ramp cycles. Additional Features Discrete Trusted Platform Module (TPM v2.0) Watchdog timer (hard-coded to board reset) Backpanel serial port expandability (via 3rd party cable) Support for user-replaceable 3rd party lids High-Speed Custom Solutions connector (PCIe x4, SATA) Custom Solutions header (DMIC, AppLaunch GPIO, HDMI_CEC, SMBus, I2C[0:1], GPIO[0:1], 3.3/5 Vstby power), and NFC header 2x Serial ports via header (TXD/RXD/RTS/CTS, w/5V x-ceivers) Power connectors: 12-19V DC (back panel), 12-24V DC (internal) OS certs: Windows 7 & 8.1 OS compatibility: Ubuntu, Linux Mint, Fedora, OpenSUSE, … VESA mount bracket and mounting hole support Low-acoustics active cooling design Kensington lock support Integration Guide

Additional Information
First Listed on Newegg	June 10, 2016

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 3 years
Limited Warranty period (labor): 3 years
Read full details

Return Policies

Return for refund within: Non-refundable

Return for replacement within: 30 days

This item is covered by Newegg.com's Replacement Only Return Policy.
Read full return policy for details.

Manufacturer Contact Info

Manufacturer Product Page
Manufacturer Website
Support Phone: 1-916-377-7000
Support Website
