Arducam IMX477 Autofocus and Software-Controlled Focus HQ Camera, 12MP 100° FOV Camera Module Compatible with Nvidia Jetson Nano/Xavier NX, M12 Lens
- Motorized Focus: Smarter focus control than Official IMX477 High Quality Camera, no more hand touching needed; 2 modes of control focus: Fine-tune the focus with keyboard arrow keys; Autofocus with OpenCV examples.
- No Hassle to Use: Focus motor controlled via camera I2C. No hardware modification required.
- High Quality Imaging: Keep the high image quality of 1/2.3 12.3 Megapixel IMX477 sensor, max. still resolution 4056(H) x 3040(V). IR sensitivity: Visible Light Only; Field of View (FoV): 100(D)/87(H)/71(V)
- Application: Highly recommended for a home surveillance system, monitoring 3D Printer, object recognition and tracking or other machine vision application demand high resolution camera with motorized control.
- NOTE: It can also be used on the Raspberry Pi Compute Module (like CM3, CM3+), but is not compatible with standard Raspberry Pi models (like Raspberry Pi 3/3B+/4).
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

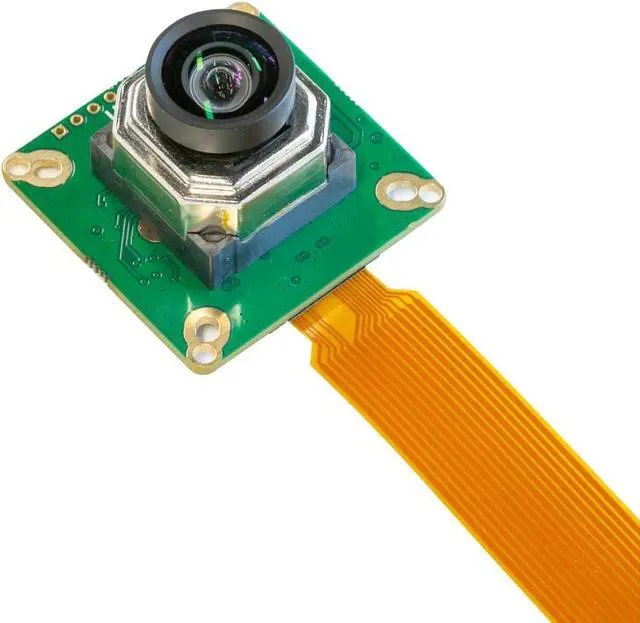

Arducam IMX477 Autofocus and Software-Controlled Focus HQ Camera for Jetson Nano This Arducam IMX477 High Quality motorized focus camera module integrates a motor that could be controlled by software for a smarter focus, and you will no longer focus the camera by screwing the lens with your bare hands.

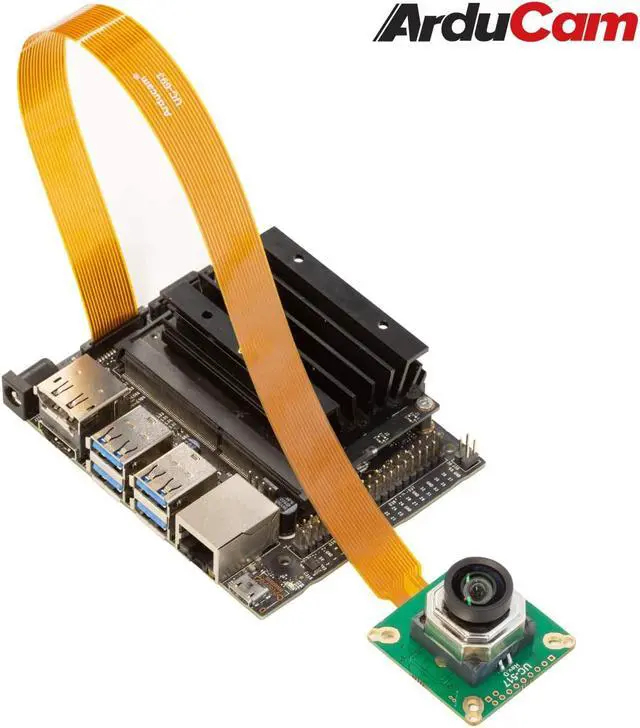

Other than its motorized focus, it offers the same picture quality and camera controls as the Raspberry Pi High Quality camera. However, the Arducam High Quality Camera Modules do not require any hardware modifications to work with the Jetson Nano/Xavier NX Platform.
Autofocus Keyboard keys or OpenCV can be used to remotely control the focusing process of your HQ camera.
Model No: M23390H08
Optical Format: 1/2.3
Focal Length: 3.9mm
Aperture: F2.8
Field of View (FOV): 75° (H) on Raspberry Pi High Quality Camera, 50°(H) on Raspberry Pi V1/V2 Camera
Mount: M12 mount
Back Focal Length: 4.49mm
MOD: 0.3m
Dimension: 14×18.67mm
Weight: 5g
Specification Sensor Model: IMX477
Shutter Type: Rolling shutter
Sensor resolution: 4056 x 3040 pixels, 12.3MP
Image Sensor Format: Type 1/2.3
Pixel Size: 1.55 m x 1.55 m
Focus Distance: 80mm to infinity
Frame Rate: Due to Jetson Xavier NX/Nano hardware only supports 4K@30fps h.264/h.265 encoding, you cannot use it for 4K@60fps.
Package Contents

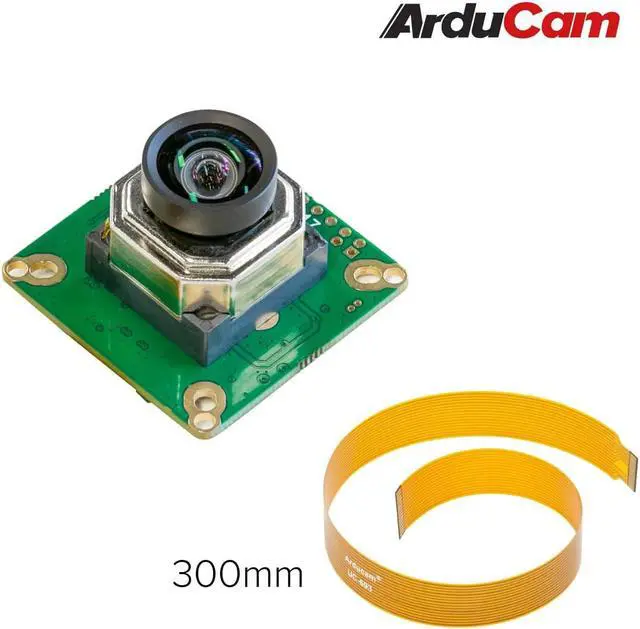

1 × Arducam 12MP IMX477 Motorized Focus High Quality Camera for Jetson Nano and Jetson Xavier NX
1 × 300mm 15pin-22pin flex ribbon cable
Other than its motorized focus, it offers the same picture quality and camera controls as the Raspberry Pi High Quality camera. However, the Arducam High Quality Camera Modules do not require any hardware modifications to work with the Jetson Nano/Xavier NX Platform.
Autofocus Keyboard keys or OpenCV can be used to remotely control the focusing process of your HQ camera.
Model No: M23390H08
Optical Format: 1/2.3
Focal Length: 3.9mm
Aperture: F2.8
Field of View (FOV): 75° (H) on Raspberry Pi High Quality Camera, 50°(H) on Raspberry Pi V1/V2 Camera
Mount: M12 mount
Back Focal Length: 4.49mm
MOD: 0.3m
Dimension: 14×18.67mm
Weight: 5g
Specification Sensor Model: IMX477
Shutter Type: Rolling shutter
Sensor resolution: 4056 x 3040 pixels, 12.3MP
Image Sensor Format: Type 1/2.3
Pixel Size: 1.55 m x 1.55 m
Focus Distance: 80mm to infinity
Frame Rate: Due to Jetson Xavier NX/Nano hardware only supports 4K@30fps h.264/h.265 encoding, you cannot use it for 4K@60fps.
Package Contents
1 × Arducam 12MP IMX477 Motorized Focus High Quality Camera for Jetson Nano and Jetson Xavier NX
1 × 300mm 15pin-22pin flex ribbon cable
