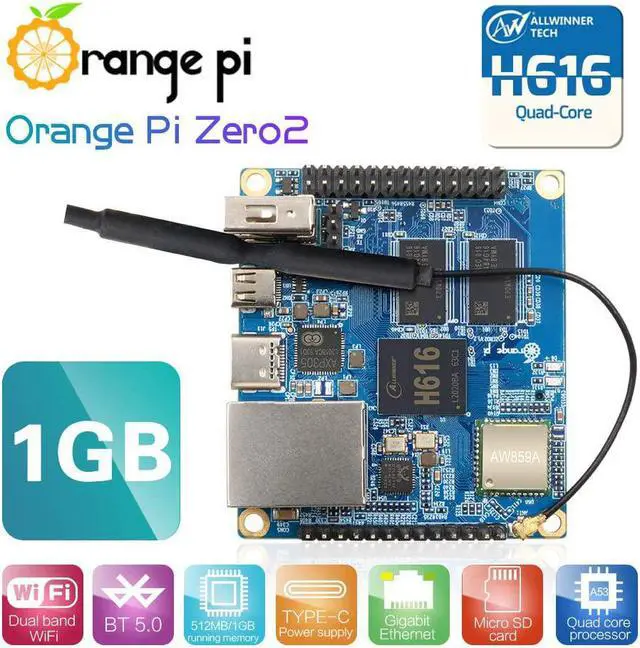

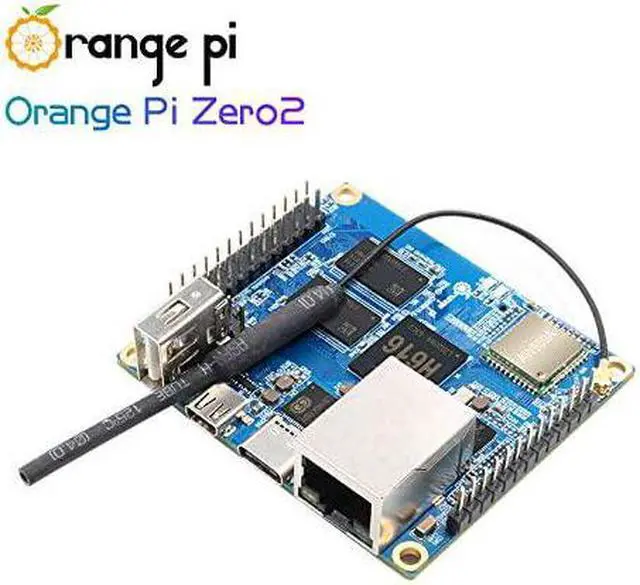

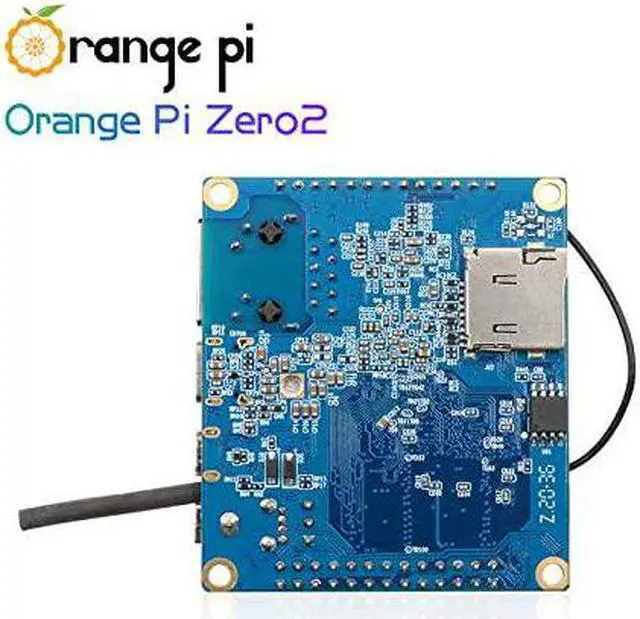

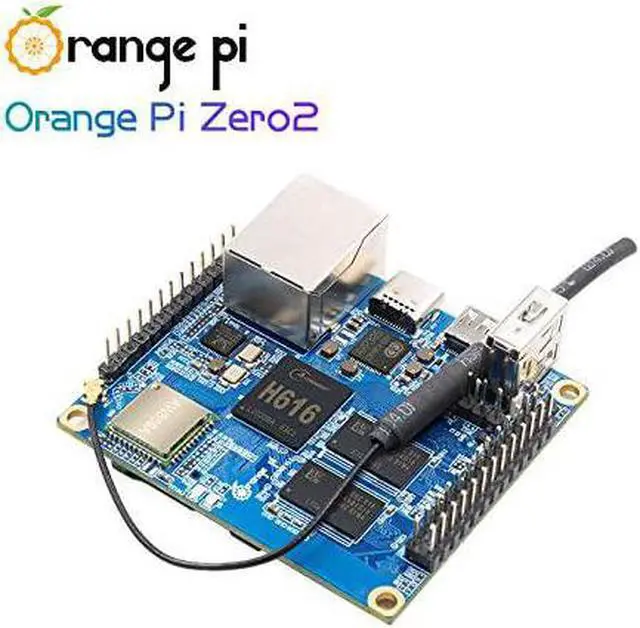

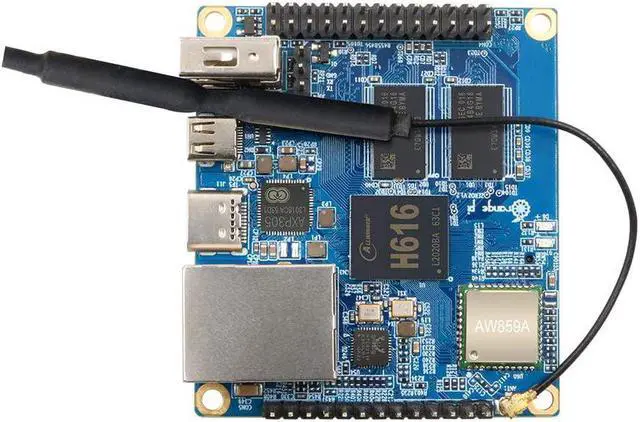

Orange Pi Zero2 1GB Allwinner H616 Quad Core Open-Source 1000M Ethernet Single Board Computer, Support Android10, Ubuntu, Debian (Zero 2)
Limited time offer, ends 07/18 By TERRA HAVEN
- Notice before order: By default, we won't responsible for customs clearance fee charged by your local. If you have any questions, pls contact with Amazon service.
- Orange pi zero2 - Tips for Using Orange Pi SBC-Boot up If the OS is not burned, and only power on, there will be no lights on. Burn the correct OS, power on the card, and the light will only light up after the OS is started.
- *CPU: Allwinner H616 64-bit high-performance Quad-core Cortex-A53 processor *GPU: Mali G31 MP2, Supports OpenGL ES 1.0/2.0/3.2OpenCL 2.0
- *Memory(SDRAM): 1GB DDR3 (Shared with GPU *Onboard Storage: TF card slot 2MB SPI Flash
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

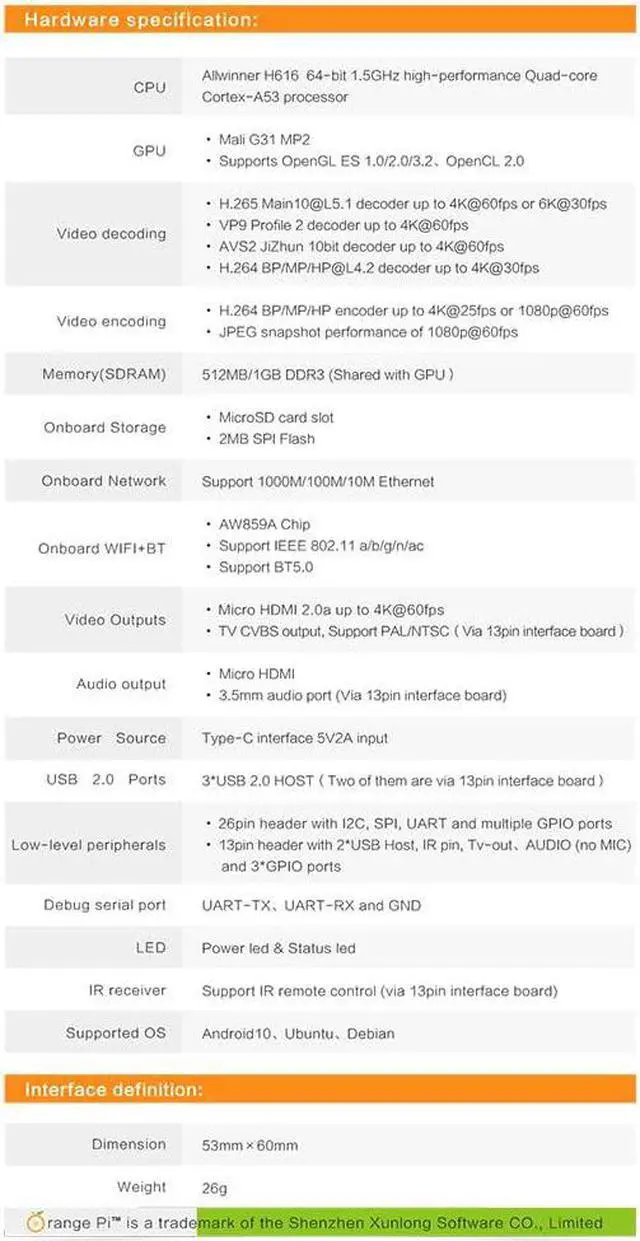

CPU:Allwinner H616 64-bit high-performance Quad-core Cortex-A53 processor
GPU:Mali G31 MP2 Supports OpenGL ES 1.0/2.0/3.2OpenCL 2.0
Video decoding: H.265 [email protected] decoder up to 4K@60fps or 6K@30fps VP9 Profile 2 decoder up to 4K@60fps AVS2 JiZhun 10bit decoder up to 4K@60fps H.264 BP/MP/[email protected] decoder up to 4K@30fps
Video encoding: H.264 BP/MP/HP encoder up to 4K@25fps or 1080p@60fps JPEG snapshot performance of 1080p@60fps
Memory(SDRAM):512MB/1GB DDR3 (Shared with GPU
Onboard Storage: TF card slot 2MB SPI Flash
Onboard Network:Support 1000M/100M/10M Ethernet
Video Outputs: Micro HDMI 2.0a up to 4K@60fps TV CVBS output, Support PAL/NTSCVia 13pin interface board
Audio output: Micro HDMI 3.5mm audio port (Via 13pin interface board)
Power?Source:Type-C interface 5V2A input
USB?2.0?Ports:3*USB 2.0 HOSTTwo of them are via 13pin interface board
Low-level peripherals: 26pin header with I2C, SPI, UART and multiple GPIO ports 13pin header with 2*USB Host, IR pin, Tv-outAUDIO (no MIC) and 3 GPIO ports
Debug serial port:UART-TXUART-RX and GND
LED:Power led & Status led
IR receiver:Support IR remote control (via 13pin interface board)
Supported OS:Android10UbuntuDebian
Dimension:53mm×60mm
Weight:30g
GPU:Mali G31 MP2 Supports OpenGL ES 1.0/2.0/3.2OpenCL 2.0
Video decoding: H.265 [email protected] decoder up to 4K@60fps or 6K@30fps VP9 Profile 2 decoder up to 4K@60fps AVS2 JiZhun 10bit decoder up to 4K@60fps H.264 BP/MP/[email protected] decoder up to 4K@30fps
Video encoding: H.264 BP/MP/HP encoder up to 4K@25fps or 1080p@60fps JPEG snapshot performance of 1080p@60fps
Memory(SDRAM):512MB/1GB DDR3 (Shared with GPU
Onboard Storage: TF card slot 2MB SPI Flash
Onboard Network:Support 1000M/100M/10M Ethernet
Video Outputs: Micro HDMI 2.0a up to 4K@60fps TV CVBS output, Support PAL/NTSCVia 13pin interface board
Audio output: Micro HDMI 3.5mm audio port (Via 13pin interface board)
Power?Source:Type-C interface 5V2A input
USB?2.0?Ports:3*USB 2.0 HOSTTwo of them are via 13pin interface board
Low-level peripherals: 26pin header with I2C, SPI, UART and multiple GPIO ports 13pin header with 2*USB Host, IR pin, Tv-outAUDIO (no MIC) and 3 GPIO ports
Debug serial port:UART-TXUART-RX and GND
LED:Power led & Status led
IR receiver:Support IR remote control (via 13pin interface board)
Supported OS:Android10UbuntuDebian
Dimension:53mm×60mm
Weight:30g
