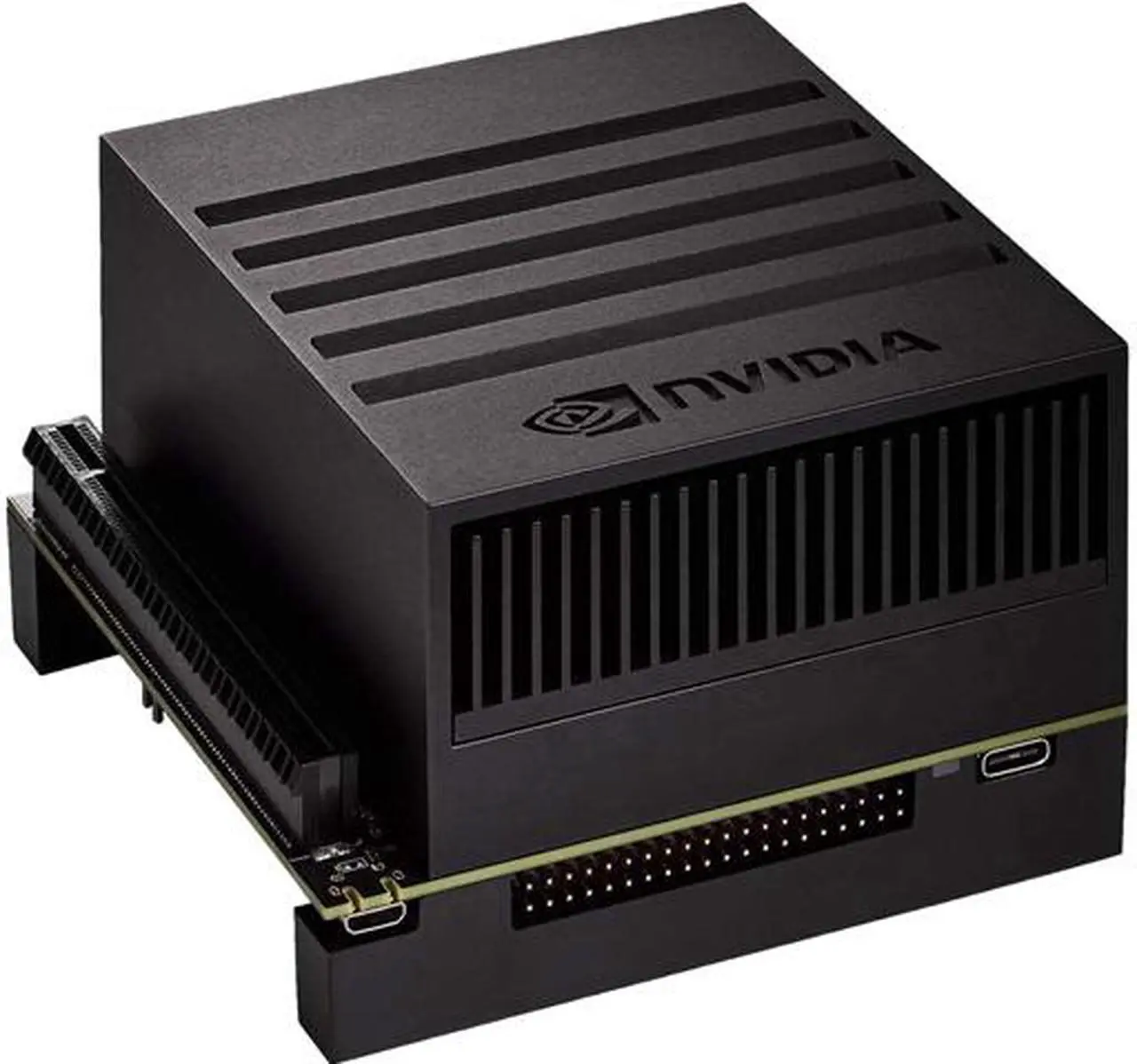

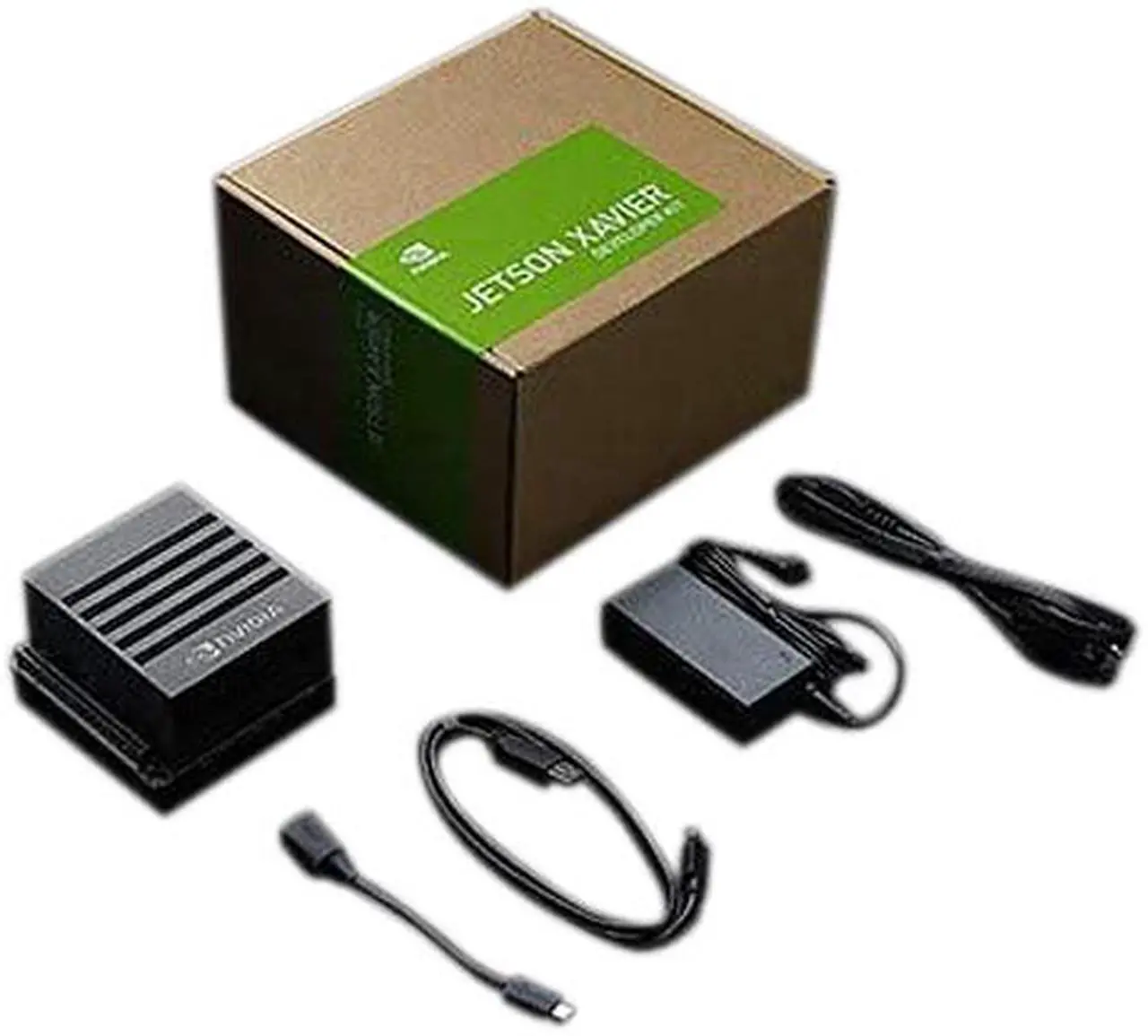

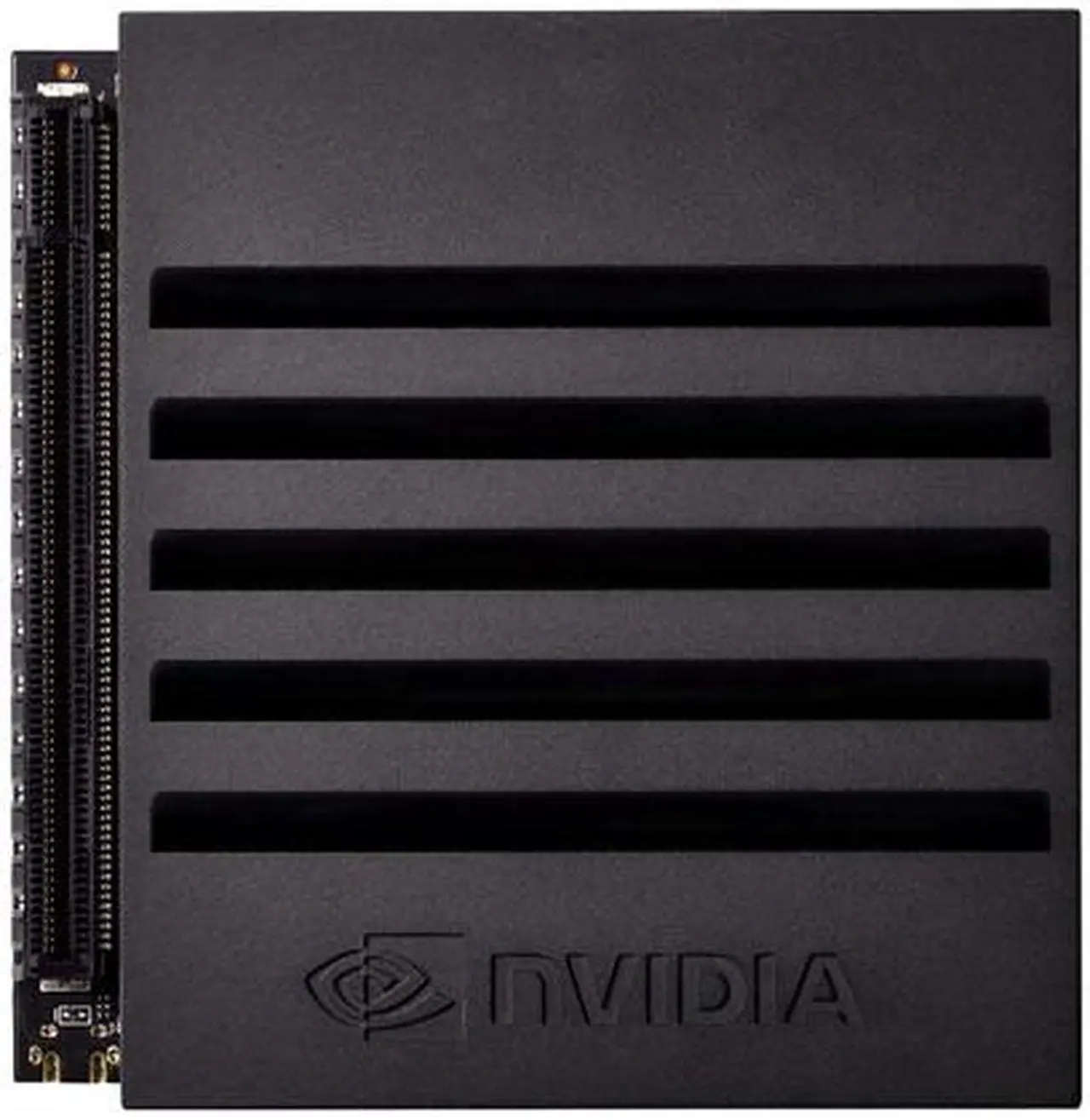

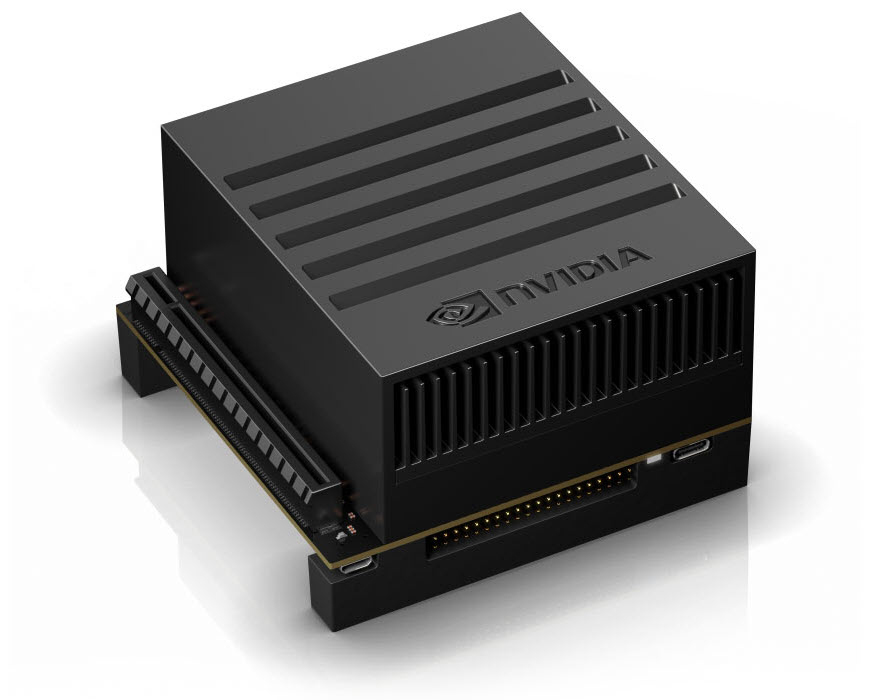

Jetson AGX Xavier Developer Kit
Easily create and deploy end-to-end AI robotics applications for your business with the NVIDIA Jetson AGX Xavier developer kit. The new Jetson AGX Xavier module is powered by NVIDIA Xavier processor that delivers outstanding AI performance in an efficient way. With NVIDIA's JetPack SDK and other software libraries, you have all the tools needed to get started right away.
Powerful yet Power Efficient
Integrating 512-core Volta GPU, 8-core ARM 64-bit CPU, and 32GB LPDDR4x RAM, Jetson AGX Xavier delivers the performance of a GPU workstation in an embedded module under just 30W.
Built for Expansion
Easily connect to other devices and add expansion modules with plenty of ports and slots.
Easy to Deploy
Jetson AGX Xavier is supported by the NVIDIA JetPack SDK, which can help you save big by reducing development effort and expense.
| JETSON AGX XAVIER | |
|---|---|
| GPU | 512-core Volta GPU with Tensor Cores |
| CPU | 8-core ARM v8.2 64-bit CPU, 8MB L2 + 4MB L3 |
| Memory | 32GB 256-Bit LPDDR4x | 137GB/s |
| Storage | 32GB eMMC 5.1 |
| DL Accelerator | (2x) NVDLA Engines |
| Vision Accelerator | 7-way VLIW Vision Processor |
| Encoder/Decoder | (2x) 4Kp60 | HEVC/(2x) 4Kp60 | 12-Bit Support |
| Size | 105 mm x 105 mm x 65 mm |
| Deployment | Module (Jetson AGX Xavier) |
| DEVELOPER KIT I/OS | |
|---|---|
| Developer Kit I/Os | Jetson AGX Xavier Module Interface |
| PCIe X16 | x8 PCIe Gen4/x8 SLVS-EC |
| RJ45 | Gigabit Ethernet |
| USB-C | 2x USB 3.1, DP (Optional), PD (Optional) Close-System Debug and Flashing Support on 1 Port |
| Camera Connector | (16x) CSI-2 Lanes |
| M.2 Key M | NVMe |
| 40-Pin Header | UART + SPI + CAN + I2C + I2S + DMIC + GPIOs |
| HD Audio Header | High-Definition AudioHigh-Definition Audio |
| eSATAp + USB3.0 Type A | SATA Through PCIe x1 Bridge (PD + Data for 2.5-inch SATA) + USB 3.0 |
| HDMI Type A | HDMI 2.0 |
| uSD/UFS Card Socket | SD/UFS |
