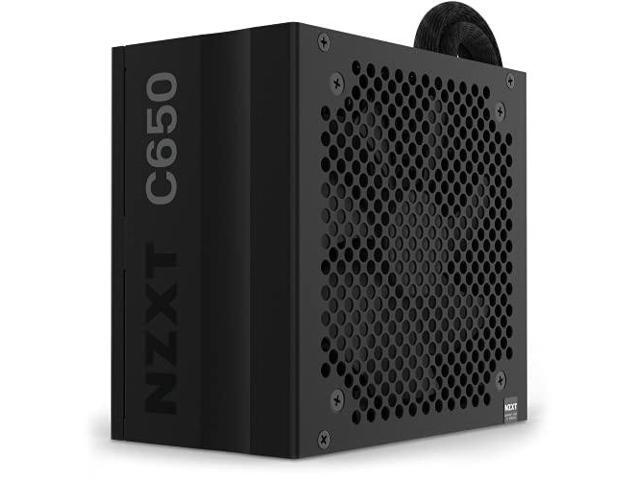

Main image of NZXT C650 650 W ATX12V v2.4 / EPS12V v2.92 80 PLUS BRONZE Certified Semi-Modular Active PFC Power Supply

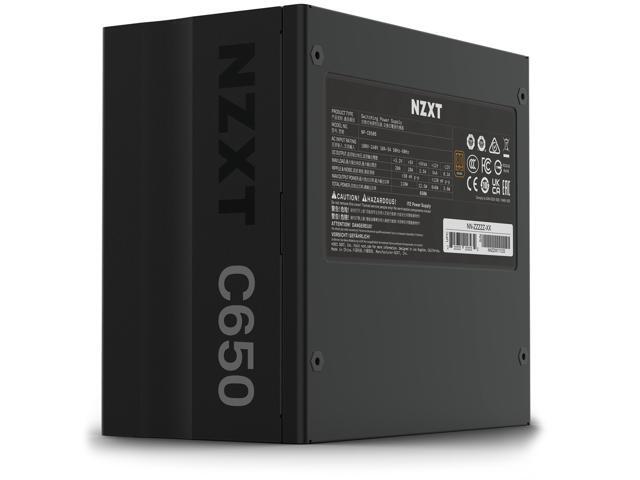

Alt view image 2 of 10 - NZXT C650 650 W ATX12V v2.4 / EPS12V v2.92 80 PLUS BRONZE Certified Semi-Modular Active PFC Power Supply

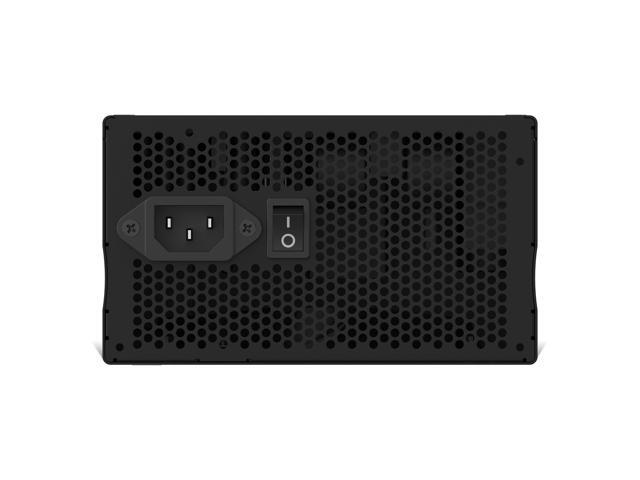

Alt view image 3 of 10 - NZXT C650 650 W ATX12V v2.4 / EPS12V v2.92 80 PLUS BRONZE Certified Semi-Modular Active PFC Power Supply

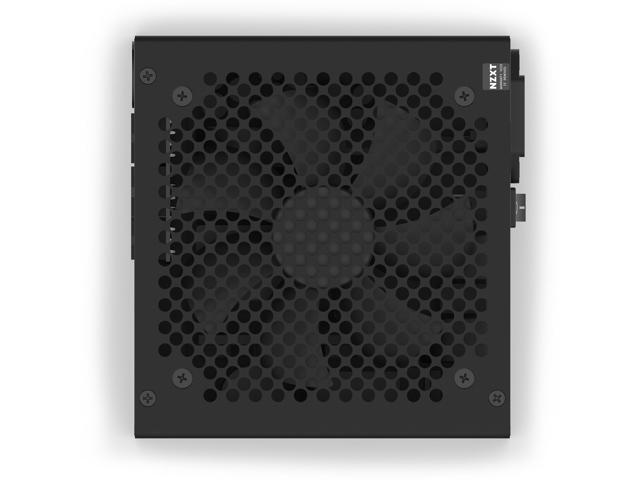

Alt view image 4 of 10 - NZXT C650 650 W ATX12V v2.4 / EPS12V v2.92 80 PLUS BRONZE Certified Semi-Modular Active PFC Power Supply

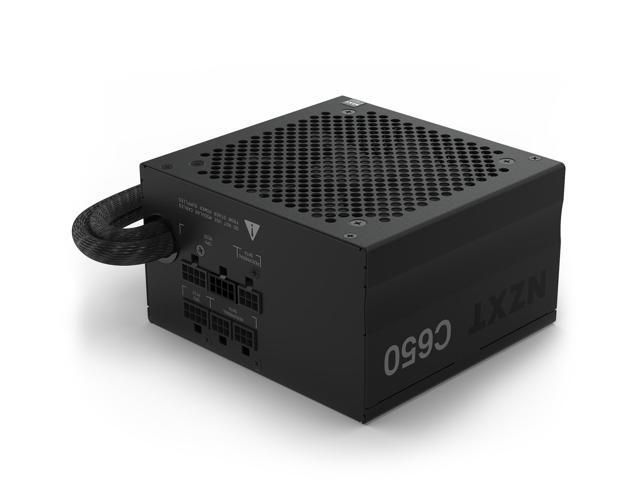

Alt view image 5 of 10 - NZXT C650 650 W ATX12V v2.4 / EPS12V v2.92 80 PLUS BRONZE Certified Semi-Modular Active PFC Power Supply

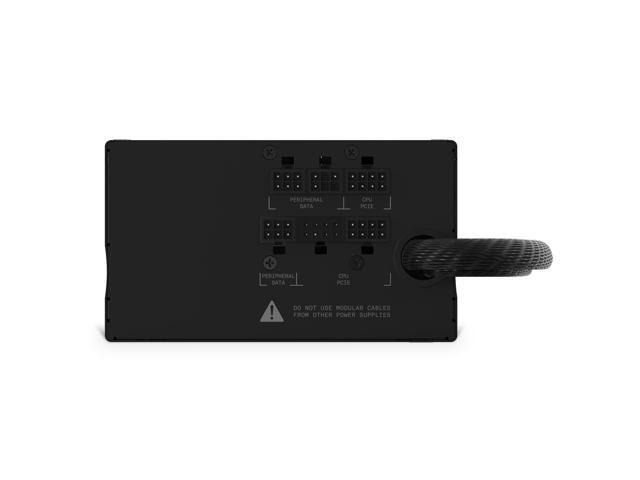

Alt view image 6 of 10 - NZXT C650 650 W ATX12V v2.4 / EPS12V v2.92 80 PLUS BRONZE Certified Semi-Modular Active PFC Power Supply

Alt view image 7 of 10 - NZXT C650 650 W ATX12V v2.4 / EPS12V v2.92 80 PLUS BRONZE Certified Semi-Modular Active PFC Power Supply

Alt view image 8 of 10 - NZXT C650 650 W ATX12V v2.4 / EPS12V v2.92 80 PLUS BRONZE Certified Semi-Modular Active PFC Power Supply

Alt view image 9 of 10 - NZXT C650 650 W ATX12V v2.4 / EPS12V v2.92 80 PLUS BRONZE Certified Semi-Modular Active PFC Power Supply

Alt view image 10 of 10 - NZXT C650 650 W ATX12V v2.4 / EPS12V v2.92 80 PLUS BRONZE Certified Semi-Modular Active PFC Power Supply

Shop All NZXT Products

NZXT C650 650 W ATX12V v2.4 / EPS12V v2.92 80 PLUS BRONZE Certified Semi-Modular Active PFC Power Supply

Be the first to review this product...

ATX12V v2.4 / EPS12V v2.92
Semi-Modular
80 PLUS BRONZE Certified
115 / 230 V 47 - 63 Hz

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews

See all Q & A

Any questions? Ask Celeste^SM will help you find out quickly.

Try me now

NZXT C650 Bronze - 650-Watt

General
Brand	NZXT
Model	C650

Details
Type	ATX12V v2.4 / EPS12V v2.92
Maximum Power	650 W
Modular	Semi-Modular
Fans	1 x 120 mm FDB fan
PFC	Active
Main Connector	24Pin
+12V Rails	Single
PCI-Express Connector	4 x 6+2-Pin
SATA Power Connector	6
Energy-Efficient	80 PLUS BRONZE Certified
Input Voltage	115 / 230 V
Input Frequency Range	47 - 63 Hz
Input Current	10 - 5 A
MTBF	>100,000 Hours
Approvals	CB / CE / FCC / TUV / cTUV-SUDus / China CCC / Taiwan BSMI R33245/ Australia RCM / EAC / UKCA / WEEE

Dimension & Weight
Dimensions	3.39" x 5.91" x 5.51"

Details
Connectors	1 x 24 pin ATX 2 x 8 pin (4+4) EPS (CPU) 4 x 8 pin (6+2) PCIe 6 x SATA 3 x 4 pin Peripheral

General
Part Number	PA-5B1BB-US

Details
Color	Black
Max PSU Length	140 mm

Package
Package Content	NZXT C650 Bronze PSU 24-pin ATX power (550mm) 2 x 4+4-Pin CPU Power Cables 2 x 6+2-pin PCIe Power Cable 2 x SATA Cable Peripherals Cable 4 x 6-32 Screws

Additional Information
First Listed on Newegg	January 04, 2022

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 5 years
Limited Warranty period (labor): 5 years
Read full details

Return Policies

Return for refund within: 30 days
Return for replacement within: 30 days
This item is covered by Newegg.com's 30-Day Return Policy.
Read full return policy for details.

NZXT C650 650 W ATX12V v2.4 / EPS12V v2.92 80 PLUS BRONZE Certified Semi-Modular Active PFC Power Supply
