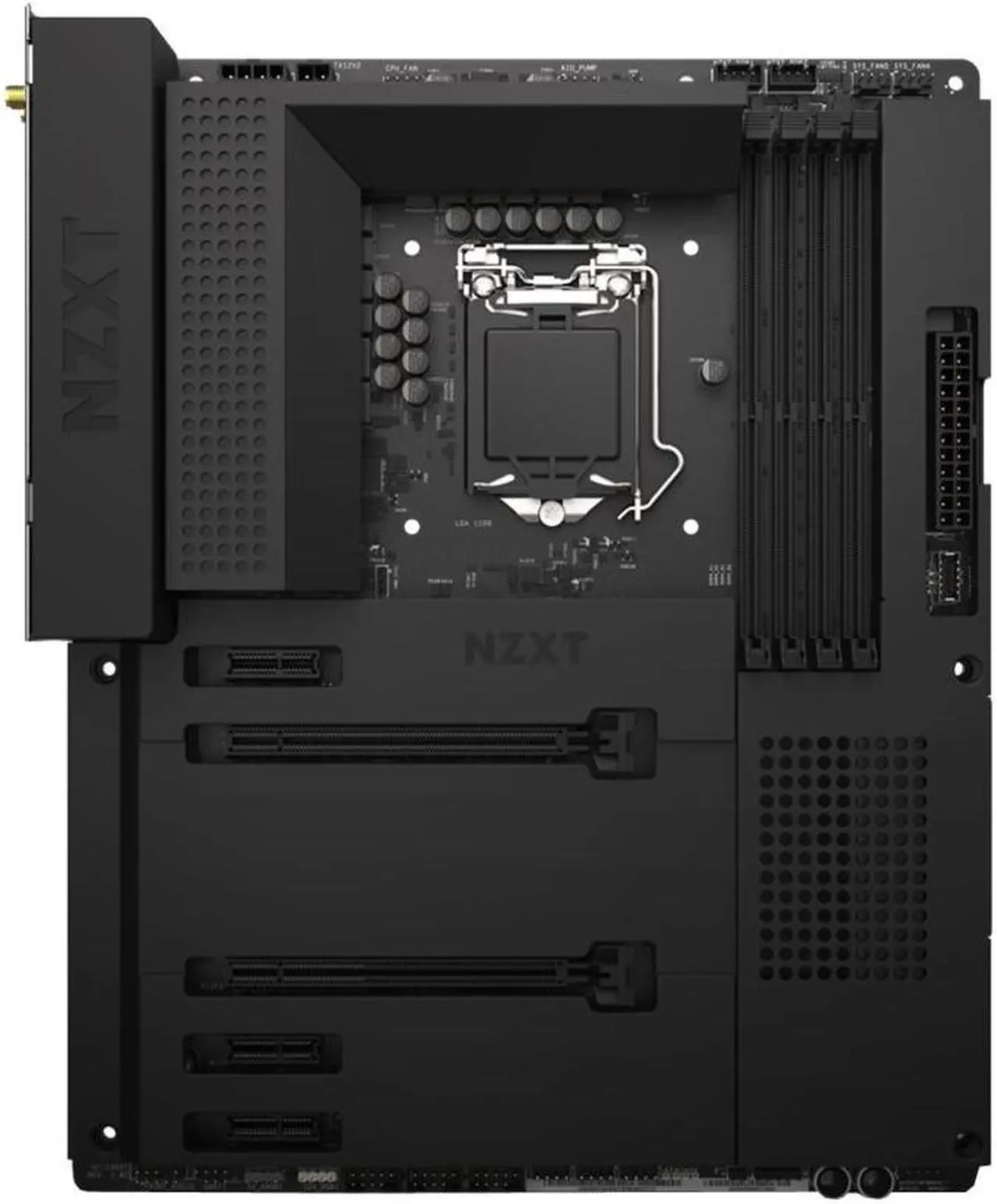

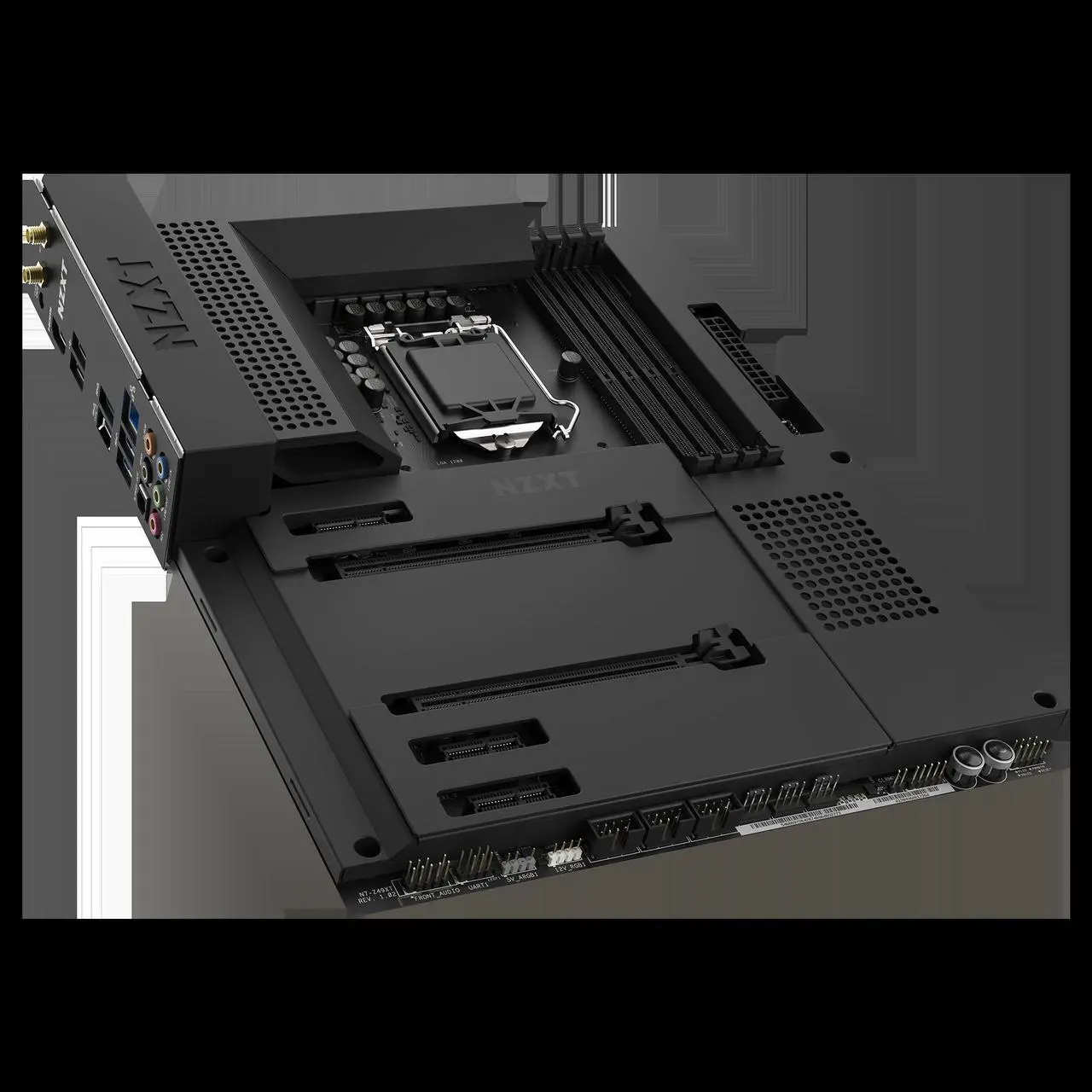

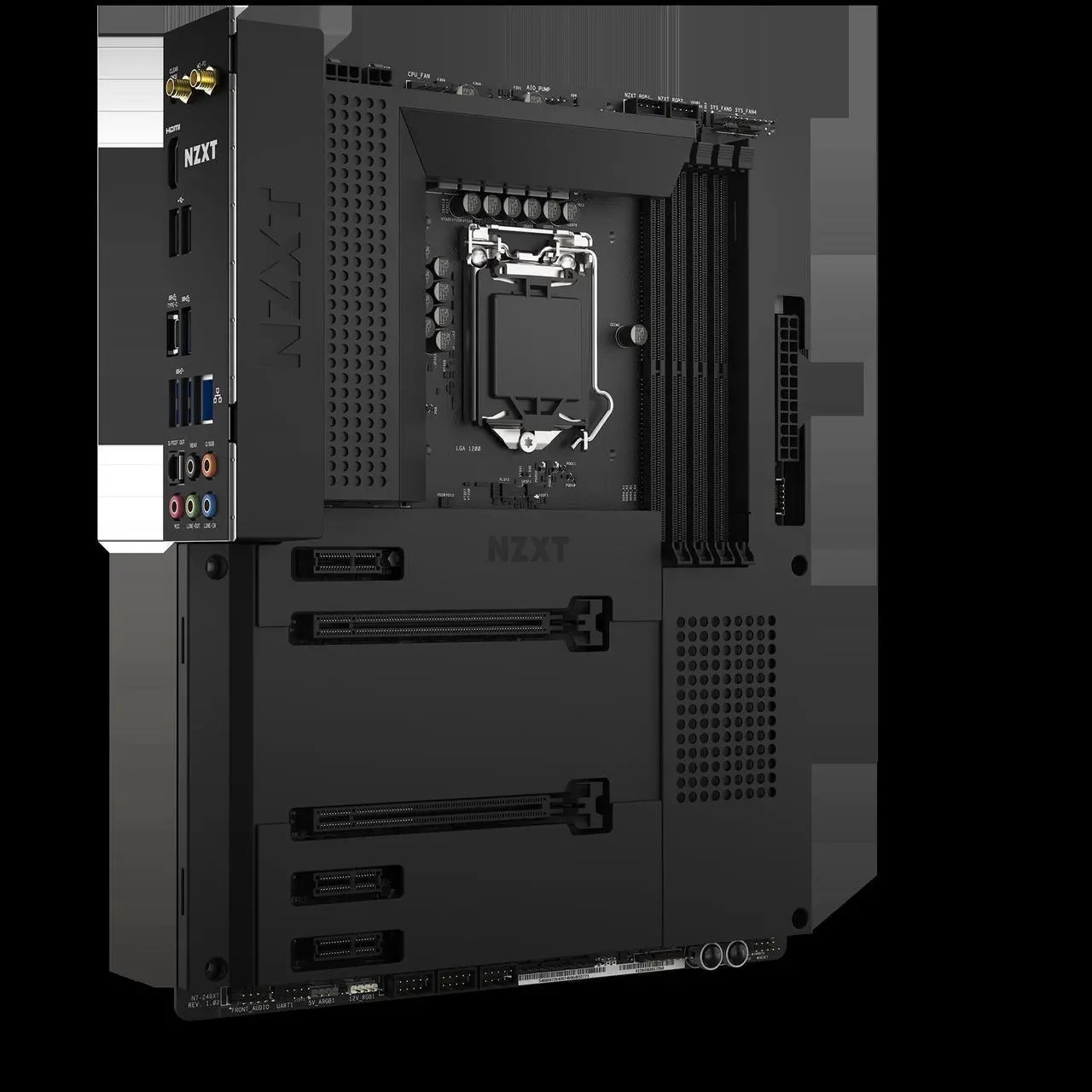

NZXT N7 Z490 Matte Black NZT-N7-Z49XT-B1 LGA 1200 Intel Z490 SATA 6Gb/s ATX Intel Motherboard
- Intel Z490
- LGA socket 1200 for Intel 10th Generation Core i9/ Core i7/ Core i5/ Core i3 Processors
- Support Intel 14nm CPU
- 4266 (O.C.)/ 4133 (O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666(O.C.)/ 2400(O.C.)/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the NZXT NZT-N7-Z49XT-B1
| Brand | NZXT |
|---|---|
| Series | N7 Z490 Matte Black |
| Model | NZT-N7-Z49XT-B1 |
| CPU Socket Type | LGA 1200 |
|---|---|
| CPU Type | LGA socket 1200 for Intel 10th Generation Core i9/ Core i7/ Core i5/ Core i3 Processors Support Intel 14nm CPU |
| Supported CPU Technologies | Support Intel Turbo Boost Technology 2.0 |
| Chipset | Intel Z490 |
|---|
| Number of Memory Slots | 4x288pin (DDR4) |
|---|---|
| Memory Standard | 4266 (O.C.)/ 4133 (O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666(O.C.)/ 2400(O.C.)/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory |
| Maximum Memory Supported | 128GB |
| Channel Supported | Dual-channel memory architecture |
| PCI Express 3.0 x16 | 2 x PCIe 3.0 x16 (x16 or dual at 16/x4) |
|---|---|
| PCI Express x1 | 3 x PCIe 3.0 x1 |
| Serial ATA (SATA) | 4 x SATA 6Gb/s |
|---|---|
| M.2 | 1 x M.2 type 2242/2260/2280 (PCIe 3.0 x4 & SATA mode) 1 x M.2 type 2242/2260/2280 (PCIe 3.0 x4 mode only) |
| Intel Optane Ready | Yes |
| SATA RAID | 0/1/5/10 |
| Audio Chipset | Realtek ALC1220 Codec |
|---|---|
| Audio Channels | 8-Channel High Definition Audio, 32-bit /192KHz DAC Nichicon Fine Gold Series Audio Capacitors |
| LAN Chipset | Realtek RTL8125BG 2.5G LAN |
|---|---|
| Max LAN Speed | 2.5Gbps |
| Wireless LAN | Wi-Fi 802.11 a / b / g / n / ac / ax |
| Bluetooth | Bluetooth V5.1 |

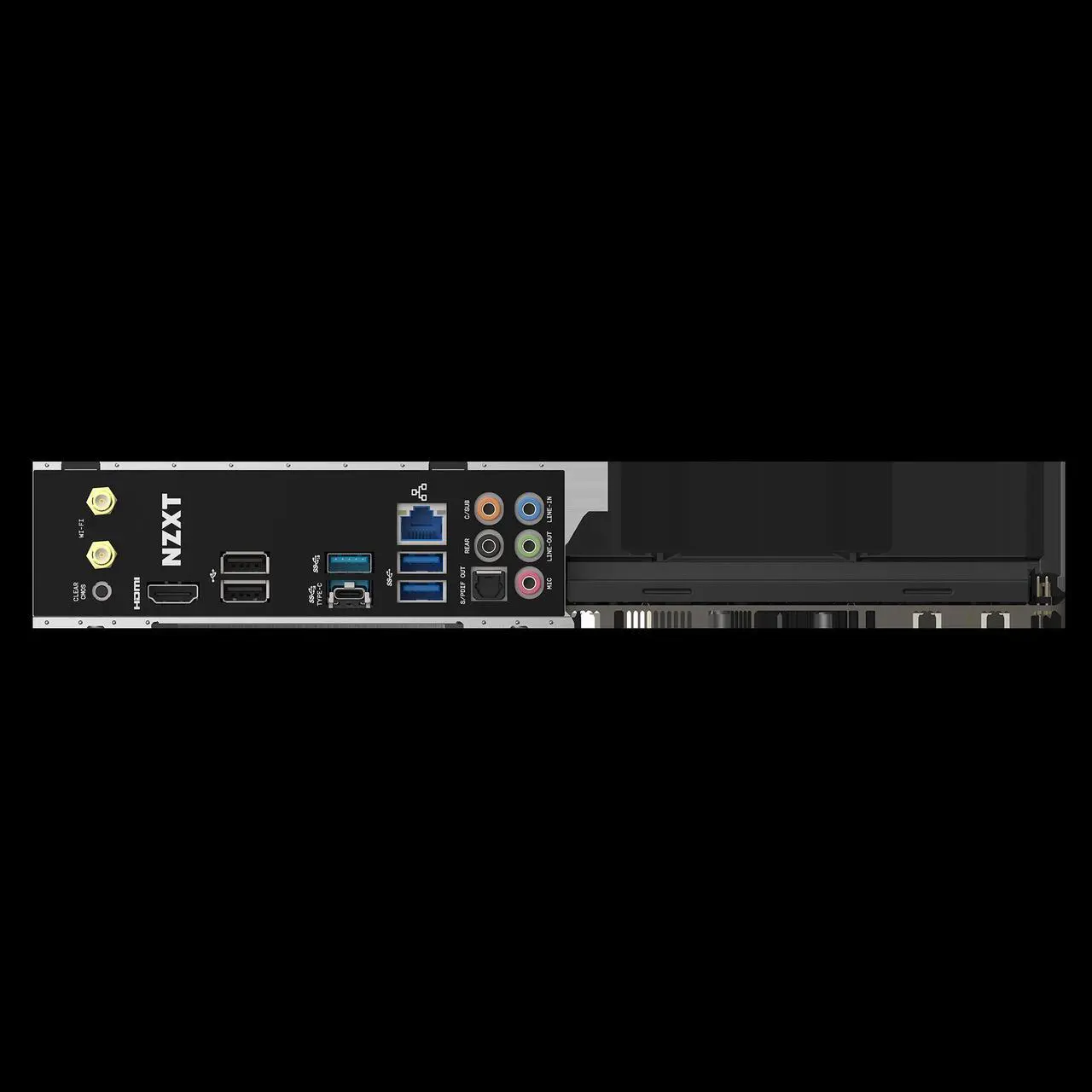

| Back I/O Ports | 1 x USB 3.2 Gen 2 port (Light Blue) 2 x USB 3.2 Gen 1 ports (Blue) 1 x USB 3.2 Gen 2 Type-C port 2 x USB 2.0 ports 1 x HDMI 1.4b 1 x 2x2 Wireless antenna 1 x Clear CMOS button 1 x LAN (RJ45) port 1 x Optical S/PDIF Out port 1 x 5.1-Channel audio jacks |
|---|
| Onboard USB | 1 x USB 3.2 Gen 2 ports (1 at back panel [blue]) 1 x USB 3.2 Gen 2 Type-C (at back panel) 1 x USB 3.2 Gen 2 front panel port (For USB Type-C) 4 x USB 3.2 Gen 1 ports (2 at back panel [blue], 2 at mid-board) 8 x USB 2.0 ports (2 at back panel, 6 at mid-board) |
|---|---|
| Other Connectors | 1 x 24-pin EATX power connector 1 x 8+4-pin ATX 12V power connector 1 x 4-pin CPU_FAN connector (Up to 24W per channel) 1 x 4-pin AIO_PUMP connector (Up to 24W per channel) 5 x 4-pin SYS_FAN connectors (Up to 24W per channel) 2 x NZXT RGB LED connectors 1 x 5V Addressable RGB LED connector 1 x 12V RGB LED connector 3 x USB 2.0 header (Up to 6 USB 2.0 ports) 1 x USB 3.2 Gen 1 header (Up to 2 USB 3.2 Gen 1 ports) 1 x USB 3.2 Gen 2 front panel header (For USB Type C) 4 x SATA 6Gb/s connectors 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage device support (PCIe 3.0 x4 & SATA mode) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage device support (PCIe 3.0 x4 mode only) 1 x M.2 Socket 1 with E Key, (For wireless cards, supports CNVio) 1 x Power button 1 x Reset button 1 x Front panel audio connector 4 x POST LEDs |
| Form Factor | ATX |
|---|---|
| Power Pin | 1 x 24-pin EATX power connector 1 x 8+4-pin ATX 12V power connector 1 x 4-pin CPU_FAN connector (Up to 24W per channel) 1 x 4-pin AIO_PUMP connector (Up to 24W per channel) 5 x 4-pin SYS_FAN connectors (Up to 24W per channel) |

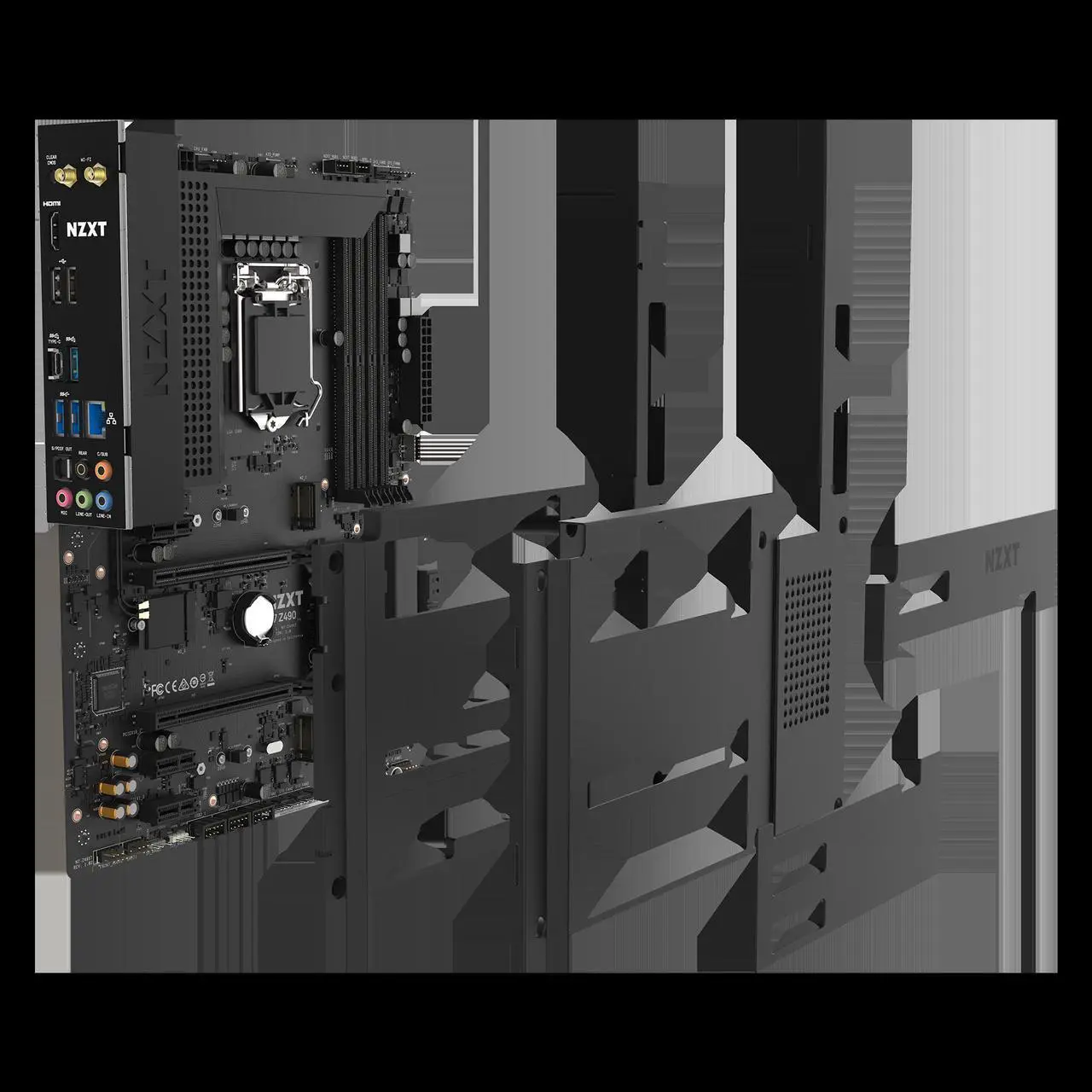

| Features | Designed around Intel’s Z490 chipset, the N7 Z490 delivers everything you need to build an incredible gaming PC. Features include built-in Wi-Fi 6 connectivity, integrated fan controller, RGB accessories supported across all manufacturers, and more. The motherboard cover perfectly matches the color and finish of your NZXT case, creating a visually seamless backdrop for your components The N7 Z490 includes key features from our RGB and Fan Controller, allowing intuitive control of four RGB lighting channels and seven fan channels through CAM. Lighting accessories from all manufactorers are supported. The N7’s white or black covers provide a clean design that blends seamlessly with your case. The N7 Z490 includes WiFi 6 connectivity and utilizes all PCI express lanes available from the CPU and chipset so everything works as intended. The N7’s layout streamlines installation with an integrated rear I/O shield and optimally placed headers for easier setup. |
|---|
| Date First Available | May 13, 2021 |
|---|
