NZXT PRC-550W-AP 550W ATX 12V V2.01 SLI Certified CrossFire Ready Active PFC Power Supply
- ATX 12V V2.01
- 115/ 230 V
Specs
Reviews (29)
Any questions? Our AI mode will help you find out quickly.
Try me now
Learn more about the NZXT PRC-550W-AP
| Brand | NZXT |
|---|---|
| Model | PRC-550W-AP |
| Type | ATX 12V V2.01 |
|---|---|
| Maximum Power | 550 W |

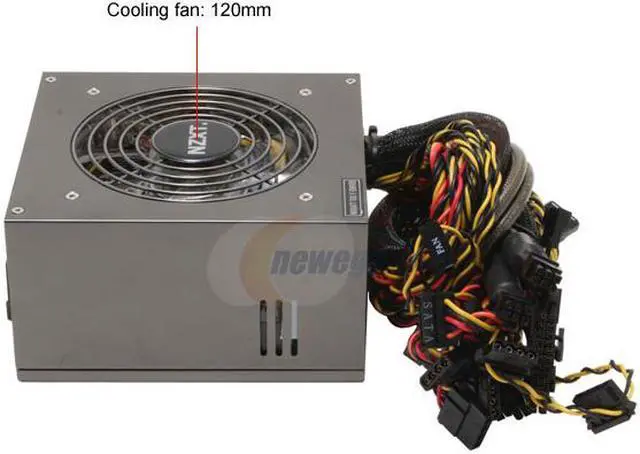

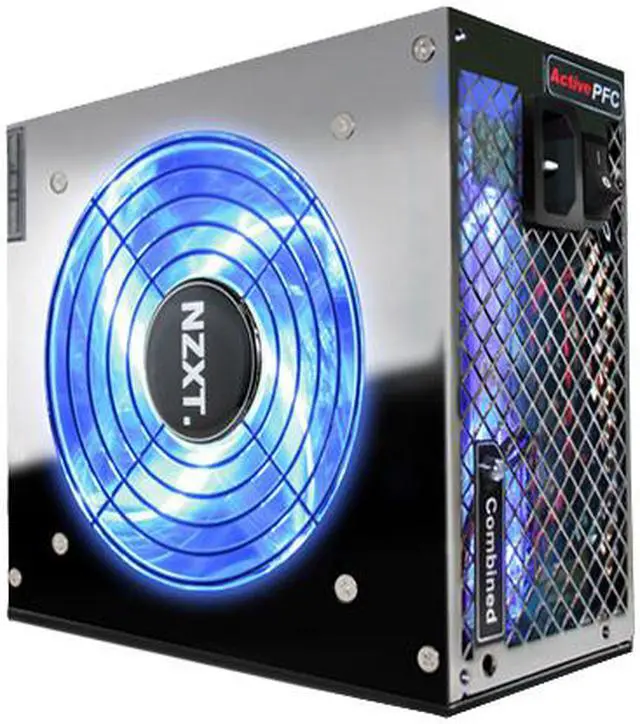

| Fans | 1 x blue LED 120mm fan |

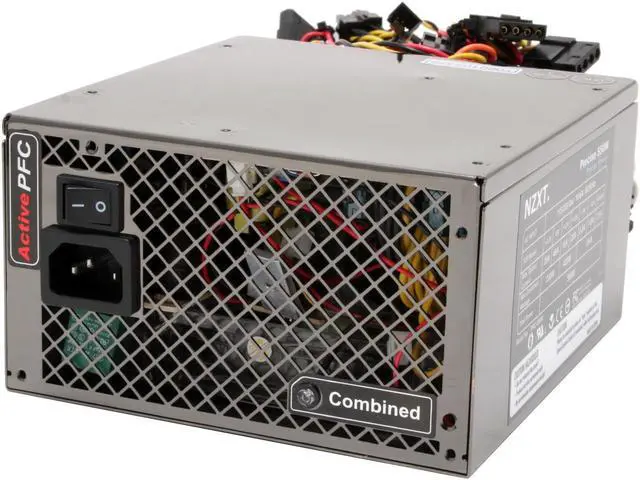

| PFC | Active |
| Main Connector | 20+4Pin |
| +12V Rails | 2 |
| PCI-Express Connector | 2 x 6-Pin |
| SLI | SLI Certified |
| CrossFire | CrossFire Ready |
| Modular | No |
| Hold-up Time | Minimum 16ms at full load, 115Vac Maximum 20ms at full load normal line |
| Efficiency | 70% at full load, normal line |
| Over Voltage Protection | Yes |
| Input Voltage | 115 / 230 V |
| Input Frequency Range | 50/60 Hz |
| Output | +3.3V@28A,+5V@46A,+12V1@18A,+12V2@20A,[email protected],[email protected],[email protected] |
| MTBF | Minimum 100,000 Hours at 75% load, 25°C ambient |
| Approvals | UL, CSA, TUV, CE, FCC |

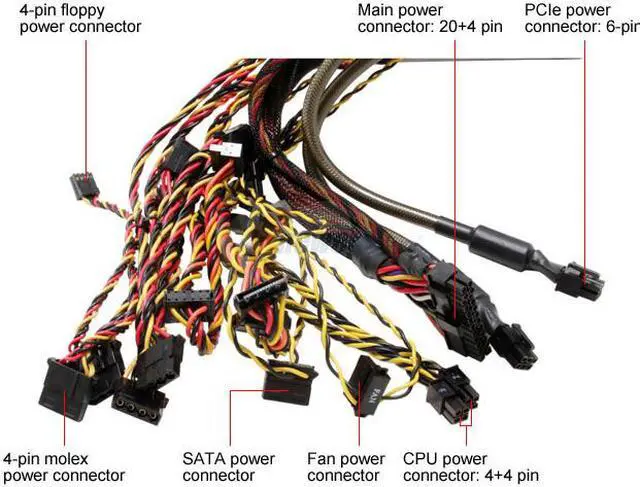

| Connectors | 1 x Main connector (20+4Pin) 1 x 12V(4+4Pin) 6 x peripheral 4 x SATA 2 x Floppy 2 x PCI-E 3 x Case Fan |
| Features | Intel CPU higher than 3.2 GHz / AMD K8 and downward compatibility Built for stability and less ripple noise keeping your devices safe while maintaining low noise via 120mm cooling fan. HUSH SILENT Technology keeps noise quietly below 30 dBA at full load. Current, Short circuit, Scan-Disk-Free, and Voltage Surge Protection |
|---|
| First Listed on Newegg | February 20, 2006 |
|---|
