The ultimate storage solution is here. OCZ RevoDrive 3 X2 PCI-Express Solid State Drives were designed with power users and workstation users in mind where storage I/O performance is essential for maximum productivity. Eliminating the SATA bottleneck, the PCIe-based RevoDrive X2 delivers ground-breaking 1.5GB/s of bandwidth and 230,000 4KB random write IOPS making this an ideal SSD for intensive multithreaded workloads, multimedia design, and workstation applications.
Along with unprecedented performance, the RevoDrive 3 X2 features OCZ’s Virtualized Controller Architecture (VCA) 2.0 which provides features including TRIM support and SMART data monitoring, something previously unheard of with PCIe solutions. In addition, the RevoDrive 3 X2’s Super Scale storage accelerator enables scalable SSD performance and significantly reduces the host CPU burden inherent to competing PCIe storage offerings. The RevoDrive 3 X2 series is a premium feature rich storage solution that delivers superior performance and reliability through innovative design.

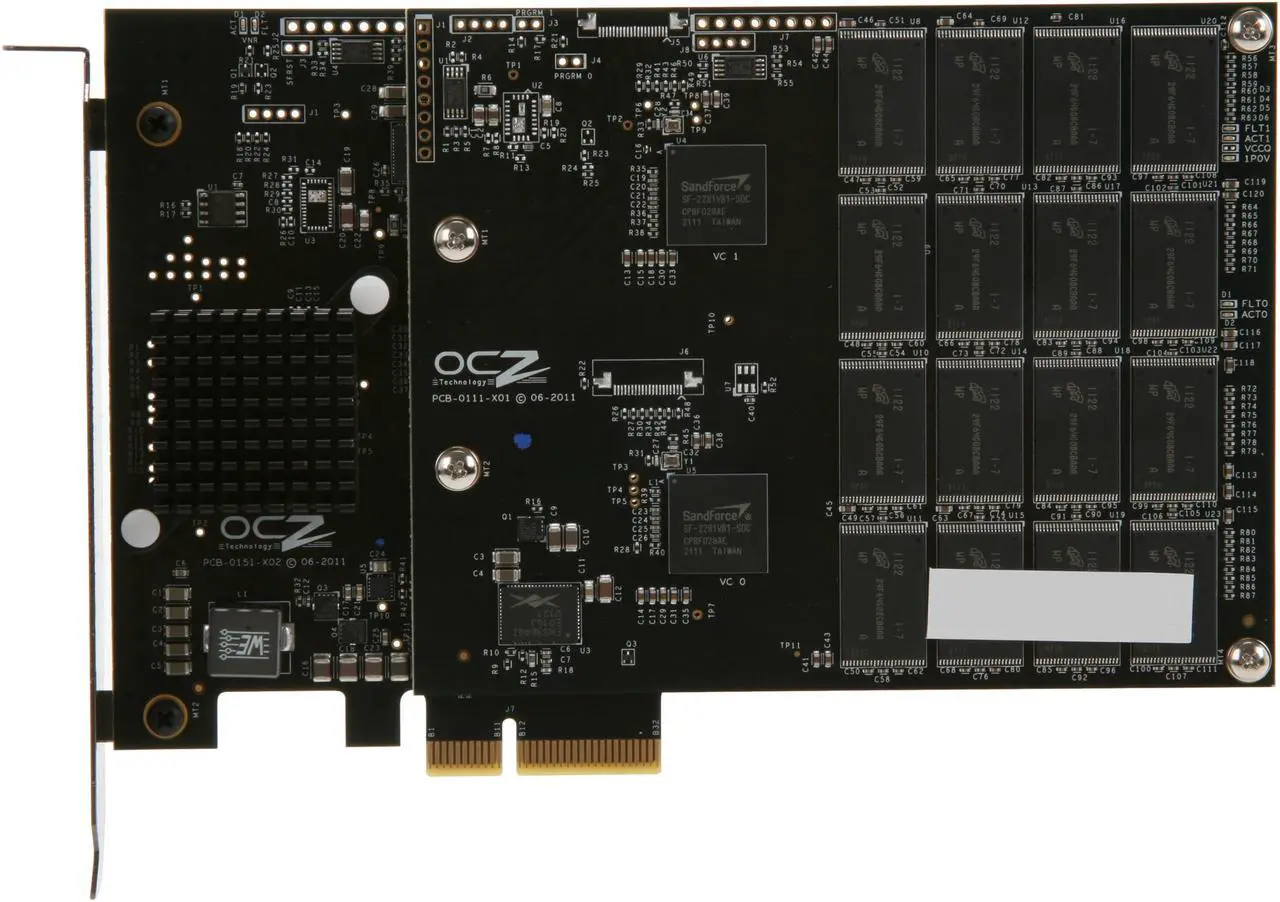

- Single Highest Performing SSD in Prosumer SpaceThe RevoDrive3 X2 family gets its edge by employing a PCIe x4 Gen. 2 interface and four SandForce SF-2281 controllers in RAID 0 design to maximize data access and bandwidth. The result is up to 3X faster performance than SATA 6Gb/s solutions - up to 1500MB/s read and 1250MB/s write speeds, and incredible random write up to 230,000 IOPS (4KB Aligned) under HPC or workstation workload with a single card solution. The RevoDrive3 X2 can take full advantage of today’s multithreaded processors and software, and delivers an easy-to-deploy, OS bootable large storage capacity solution.
- OCZ Virtualized Controller ArchitectureThe RevoDrive 3 X2 provides unique benefits to users by incorporating features from the VCA 2.0 flash virtualization software that allow certain direct memory access (DMA) and data management functions. Included in this feature-set are OCZ’s exclusive command queuing and queue balancing algorithms, which can be handled by the onboard processing core for higher performance and reduced burden on the host resources. VCA 2.0 is also the only virtualization layer in the industry with TRIM and SCSI unmap support to enhance sustained performance and provide greater endurance by significantly reducing the overhead associated with garbage collection. Furthermore, VCA also offers consolidated SMART support and provides system administrators with advanced features for monitoring, analyzing, and reporting device attributes.
- OCZ SuperScale Storage AcceleratorThe OCZ SuperScale storage controller combines processing and full DMA (direct memory access) cores, as well as internal PCIe, SATA and SAS interfaces. This controller, combined with VCA 2.0 provides unique benefits to users by allowing certain DMA and data management functions including OCZ’s unique command queuing and queue balance algorithms to be handled by the onboard processing core, resulting in higher performance and reduced burden on the host CPU.
