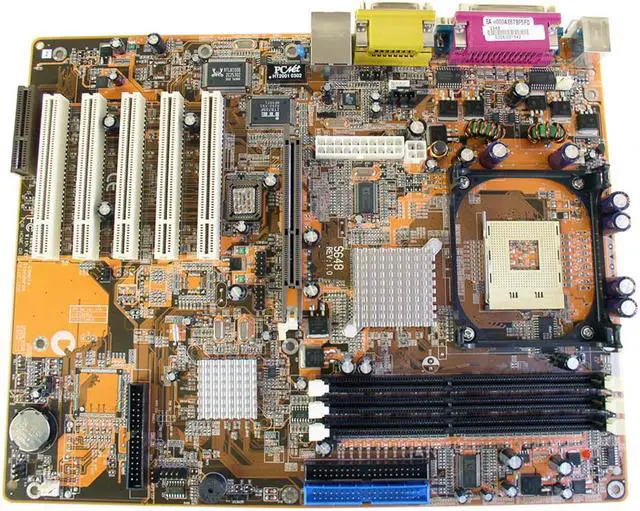

SYNTAX S648 Socket 478 SiS 648 ATX Intel Motherboard

OPEN BOX Product Type
  • SiS 648
  • Pentium 4 / Celeron
  • DDR 333
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Please note that this product is non-returnable and non-refundable.
Specs

Learn more about the OLEVIA S648

Model
Brand SYNTAX
Model S648
Supported CPU
CPU Socket Type Socket 478
CPU Type Pentium 4 / Celeron
FSB 533/400 MHz
Supported CPU Technologies Hyper-Threading Technology
Chipsets
Chipset SiS 648
South Bridge SiS 963
Onboard Video
Onboard Video Chipset None
Memory
Number of Memory Slots 3x184pin
Memory Standard DDR 333
Maximum Memory Supported 3GB
Expansion Slots
AGP Slots 1 x AGP 4X / 8X
PCI Express x16 None
PCI Slots 5 x PCI Slots
Other Slots 1 x CNR
Storage Devices
PATA 2 x ATA100 4 Dev. Max
Onboard Audio
Audio Chipset AC97 Codec
Audio Channels 6 Channels
Onboard LAN
LAN Chipset RealTek RTL8100B
Max LAN Speed 100Mbps
Rear Panel Ports
Back I/O Ports 2 x PS/2 / 2 x USB 2.0/1.1
PS/2 2
COM 2
LPT 1
USB 1.1/2.0 2 x USB 2.0
Game/MIDI Ports 1
Audio Ports 3 Ports
Internal I/O Connectors
Onboard USB 4 x USB 2.0
Physical Spec
Form Factor ATX
Dimensions (W x L) 12.0" x 9.6"
Features
Features Award 2Mb Flash EEPROM
Supports Plug and Play 1.0A, AMP 1.2, multi boot, DMI
Support ACPI V1.0 specification
Additional Information
First Listed on Newegg May 06, 2004
