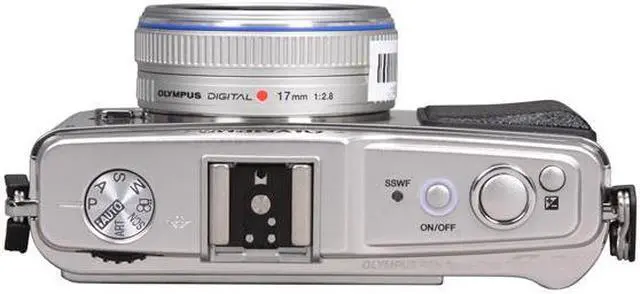

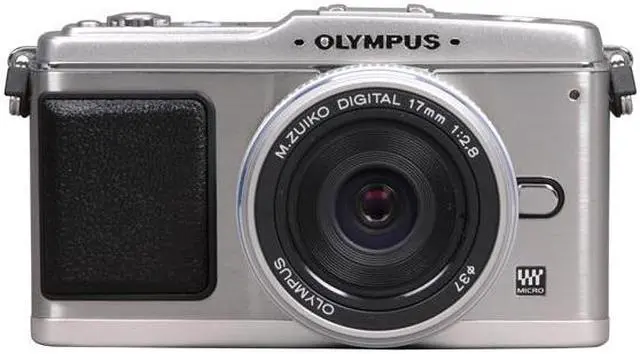

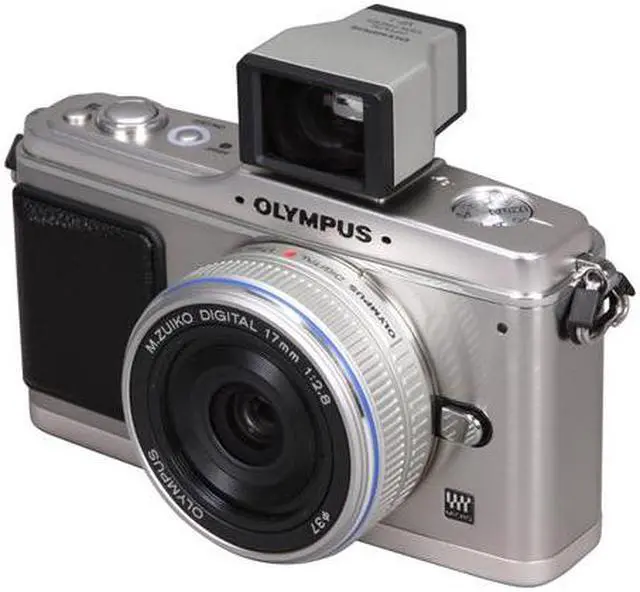

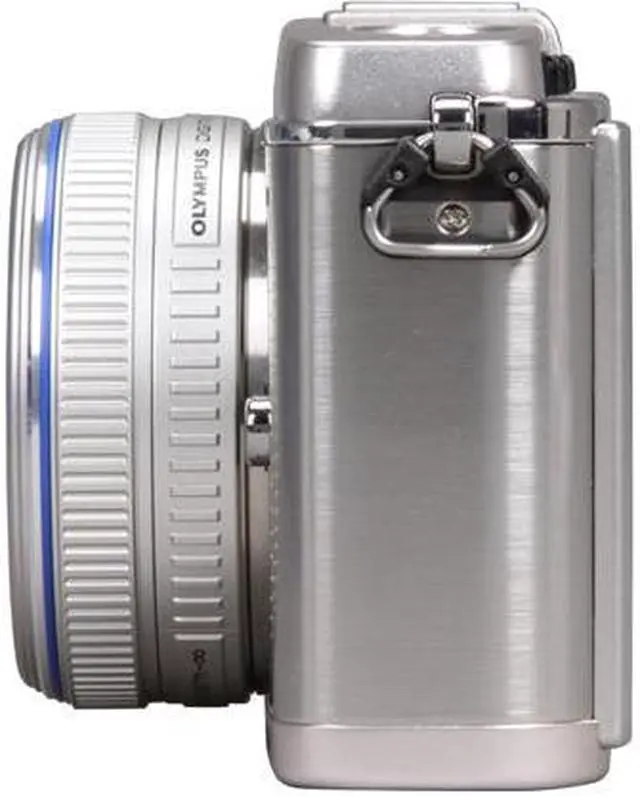

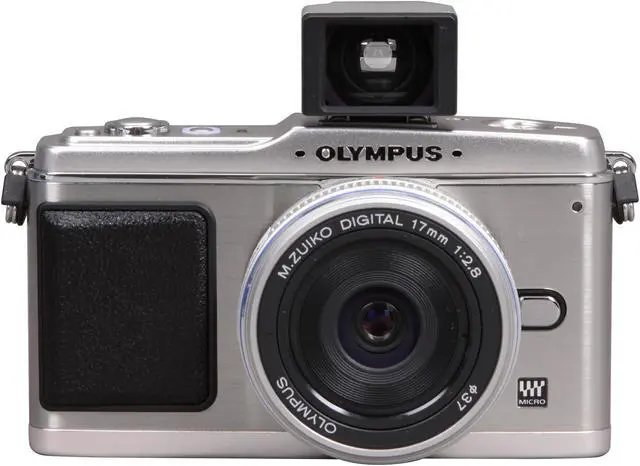

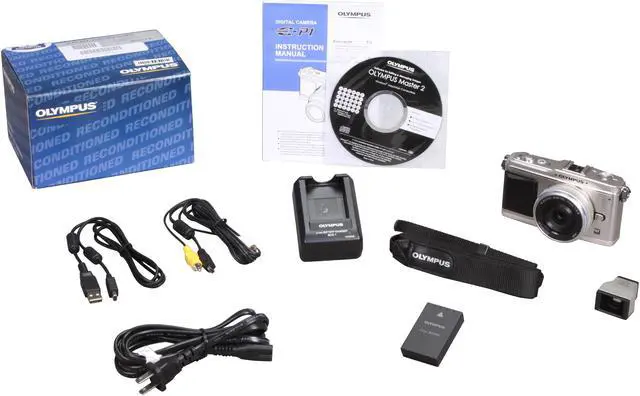

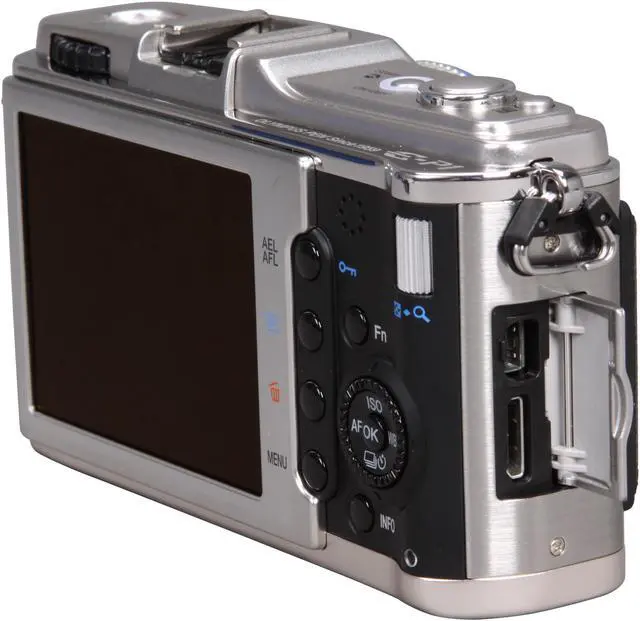

OLYMPUS PEN DIGITAL E-P1 Silver 12.3 MP 3.0" 230K LCD Interchangeable Lens Live View Digital Camera w/ M.ZUIKO DIGITAL 17mm f/2.8 Lens and Optical Viewfinder
REFURBISHED Product Type
- Live MOS 12.3 MP
- TruePic V
- 3.0" 230K LCD
- 1280 x 720
- AUTO: ISO 200 - 6400(customizable, Default 200-1600) Manual ISO 100 - 6400, 1/3 or 1 EV steps, Movie ISO 160-1600
- Micro Four Thirds Mount
Specs
Reviews (1)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Olympus America Inc. PEN DIGITAL E-P1
| Color | Silver |
|---|
| Brand | OLYMPUS |
|---|---|
| Model | PEN DIGITAL E-P1 |
| Package Type | Single Lens Kit |
|---|
| Image Sensor | Live MOS |
|---|---|
| Image Sensor Size | 17.3 mm (H) x 13.0 mm (V) |
| Gross Pixels | Approx. 13.1 MP |
| Effective Pixels | 12.3 MP |
| Aspect Ratio | 4:3 (Horizontal:Vertical) |
| Color Filter System | Primary color filter (RGB) |
| Dust Cleaning System | Supersonic Wave Filter (dust reduction system for image sensor) |
| Image Stabilization | Built in (Imager shift image stabilizer) |
| Image Processor | TruePic V |
| Resolution | 4032 x 3024 |
| White Balance | 8 settings (3000K - 7500K) Lamp (3000K), Fluorescent 1 (4000K), Fluorescent 2 (4500K), Fluorescent 3 (6600K), Daylight (5300K), Flash (5500K), Cloudy (6000K), Shade (7500K) |
|---|
| Viewfinder Type | No built-in Viewfinder |
|---|

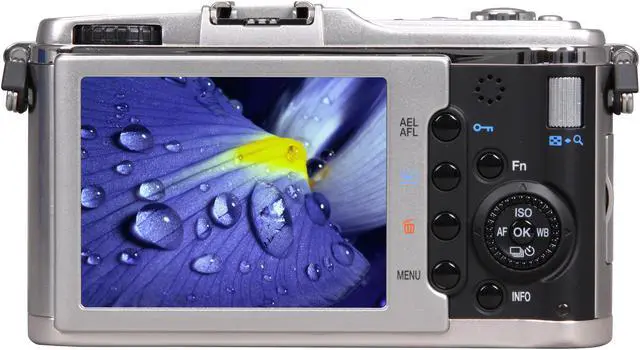

| LCD | 3.0" 230K |
|---|---|
| LCD Coverage | 100% |
| Brightness Adjustment | +7 levels and -7 levels |
| Focus Type | Imager Contrast Detection AF system |
|---|---|
| Focusing Modes | Single AF (S-AF) / Continuous AF (C-AF) / Manual Focus (MF) / S-AF + MF |
| AF Points | 11-area multiple AF with the contrast detection system (Auto, selectable in option) |
| Focus Lock | Locked at first position of Shutter button in Single AF mode |
| Exposure Control | (1) i Auto (2) P: Programme AE (Programme shift can be performed) (3) A: Aperture priority AE (4) S: Shutter priority AE (5) M: Manual (6) Scene select AE (7) Art Filter (Pop Art, Soft Focus, Pale&Light Color, Light Tone, Grainy Film, Pin Hole) |
|---|---|
| Exposure Compensation | ±3 EV in 1/3, 1/2, 1 EV steps selectable |
| Metering System | TTL Image Sensor metering system (1) Digital ESP metering (324-area multi pattern metering) (2) Center weighted average metering (3) Spot metering (approx. 1% for the viewfinder screen. Highlight / shadow bases are available) |
| ISO Sensitivity | AUTO: ISO 200 - 6400(customizable, Default 200-1600) Manual ISO 100 - 6400, 1/3 or 1 EV steps, Movie ISO 160-1600 |
| Shutter Type | Computerized focal-plane shutter |
|---|---|
| Shutter Speed | 60 - 1/4000 sec. Bulb: up to 30 min. (selectable longest time in the menu. Default: 8 min) |
| Self-timer | 12 sec., 2 sec. (cancel available) |
| Remote Control Support | Yes (with optional RM-UC1 Remote cable.) |
| Flash Type | No built-in Flash |
|---|---|
| External Flash | Compatible E-system Flash (FL-50R, FL-36R, FL-50, FL-36, FL-20, FL-14) |
| Drive Modes | Single-frame shooting, Sequential shooting, Self-timer |
|---|---|
| Continuous Shooting Speed | Approx. 3 frames/sec. in sequential shooting |
| Maximum Burst | RAW mode: Max. 10 frames. |
| Scene Modes | Portrait, Landscape, Macro, Sport, Night + Portrait, Children, High Key, Low Key, DIS mode, Nature, Documents, Panorama, Beach & Snow |
|---|---|
| Color Mode | Vivid, Natural, Portrait, Muted, Monotone |
| Live View Function | Image Sensor(High Speed Live MOS) type Field of view: 100% Display Mode: Normal Mode, Grid Line Mode, Histogram Mode(3 types), Magnified View Mode, Comparable View Mode, OFF Mode (for OVF user) Magnification Ratio: x7, x10 View finder information: Aperture value, Shutter speed, Auto Bracket, AE Lock, AF mode, IS, Shooting Mode, Battery Check, My Mode, Internal Temperature Warning, Face Detection, Histogram, Number of storable still pictures, Record mode, ISO, Sequential shooting, Self-timer, White Balance, Metering Mode, AF confirmation mark, Exposure Compensation Value, Spot metering Area; Only when E-system Flash attached : Flash Mode, Flash Status, Flash intensity Control, Super FP AF: High speed imager AF |
| Playback | Single-frame, Information Display, Index Display(4/9/16/25/49/100 frames, Calendar), Close-up (2 - 14X), Movie (w/sound, FF/REW/Pause), Picture rotation (auto mode available), Slideshow(Still/Movie/Still+Movie, Slide show w/BGM/BGM+Sound/Sound) |
| File Format | DCF, DPOF compatible/Exif, PRINT Image Matching III |
|---|---|
| Image Type | RAW (12-bit lossless compression), JPEG, RAW+JPEG |
| Color Space | sRGB, Adobe RGB |
| Recording Media | SD / SDHC Card (Class 6 is recommended for Movie shooting) |
| Movie Format | AVI Motion JPEG |
|---|---|
| Movie Recording | HD: 1280 x 720 Aspect 16:9 SD: 640 x 480 Aspect 4:3 Maximum Recording Time: HD: 7min, SD: 14min File Size: Max. 2GB (limited by AVI format) |
| Max. Recording Resolution | 1280 x 720 |
| Lens Mount | Micro Four Thirds Mount |
|---|
| USB | Yes |
|---|---|

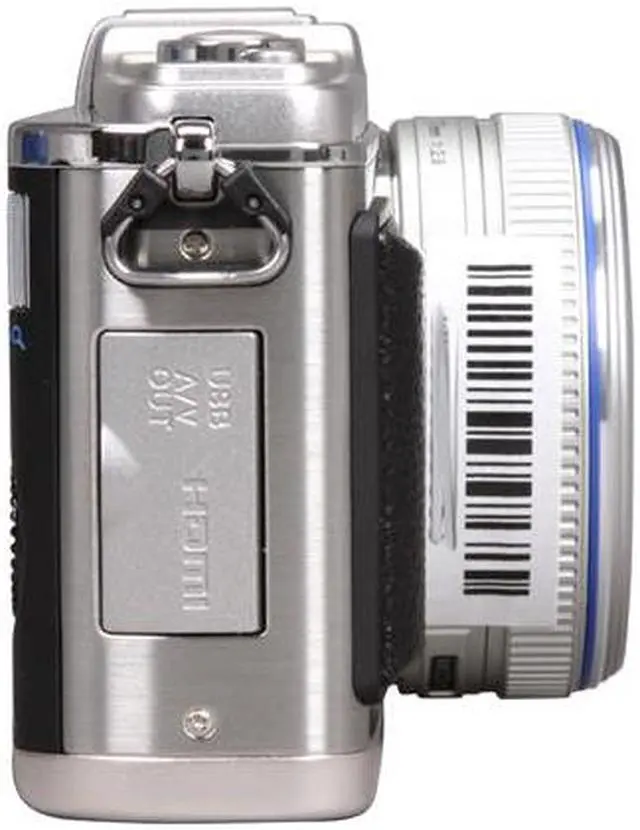

| HDMI | Mini HDMI type-C |

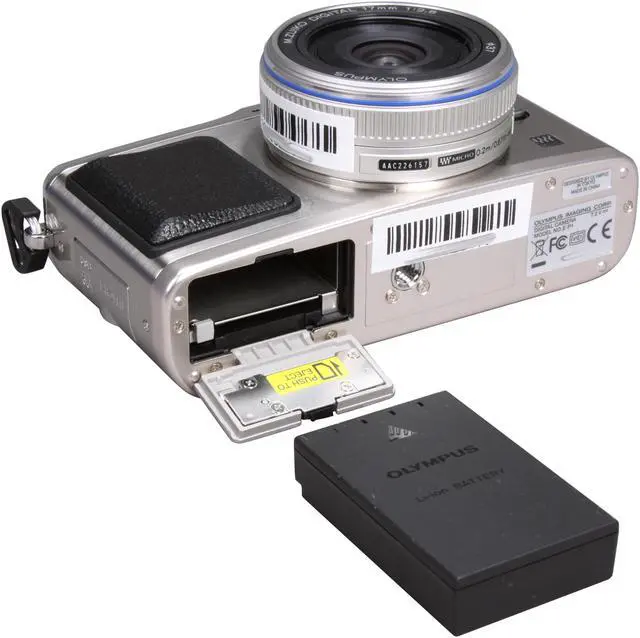

| Battery | BLS-1 Li-ion battery |
|---|
| Dimensions | 120.6 mm x 69.9mm x 36.4 mm (excluding protrusions) / 4.75" x 2.75" x 1.43" |
|---|---|
| Weight | 335g (body only) / 0.74 lbs. |
| First Listed on Newegg | March 04, 2010 |
|---|
